MP-SD-HD2
The MP-SD-HD2 specializes in converting an SDI input signal to an HDMI or DVI output signal, and it can transmit a digital audio signal via the optical fiber. Integrated with a 3G/HD/SD receiver and an HDMI encoder, MP-SD-HD2 can turn the 3G/HD/SD signal to HDMI/DVI signal easily. At the same time, MP-SD-HD2 canseparate the audio signal from the 3G/HD/SD signal, and send it to the HDMI output port, which makes the sound perfectly synchronize with the images.MP-SD-HD2 is a green, low-energy consumption product that deserves owning it. It hasa good application in different places, including the classroom, small meeting room, lecture hall, bar, pub, etc.
Features
- HDTV compatible with High Definition Transmission resolution up to 1920*1080 (max).
- Bandwidth: 2.97Gbps
- With one analog audio output and one SPDIF (digital audio) output, which is transmitted via the optical fiber
- Support with different SDI modes: including 3G, HD, and SD.
- The output signal can be set to an HDMI/DVI signal.
- Supports various output resolutions.

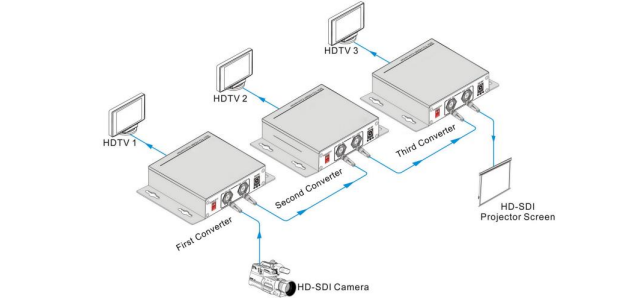

- Looping output function is supported
- Supports fault diagnosis and local monitoring, with LEDs indicating the real-time running state.
- Full aluminum metal jacket, fits for wall mounting or desktop mounting.
Powered by Froala Editor
Specification
| Input | 1 SDI | Output | 1 SDI, 1 HDMI |
| Input Connector | 1 BNC | Output Connector | 1 BNC 1 HDMI Female |
| Input Signal | SD/HD/3G SDI | Output Signal | SD/HD/3G SDI HDMI/DVI |
| Resolution Range | 1080P, 1920*1080; 1080I,1920*1080; 720P, 1280*720; 480I (NTSC),576I (PAI | Maximum Data Speed | 2.97Gbps |
| Input | 1 SDI | Output | 2 stereo audio 1 digital audio |
| Input Connector | 1 BNC | Output Connector | 1 RCA SPF fiber connector |
| Input Impedance | >10KΩ | Output Impedance | 50Ω/stereo, |
| Stereo Channel Separation | >80dB@1KHz | Frequency Response | 20Hz ~ 20KHz |
| Temperature | 20 ~ +70℃ | Humidity Power Consumption | 10% ~ 90% 65W |
| Case Dimension | W100 x H100 x D26 mm | Product Weight | 0.4Kg |
