MP-HT-4T

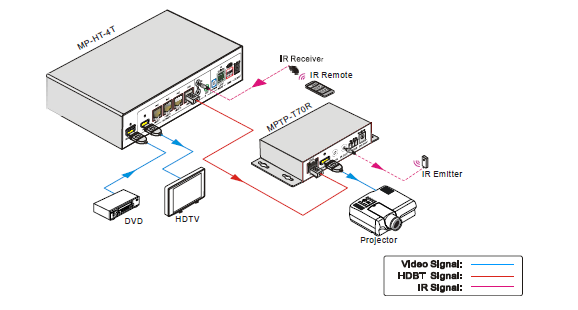

MP-HT-4T is an HDBT Splitter accepting 1 HDMI input and distributing to 4 HDBT outputs, plus 1 HDMI local output. The HDMI output socket can be used to monitor local devices or cascade with additional splitter. It allows uncompressed 4K (max) HDMI, IR, and RS232 signals to be transmitted over a single CAT5e/6/7 cable. It supports transmission of 4k signal up to 40m and 1080p signal up to 60m. If required, use the HDMI local output to cascade the HDMI signal up to 4 times with additional MP-HT-4T. It is also capable of bi-directional IR control, RS232 control, EDID management and PoC. HDMI Twisted Pair PoC Receiver is recommended to utilize the full function of the HDBT outputs of this device.
- Compliant with HDMI 1.4& 3D
- Transmit 4k x 2k signal up to 40m and 1080p signal up to 60m
- Support PoC
- Support bi-directional IR control and cascade control
- Support RS232 control and cascade control
- Real-time display of working status via LED indicators
- Support EDID configuration, 5 types in total
- Support cascading via HDMI OUT, IR Loop and RS232 Loop
Powered by Froala Editor
| Video Input/output | VESA and SMPTE 480p to 2160p(4K) With 3D Bit depth: 16, 20, 24 |
| Audio Input/output | All HDMI audio formats including Dolby D (TrueHD)/ DTS (HD-Master Audio)/ PCM Channel count: from 2-8 (2.0 to 7.1) Sample rates: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz |
| Power Supply | DC 24V 2.5A |
| HDBT | 60m (196feet) with HDMI video, RS232 & IR control, PoC supports HDMI Twisted Pair PoC Receiver / MPTP-T100SR |
| Control | RS232 & IR Full function pass though; RS232 port ID selectable for cascading; |
| Dimensions | 220 x 148 x 44mm (half rack wide) |
| Raw Materials | Aluminum chassis |
| Installation | Standard Rack size, provide removable ears for mounting under table, or on wall |
