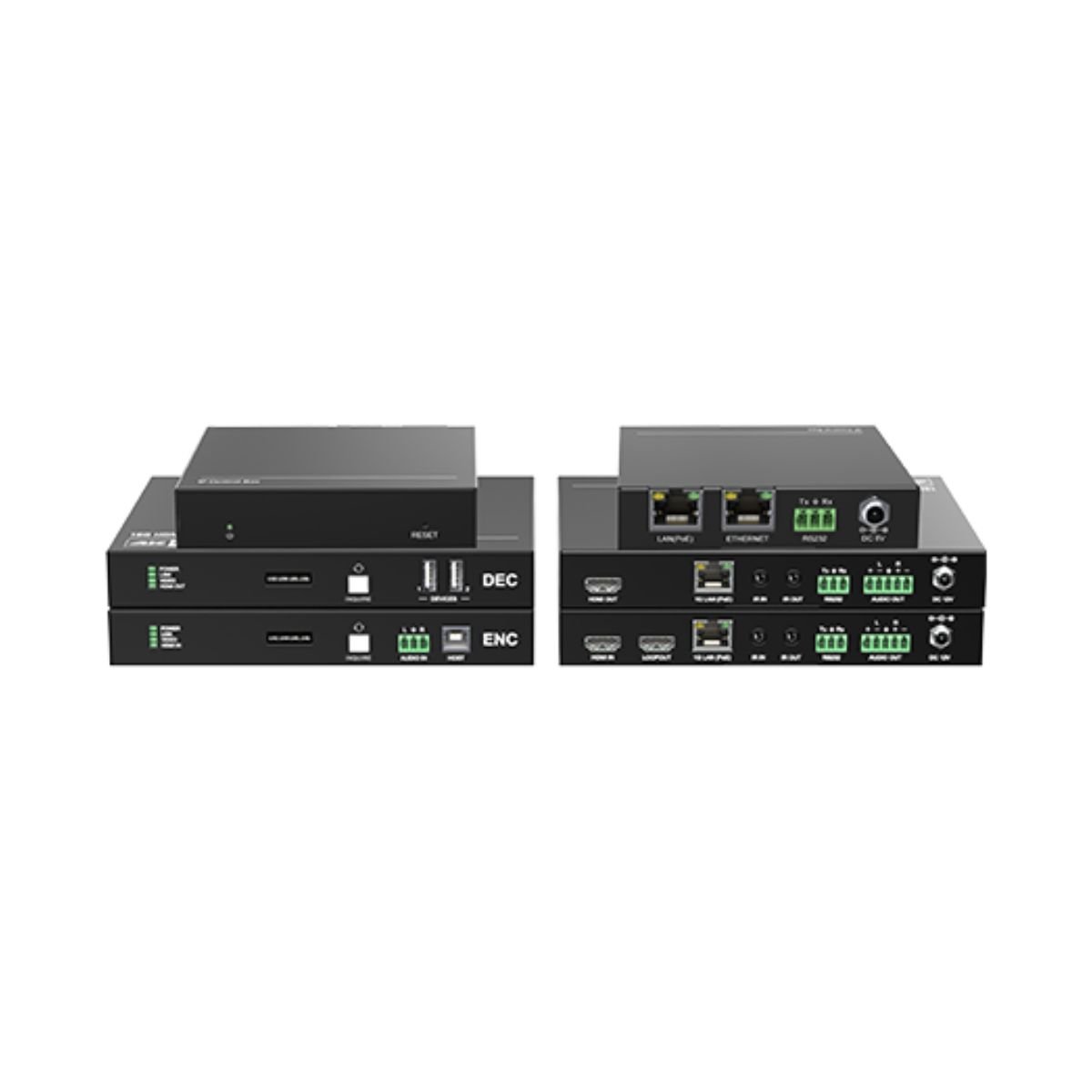

MP-IP500

Streams 4K video with 1 frame latency
Supports HDMI video resolution up to 4K60Hz 4:4:4 8bit
Transports RS232 and IR signal to any units
Support s Video Wall mode up to 9 x 9 screens
Selectable output resolutions up to 4K scaling ability
Additional 3 pin terminal block for audio embedding
IP control box for TCP/IP control

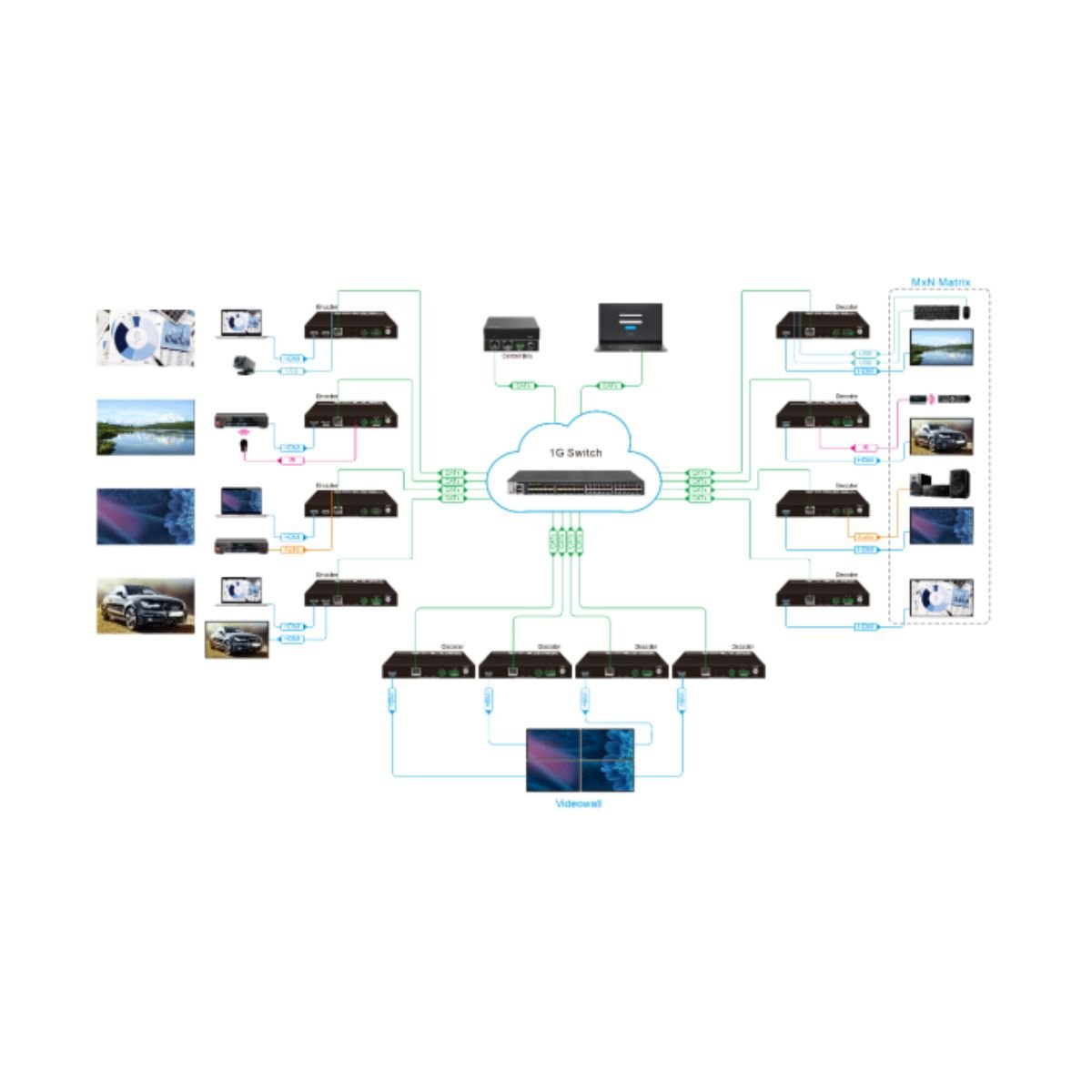

MP-IP500 is a network AV extender with an HDMI encoder and decoder up to a resolution of 4K60Hz 4:4:4, HDR. It is designed for HDMI transmission over an IP network with control signals at a distance up to 100m over CATx cable. It works with one control PC (Wake on IP control box ) and one 1GbE Switch to control a variety of functions. It provides one of the most advanced IP Streaming solutions on the market, utilizing Aspeed technology, which synergizes various IP/AV standards to work together as one. IT features 4K video with 1 frame latency from encoder to decoder, Video wall, 1G IR, RS232, etc. It is ideal for distributing AV over 1 Gigabit Ethernet in enterprises and other large-scale installations.

Video Input	(1) HDMI
Video Input Connector	(1) Type-A female HDMI
HDMI Input Resolution	Up to 4K60Hz 4:4:4 8bit
Audio Input	(1) Analog Audio In
Audio Input Connector	(1) 3-Pin terminal block
Video Output	(1) IP Stream (1) HDMI
Video Output Connector	(1) RJ45, (1) Type-A female HDMI
HDMI Output Resolution	Up to 4K60Hz 4:4:4 8bit
Audio Output	(1) IP Stream (1) De-embedding Output
