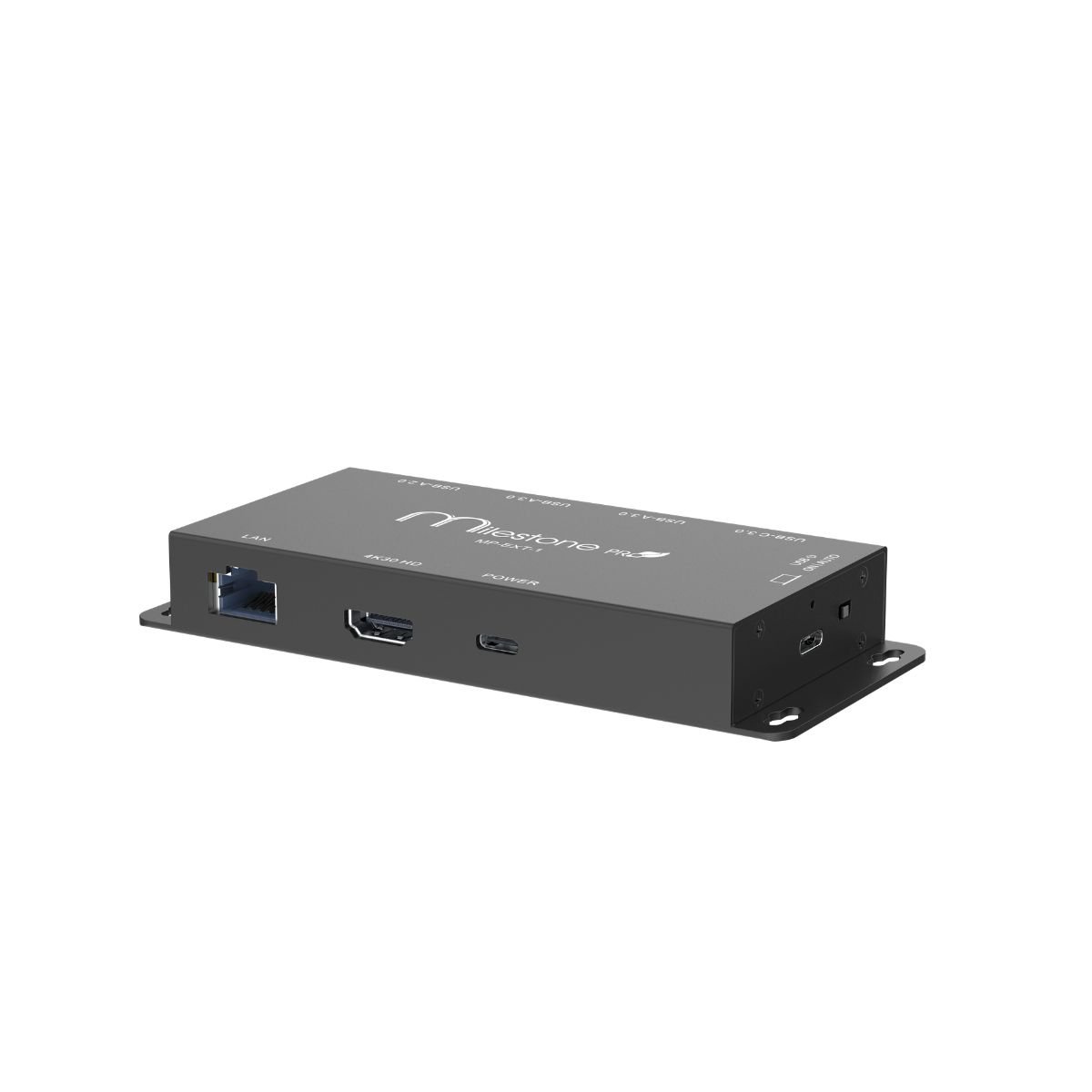

MP-EXT-1

Supports HDMI 1.4, 4K30Hz 4:4:4
USB-C input supports 100W power delivery
Supports USB3.2 Gen2 data transfer via USB-C
2 USB3.2 Gen 1 and 1 USB2.0 KVM for camera, keyboard, and mouse
Supports USB power management
Ethernet Gigabit LAN
Plug and Play

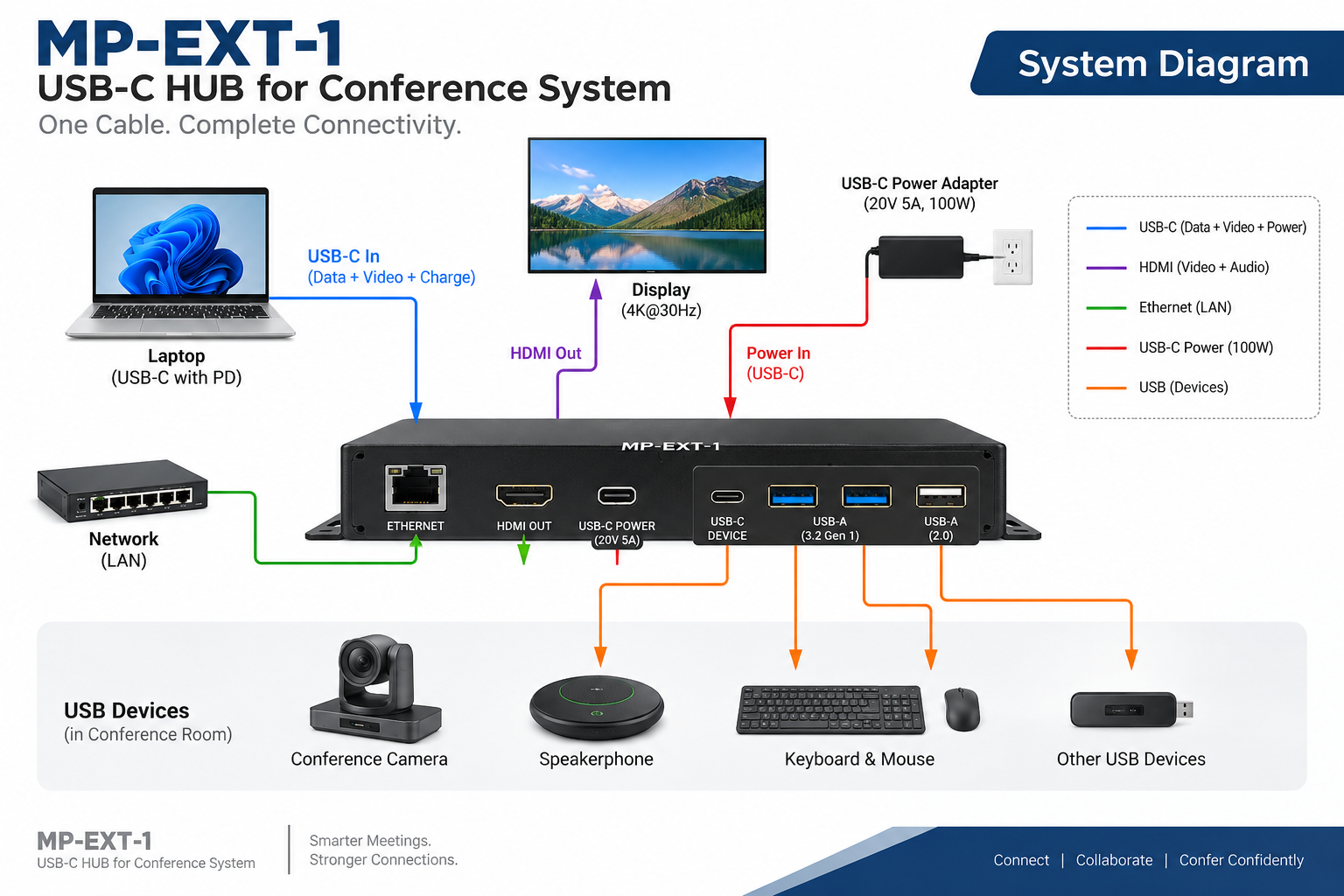

MP-EXT-1 is designed to be attached under the meeting desk and support all connections for a conference room. Simply connect a USB-C cable to your laptop, and the laptop will be charged. Connection gives full access to the USB devices in the room and delivers 4K video plus sound via the HDMI output. The LAN port gives a cable network connection to the laptop.

No diagram found.

No sidebar links found

Input	(1) USB
Input Connector	(1) USB-C
Input Resolution	Up to 4K60Hz 4:4:4
USB Standard	USB3.2 Gen2, 10Gbps
Output	(1) HDMI
Output Connector	(1) Female type-A HDMI
HDMI Output Resolution	Up to 4K30Hz 4:4:4
HDMI Standard	1.4

MP-EXT-1
