MP-TSC6K

ARM Cortex-A53 architecture 1.8Ghz main frequency
Android 11.0 system, 32GB EMMC FLASH, 4GB DDR4 RAM
1440*720 (2:1) resolution, capacitive touch screen, wall-in screen design (86x86mm wall box)
Compliant with industry standard network communication protocols
With 1x 100M network port, the highest rate up to 100M/bps
With 1x RS-232 port and 1x RS-485 port, reserved for development
Support Wi-Fi (2.4G + 5G)/Bluetooth 5.4
With 4x array microphone input, and stereo speaker output
With 1x light and distance sensor, reserved for development
With 1x temperature and humidity sensor, reserved for development
With 1x knob, reserved for development

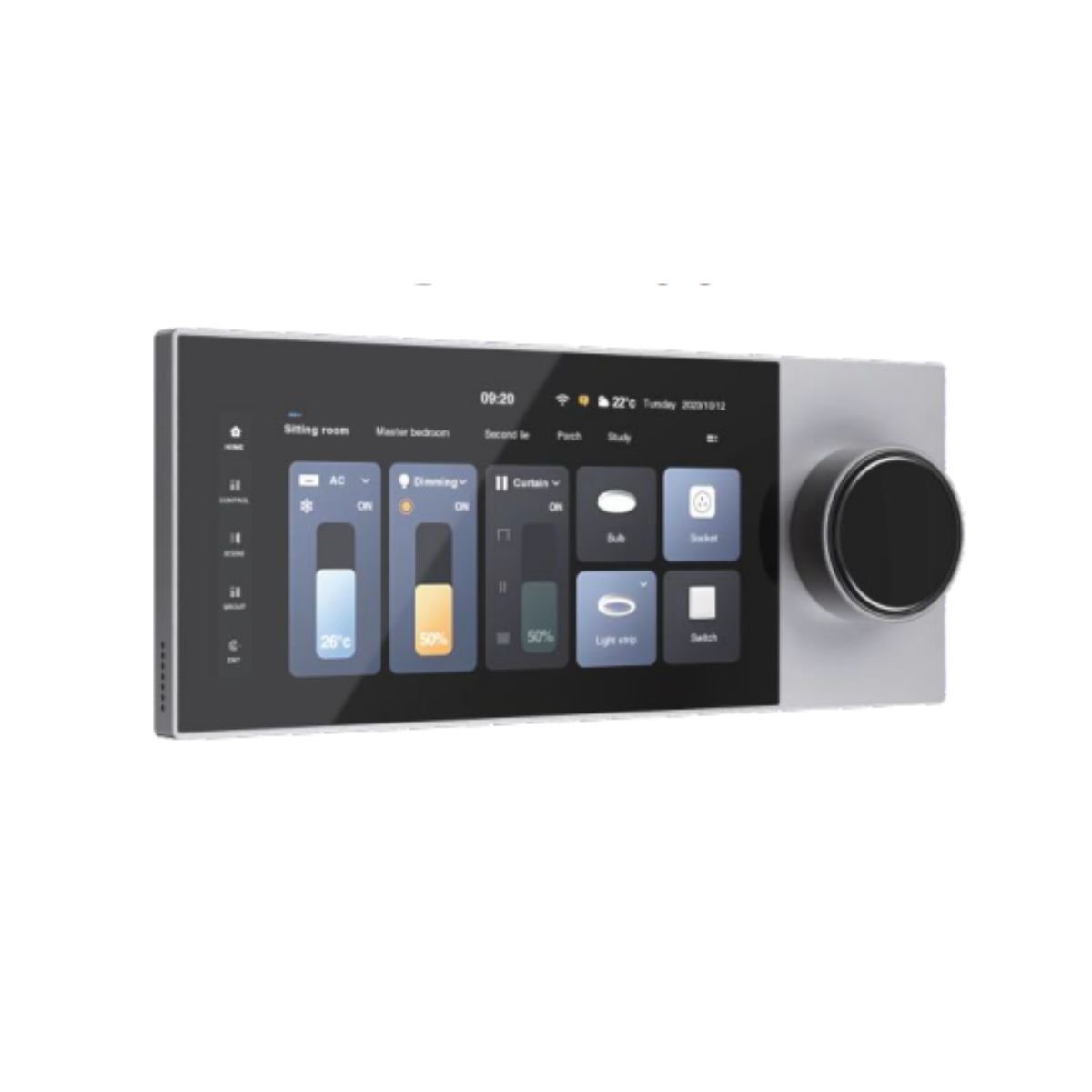

This Android touch screen control panel adopts ARM Cortex-A55 architecture, with a main frequency of up to 1.8Ghz. It is equipped with 32GB EMMC

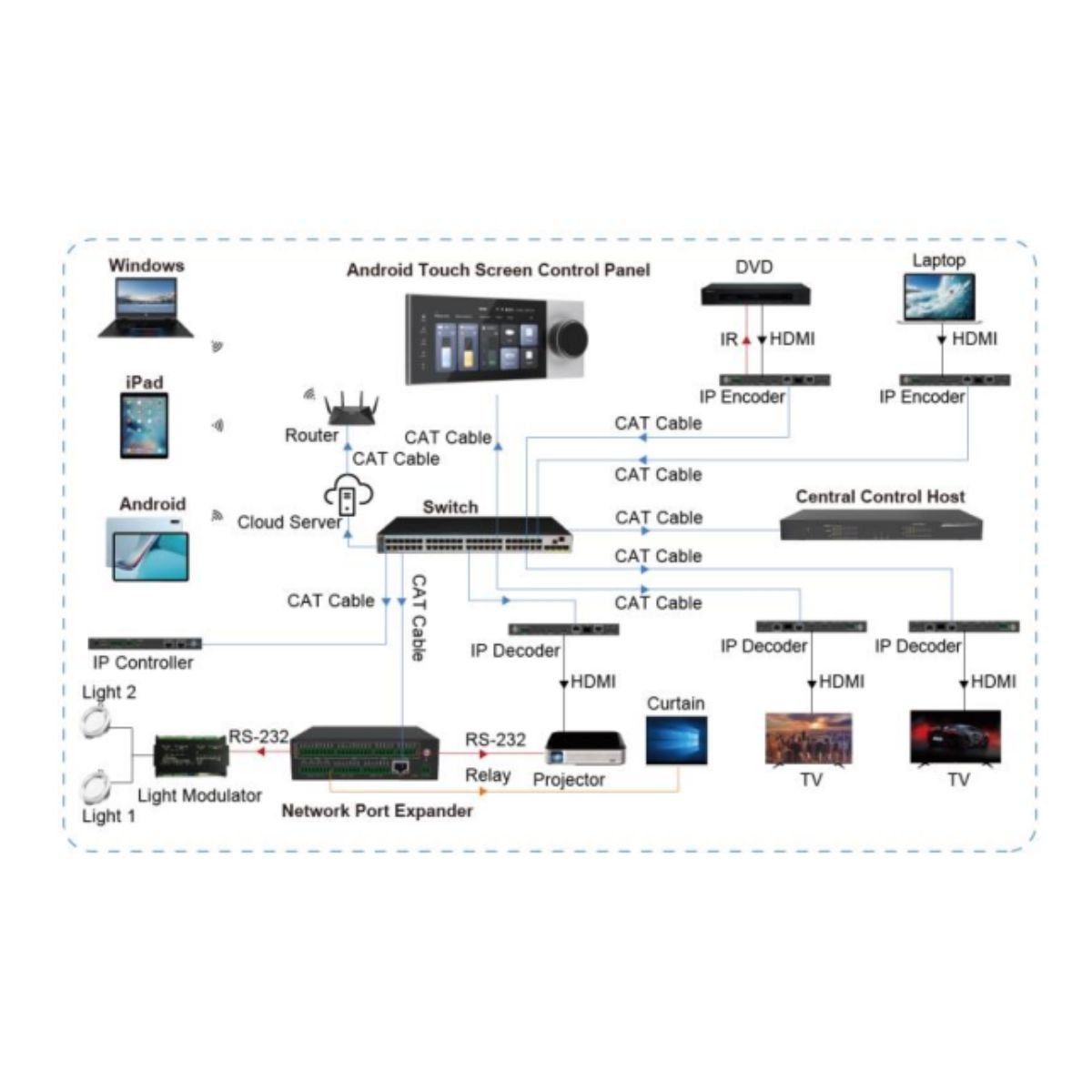

FLASH, 4GB DDR4 RAM, and Android 11.0 system. It is an open platform that supports the installation of third-party application APKs and secondary development adaptation. It can be widely used in multi-media conference rooms, multi-functional halls, training centers, exhibition centers, broadcasting studios, and other fields.

CPU	4-core ARM Cortex-A53 1.8GHz
Operation System	Android 11
RAM	4GB DDR4 RAM
Flash Memory	32GB EMMC FLASH
Resolution	1440*720
Touch Type	Capacitive Touch Screen
ESD Protection	IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
LAN/PoE	1x Standard 10M/100M Ethernet RJ45 port, supporting PoE function
DEBUG	1x Micro USB, for debugging or data transmission
RS-232	1x RS-232 port, reserved for APK secondary development
RS-485	1x RS-485 port, reserved for APK secondary development
POWER	1x Power port, DC 24V/1A power input port
Housing	Front Panel — Touch Screen; Rear Case — Plastic
Color	Front Panel — Black; Rear Case — Black
