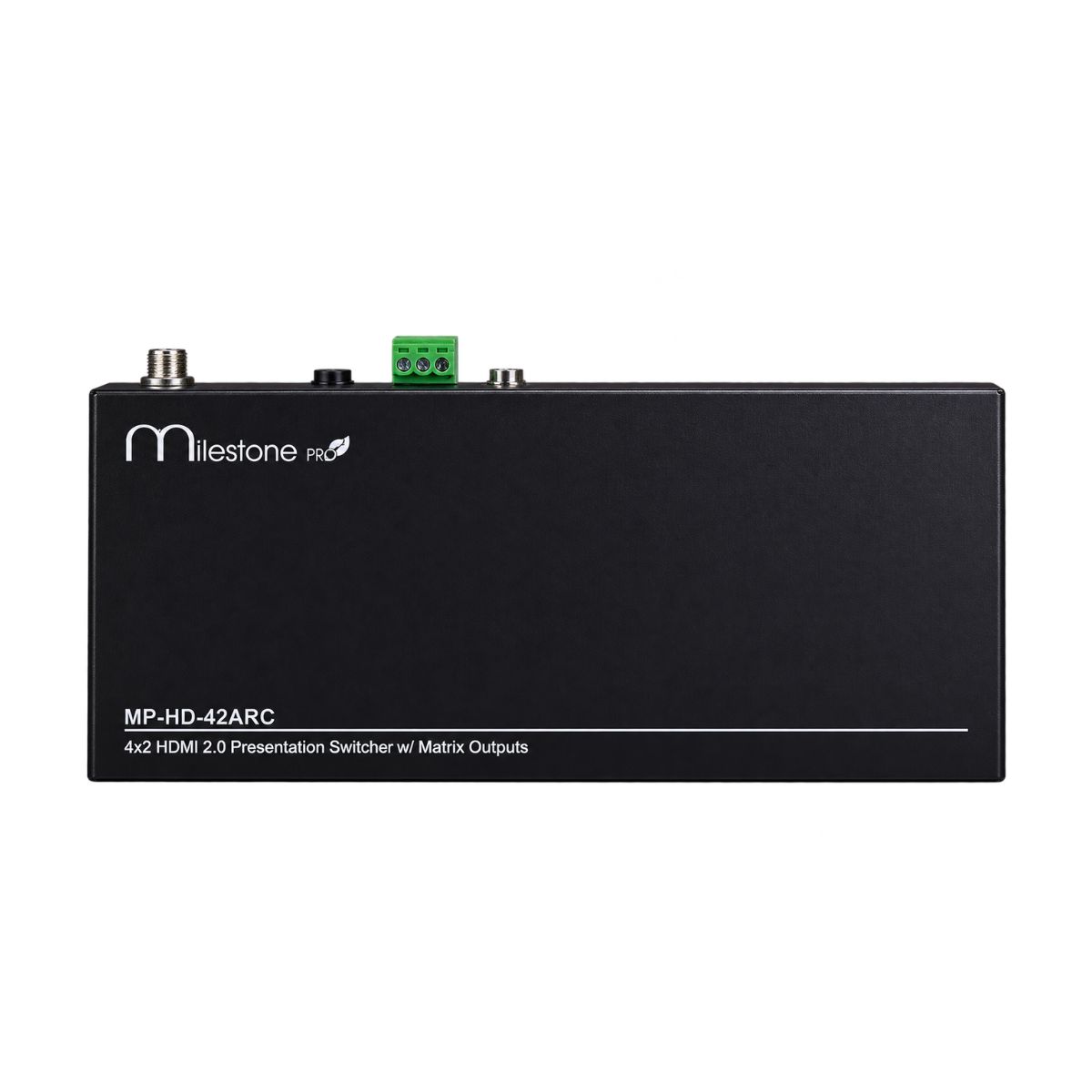

MP-HD-42ARC

4x2 HDMI presentation switcher with matrix outputs.
HDMI 2.0b, 4K60Hz 4:4:4 8bit, HDR 10, HDCP 2.2.
4K to 1080p down scaling.
SPDIF and 3.5mm output for dual HDMI OUT audio extraction and dual HDMI OUT ARC.
RS232, IR and TCP/IP control.
Smart EDID management.

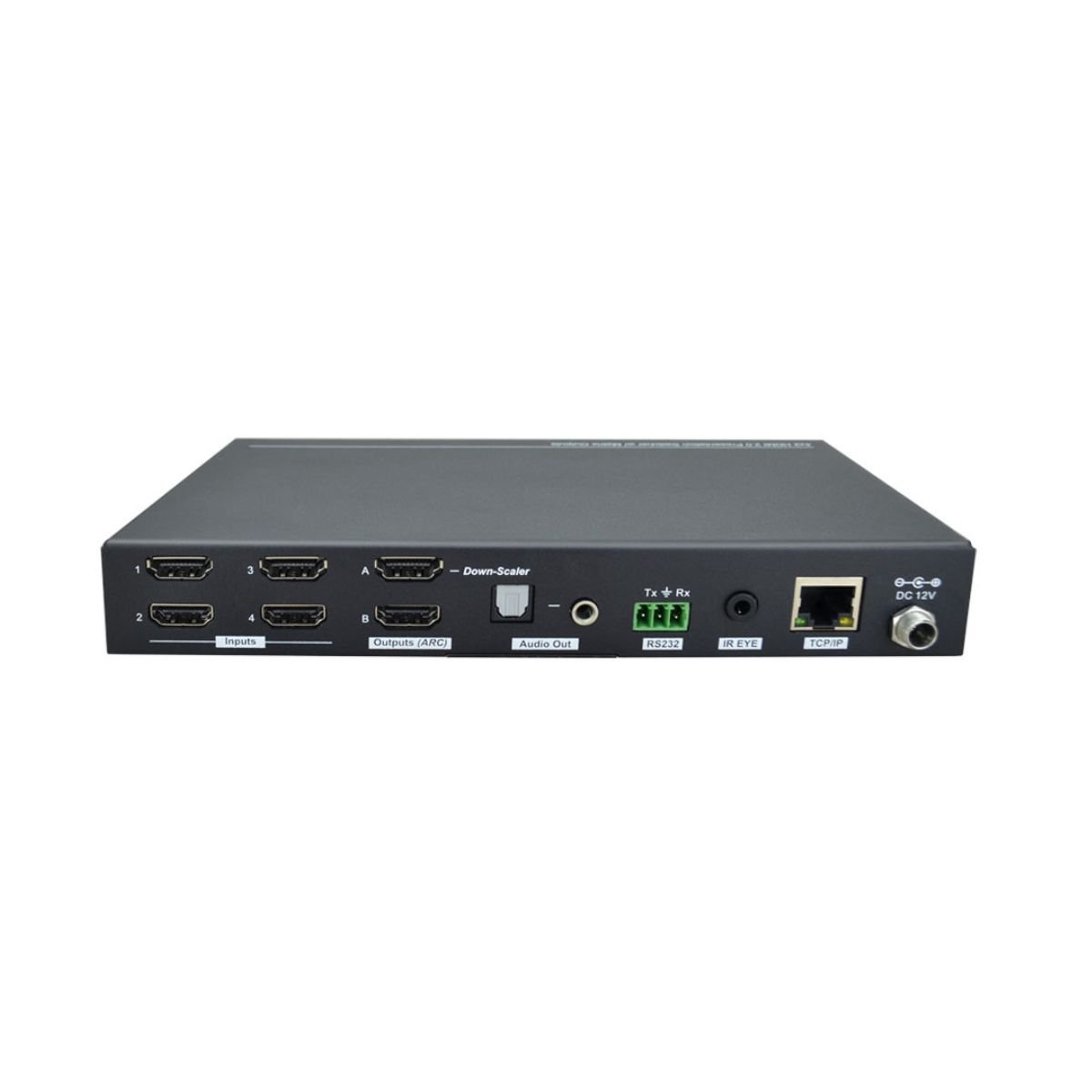

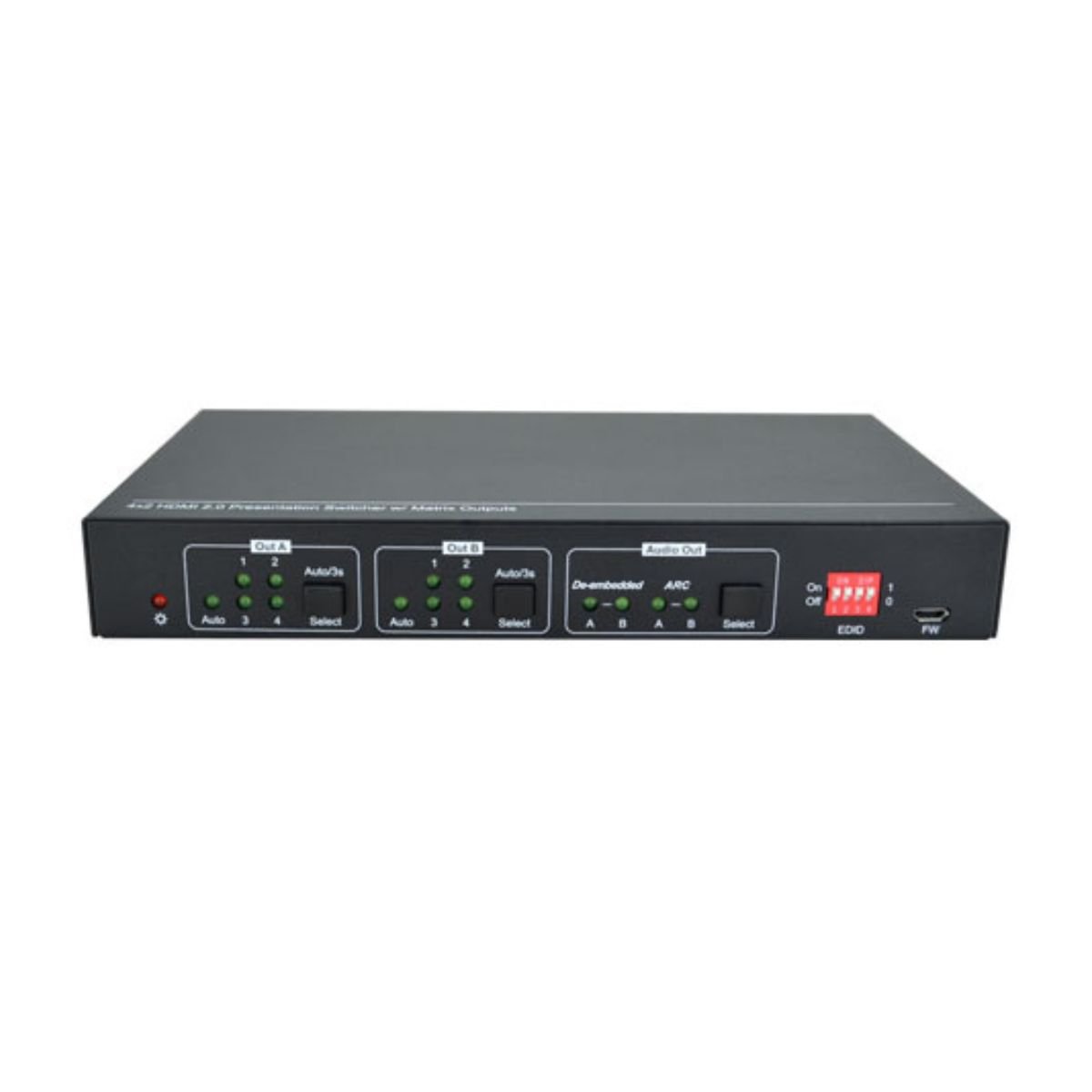

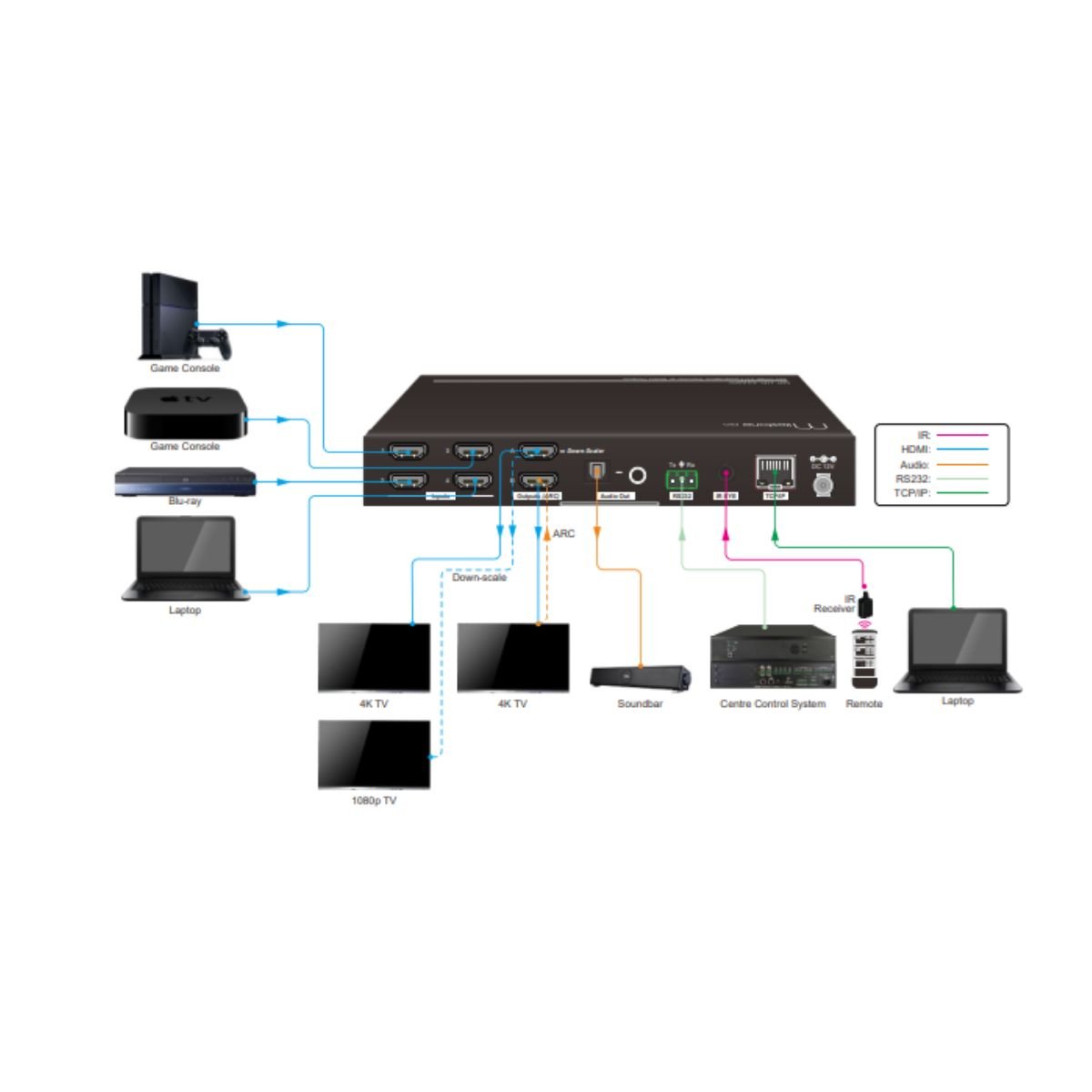

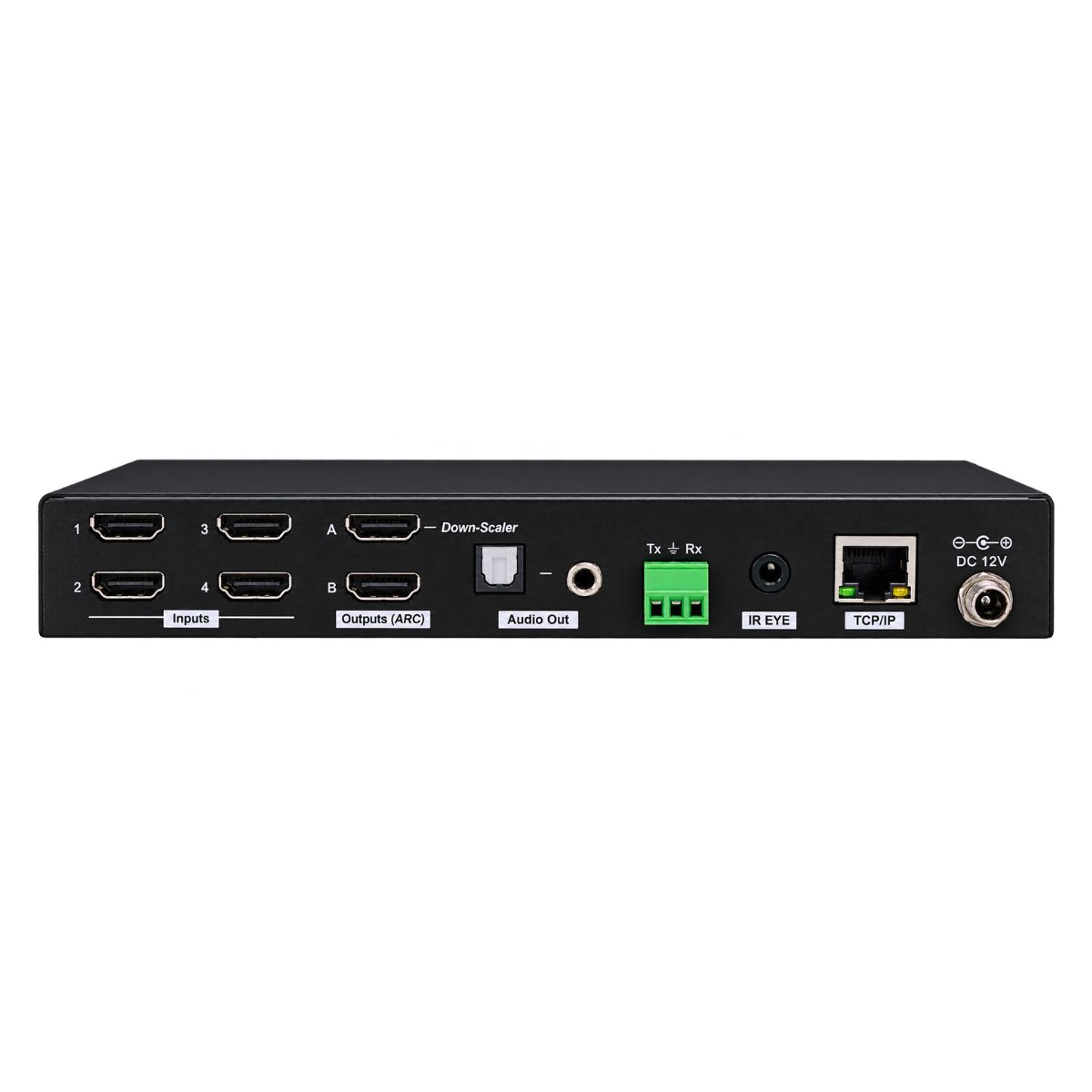

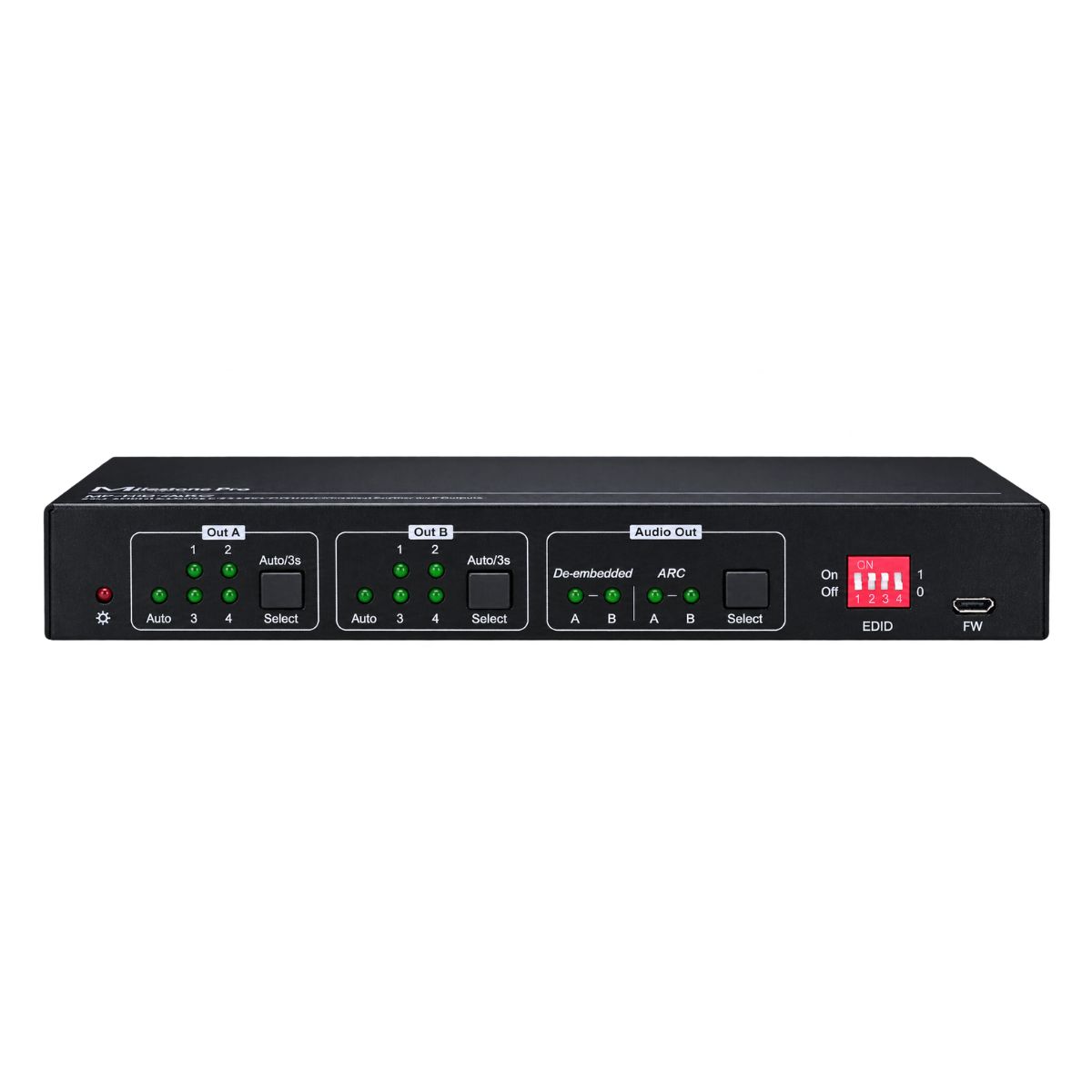

The MP-HD-42ARC is a 4×2 HDMI 2.0 presentation switcher with matrix outputs. The switcher consists of four HDMI inputs, two HDMI matrix outputs, and full HDMI 2.0 support The product offers SPDIF and 3.5mm output for dual HDMI OUT audio extraction and dual HDMI OUT ARC, along with 4K to 1080p downscaling functionality. It features a wide range of control flexibility via Web, RS232, IR, and smart EDID management.

Video Input	(4) HDMI
Video Input Connector	(4) Type-A female HDMI
Video Input Resolution	Up to 4K60Hz 4:4:4 8bit
HDMI Audio Format	Supports Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS-X, DTS-HD Master Audio, DTS 5.1, 2 - 8Ch PCM 32-192KHz 16-24 bits; 2 - 8Ch PCM 32-192kHz 16-24 bits.
HDMI Input Cable	4K60Hz 4:4:4 3 meters , other 5 meters
Video Output	(2) HDMI
Video Output Connector	(2) Type A Female HDMI
Video Output Resolution	OUT A: Up to 4K60Hz 4:4:4 8bit, HDR10, Dolby Vision, supports color space 4:2:2/4:2:0 to 4:4:4, 4K to 1080p down-scaling
HDMI Output Cable	≤ 5 meters
HDMI Version	Up to 2.0
HDCP Version	Up to 2.2
Audio Output	(1) Digital SPDIF audio
