MP-EDU-KIT

Switch freely between two HDMI signal inputs
HDMI output resolution up to 1920x120060HZ
Support HDCP1.4
Support MIC input
2x20 Watt4Ohm amplifier output.
Customizable Control Panel, support IR Learning
Read and write the data of IR Learning

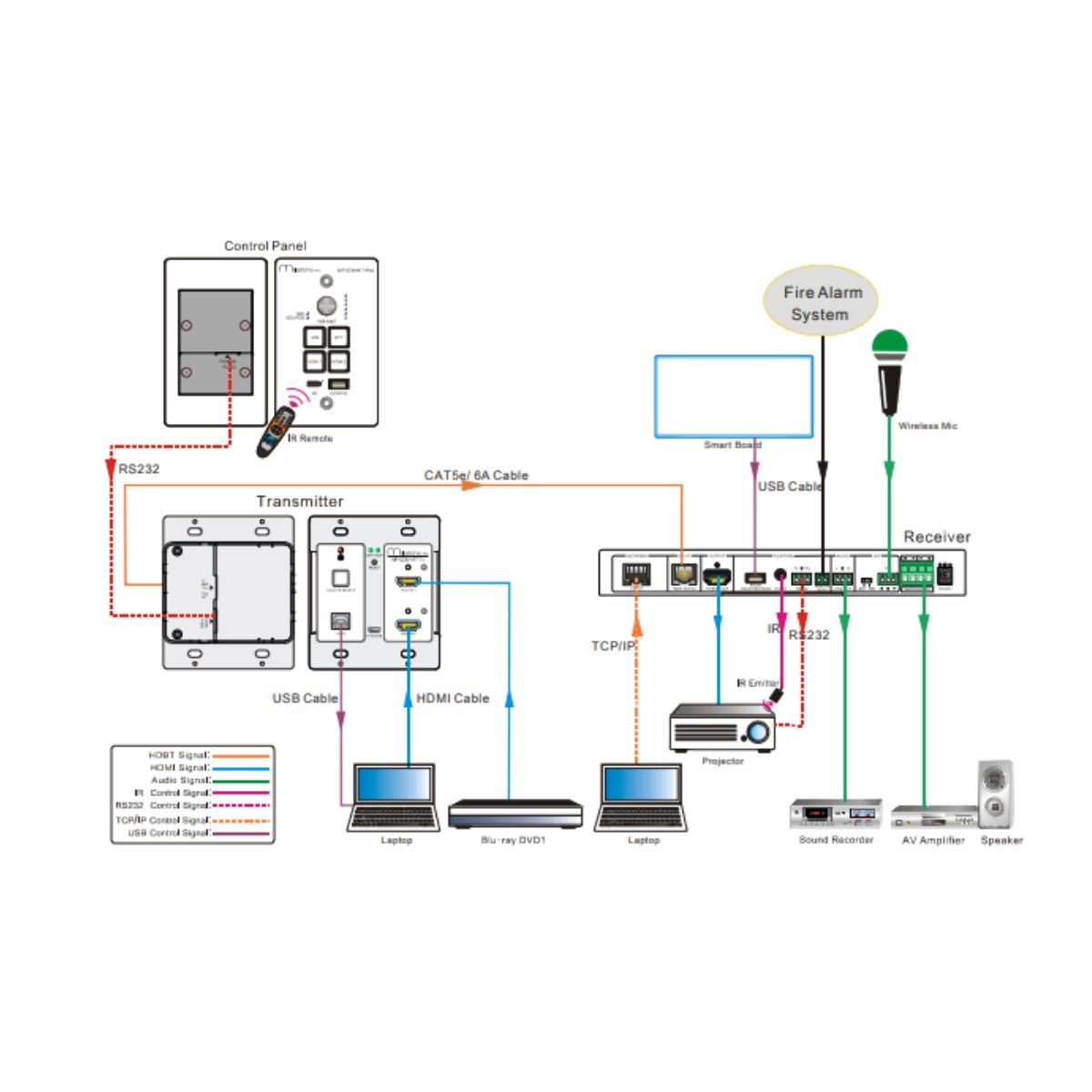

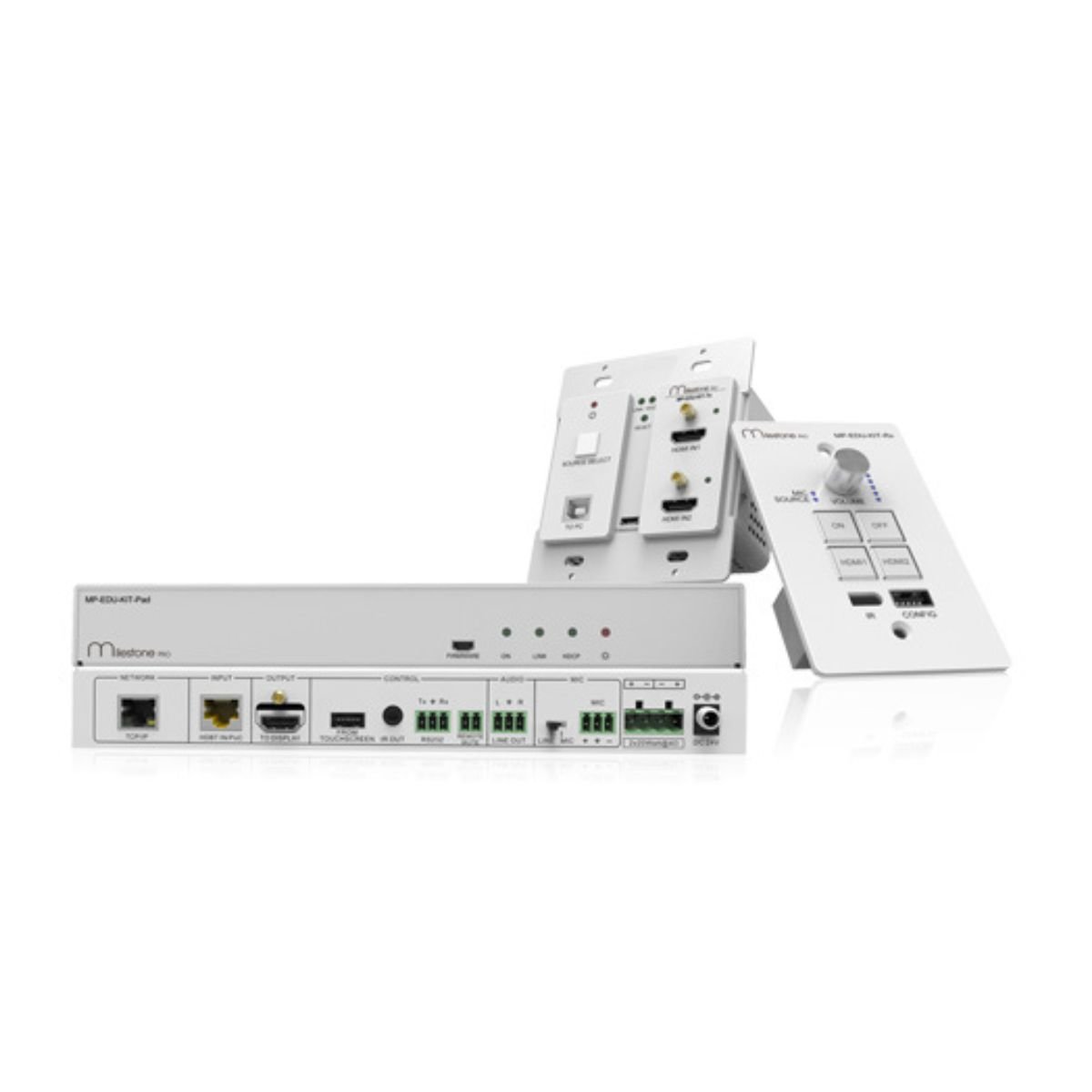

MP-EDU-KIT, designed to be used in educational schemes, consists of Scaler Wall Plate HDBaseT Transmitter, HDBaseT Receiver, and Control Panel. The transmitter provides two HDMI signal inputs, which support HDCP 1.4 and can be switched freely. It transmits an HDMI signal to the receiver via a CAT5e/CAT6a cable, and the maximum distance can up to 30m at 1920×120060HZ. The control panel is an easy-to-use control device for presentation showrooms, classrooms, and boardrooms. It has four buttons used to replace four common functions of the Remote Controller to control far-end devices, such as a projector. MP-EDU-KIT supports front panel button control and Web-based GUI control. Moreover, with its PoC solution, connect the DC adapter to the Receiver, Transmitter, and Control Panel, which are able to be energized synchronously.

Input Ports	2 x HDMI
Input Connectors	19-pin Type A HDMI female
Output Ports	1 x HDBT+Power
Control Ports	1 x USB 1 x Micro USB
Resolution	1920x1080 24/25/30/50/60Hz）,1920x1080 （50/60Hz, 1920x1080i （50/60Hz）,1600x900,1366x768,1280x720,1920x1200,1680x 1050，1440x900，1360x768,1280x800, 1600x1200,1400x1050， 1280x1204,1024x768，800x600,640x480
Deep Color	24-Bit at 1920x1080（24/25/30/50/60Hz）4:4:4; 48-Bit at 1920x1080（50/60Hz）4:4:4
Signal Extension	Up to 30 meters 1080p/60 via Cat5e/6a cable.
Bandwidth	10.2Gbps
HDMI Standard	Support HDMI1.4 and HDCP1.4
