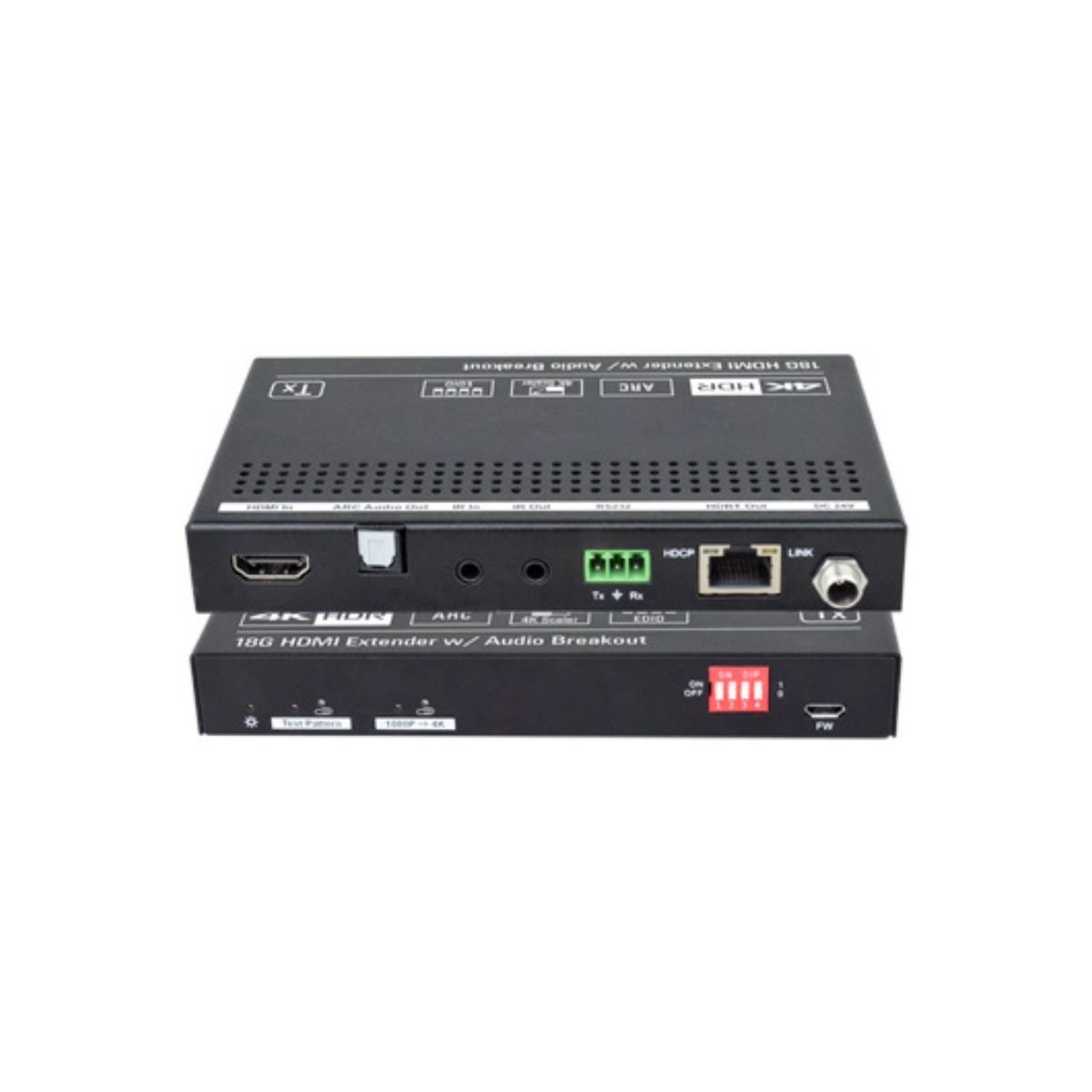

MPTP-T70SC-H2

Supports video resolution up scaling, the 1080P input can be automatically upgraded to 4K output.
SPDIF out on receiver for source audio de embedding.
18Gbps high bandwidth.
Advanced EDID management: multiple bui lt in EDID settings can be selected
Test patt ern provides a built in 4K/1080P image for troubleshooting.
Bidirectional IR, RS232 and 24V PoC.
Supports ARC.
Supports CEC pass through
Provides LEDs to indicate the current operating status.
Firmware upgrade by Micro USB port.

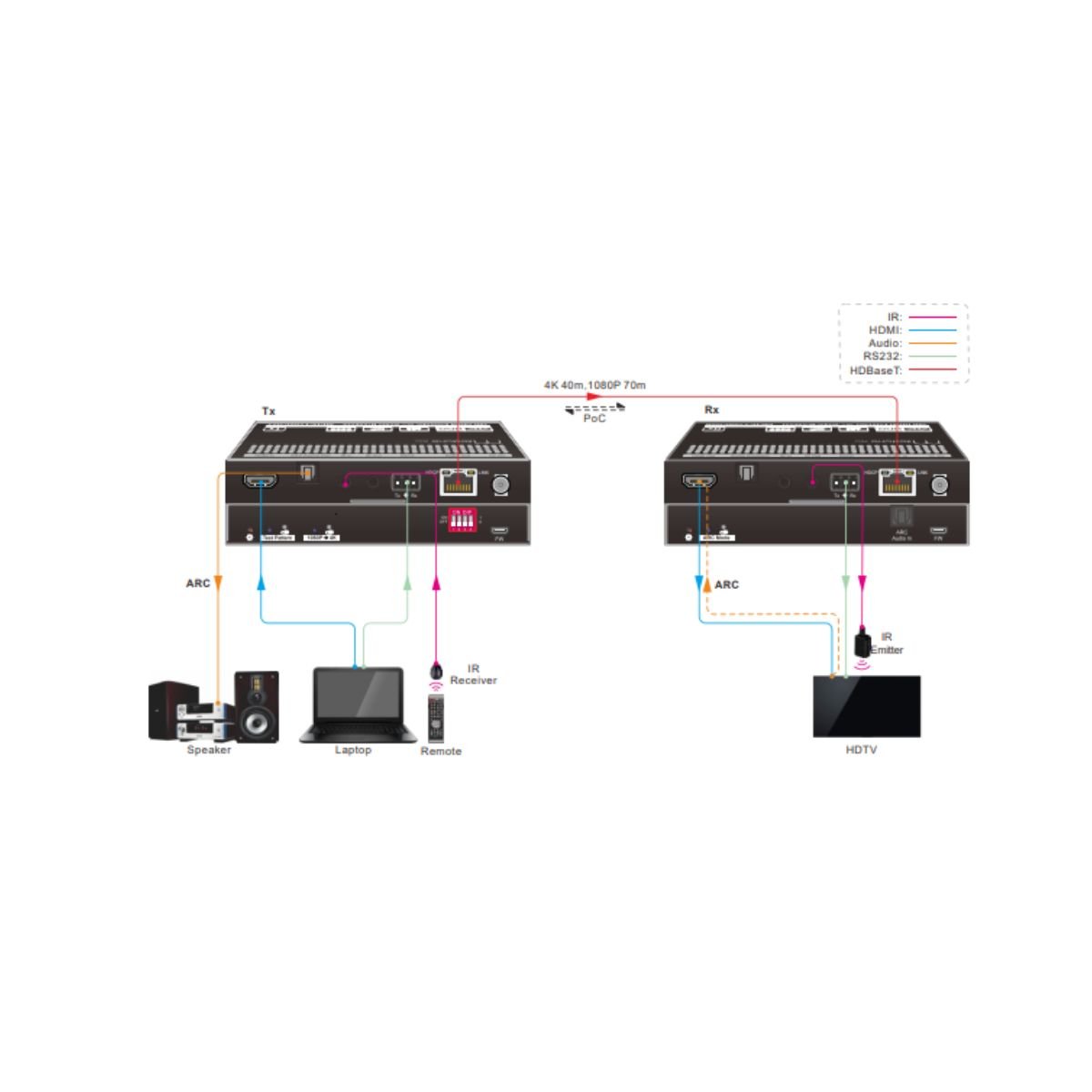

MPTP-T70SC-H2 HDMI is a 2.0 Extender, which consists of a transmitter and a receiver. It can extend 4K video to distances up to 131 feet (40 meters)and 1080P video to distances up to 230 feet (70 meters) over a single CATx cable. It supports audio de-embedding and ARC. It also supports bidirectional IR and RS-232 pass-through to control the source or display device remotely. PoC feature allows the transmitter and the receiver to be powered from each other, and only one power adapter is needed in the system. Besides passing EDID information from the display, there are multiple built-in EDID settings that can be selected by the 4-pin DIP switch on the front panel of the transmitter. Moreover, the extender supports convenient firmware upgrades through the Micro USB port.

Input	(1) HDMI	(1) HDBT
Input Connector	(1) Type-A female HDMI	(1) RJ45
Input Resolution	Up to 4Kx2K60Hz 4:4:4 8bit HDR10	Up to 4Kx2K60Hz 4:2:0
Output	(1) HDBT Out	(1) HDMI
Output Connector	(1) RJ45	(1) Type-A female HDMI
Output Resolution	Up to 4Kx2K60Hz 4:2:0	Up to 4Kx2K60Hz 4:4:4 8bit HDR10
Input	(1) ARC Audio In
Input Connector	(1) Toslink Connector
Output	(1) ARC Audio Out	(1) Audio Breakout
Output Connector	(1) Toslink c onnector	(1) Toslink connector
Audio Format	Supports PCM, Dolby Digital, Dolby True HD, DTS and DTS HD.
Frequency Response	20Hz – 20KHz, ±3dB
Max Output Level	2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line level sign
THD+N	< 0.05% (-80dB), 20Hz – 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level)
SNR	> 85dB, 20Hz-20 kHz bandwidth
Crosstalk Isolation	> 70dB, 10KHz sine at 0dBFS level (or max level before clipping)
L-R Level Deviation	< 0.3dB, 1KHz sine at 0dBFS level (or max level before clipping)
Frequency Response Deviation	< ± 0.5dB 20Hz - 20KHz
Output Load Capability	1K and higher (Supports 10x paralleled 10K loads)
Stereo Channel Separation	>70dB1KHz
Control Part	(1) Test Pattern button, (1)1080P → 4K button, (1) EDID 4 pin DIP switch, (1) FW, (1) IR In, (1) IR Out, (1) RS232(1) ARC Mode button, (1) FW, (1) IR In, (1) IR Out, (1) RS232
Control Connector	(1) Micro USB port, (2) 3.5mm jacks, (1) 3-pin terminal block	(1) Micro USB port, (2) 3.5mm jacks, (1) 3-pin terminal block
