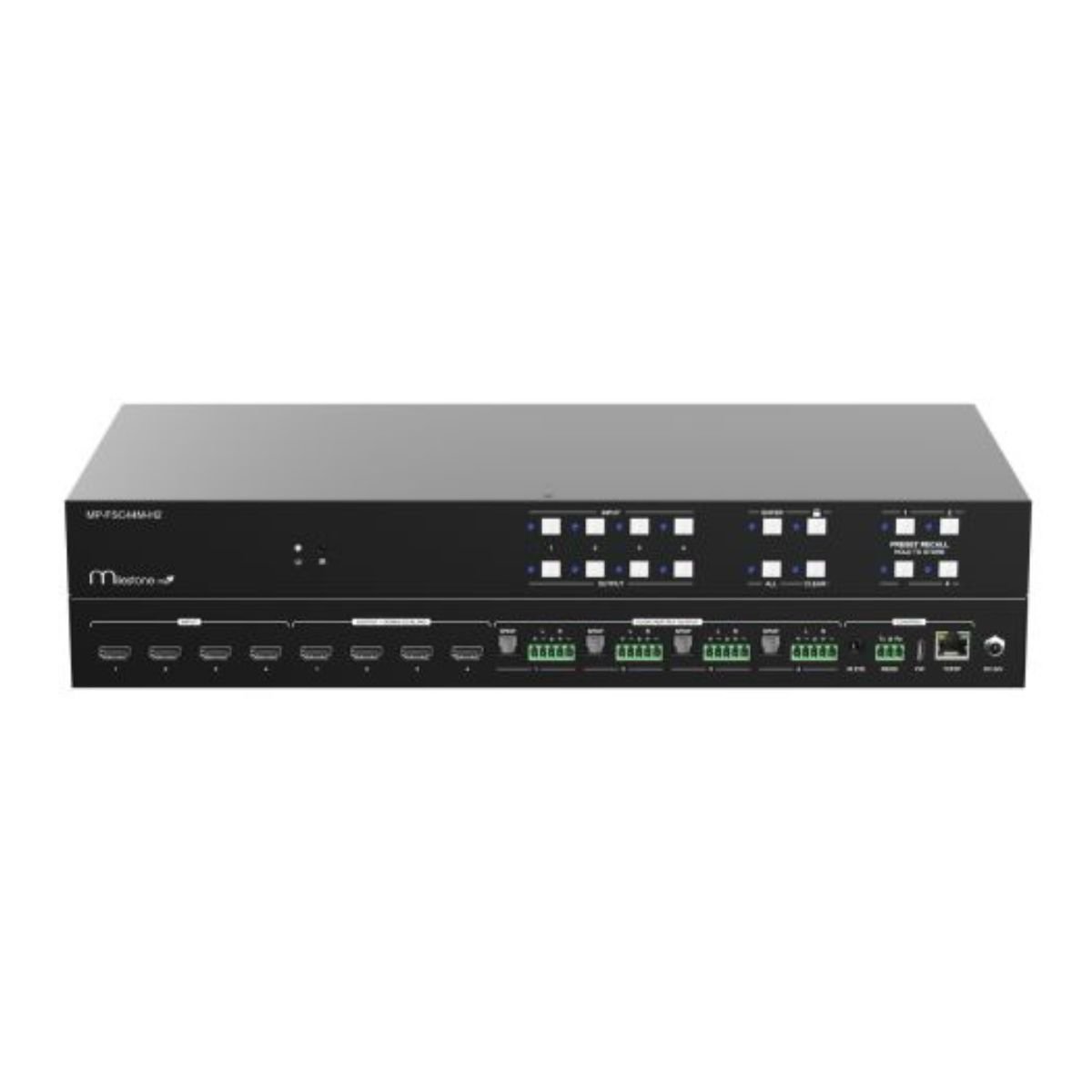

MP-FSC44M-H2

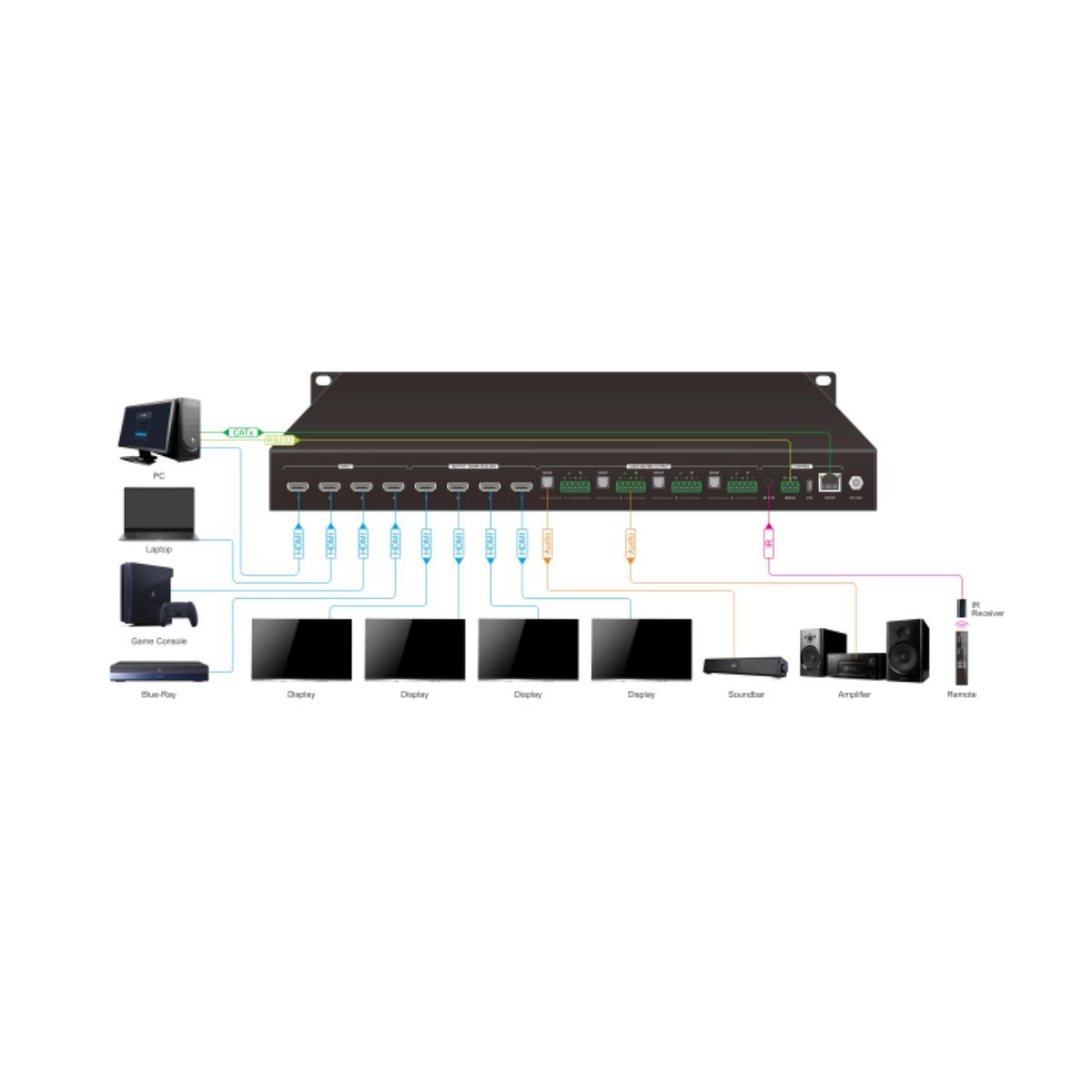

The MP-FSC44M-H2 is a 4×4 HDMI matrix switcher that supports signalsupto4K60Hz in 4:4:4 resolution. It features audio de-embedding, separating audio from the HDMI signal for independent audio and video outputs

Connector	4x HDMI Type A
Version	HDMI 2.0
Resolution	Up to 4K60Hz 4:4:4
Audio	LPCM 7.1 audio, Dolby Atmos®, Dolby®TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD®MasterAudio™
HDCP	HDCP 2.2 and backward compatibility
Connector	4x HDMI Type A
Version	HDMI 2.0
Resolution	Up to 4K60Hz 4:4:4
Audio	LPCM 7.1 audio, Dolby Atmos®, Dolby®TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD®MasterAudio™
HDCP	HDCP 2.2 and backward compatibility
Downscaling	Output1, Output2
Frequency Response	20Hz-20kHz
THD+N	<0.05%
SNR	>80dB
