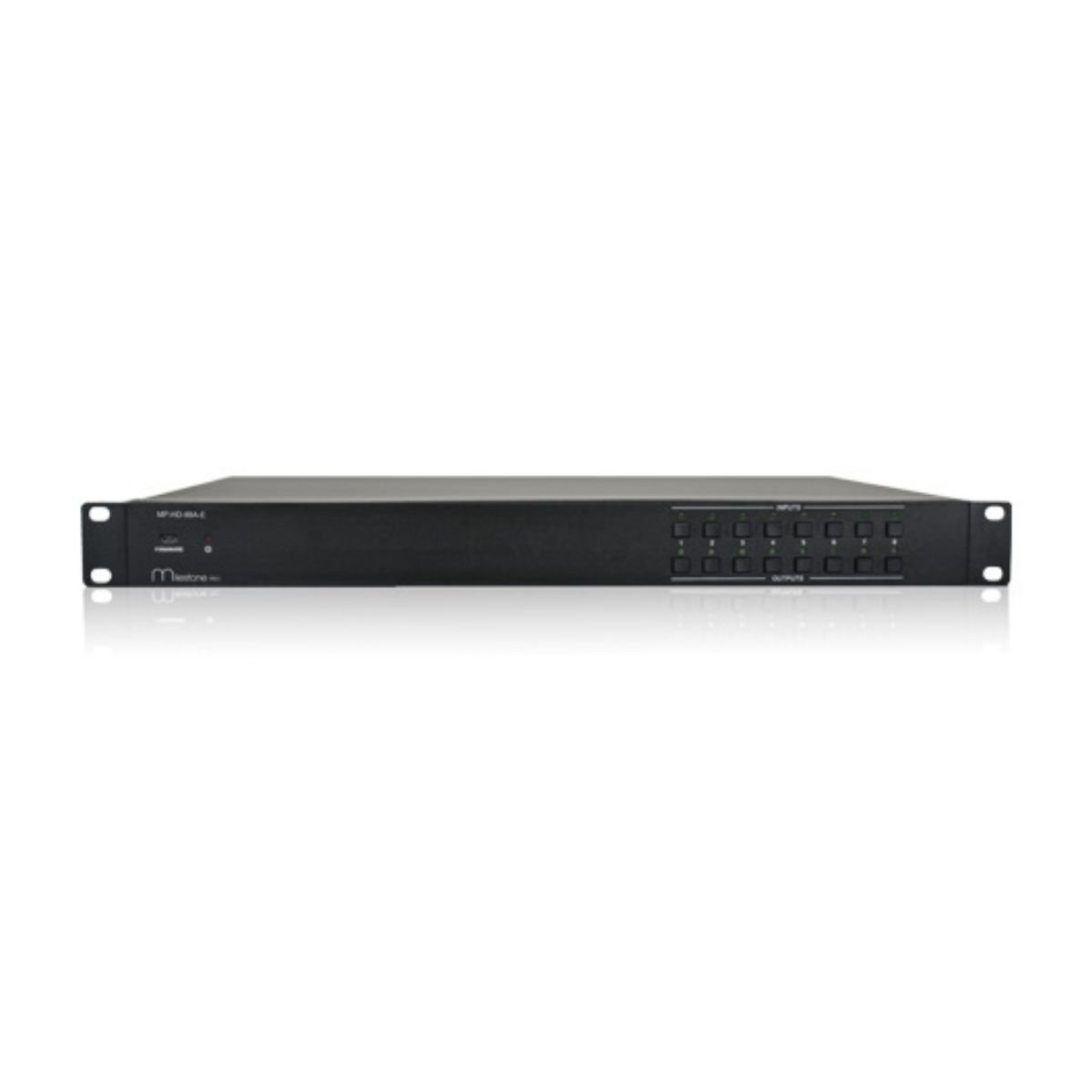

MP-HD-88A-E KIT

  • HDBaseT Matrix Switcher that features 7 HDBaseT outputs and 1 HDMI output

  • Supports HDCP 2.2, and is backwards compatible with previous version of HDCP and HDMI

  • Transmits 4Kx2K 60Hz 4:2:0 up to 26 ft. (8m) via HDMI port and 131 ft. (40m) via HDBaseT port

  • 7 HDBaseT outputs with distances up to 230 ft. (70m) at 1080p and 131 ft. (40m) at 4Kx2K on a single Cat5e/6 cable

  • HDBaseT Receivers are powered by t he matrix using PoC technology

  • LED indicators show real time switching status

  • Controllable via front panel, RS232, IR and TCP/IP

  • Built in GUI for TCP/IP control and setup

  • Powerful EDID management

  • Support CEC to control far end display devices via RS232 commands

  • Features Micro USB port for firmware up grades

  • Easy installation with rackEasy installation with rack--mounting design, mounting hardware includedmounting design, mounting hardware included

  • Power Power Supply:Supply: Matrix Unit, AC100V~ 240V; Receivers, PoCMatrix Unit, AC100V~ 240V; Receivers, PoC.

Get a Quote

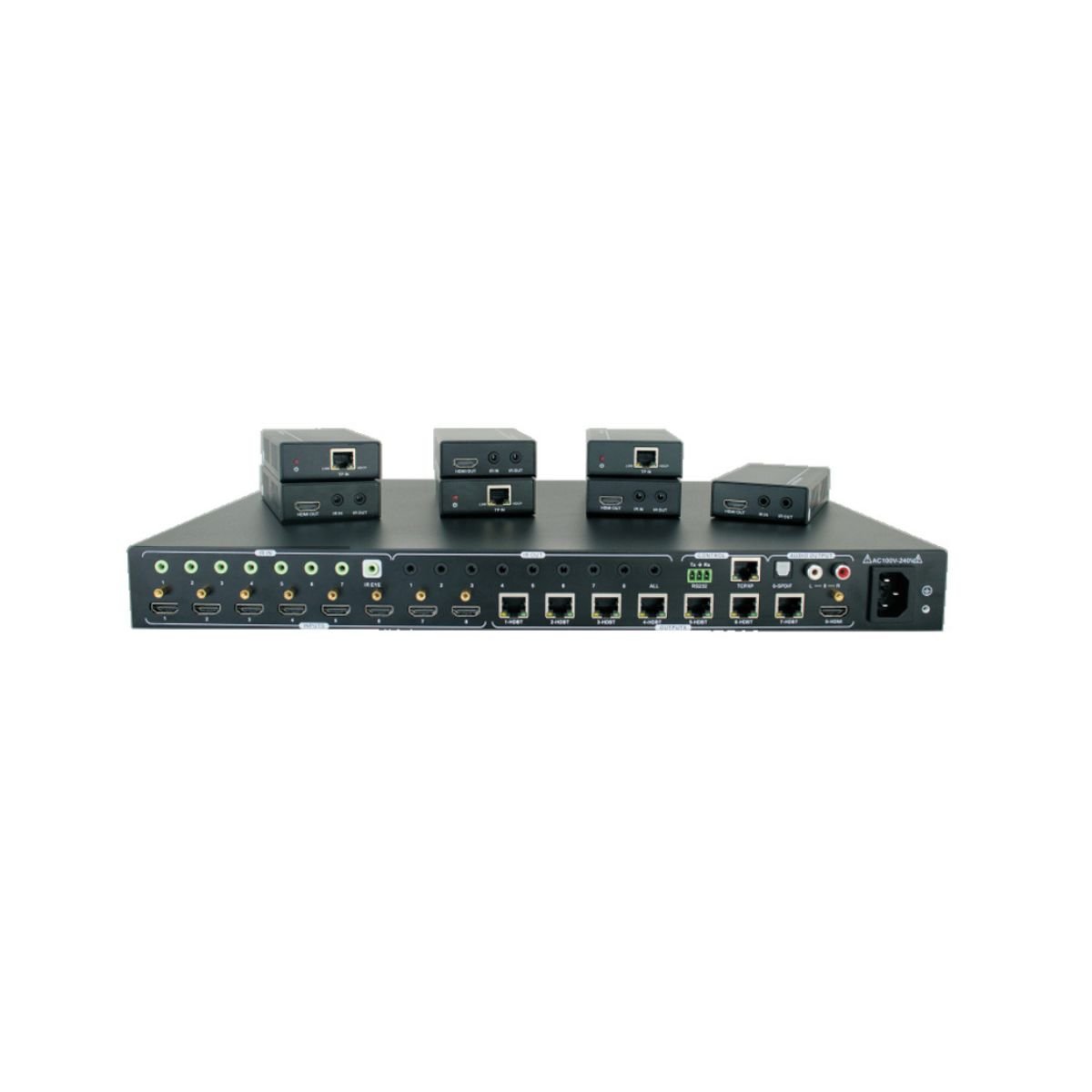

The MP-HD-88A-E Kit is a 4K 8×8 HDBaseT matrix system with 7 receivers, supporting 4K60Hz transmission up to 40m (or 70m at 1080p) over a single CAT5e cable. It features IR, RS232, TCP/IP, and GUI control, powers receivers directly, and supports HDCP 2.2 and EDID for flexible multi-zone AV distribution.
