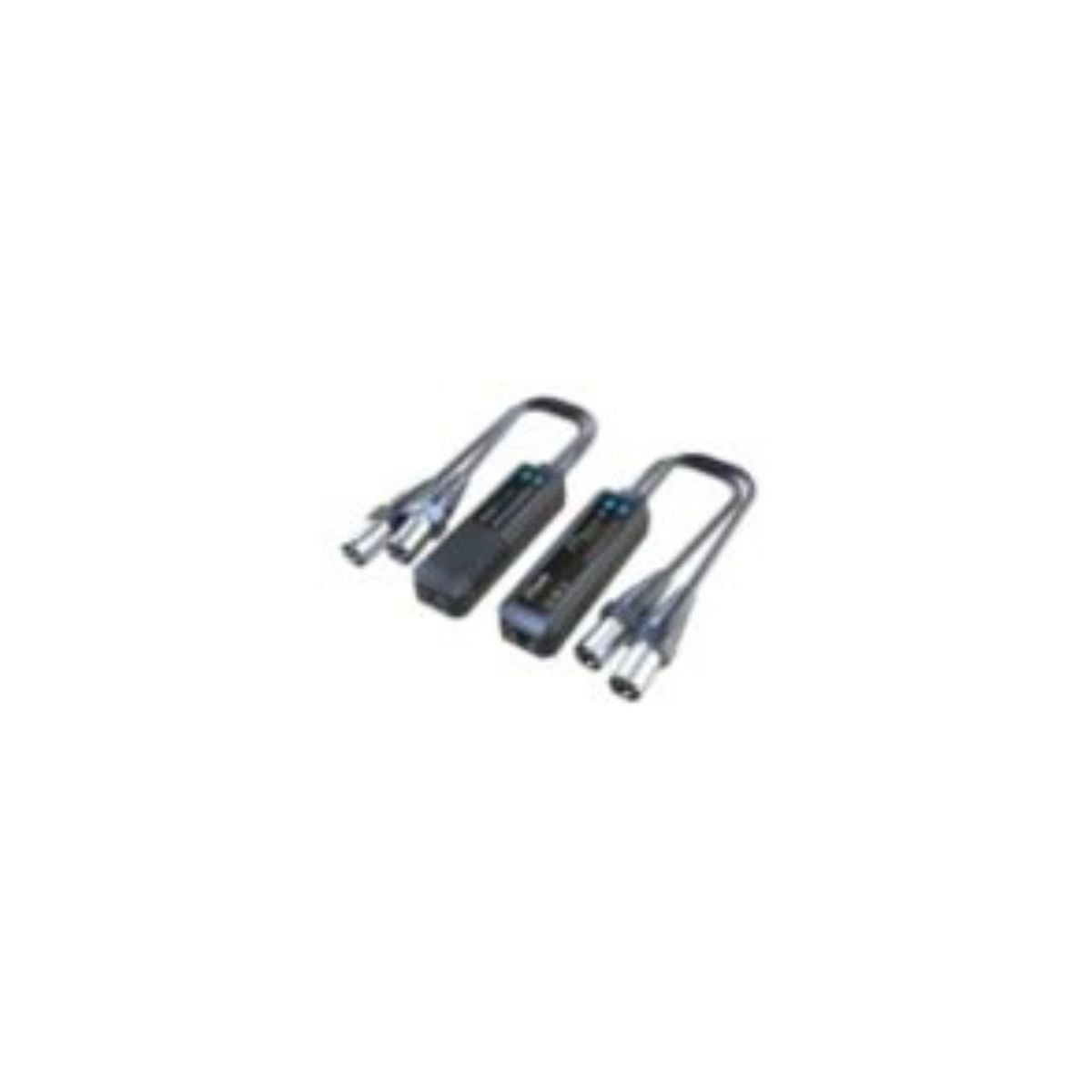

MP -DN -D4

Plug and Play
24-bit audio support
0X2 audio channels
Supports 802.3af PoE

Thanks for choosing the MP-DN-D4. It connects to your Dante network and supports Analog 0X2 channels audio, allowing an analog amplifier to your Dante audio network.

Max signal level	+18 dBu
Output Gain	-6 dBu
Frequency Response	20Hz to 20kHz( - /+0.5dB)
Impedance	150 Ohm balanced 75 Ohm unbalanced
Dynamic Range	>100 dB
Signal to Noise Ratio	>100 dB
THD	<0.01% +4 dBu
Sample Rate	44.1kHz, 48kHz, 96kHz
Bit Depth	2 4
Dante Device latency	1,2 or 5ms (configurable using Dante Controller)
Model Name	Analog 0X2
Operation Temperature	- 5 to +55 ℃ (+23° to +131°F)
Storage Temperature	-25 to +70 ℃ ( - 13° to +158°F
Power	802.3af PoE
