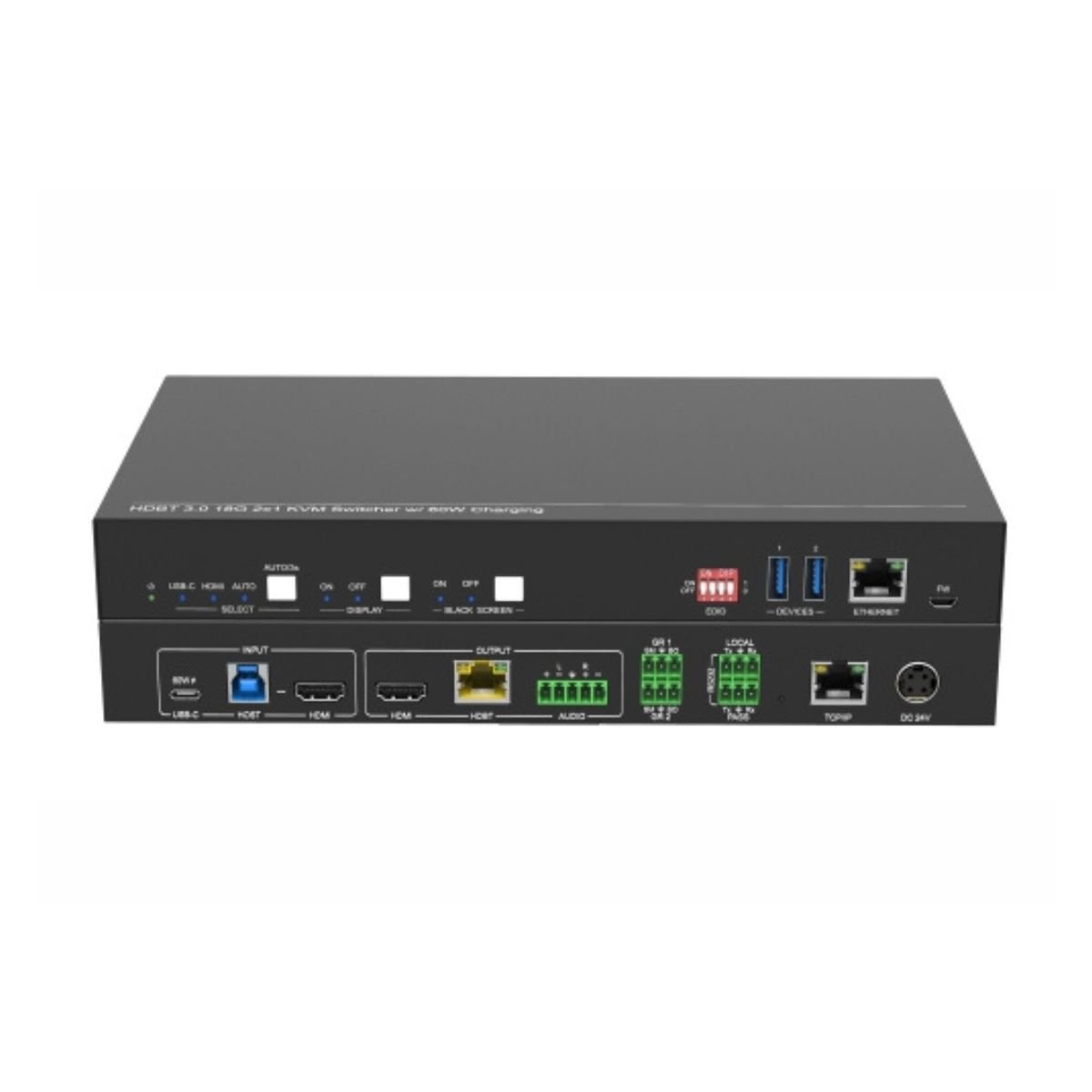

MP-SU21T-KVM

HDMI 2.0, highest support 4K60HZ 4:4:4, HDR10 and Dolby Vision, HDCP 2.2
1 x HDMI input, 1 x USB-B host, 1 x USB-C input, 1 x HDMI output and 1 x HDBaseT output
HDBT 3.0, support 100m transmission and bidirectional 48V PoC
Support RS232 control and CEC control
USB-C input support 60W external charging
Auto switch 5V or TMDS detection
Support Dry Contact control

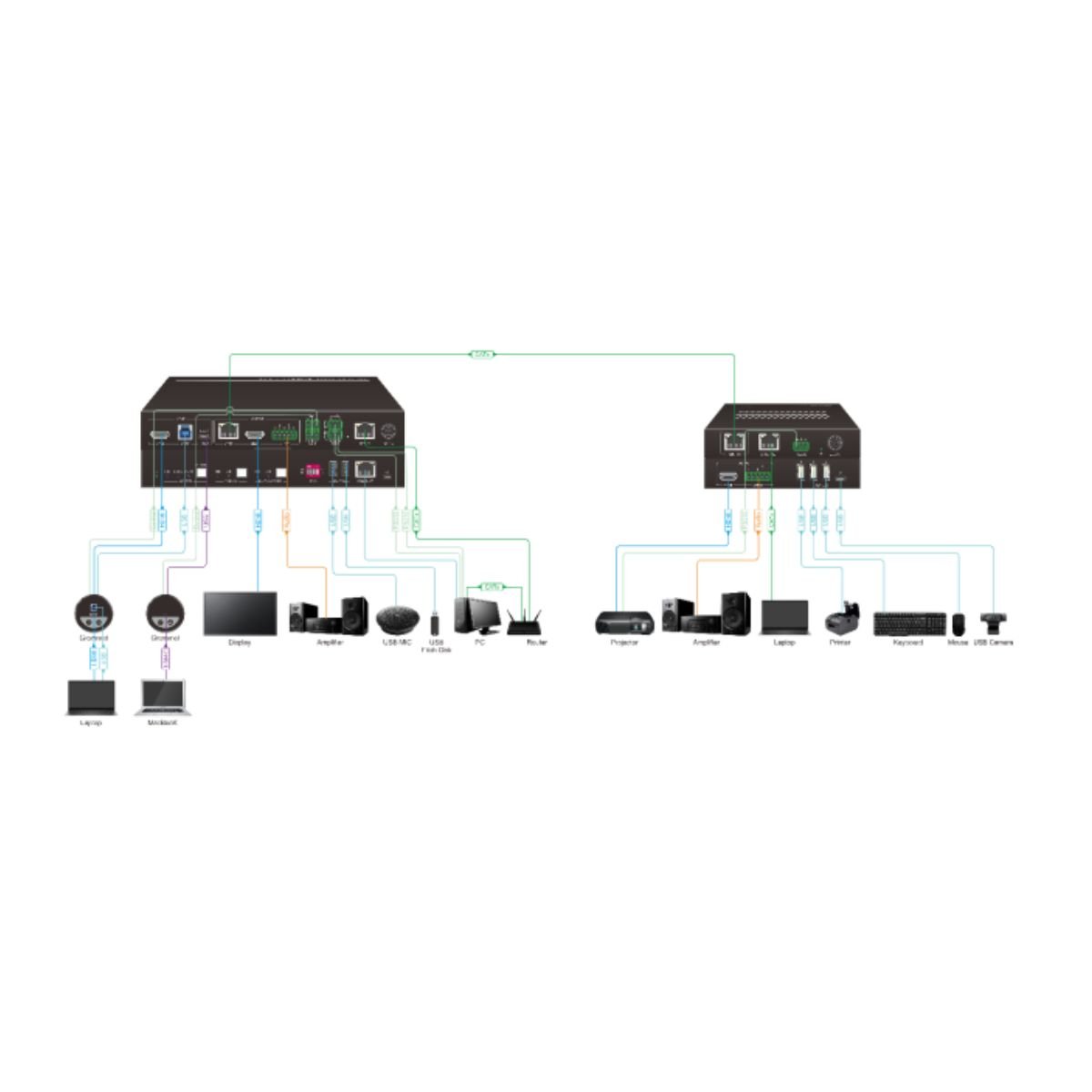

MP-SU21T-KVM is an 18Gbps switcher kit. It supports up to 4K/60/4:4:4, HDR10 and Dolby Vision, HDCP 2.2. It also supports uncompressed transmission of 18Gbps signals with a distance of up to 100m. At the same time, it can be connected to KVM equipment, which is very suitable for equipment connection and signal transmission in conference rooms. The switcher kit also supports RS232 & CEC control and bidirectional 48V PoC.

Input	1 x HDMI IN, 1 x USB-C IN
Input Connector	1 x Type-A female HDMI 1 x Type-C USB
Input Resolution	HDMI: Up to 4K60Hz 4:4:4 HDR10, Dolby Vision USB-C: Up to 4K60Hz 4:4:4
Output	1 x HDMI OUT, 1 x HDBT OUT
Output Connector	2 x Type-A female HDMI
Output Resolution	HDMI: Up to 4K60Hz 4:4:4 HDR10, Dolby Vision HDBT: Up to 4K60Hz 4:2:0
HDMI Standard	Up to HDMI 2.0
HDCP Version	Up to HDCP2.2
HDMI Embedded Audio Format	LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through.
Audio Output Connector	1 x 5-pin terminal block
Frequency Response	20Hz–20KHz, ±3dB
Max Output Level	0.88 Vrms ± 0.5 dB. 2 V = 16 dB headroom above -10 dBV (316 mV) nominal consumer line level signal SPDIF: ±0.05dBFS
