MP-SUH4ARC-4K

Switches any one of four HDMI inputs to one HDMI output.
Supports video r esolution up to 4Kx2K60Hz 4:4:4 HDR
18 Gbps high bandwidth
Fully compliant with the HDMI 2.0 and HDCP2.2 specifications.
Supports audio return channel (ARC)
Advanced EDID management: multiple preset and user defined allowed.

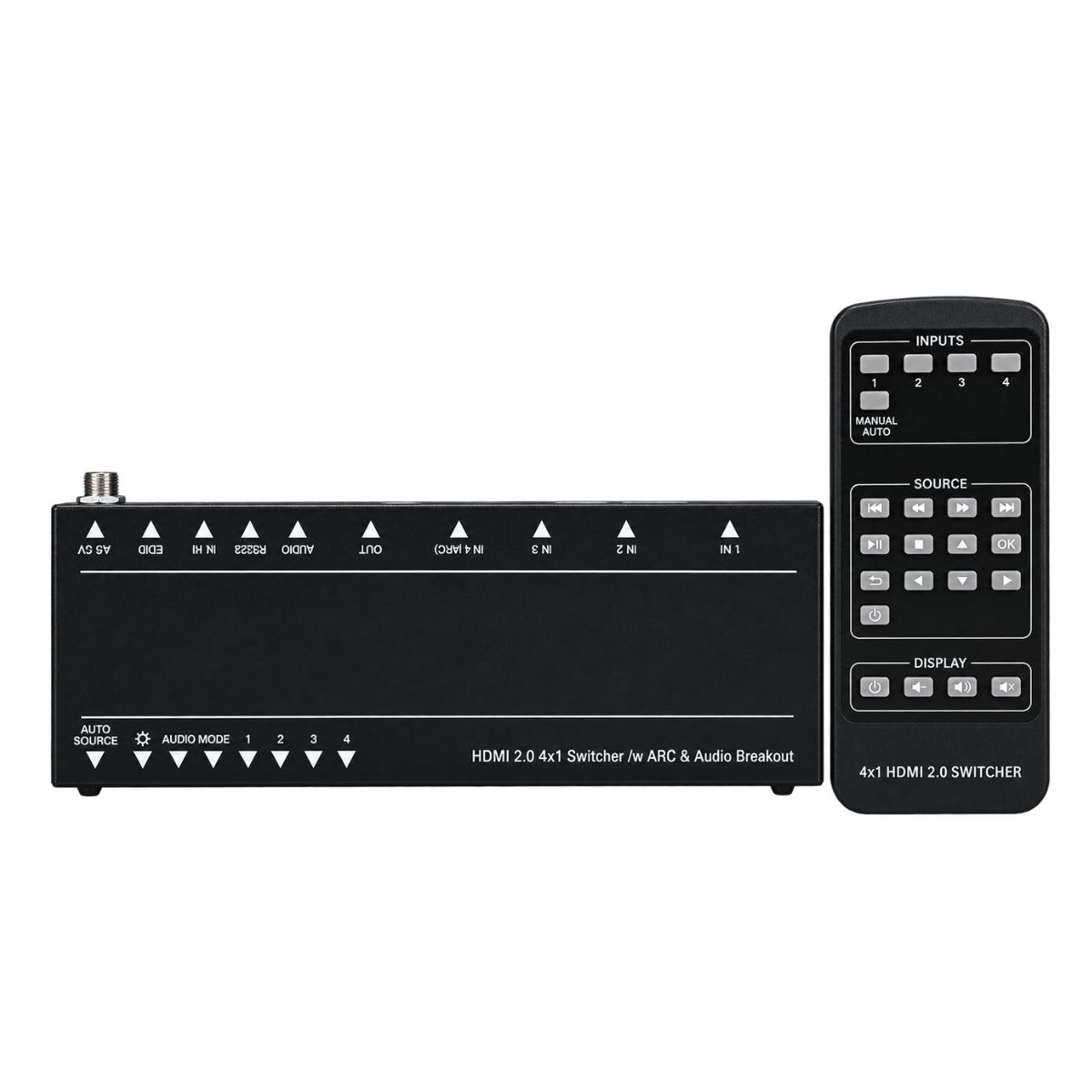

Controllable via RS232 and IR.
Supports CEC.

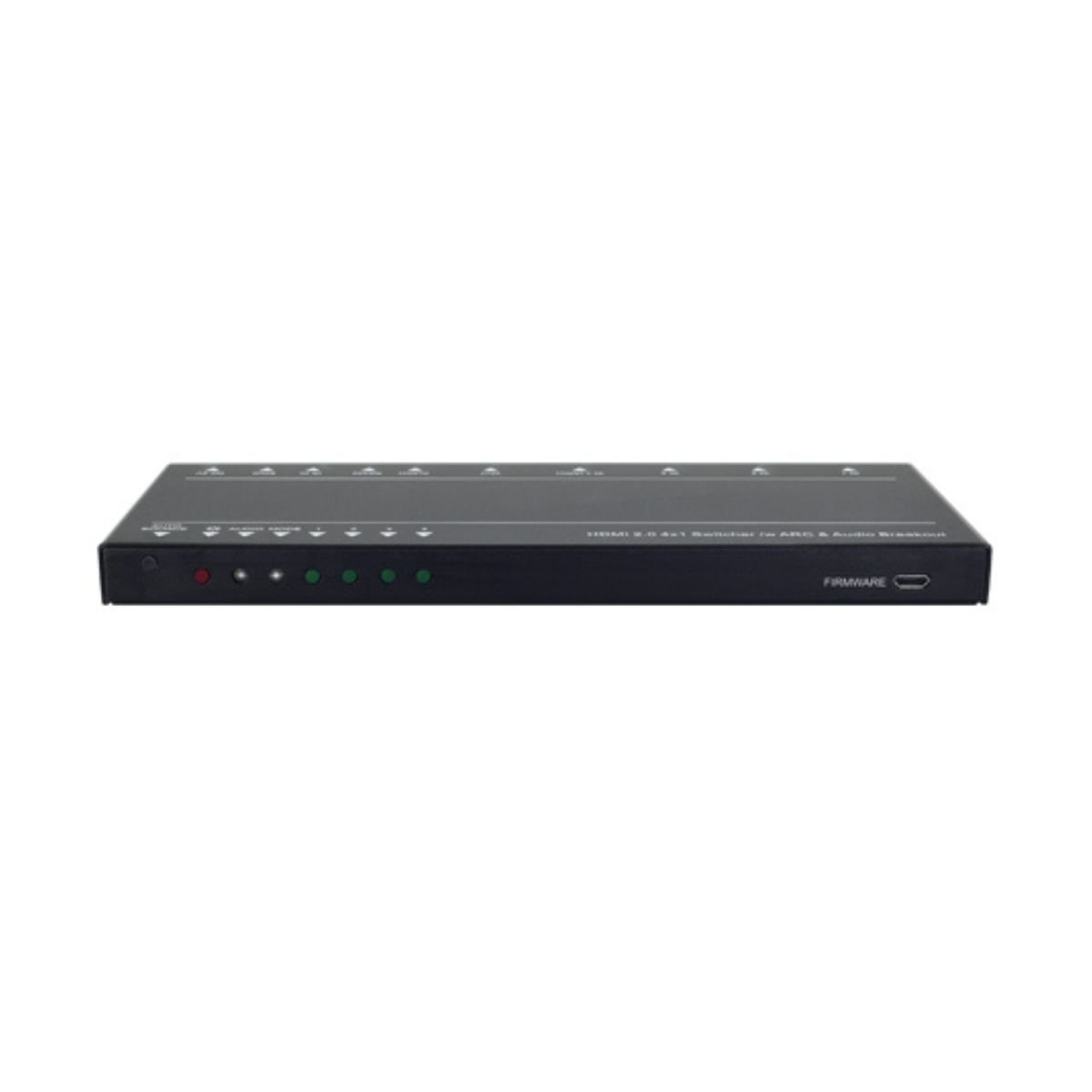

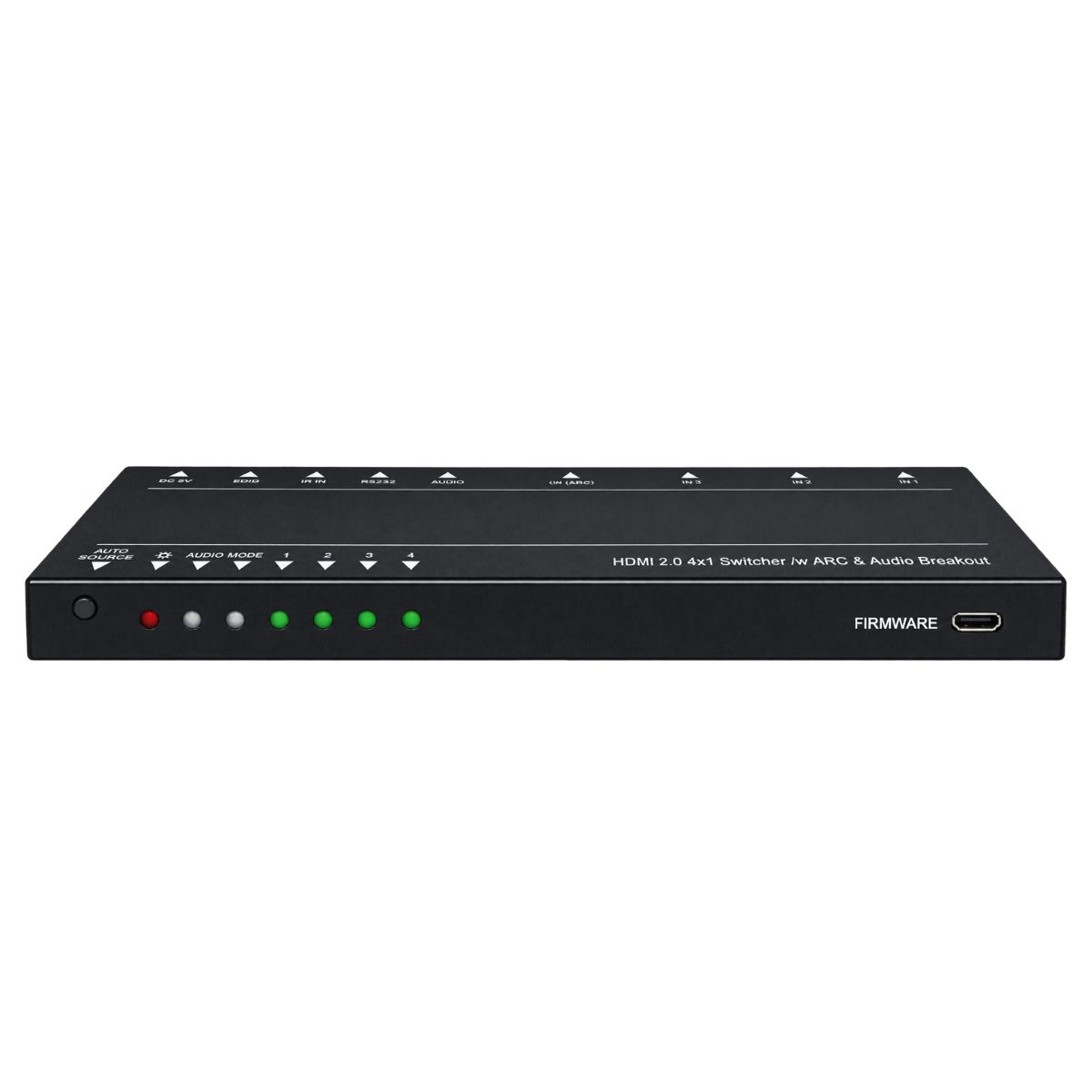

Provides seven LEDs to indicate the current operating status and to assist troubleshooting an installation.
Firmware upgrade by Micro USB port.

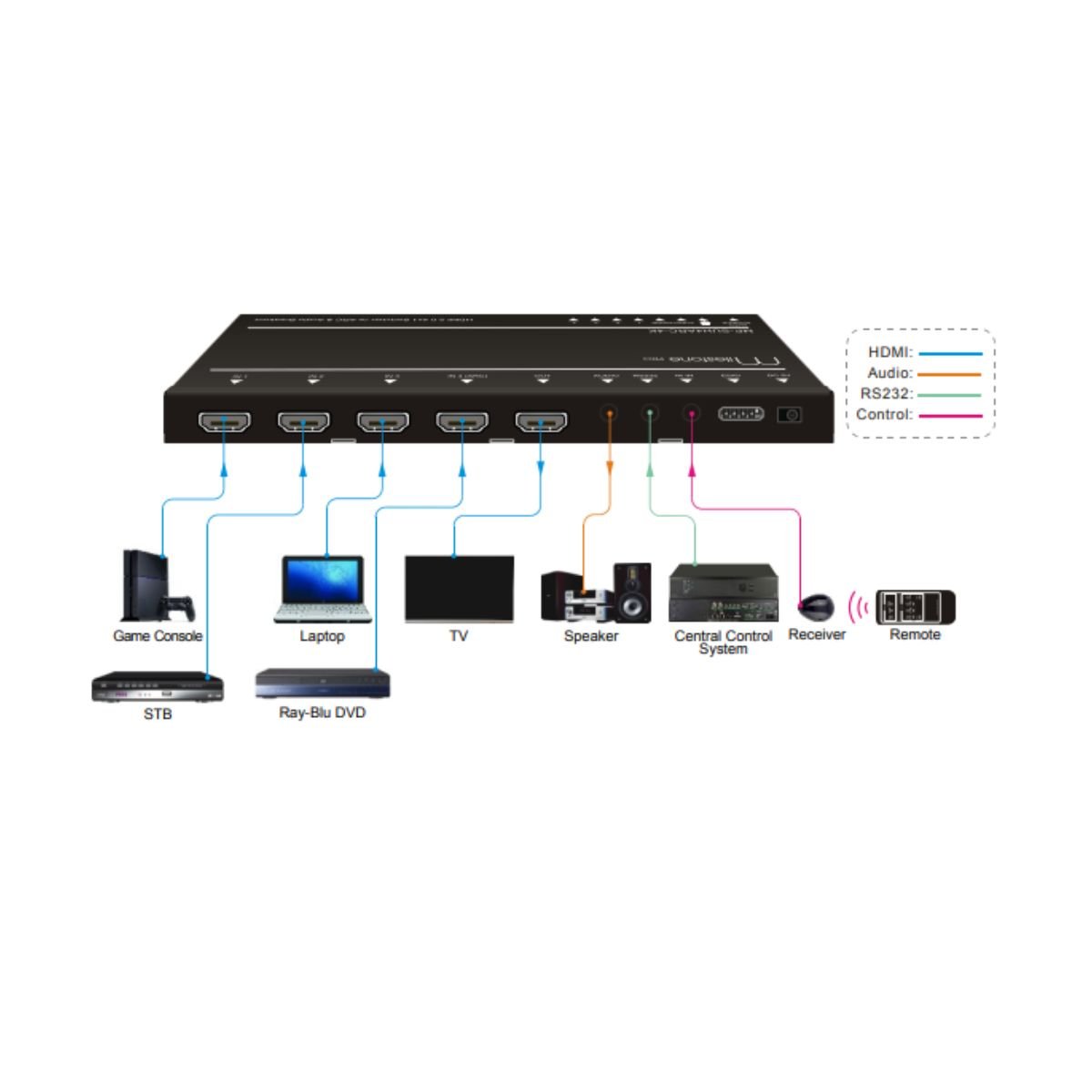

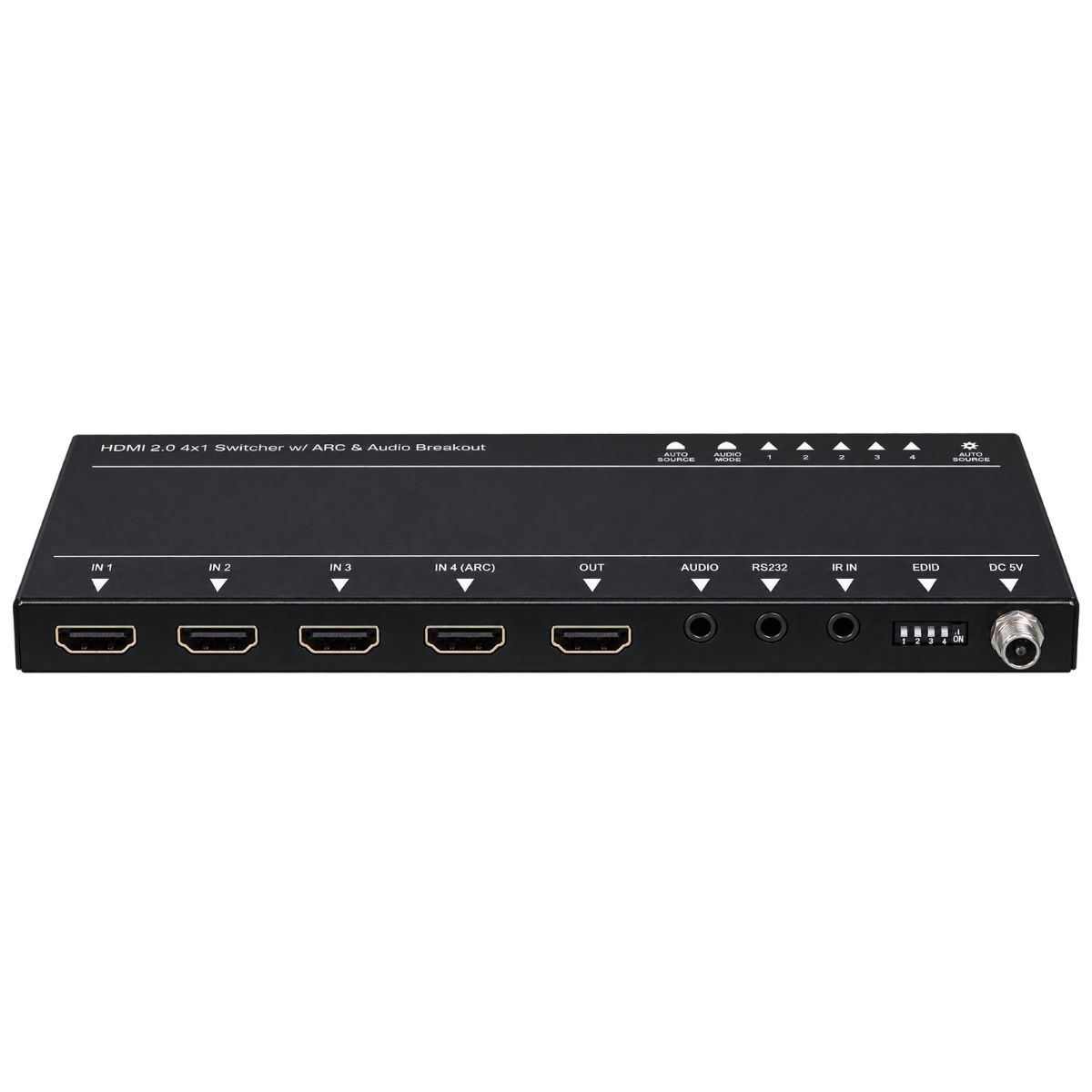

MP SUH4ARC 4K is an ultrathin auto switcher with four HDMI video inputs and one HDMI output. It supports HDMI video resolution up to 4Kx2K60Hz 4:4:4 HDR and multichannel audio. Except passing EDID information from the display, there are multiple built in EDID settings to simplify an installation. It will de-embed digital stereo audio to provide an analog audio source for an existing audio system. It also supports audio return channel (ARC) for transmitting audio back to HDMI input port from the connected display. In auto switch mode, it switches to an HDMI input as soon as a new source is connected. When the active input is removed, the switcher will select the first source on the lowest numbered input.

Input	(4) HDMI
Input Connector	(4) Female type-A HDMI
HDMI Input Resolution	Up to 4Kx2K60Hz 4:4:4
HDMI Standard	2.0
HDCP Version	2.2
Output	(1) HDMI
Output Connector	(1) Female type-A HDMI
HDMI Output Resolution	Up to 4Kx2K60Hz 4:4:4
HDMI Standard	2.0
HDCP Version	2.2
