MP-DVFB-4K

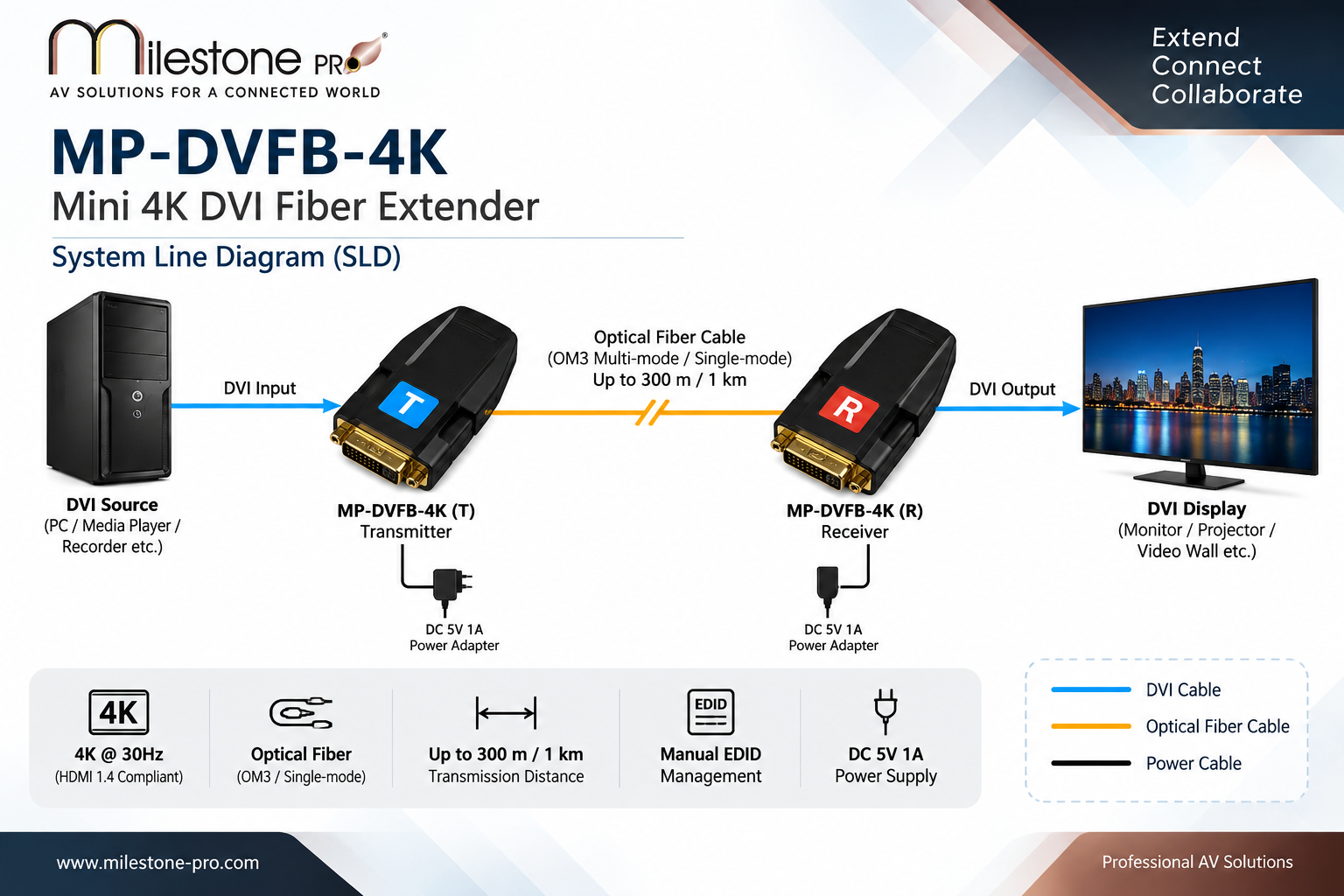

Connect the Transmitterand a DVI source device(e.g.a PC) directly or over a DVI cable.
Connect the 4Kx2Kport of theTransmitterto the 4Kx2K port of the Receiver with an optical fiber cable.
Connect the Receiverand a DVIsinkdevice(e.g.a monitor) directly or over a DVI
Plug DC 5V power adapters to the DC 5V ports of both theTransmitterand the Receiver.

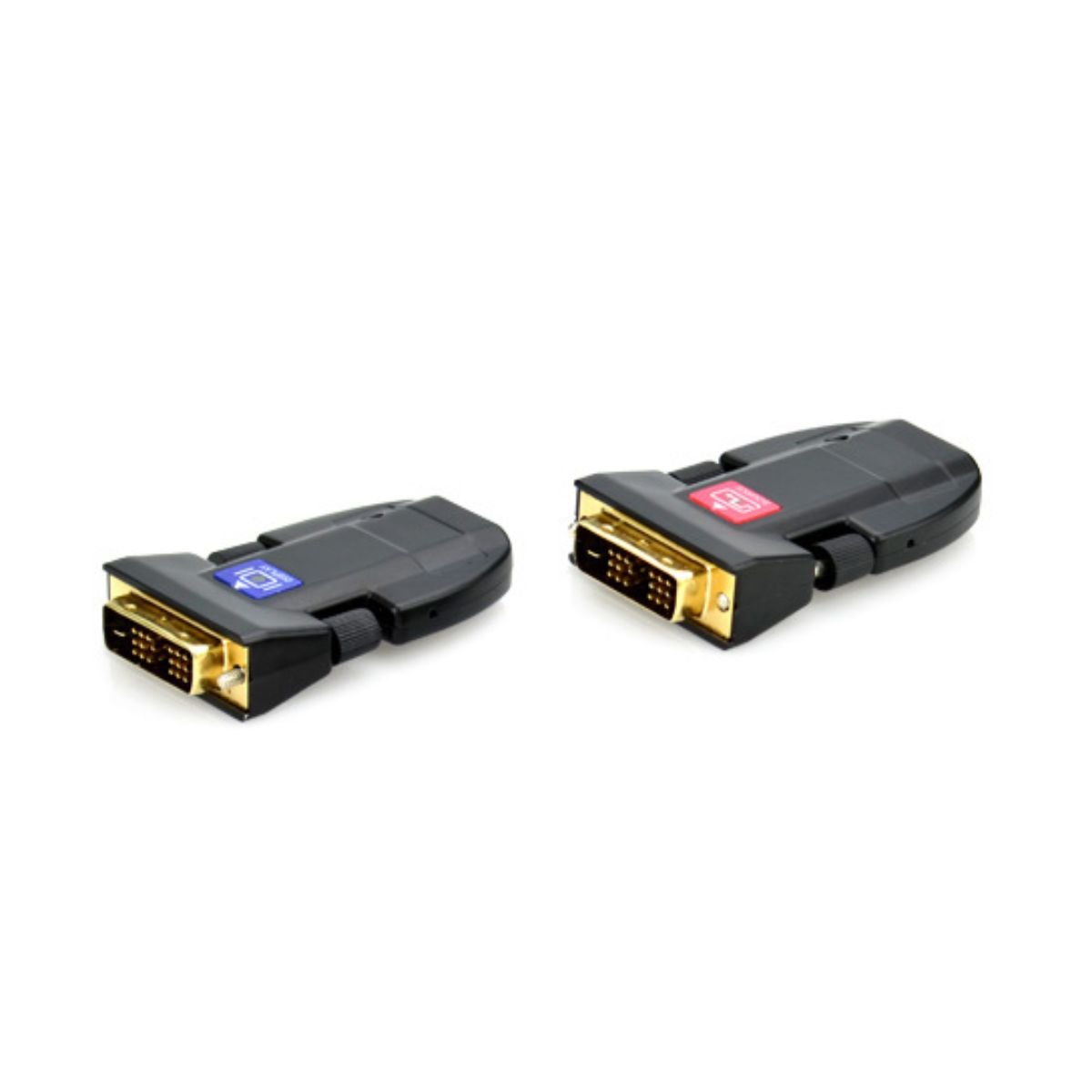

MP-DVFB-4K is a mini DVI optical fiber extender for 4K resolution. It contains a transmitter and a receiver. Compatible with HDMI1.4, it transmits high-definition DVI/
HDMI (max 3840×216030Hz) up to 300m/ 1km over qualified OM3 multi-mode/ single mode cable. It also offers manual EDID management to ensure reliable AV distribution.

Input	Transmitter	Receiver
Input Signal	1 DVI	1 Optical Fiber
Input Connector	FemaleDVI-D	LC connector
Signal	Digital AV signal, compliant with HDMI1.4	Optical Fiber
Output	1 Optical Fiber	1 HDMI
Output Connector	LC connector	FemaleDVI-D
Signal	Optical Fiber	Digital AV signal, compliant with HDMI1.4
Resolution	640x48060Hz, 640x48070Hz, 640x48072Hz, 640x48075Hz, 800x60060Hz, 800x60070Hz, 800x60072Hz, 800x60075Hz, 1024x76860Hz, 1024x76870Hz, 1024x76875Hz, 1280x72060Hz, 1280x102460Hz, 1280x102475Hz, 1360x76860Hz, 1440x90060Hz, 1600x120060Hz, 1920x108060Hz, 1920x120060Hz, 3840x216024Hz, 3840x216025Hz, 3840x216030Hz
Audio Format	PCM, Dolby Digital, DTS, DTS-HD
HDMI Standard	HDMI1.4
Transmission Distance	≤1km via single mode fiber ≤300m via OM3 multimode fiber
Temperature	0 ~ 50℃
Reference Humidity	10% ~ 90%
