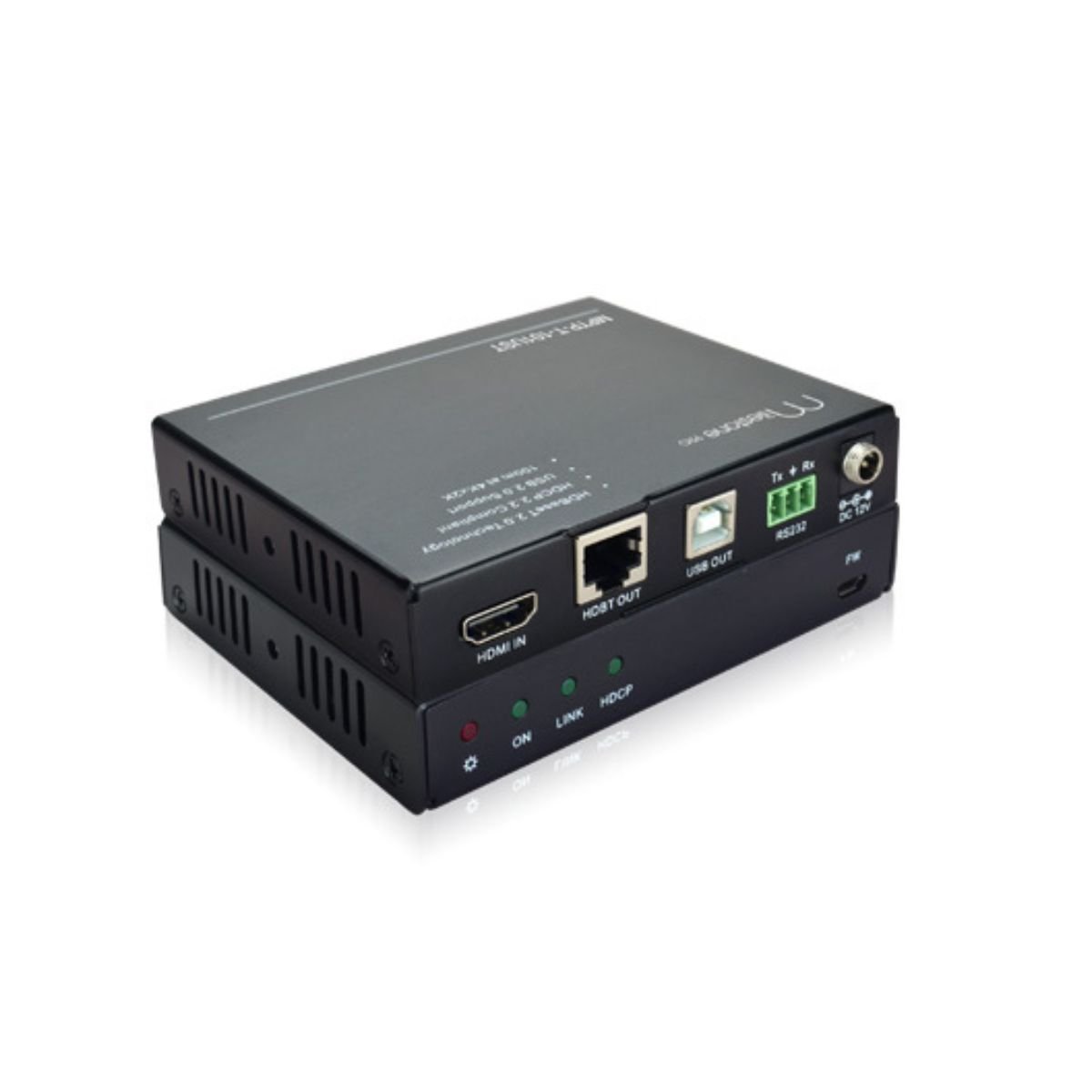

MPTP-T101-US

  • Compatible with HDMI2.0 and is backwards compatible with all previous HDMI standards(e.g. HDMI 1.4), delivers high-resolution AV signal(1080p 3D, 4Kx2K60Hz)

  • Support HDBT2.0, transmit 4Kx2K signal up to 100m over single CAT6 cable

  • EDID Pass-Thru

  • HDCP2.2 compliant

  • Front panel status LEDs for power, link & HDCP

  • USB & RS232 control

  • Unidirectional PoC (Power over HDBaseT)

Get a Quote

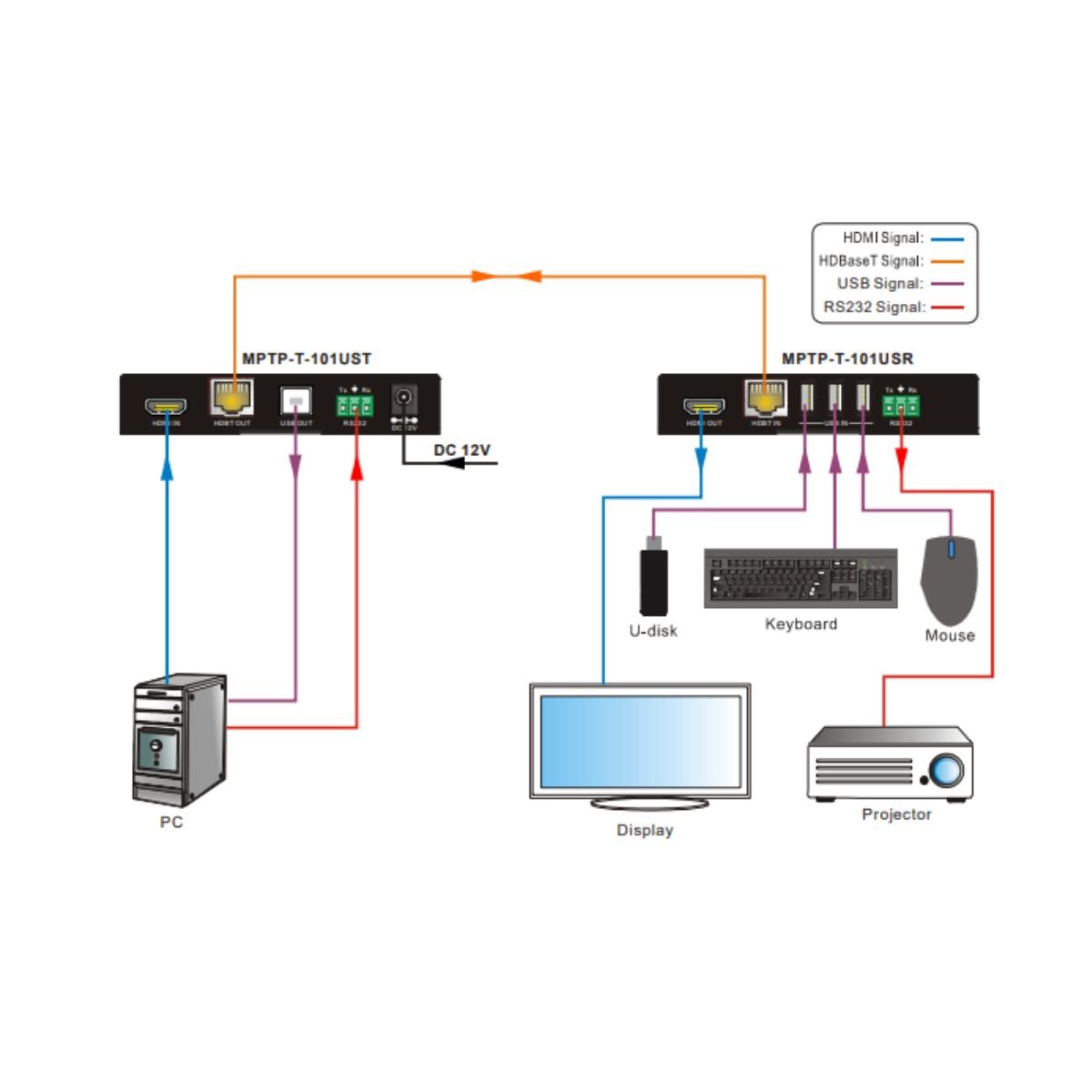

MPTP-T-101US is a 4K HDMI Extender set developed with the latest HDBaseT™ 2.0 technology to extend uncompressed HDMI video, audio, USB 2.0, control signals, and PoC over a single CAT5e/6 cable. The unidirectional PoC compliant extender comes with only one power supply, which means that the Receiver can be powered via the Transmitter to save installers time and added cost of installing a power outlet. Ideally designed for smart displays and KVM solutions, fitting digital signage markets.
