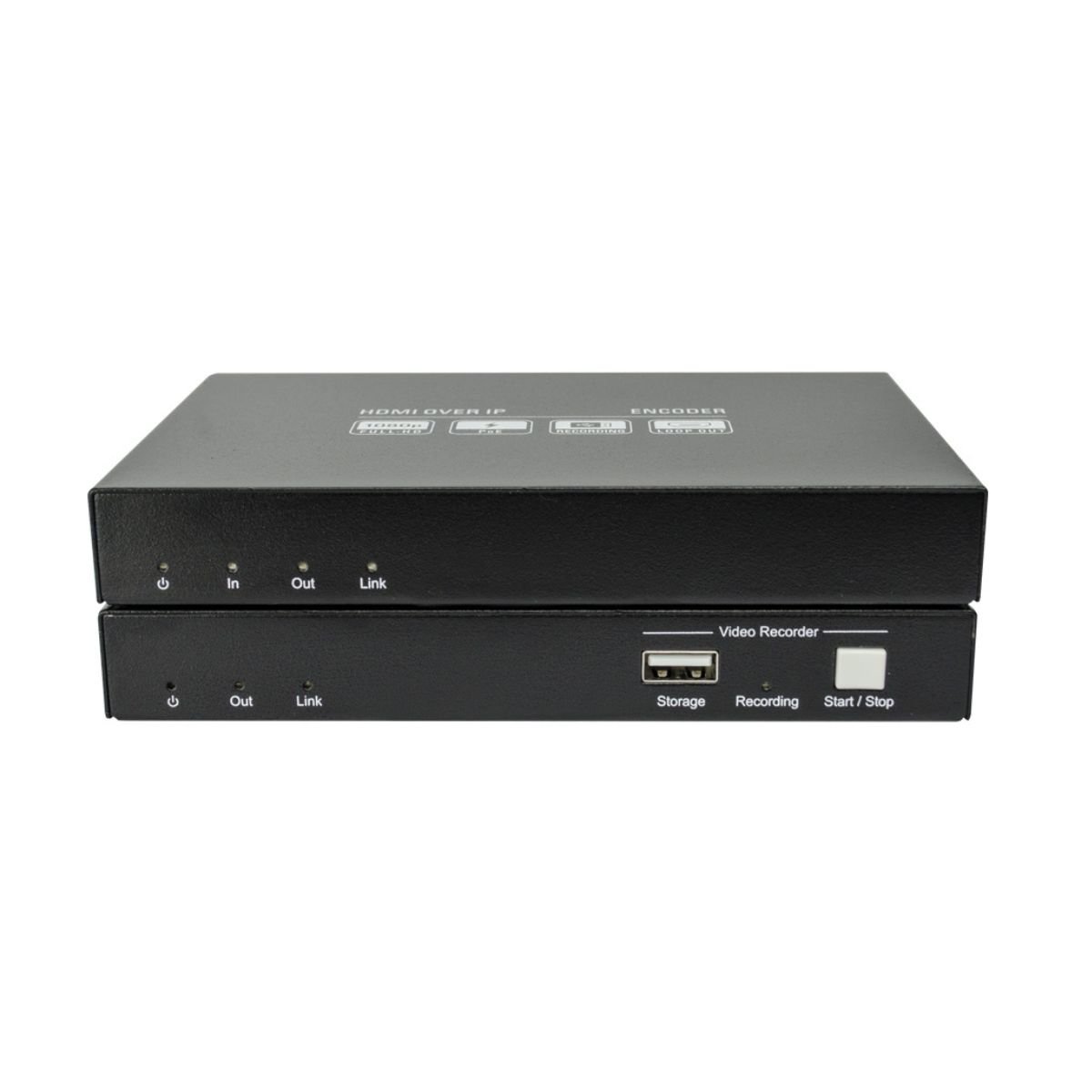

MP-HD-IP400

Supports H.264 encoding and decoding
1080p video over IP network
Support video extension, video distribution and video matrix
Support output video scaling to 720p or 1080p.
Supports PoE , Encoder/Decoder can be powered by PoE Switch
Support Video Live Previe w on the GUI
Support Video Broadcasting over network
Supports video recording
The encoder features HDMI loop out
Supports audio breakout
Supports RTSP, RTP, HTTP FLV , UDP, TCP Protocol
Supports Unicast and Multicast

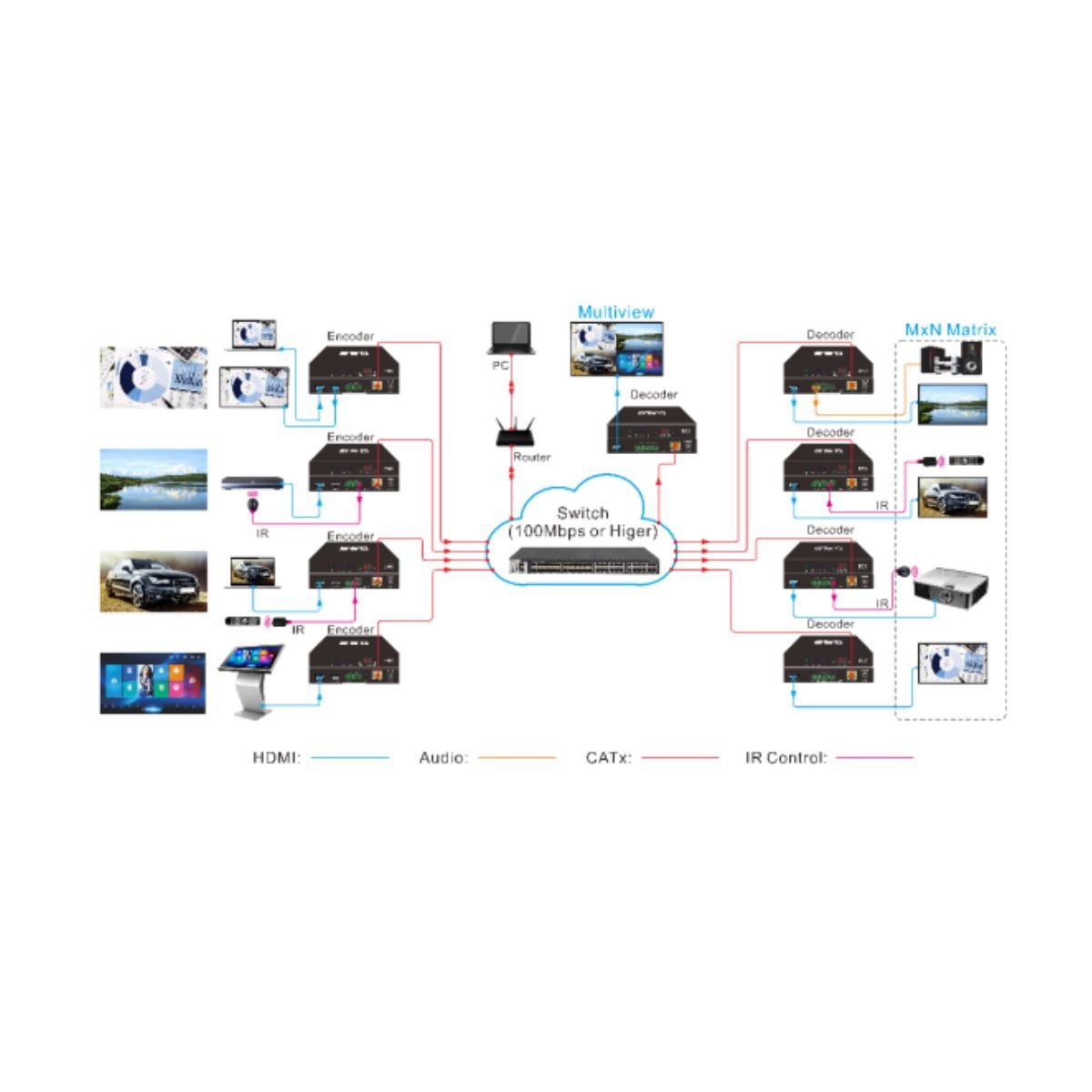

MP-HD-IP400 is an IP Streaming Encoder/Decoder which uses the H.264 standard to extend HDMI video, IR, and RS232 control signals over an IP network. It works with one control PC (Wake on LAN) and one switch whose transmission rate is 100Mbps or higher to control a variety of functions. It features 1080p HDMI video switching, video matrix, audio de-embedding, audio switching, IR& RS232 transmission, video recording, PoE, etc. The control software “IP Streaming Management” merges all functions for user control of the IP streaming system.

Video Input	(1) HDMI In
Video Input Connector	(1) Type-A female HDMI
HDMI Input Resolution	Up to 1080p60Hz 444 10/12bit
Video Output	(1) HDMI Out
Video Output Connector	(1) Type-A female HDMI
HDMI Output Resolution	Up to 1080p60Hz 444 10/12bit
Control	(1) RS232, (1) IR In, (1) IR Out, (1) LAN (PoE)
Control Connector	(1) 3-pin terminal block, (2) 3.5mm jack, (1) RJ45
Video Output	(1) HDMI Out
Video Output Connector	(1) Type-A female HDMI
HDMI Output Resolution	Up to 1080p60Hz 444 10/12bit
Audio Output	(1) Audio Out (L+R)
Audio Output Connector	(1) RCA jack
Control	(1) Storage, (1) RS232, (1) IR In, (1) IR Out, (1) LAN (PoE)
Control Connector	(1) Type-A USB, (1) 3-pin terminal block, (2) 3.5mm jack, (1) RJ45
