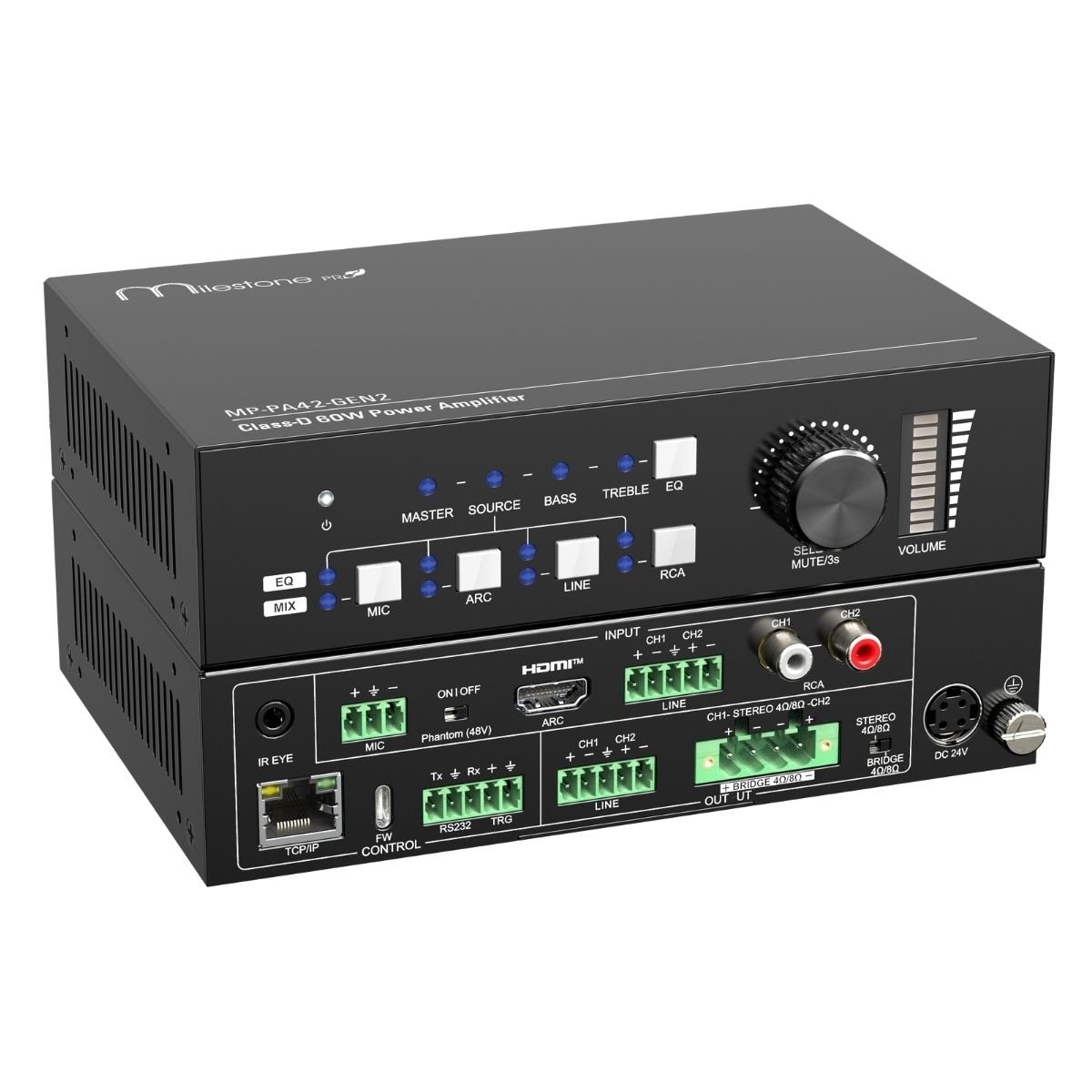

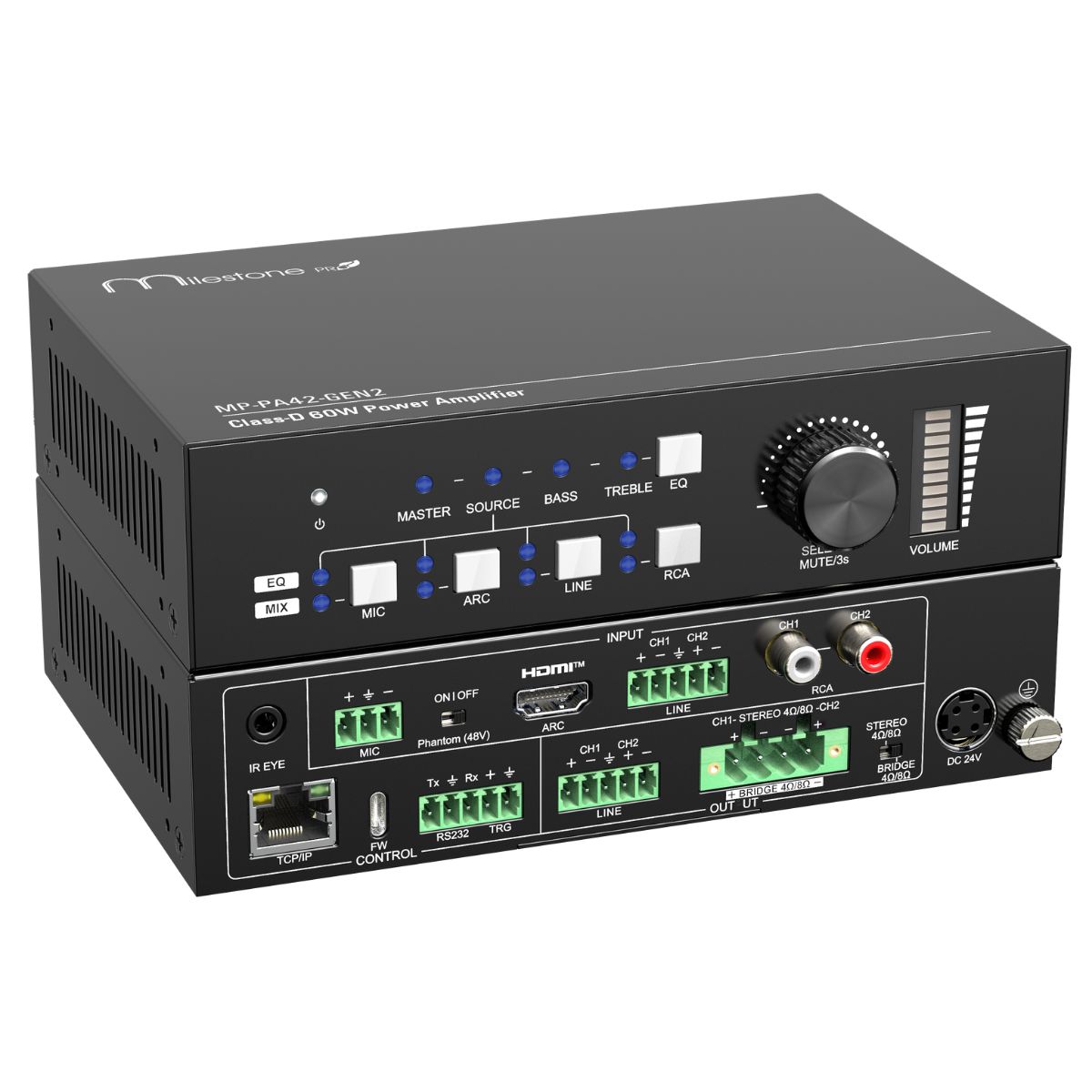

MP-PA42-GEN2

4 inputs: MIC (support 48V), ARC, LINE and RCA
2 outputs: 4/8 fixed-impedance output and line out
Output power up to stereo 2×30W or bridged 1×60W
Supports mixing output and EQ adjustment
Controllable via: buttons, RS232, Relay, IR and TCP/IP(Web-GUI).
Standard 1U rackmount design

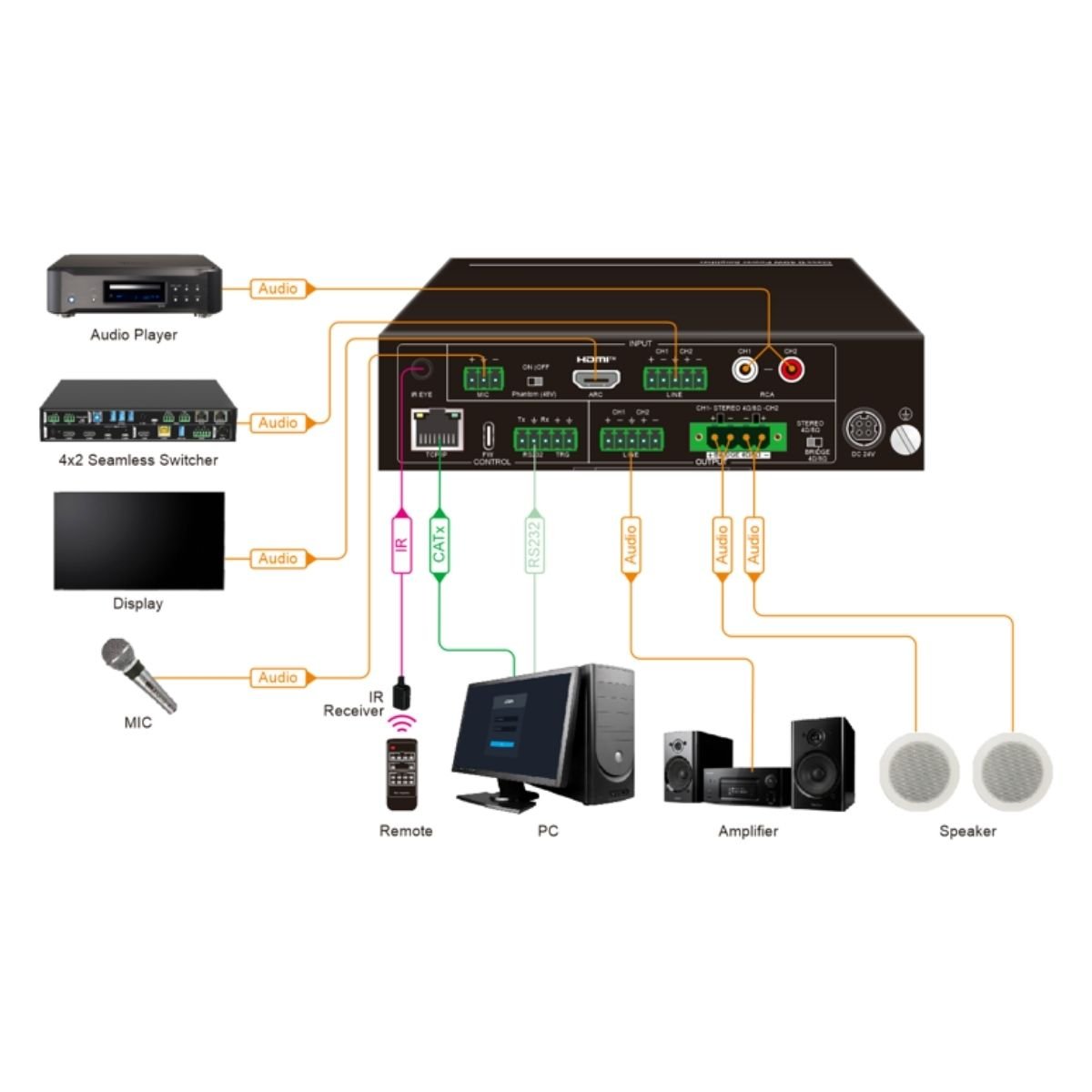

The MP-PA42-GEN2 is a Class-D amplifier that supports both single-source and multi-source mixed audio inputs. It offers four selectable input sources: MIC, ARC, LINE, and RCA. For outputs, users can choose between 4/8 fixed-impedance speaker outputs or a loop-through output, delivering up to stereo 2×30W or bridged 1×60W of power. The amplifier provides versatile control options, including IR remote, front-panel buttons, TCP/IP, RS232, and TRG trigger. It also features built-in EQ adjustment to compensate for device variations and adapt to different application requirements.

Frequency Response	20Hz - 20kHz, ±3dB
SNR	>85dB, A-weighted
THD+N	<0.1%1kHz
Crosstalk	< -80dB 1kHz
Output Power	Stereo: 2x30W4 or 2x15W8Bridge: 1x60W4 or 1x30W8
Frequency Response	20Hz - 20kHz, ±1dB
SNR	>90dB, A-weighted
THD+N	<0.05%1kHz
Crosstalk	< -85dB 1kHz
Power Input	DC 24V 5A
Operation Temperature	-5℃ ~ +55℃
Storage Temperature	-20℃ ~ +70℃
Relative Humility	0% ~ 80%
