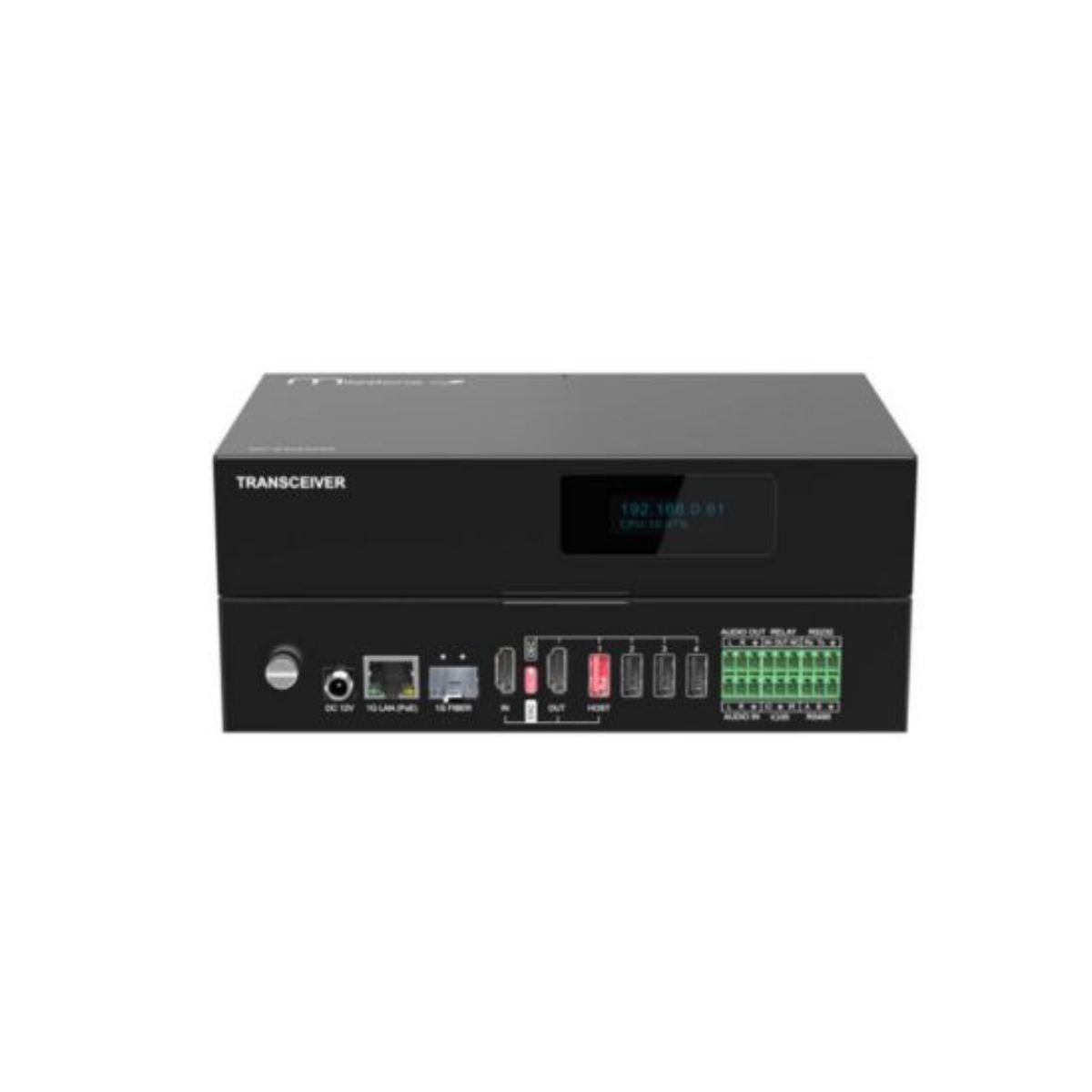

MP-IPM3000

Integrated Encoder and Decoder: Combines encoder and decoder functionsinoneunit with a DIP switch to change the mode
Support for H.264 and H.265 Protocols: Compatible with H.264 and H.265encoding and decoding protocols
High Resolution Support: HDMI interface supports up to 3840x216060Hzforinput and output
Multiple Controlling Method: I/O, IR, RS-232
Seamless Switching
Visualization Operation
Ultra-thin Design: The height is only 16mm
Multi-channel Decoding: Supports at least 4 images displayed in a single screen

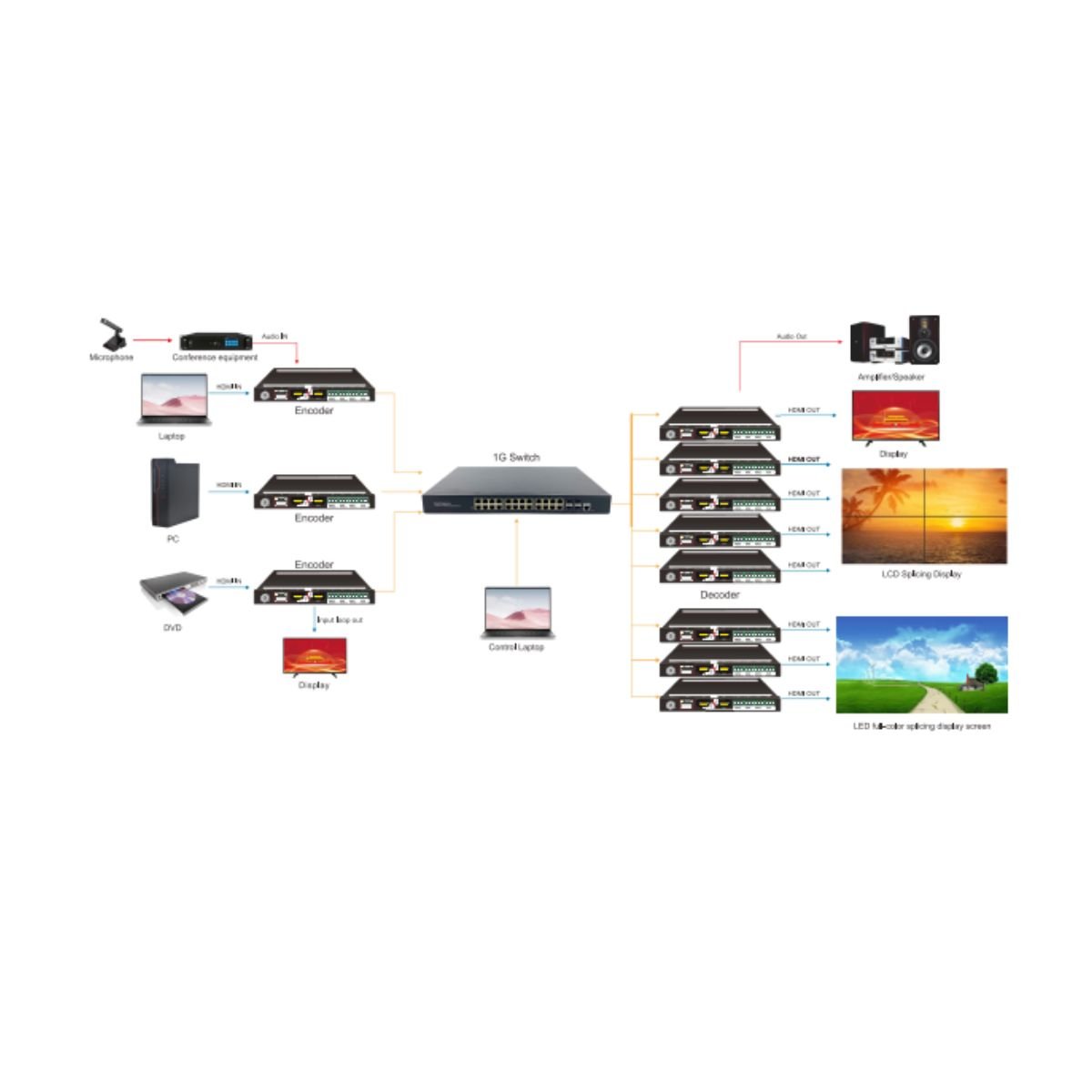

The 4K Encoding and Decoding Integrated IP Matrix integrates advanced video compression, network, visualization, and centralized control technologies. It builds an IP-based system combining video splicing, KVM management, audio processing, and encoding/decoding with distributed, visualized, and server-less features. SupportingHDMI 4K60Hz input/output, multi-screen splicing, and IR, I/Oand RS-232control, ensures synchronization, real-time performance, and vivid color reproduction. This cost-effective solution simplifies wiring and offers visual control and decentralized operation for HD/1080p applications. Ideal for conference centers, exhibition halls, command centers, and transportation hubs.

Video Input	1x HDMI IN (Type-A Female Port), up to 3840x216060Hz
Digital Audio Input	1x HDMI IN (Type-A Female Port)
Analog Audio Input	1x 3-Pin Terminal Block
Video Output	1x RJ45 for IP Stream Output\ 1x HDMI Loopout (Type-A Female Port)
Encoding Performance	3840x216060Hz x1
Video Input	1x RJ-45 (1000Mbps) for IP StreamInput
Digital Audio Output	1x HDMI (Type-A Female port)
Analog Audio Output	1x 3-Pin Terminal Block
Decoding Performance	3840x216060Hz x1, or 1920x108060Hzx4, or 1920x108030Hz x6, or D130Hz x6PAL Standard: D1 will be 720x576 NTSC Standard: D1 will be 720x480
Control Connector	1 x 3-Pin Terminal Block for I/O or IR1 x 3-Pin Terminal Block for RS-232
Codec	H.264, H.265
Communication Protocols	TCP/IP, UDP
Bit Depth	8-bit, 4:2:0
Latency	Less than 150ms
