MPTP-TU100S-KIT

USB3.2 Gen1 data transfer rate up to 5Gbps;
Up to 100m extension over single CAT6a cable
Support USB device power management
Provides up to 3A current for devices
Two-way 24V PoC power supply

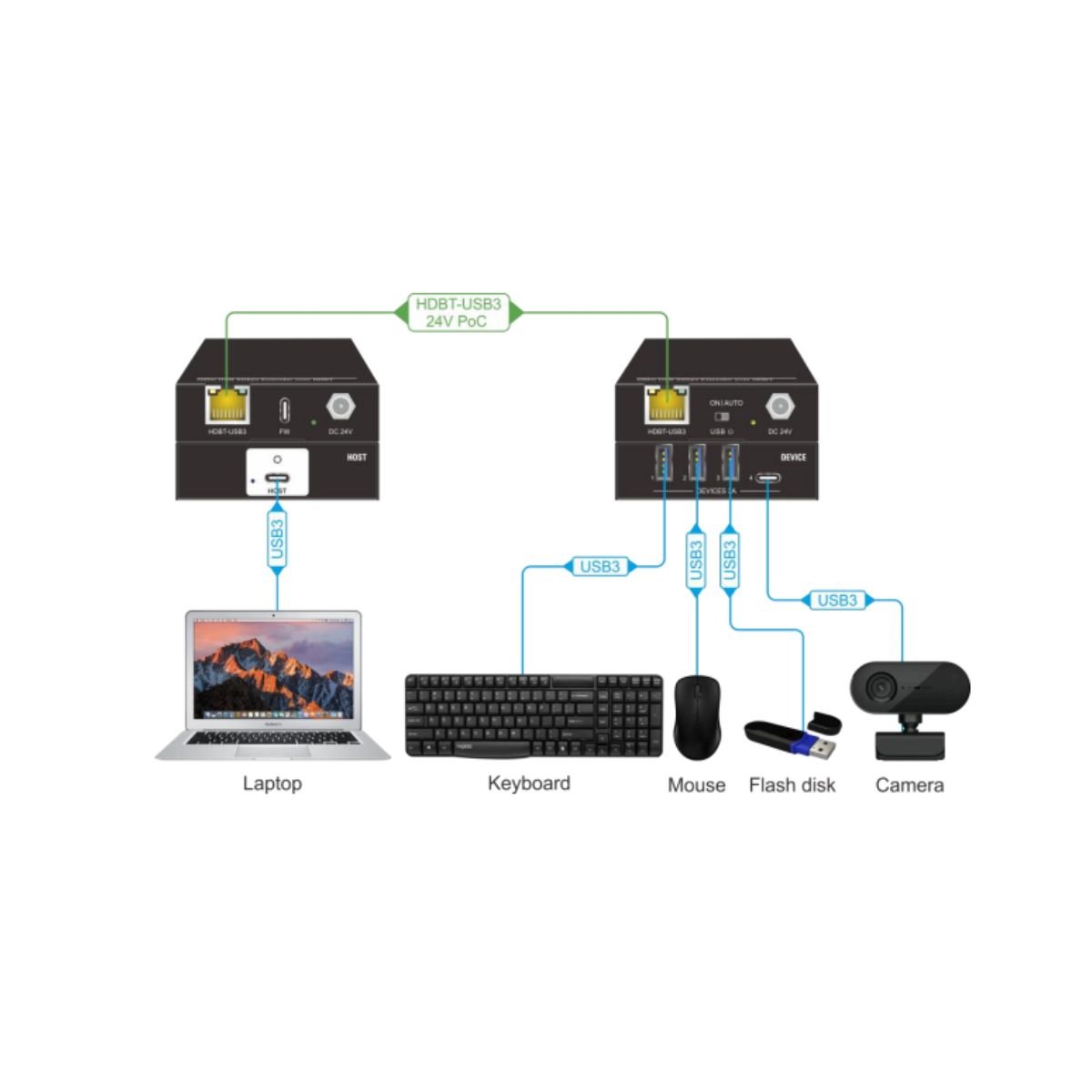

Thanks for choosing the100m USB 5Gbps Extender kit. The extender, which includes a host and a device, is designed to transmit a USB signal up to 100 m. The host port contains one Type-C port for PC or laptop connection; The device port with USB power management contains four USB ports. Applications include extending conferencing cameras, video capture devices, and audio devices for boardrooms and conference rooms. The extender also supports a two-way 24V PoC power supply.

Host Connector	(1) Type-C USB
USB Version	USB 3.2 Gen1
FW Port	(1) Type-C USB
Dimension (WHD)	130.0mm x 21.5mm x 75.0mm
Net Weight	240g
Devices Connector	(3) Type-A USB (1) Type-C USB
Devices Power	Devices share 3A current limit
USB Version	USB 3.2 Gen1
Dimension (WHD)	130.0mm x 21.5mm x 75.0mm
Net Weight	275g
Control Connector	(1) 2-pin DIP switch
Transmit distance	Up to 100m with CAT6A cable
PoC standard	Two-way 24V PoC
Data Rate	5Gbps
Operation Temperature	-10℃ ~ +55℃
Storage Temperature	-25℃ ~ +70℃
Relative Humility	10% ~ 90%
