MP-SCUD

18Gb, HDMI 2.0, HDCP 1.4/2.2 compliant
UP scaling video up to 4K60Hz 4:4:4
Downscaling video up to 640×48060Hz

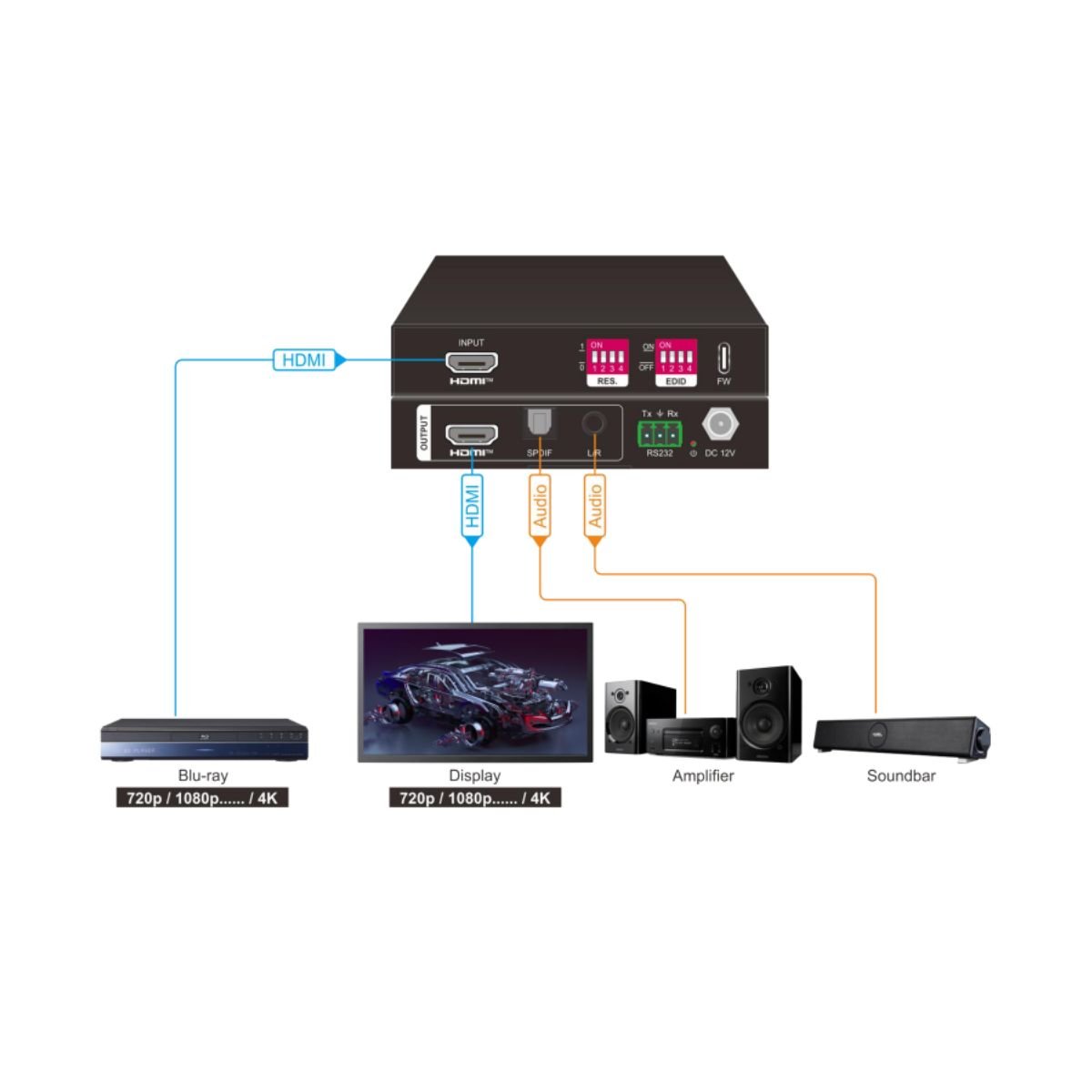

Audio de-embedded to digital or analog
Switchable output resolution
CEC Passthrough
Advance EDID management
Control by DIP Switch, RS-232

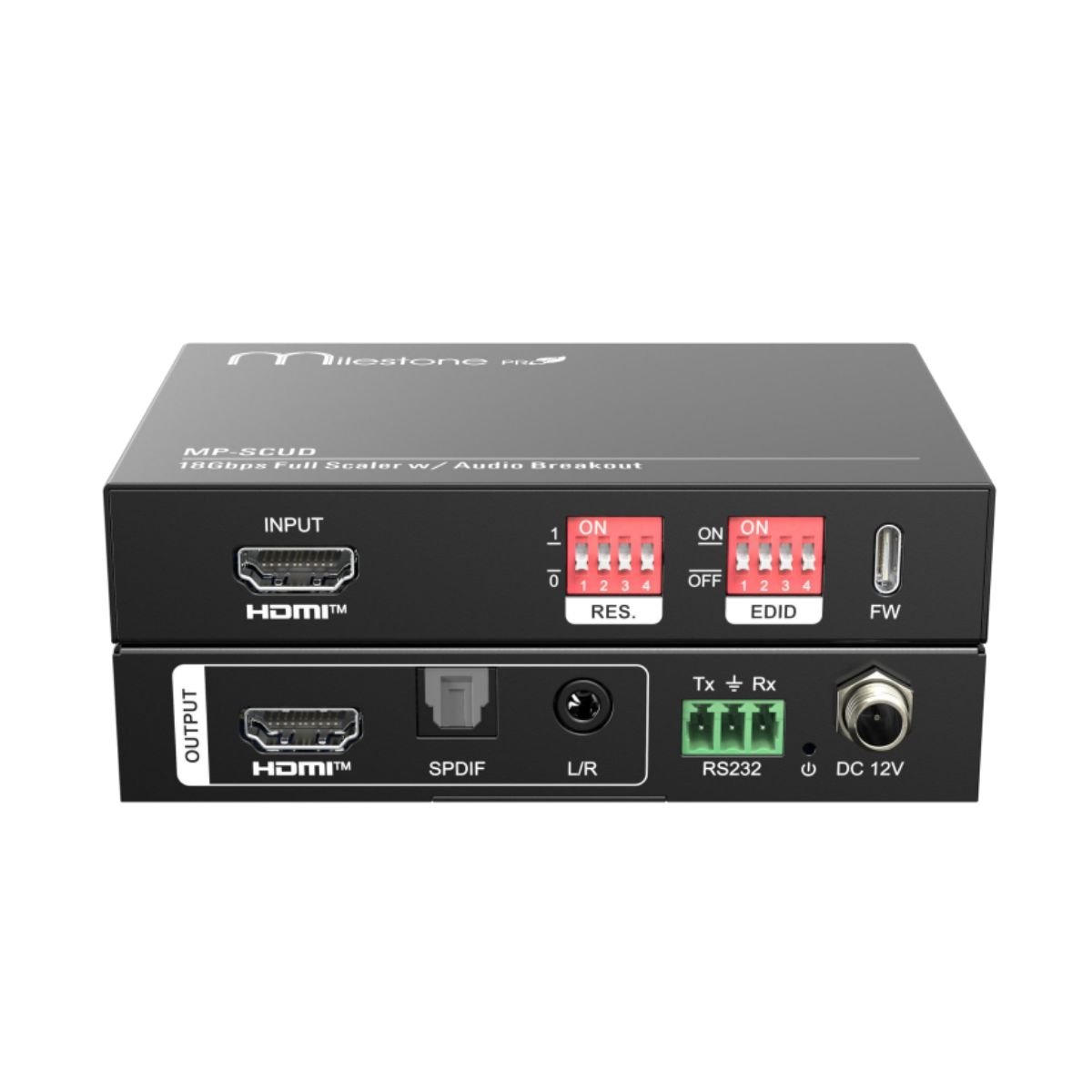

MP-SCUD is a compact yet powerful HDMI full scaler with audio breakout features. It delivers full 18Gbps HDMI 2.0 with HDCP2.2compliance. It also features scaling up to 4K60Hz RGB8-bit, and downscaling to 640×48060Hz. DIP switchers for scaling and EDID make it easy to switch video resolution. RS232 is also provided for advanced control.

Video Input	1x HDMI 2.0 Type-A female port
Input Resolution	Up to 4K60Hz 4:4:4, HDR
Video Output	1x HDMI 2.0 Type-A female port
Output Resolution	Up to
HDMI Version	HDMI 2.0
HDCP Version	Up to 2.2
HDMI Audio Signal	LPCM 2.0
Output	1x S/PDIF
Audio Format	LPCM 2.0
Audio Sample Rate	48KHz
Output	1x Analog L/R Audio
Output Connector	1x 3.5mm audio jack
Audio Format	LPCM 2.0
Frequency Response	20 Hz to 20 kHz, ±1dB
Max Output Level	2.0Vrms ± 1dB
THD+N	< 0.05%, 20 Hz – 20 kHz
SNR	> 80dB
