MP-SUH41MV

4 HDMI inputs, 1 HDMI output.
Supports 4K30Hz 4:4:4, HDCP 2.2.
Seamless switch between 4 input ports.
Auto Scaler in each source input.
Supports audio embedding and mixing.
Supports audio de-embedding.
Auto-switching at a single window.
Cycles through the windows from A to D by the swap button
Based on FPGA Technology, the layout and size of the windows can be customized

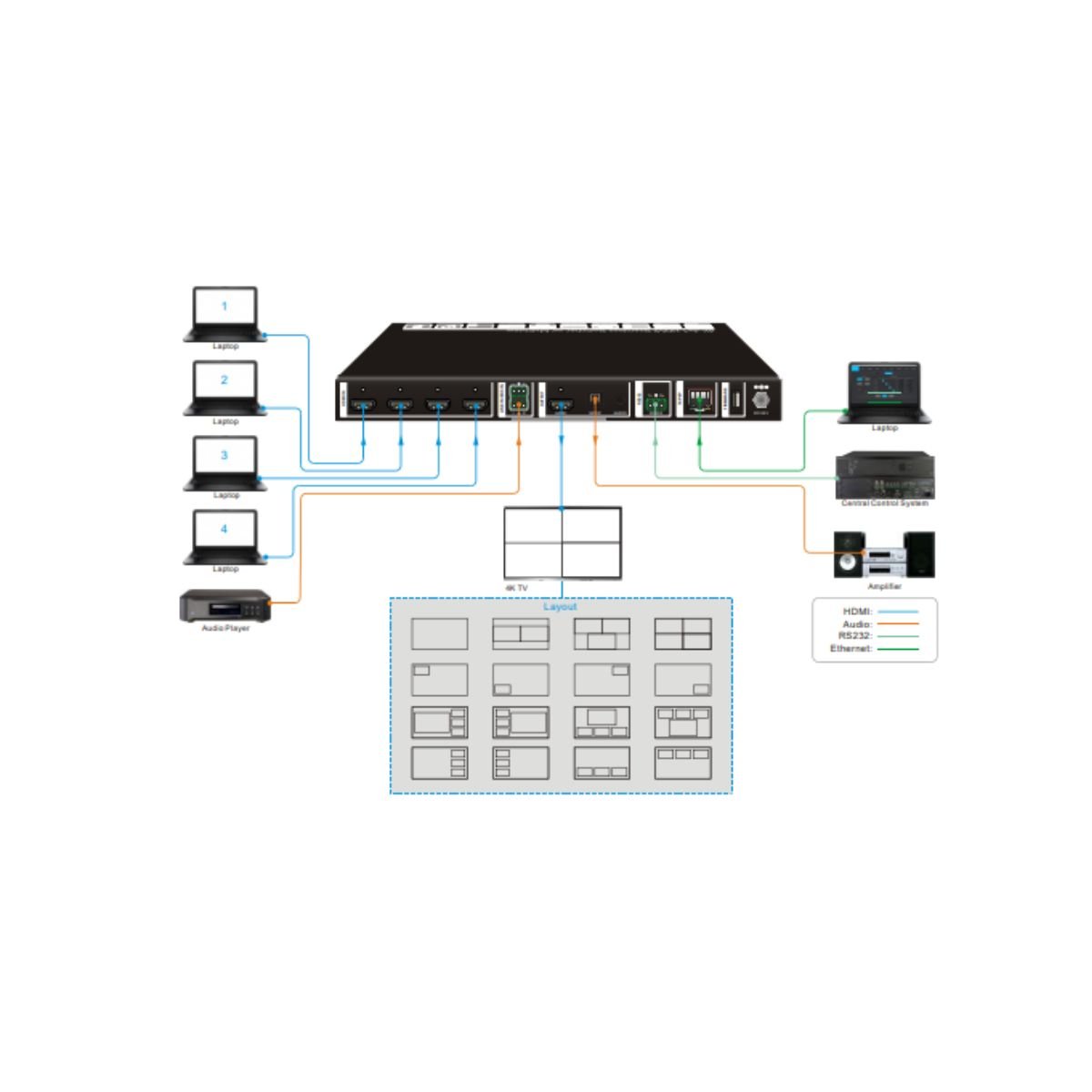

The 4K Multi-view switcher is a seamless video scaler designed to enable a true 4K display. The switcher features four HDMI inputs and one HDMI output, which allows you to display four video sources on one display. It also provides a line input, 1 mix input, 1 SPDIF output, and 1 analog output for audio processing. Control is quick and comprehensive, whether you are using the front panel, the remote control, RS232 commands, or the fully featured web GUI.

No sidebar links found

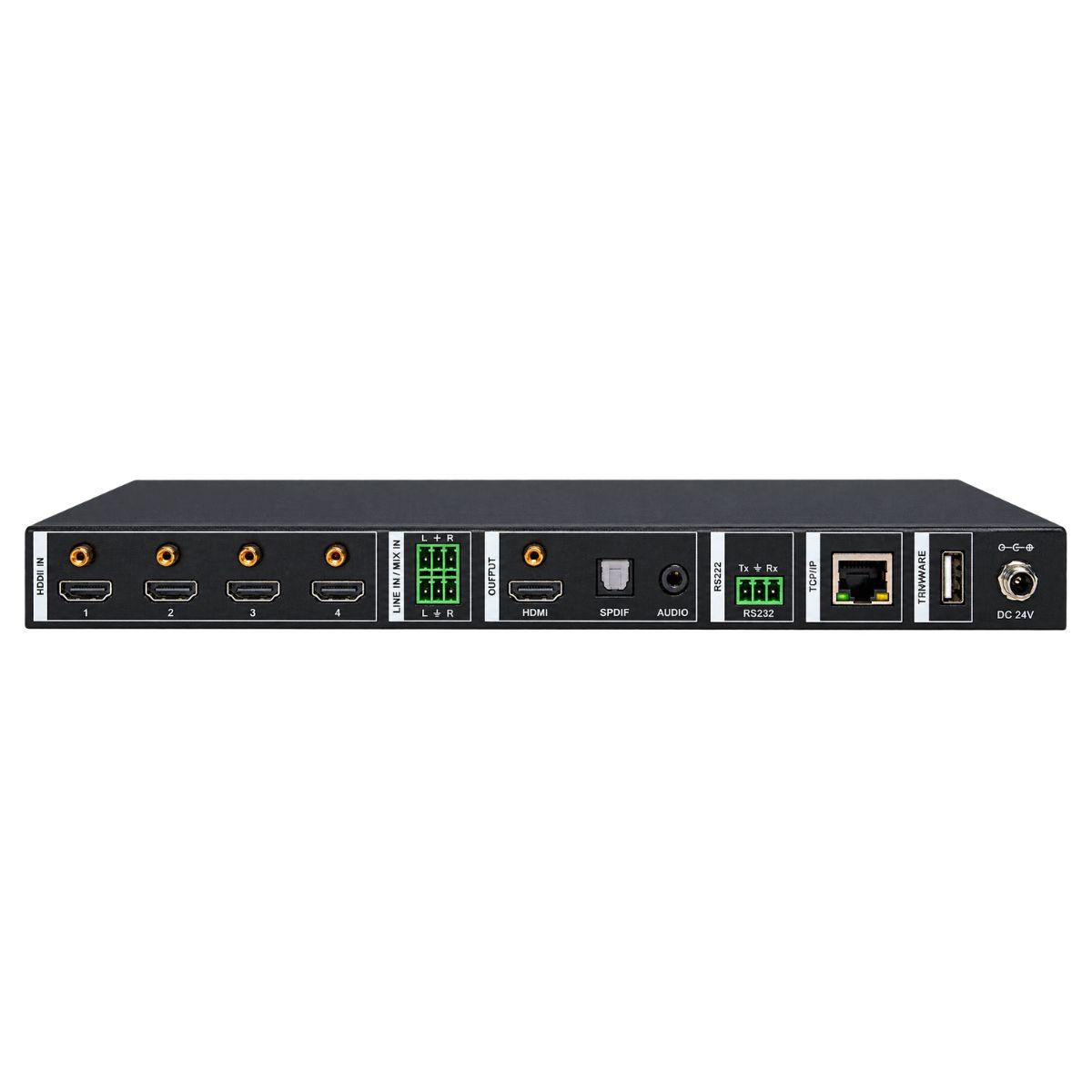

Video Input	(4) HDMI IN (1~4)
Video Input Connector	(4) Type-A female HDMI
HDMI Input Resolution	Up to 4K30Hz 4:4:4
Video Output	(1) HDMI
Video Output Connector	(1) Type-A female HDMI
HDMI Output Resolution	Up to 4K30Hz RGB
HDMI Standard	HDMI 1.4
HDCP Version	Up to HDCP 2.2
