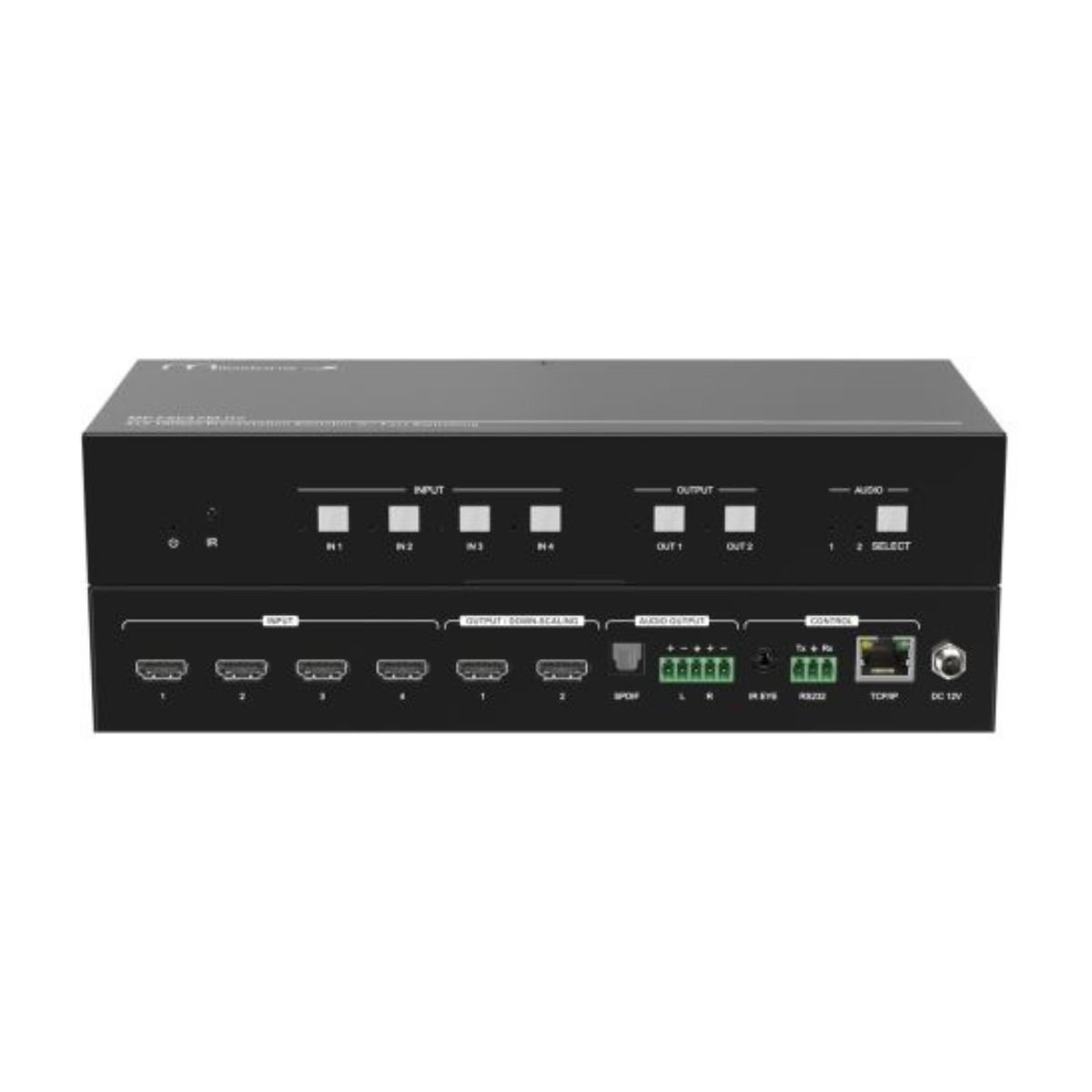

MP-FSC42M-H2

4x2 HDMI 2.0 Matrix Switcher with 4 HDMI inputs and 2 HDMI outputs
Supports 18Gbps bandwidth for 4K60Hz 4:4:4 HDR
Supports analog and digital audio de-embedding output
Supports 4K downscaling to 1080p

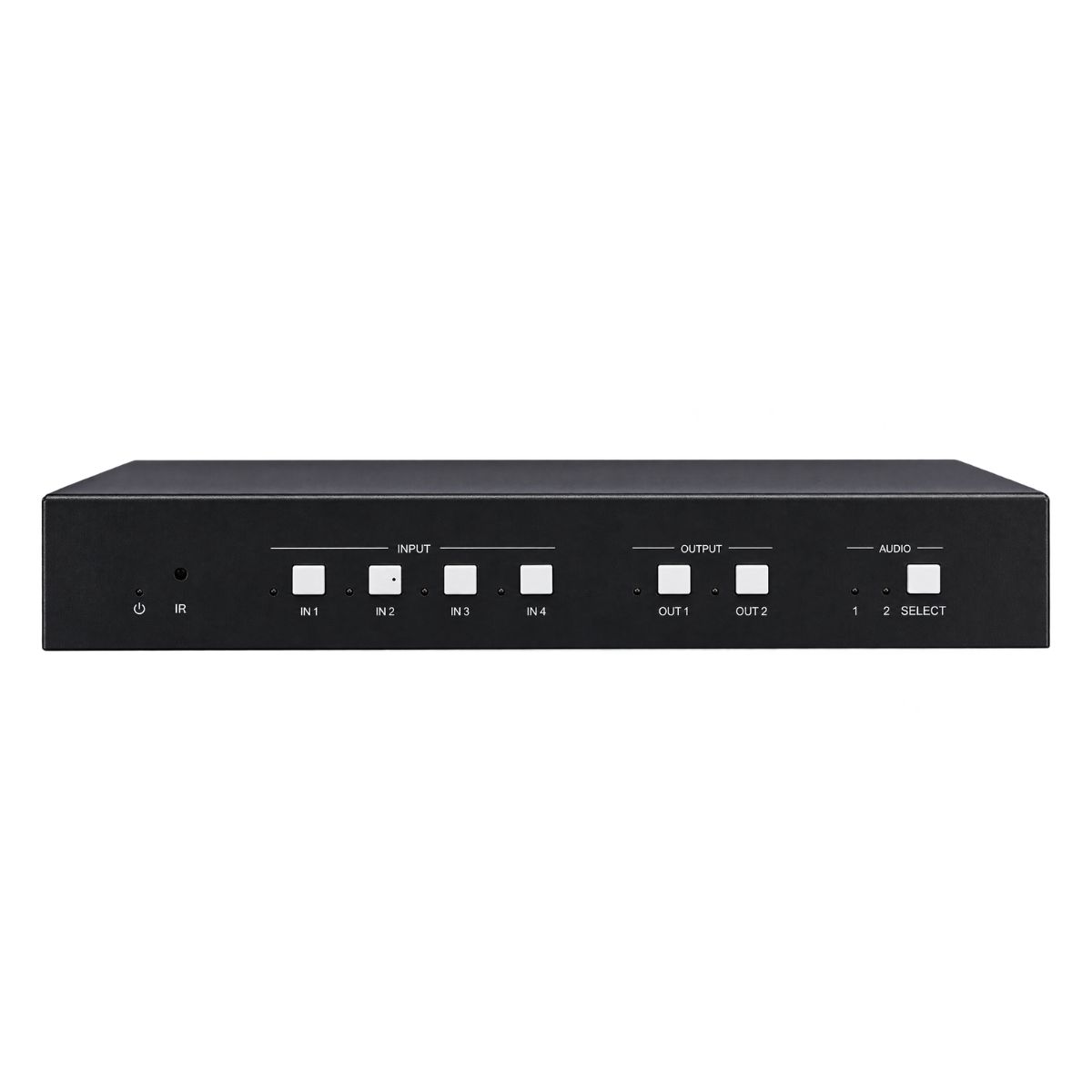

Controlled via front panel buttons, RS-232, IR, and GUI.

The MP-FSC42M-H2 is a high-performance 4×2 HDMI 2.0 Fast Switching Matrix Switcher, featuring 4 HDMI inputs and 2 HDMI outputs, supporting up to18Gbps4K60Hz 4:4:4 with HDR, and digital/analog audio de-embedding from one output. Fast switching in just 2-4 seconds makes it stand out from the ordinary matrix switcher. It offers flexible control via RS-232, IR, and Web-GUI, ensuring seamless operation across diverse scenarios.

MP-FSC42M-H2

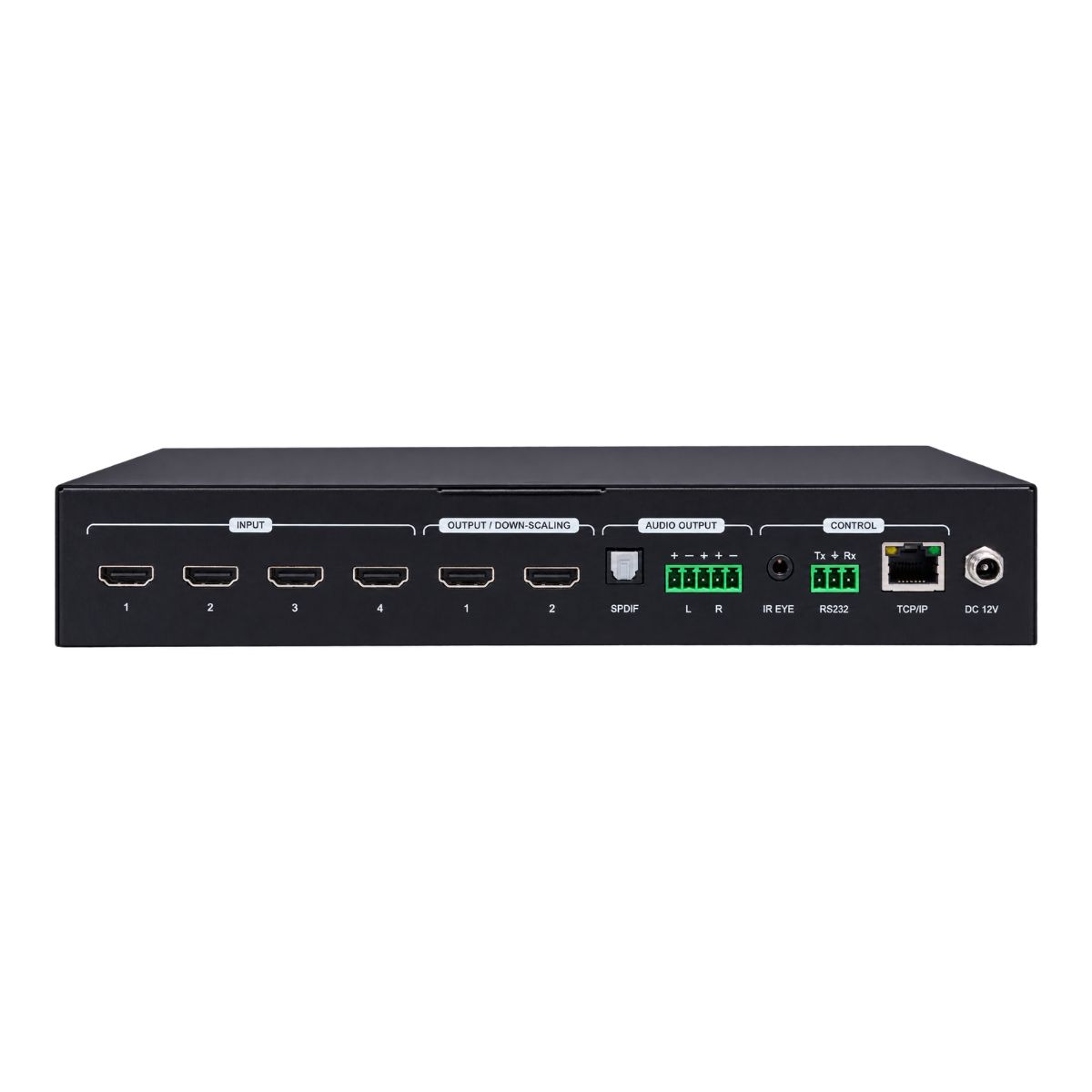

Video Input	4x HDMI 2.0, up to 3840x216060Hz 4:4:4
Video Output	2x HDMI 2.0, up to 3840x216060Hz 4:4:4
Audio Input	4x HDMI
Audio Output	1x SPDIF, for digital audio output /1x 5-pin L/R, for analog audio output
Audio Output	1x 5-pin terminal connector, for balancedstereoL/R audio.
Frequency Response	20 Hz to 20 kHz, ±1dB
Max output level	2 ± 0.1Vrms
THD+N	< 0.05%, 20Hz - 20kHz
Signal-to-Noise Ratio (SNR)	> 80dB
Crosstalk isolation	< -80dB
