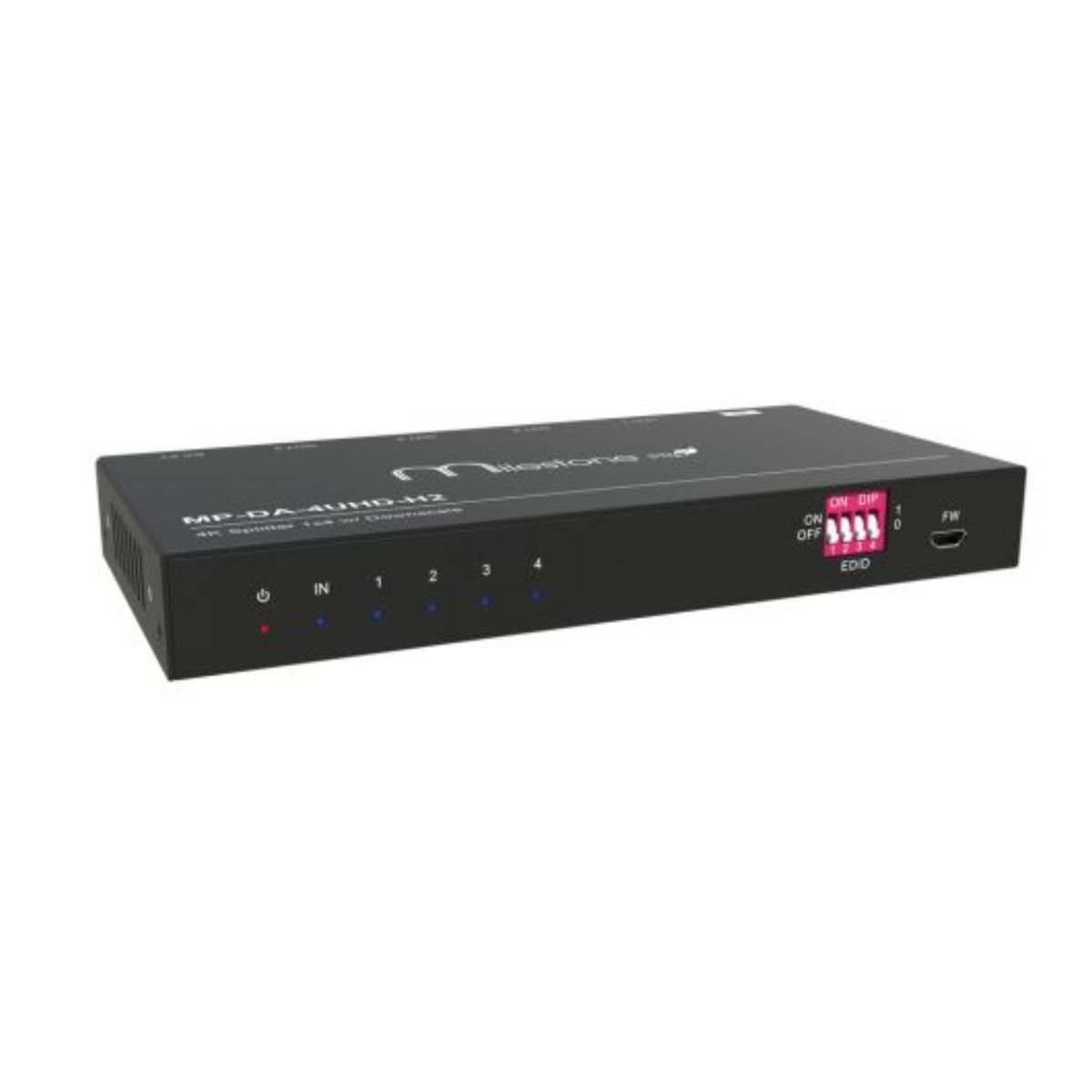

MP-DA-4UHD-H2

Supports HDMI 2.0 and video resolution up to 4K60Hz 4:4:4.
HDMI input supports HDCP 2.2, and the outputs support HDCP Active or HDCP Passive mode.
Supports video resolution down-scaling, the 4K input can be automatically degraded to 1080P output for compatibility with 1080P displays.
18Gbps high bandwidth.
Advanced EDID management: multiple built-in EDID settings can be selected.
Built-in equalizer for signal enhancement to avoid signal attenuation in transmission.
Supports CEC pass-through
Provides LEDs to indicate the current operating status.
Firmware upgrade via Micro-USB port.

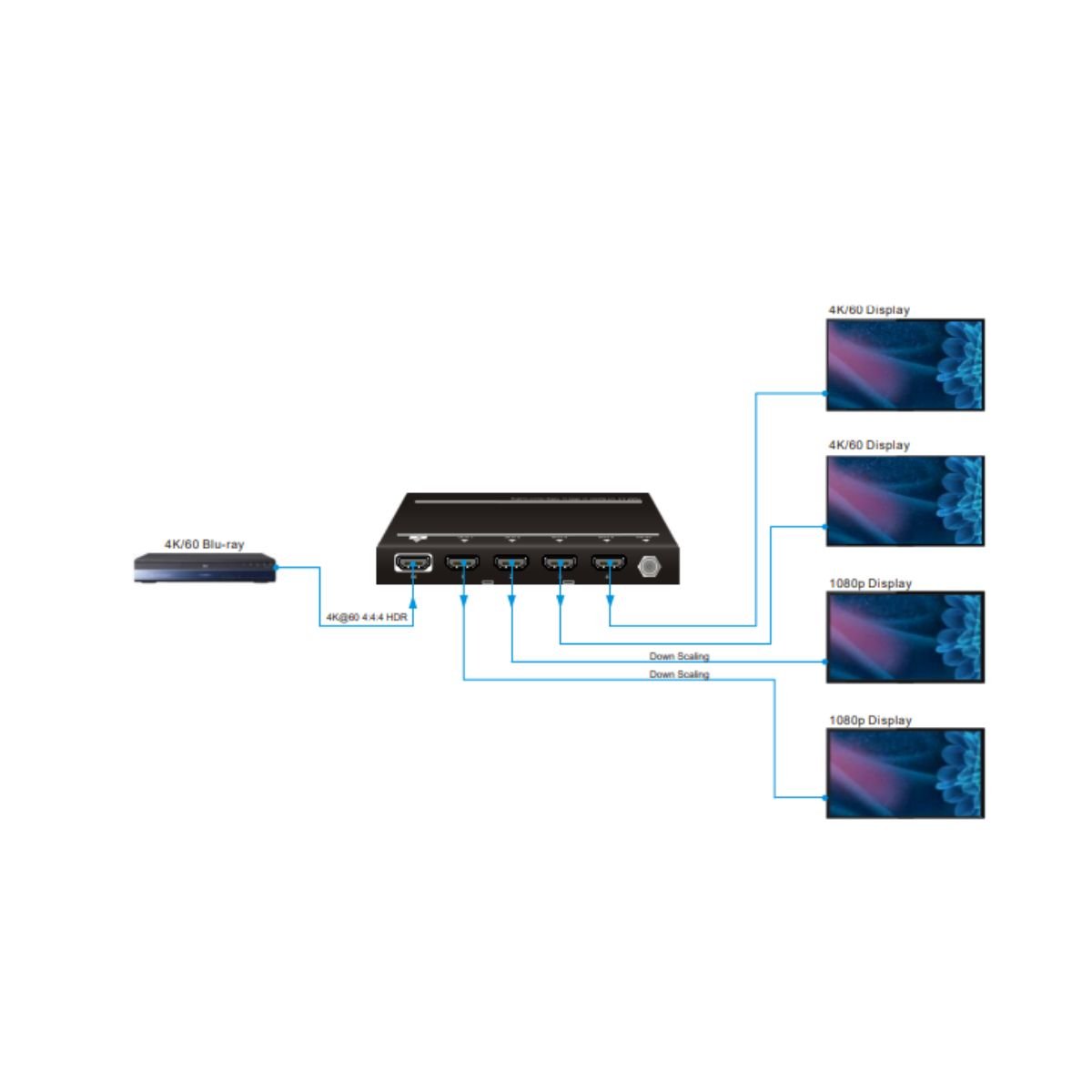

This HDMI 2.0 1×4 Splitter can distribute one HDMI input to four outputs. The splitter
supports HDMI video resolution up to 4K60Hz 4:4:4, 1080P 3D, and multichannel
audio formats. Besides passing EDID information from the display, there are multiple
built-in EDID settings that can be selected by the 4-pin DIP switch on the front panel.
Moreover, the splitter supports convenient firmware upgrade through the Micro-USB port.

No sidebar links found

Input	(1) HDMI
Input Connector	(1) Type-A female HDMI
HDMI Input Resolution	Up to 4Kx2K60Hz 4:4:4 8bit
HDMI Standard	2.0
HDCP Version	2.2, 1.4 compliant
CEC	Supported
Output	(4) HDMI
Output Connector	(4) Type-A female HDMI

MP-DA-4UHD-H2
