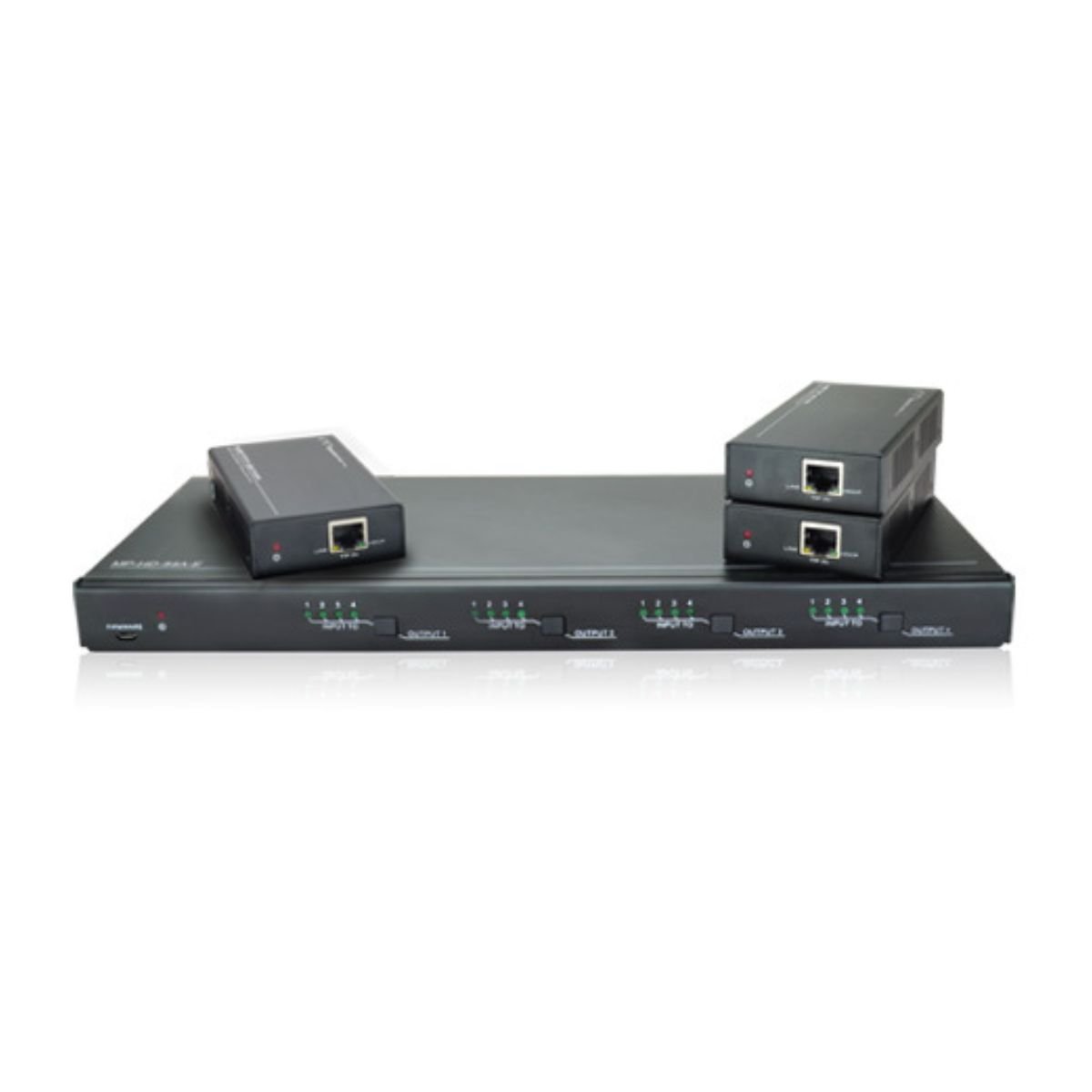

MP-HD-44A-E KIT

• SupportHDMI1.4 & HDCP2.2, and compliant with lower standards, capable to transmit 4Kx2K60Hz 4:2:0 & 1080p 3D

• Support manual HDCP management and auto-detecting

• Transmit 4Kx2K signal for 8m via HDMI port, 40m via HDBT port

• Audio source selectable via RS232 command

• 3 HDBaseT outputs, distances up to 70m at 1080p and 40m at 4Kx2K on a single CAT5e/6 cable can be achieved.

• The HDBaseT Receivers are powered by the matrix switcher 12VDC by PoC technology.

• LED indicators show real-time switching status.

• Controllable via front panel, RS232, IR and TCP/IP

• Support bi-directional IR& RS232 control

• Built-in GUI for TCP/IP control

• Powerful EDID management

• Support non-volatile memory [NVM] for reliable operation.
