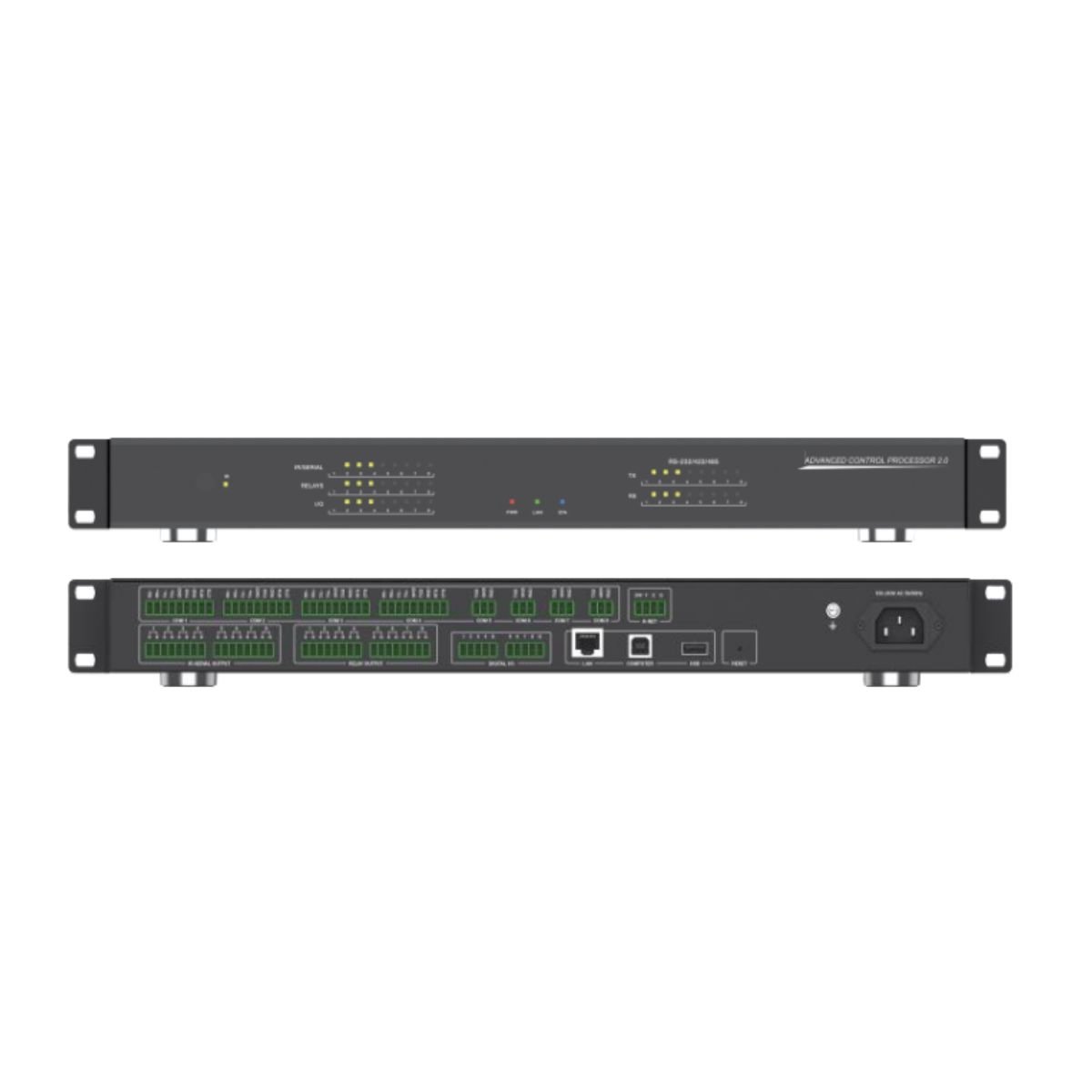

MP-CTL8U

ARM Cortex-A53 architecture, 1.8Ghz main frequency, 2GB RAM, 8GB ROM
With 8 two-way serial ports to connect matrixes, projectors or other A/V devices
With 8 IR outputs/one-way serial ports to connect DVD, TV sets, or other home appliances
With 8 relay ports to control lights, doors or curtains
With 8 digital inputs to receive sensor signals
With adaptive Gigabit Ethernet port, compliant with industry standard network communication protocols (Http/TCP IP/UDP/Websocket)
IR learning
Provide a superb-performance Web server, supporting on-line firmware upgrade
Password protection against unauthorized accesses
Built-in sync clocks

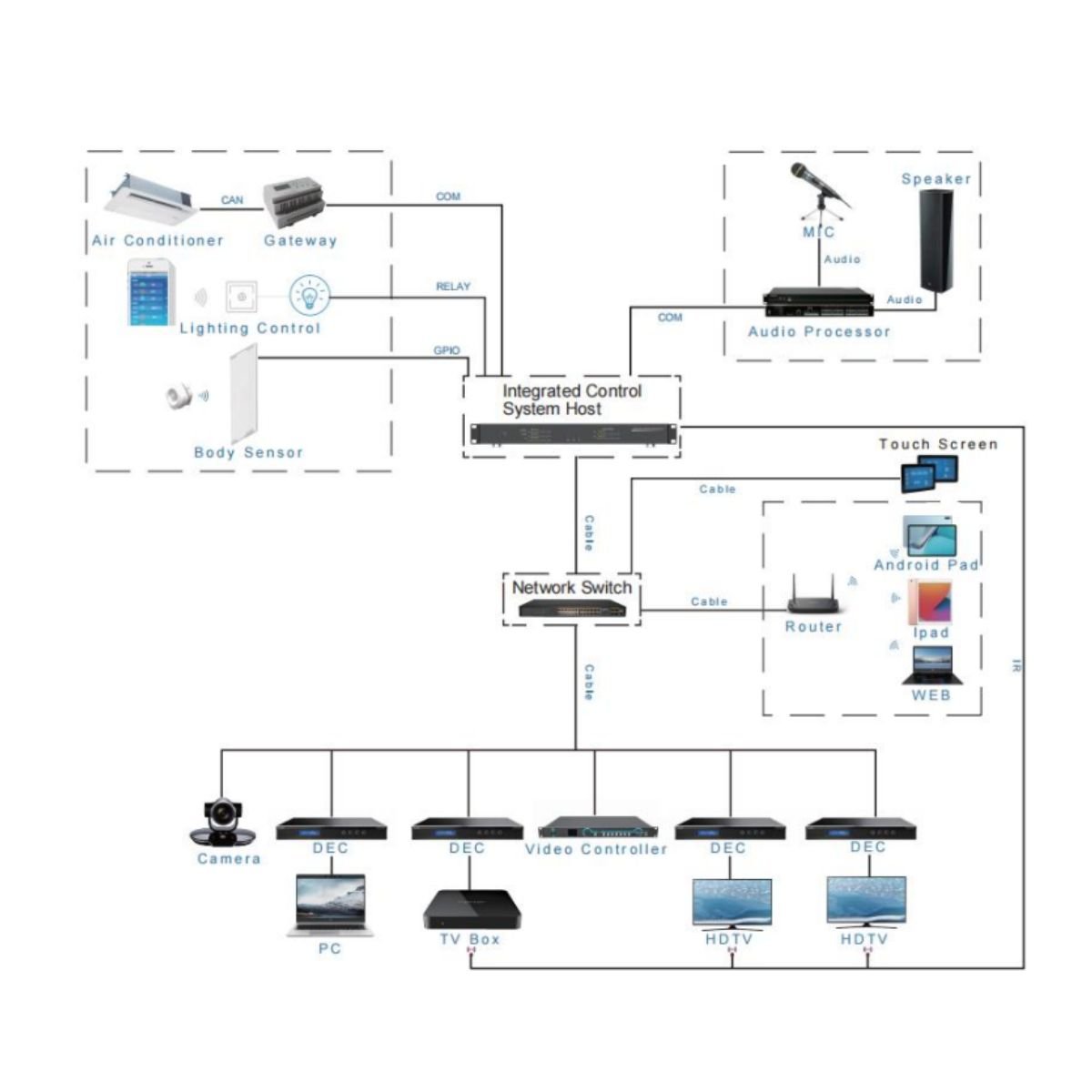

The integrated control system host is designed to be utilized in the sectors of the command center, automated office system, multi-media room, and smart
home. With a programmable interactive user interface for configuration protocols, the integrated system provides intelligent networking service, ideal for the establishment of a modern command and control center. The product features 8 two-way serial ports, 8 IR outputs, 8 Relay ports, 8 digital I/O ports, and 1 Gigabit Ethernet port, suitable for large-scale application systems to control multiple devices. The product is used in a diverse range of installations and applications
across industries, including emergency alarming centers, C4ISR solutions, governmental administration centers, smart buildings, multi-media conference rooms, multi-functional halls, training centers, showrooms, broadcasting studios, and industrial automation.

CPU	ARM Cortex-A53 1.8GHz
Operation System	Android 9
RAM	2GB DDR4 RAM
Flash Memory	8GB EMMC Flash
LEDs	1 × IR Learning LED 1 × Power LED 1 × LAN LED 1 × Status LED 8 × TX LEDs 8 × RX LEDs 8 × IR/Serial LEDs 8 × Relay LEDs 8 × I/O LEDs
COM1/2/3/4	4 × 9-pin Phoenix Connectors, for two-way RS-232/422/ 485 serial data communication
COM5/6/7/8	4 × 3-pin Phoenix Connectors, for RS-232 serial data communication
IR-SERIAL OUTPUT	2 × 8-pin Phoenix Connectors, for IR transmitting or oneway RS-232 serial data communication
RELAY OUTPUT	2 × 8-pin Phoenix Connectors, low-voltage relays, isolated, normally open, switching up to 30VDC, 2A / 125VAC, 1A
DIGITAL I/O	2 × 5-pin Phoenix Connectors, for digital signal inputting
LAN	A standard 10M/100M/1000M Ethernet RJ45 interface
USB	1 × USB TYPE A (function reserved)
COMPUTER	1 × USB TYPE B
H-NET	1 × 4-pin Phoenix Connectors, private bus interface (function reserved)
RESET	1 × RESET, for restoring factory default
IR	1 × IR learning Window
