MP-TP4W

ARM Cortex-A55 architecture 1.8Ghz main frequency
Android 11.0 system, 4GB DDR4 RAM, 32GB EMMC Flash
4 inch 720*720 (1:1) resolution, standard 86 box wall-in design
One machine with two modes, can be used as touch screen central control or user terminal
Support one RS-232 serial communication port, which is capable of configuring 8 baud rates in the range of 2400-115200bps
Support access to the host system management web page with a password
Compliant with industry standard network communication protocols (TCP/IP, Http, UDP, Websocket)
With 1 Gigabit network port, the highest rate up to 1G/bps
Dual power supply mode, supporting PoE or DC power supply
Interface and function configuration via central control software

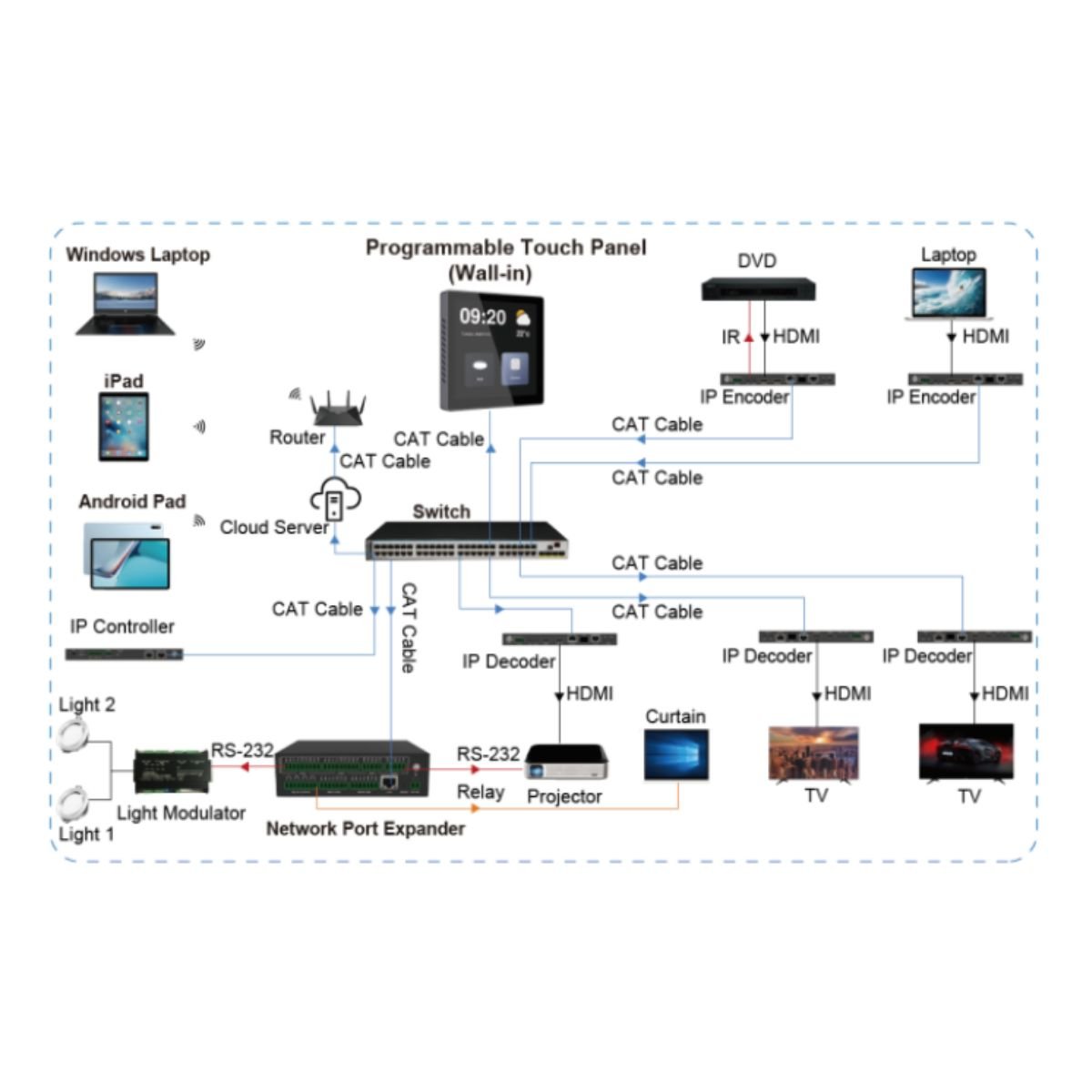

The programmable touch panel is designed to be utilized in the sectors of automated office systems, multi-media rooms, and smart homes. With a
programmable interactive user interface over configuration protocols, the integrated system provides intelligent networking service. The wall-in touch panel, with standard 86 box design, is equipped with a capacitive touch screen with a resolution of 720*720, and it supports one LAN port and one RS-232 serial port. It is used in a diverse range of installations and applications across industries, including multi-media conference rooms, multi-functional halls, training centers, showrooms, broadcasting studios, and industrial automation.

CPU	ARM Cortex-A55 1.8GHz
Operation System	Android 11
RAM	4GB DDR4 RAM
Flash Memory	32GB EMMC Flash
Resolution	720*720
Touch Type	Capacitive Touch Screen
ESD Protection	IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

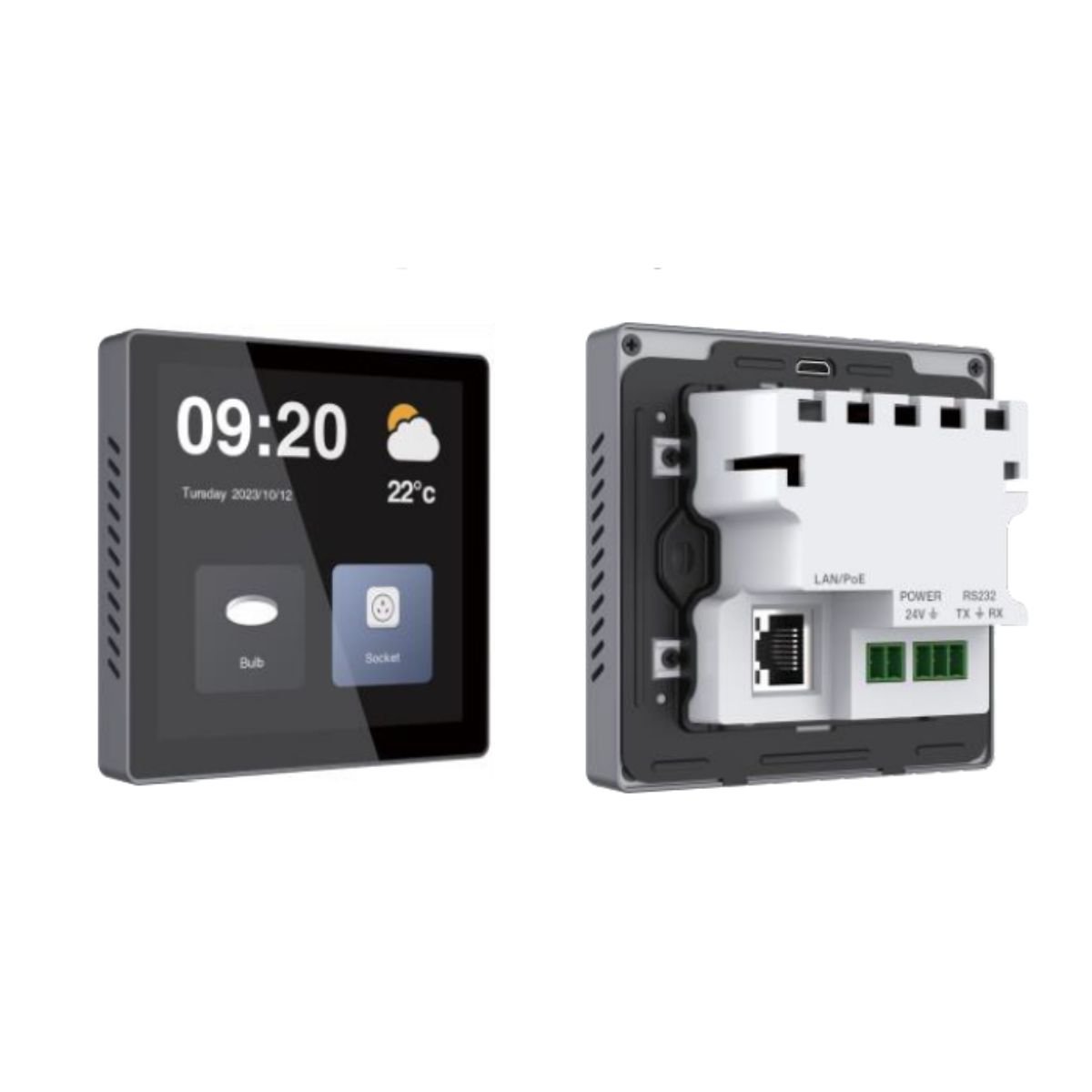

RS232	1x 3-pin Phoenix Connectors, for RS232 serial data communication
LAN/PoE	1x Standard 10M/100M/1000M Ethernet RJ45 port, supporting PoE function
POWER	1x 2-pin Phoenix Connectors, for power supply
DEBUG	1x Micro USB, system debugging port
