MP-SC-21

Features 1 HD MI input and 1 VGA input with auxiliary audio input.
The output resolution can be selected from 720p to 4k x 2k 30Hz 4:4:4 to assure preferred output.
Transmits 4Kx2K up to 131ft (40m) or 1080p up to 230ft (70m) via HDBaseT port.
Supports volume control v ia buttons.
Supports HDMI/VGA table grommets to control source switching and black screen showing.
Automatically switch based on video sensing.
Supports RS232 pass through to communicate control signal between the scaler and the connected HDBaseT matrix or receiver.
Allows the connected source and display to be controlled via bi directional IR pass through remotely.
Supports bidirectional PoH , the HDBaseT receiver can be powered by this scaler switcher , or this scaler switcher can be powered by compatible d evice vi a HDBaseT port
Supports advanced built in EDID management.

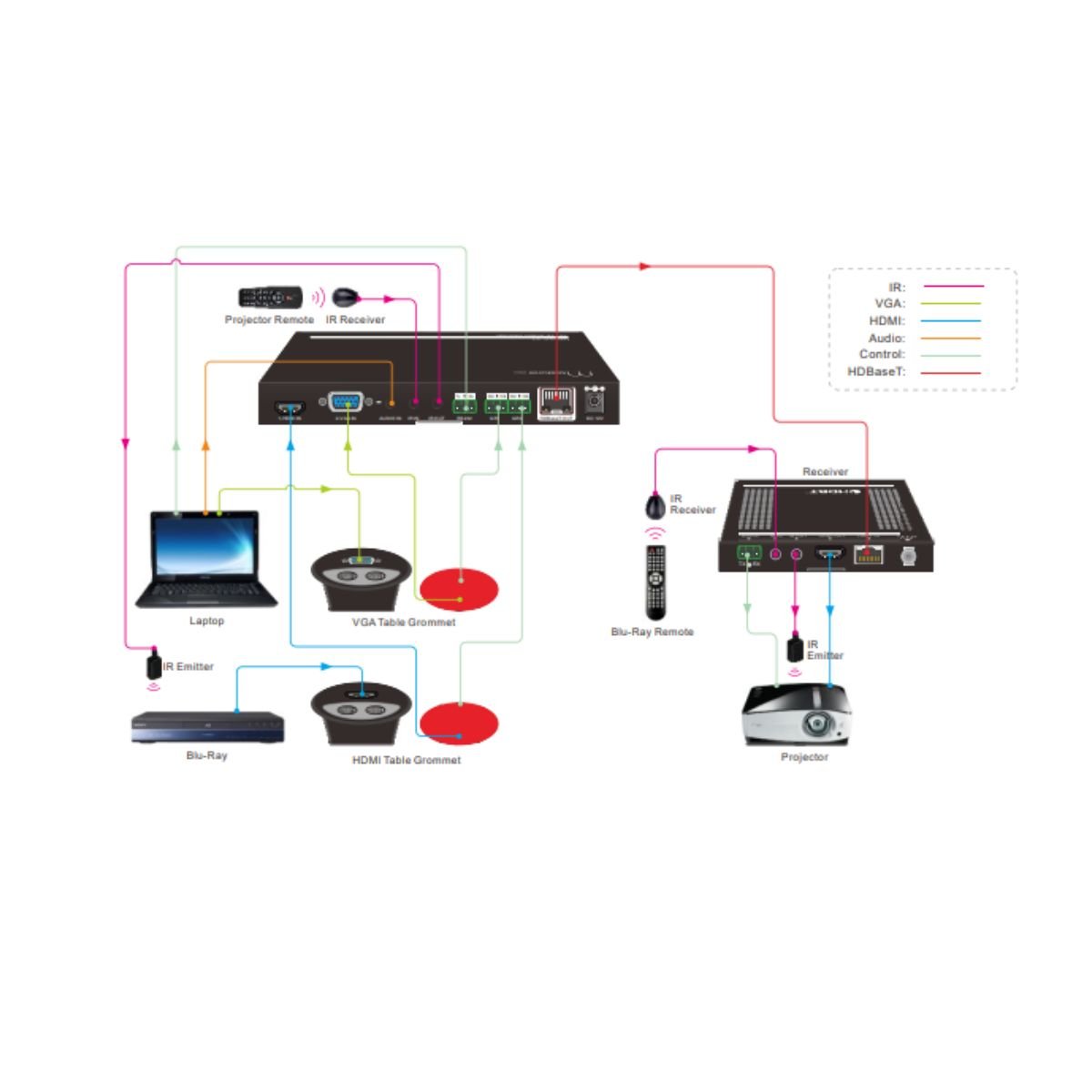

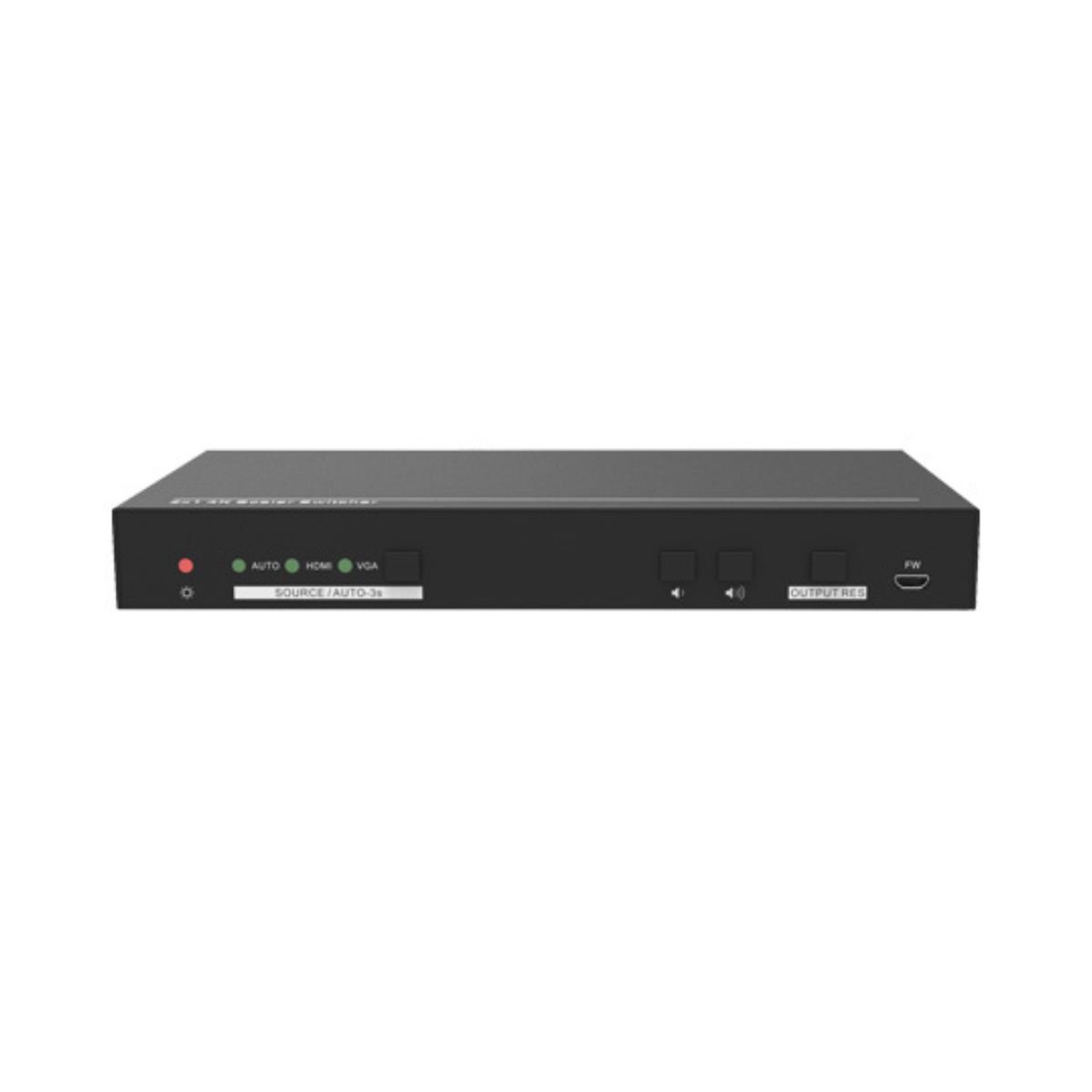

MP-SC-21 is a professional 4K Scaler Switcher that scales an HDMI/VGA video signal to an HDBaseT output by selecting output resolution from 720p to 4K via OSD. The HDBaseT output supports bidirectional PoH and can connect to an HDBaseT receiver up to a maximum of 70 meters (230 ft) (HDBaseT receiver sold separately). With 1 IR In and 1 IR Out and 1 RS232, the IR and RS232 control signals can be transmitted bi-directionally between the MP-SC-21 and a compatible HDBaseT receiver. It supports advanced built-in EDID management and is HDCP 2.2 compliant. Video and audio sources can be selected via front panel buttons, table grommets, or RS232 commands by 3rd Party control device. Moreover, it features volume buttons to turn up/down the volume level.

Input	(1) HDMI; (1) VGA; (1) AUDIO
Input Connector	(1) Type A Female HDMI; (1) female VGA (15-pin); (1) 3.5mm mini jack
Output	(1) HDBaseT
Output Connector	(1) Female RJ45(with LED indicators)
Control	(1) IR IN; (1) IR OUT; (1) RS232; (1) GR1; (1) GR2
Control Connector	(2) 3.5mm mini jacks; (3) 3-pin phoenix connectors
Input Resolution	HDMI: Up to 4K60Hz 4:2:0, supports HDMI1.4, and HDCP2.2 compliant. VGA: Up to 1920x120060Hz.
Output Resolution	3840x216030Hz,1920x108060Hz, 1080x 720p60hz, supports HDMI1.4, and HDCP1.4 compliant.
Transmission Distance	4K≤40m; 1080p≤70m (High-qualified Cat5e/6/7 cable)
Bandwidth	10.2Gbps
EDID	In-built EDID management
Power Supply	Input:100V~240V AC; Output:12VDC 2A
