MPHUC-T70WPT4K

Supports HDMI signal up to 4K60H z 4:4:4, USB C signal up to 4K 3 0Hz 4:4:4.
Supports HDMI V2.0 standard and HDCP 2.2 compliant. Ensures display of content protected media and interoperability with other HDCP compliant devices.
Active input automatic detective.
Extending HDMI signal 4K60Hz up to 131ft/40m and 1080p60Hz up to 229ft/70m.
The USB C supports video and USB data transmission.
Supports RS232 control with HDBaseT connection and local control.
Supports bidirectional IR pass through to control display device from local and control source device from remote.
Supports CEC to turn on/off display by the DISPLAY ON/OFF button, and the button can be programmed by IR learning feature or RS232 command.
Supports bi directional 24 V PoC power supply and wide voltage power receiving (12~48V), only one power adapter
Supports USB 2.0 KVM solutions.
Micro USB port for firmware upgrade

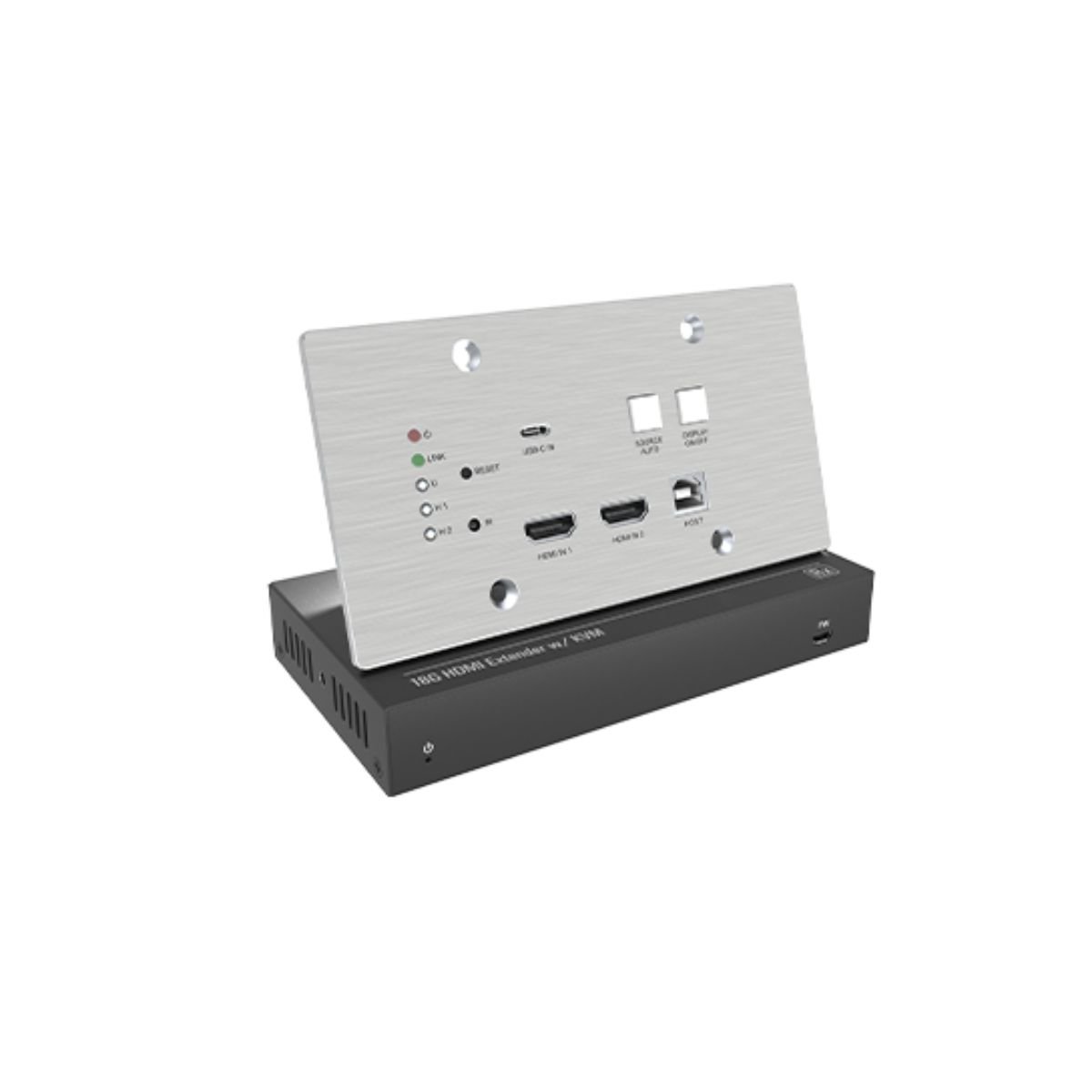

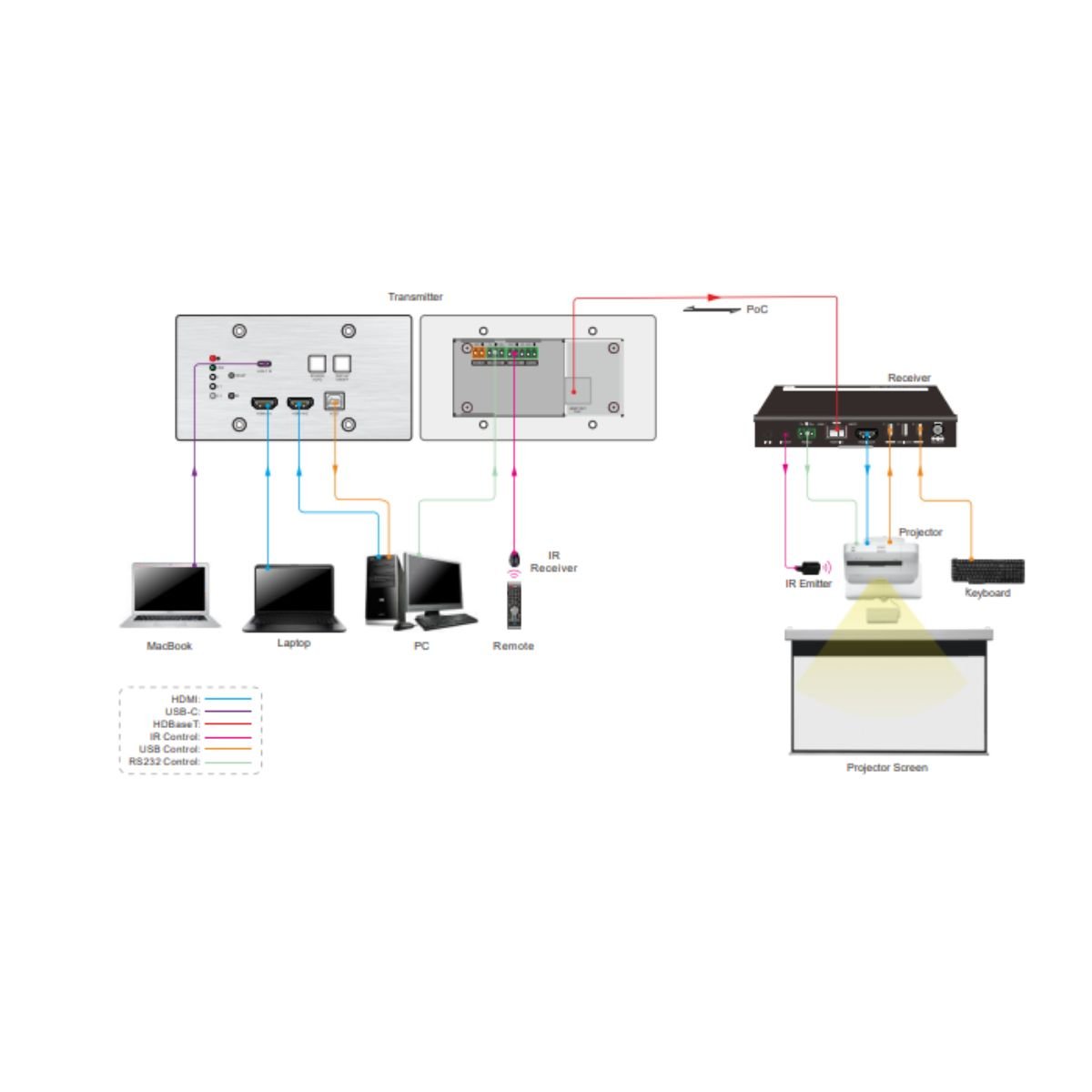

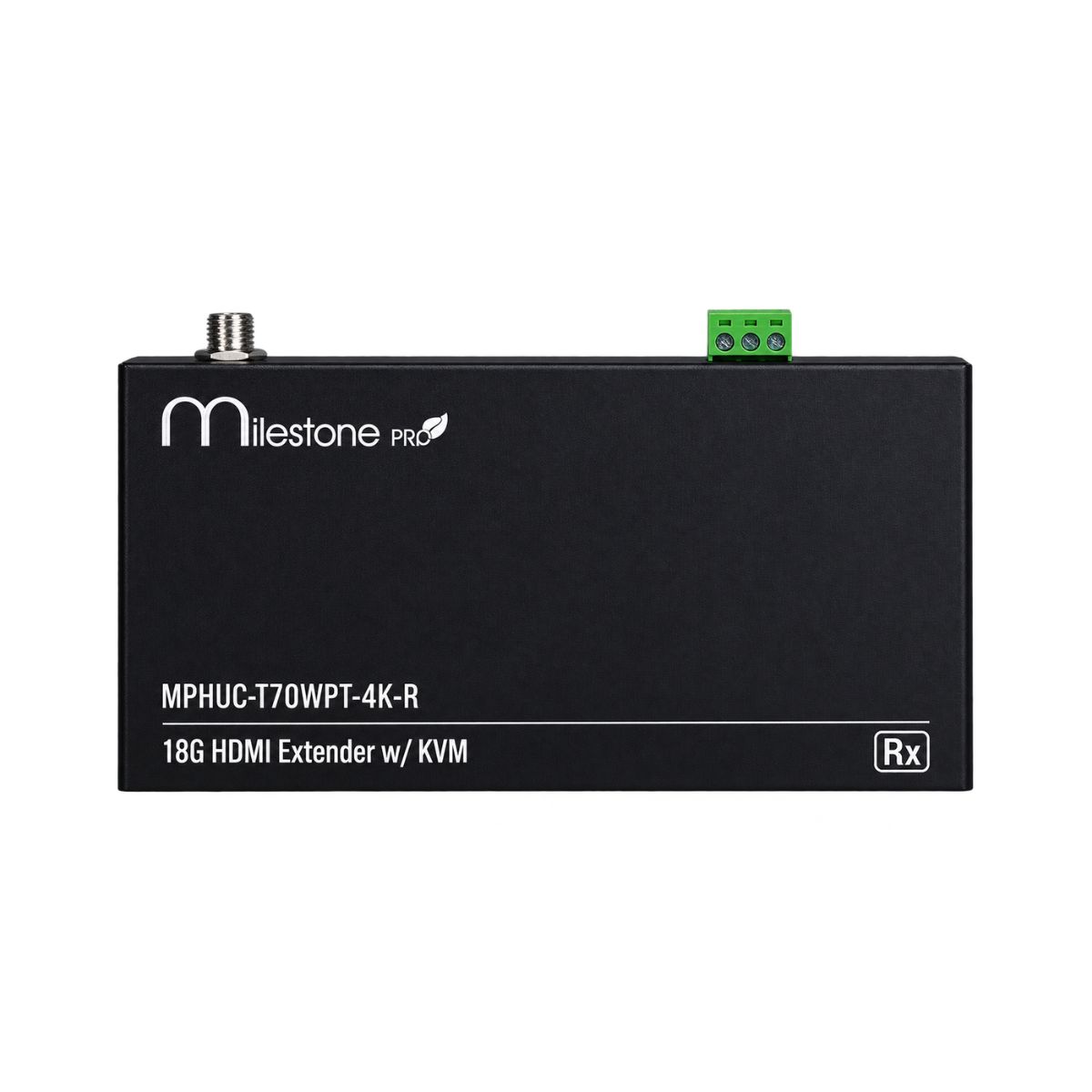

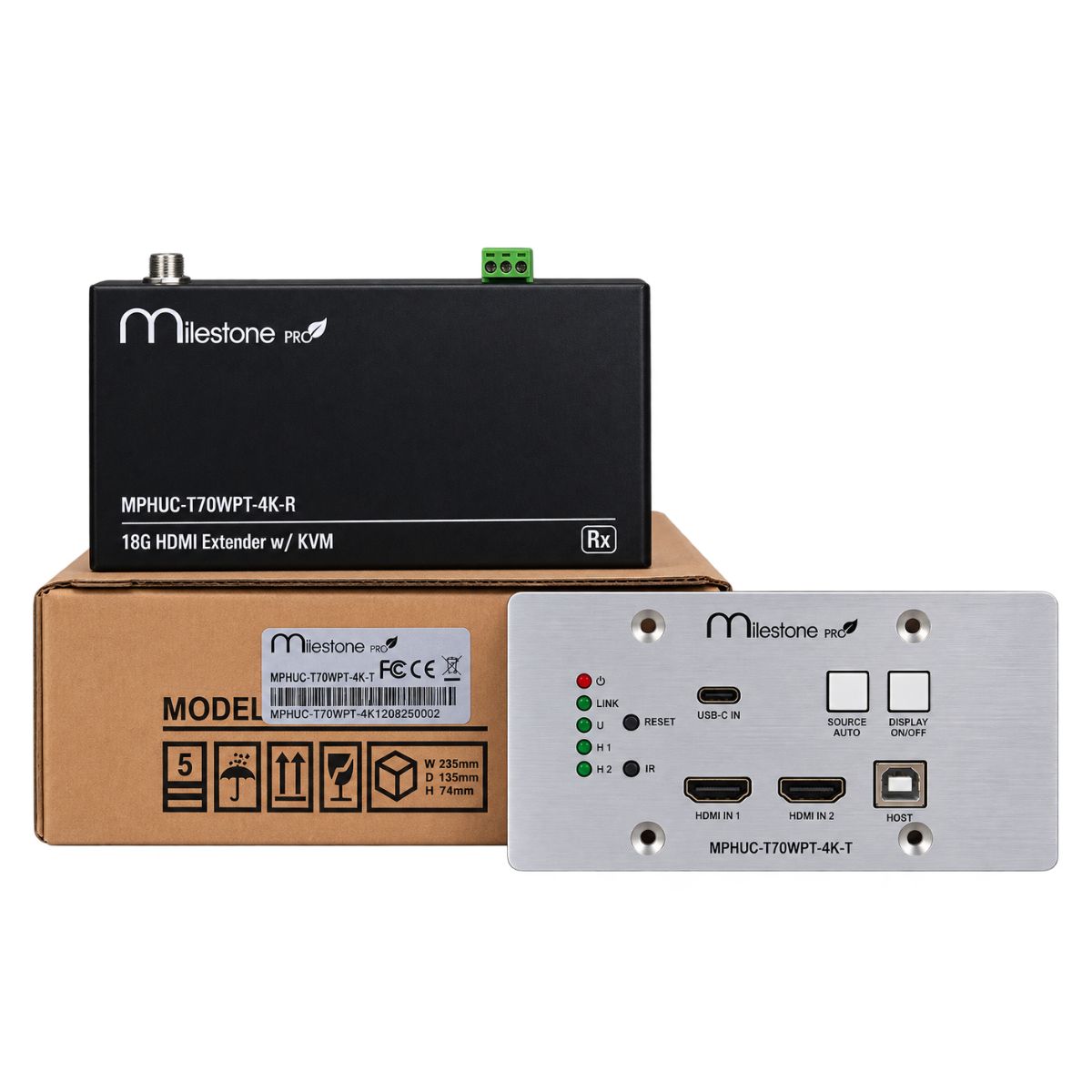

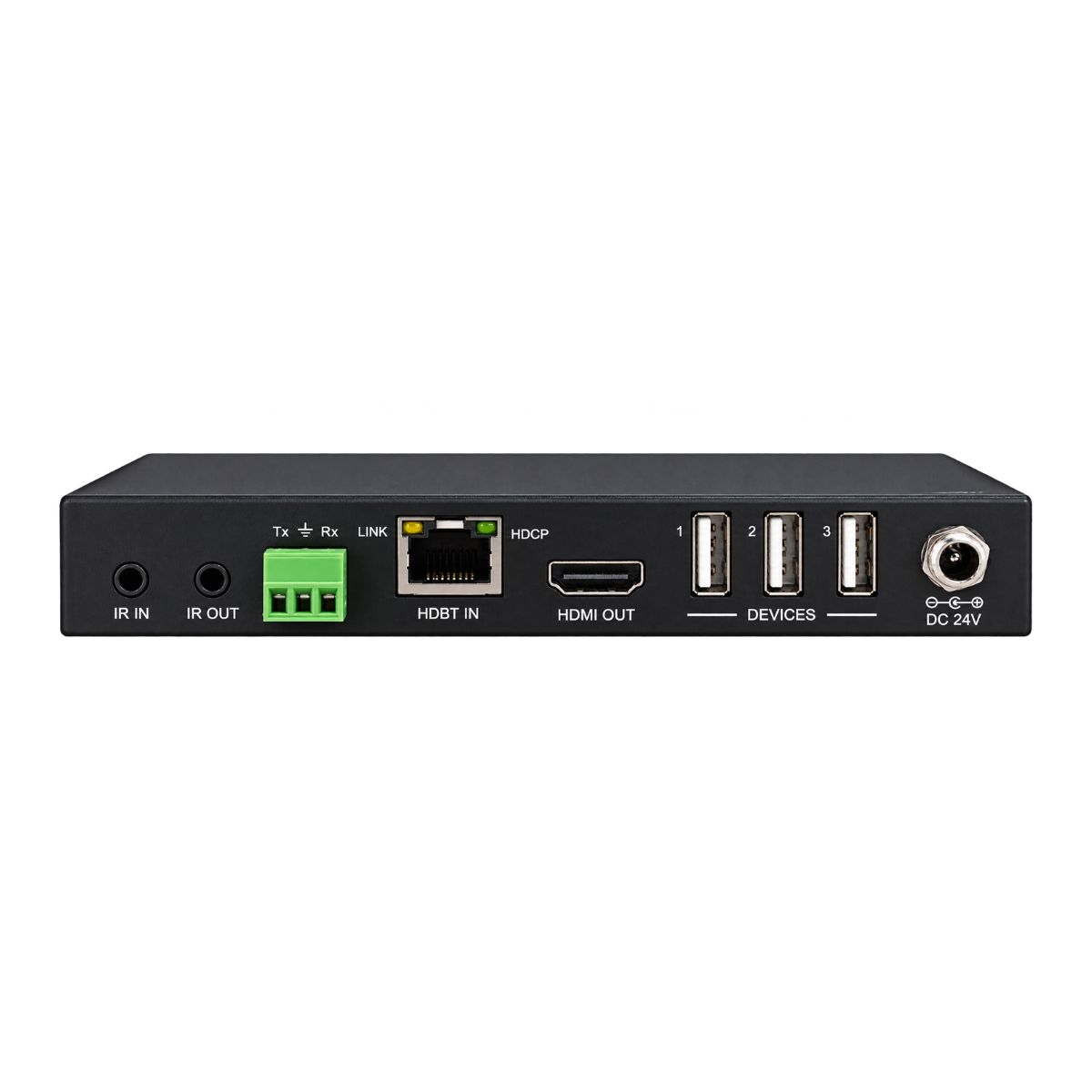

MPHUC-T70WPT4K is a 3×1 Wallplate Transmitter Switcher Kit, which consists of a wallplate transmitter switcher and a receiver. The kit is designed to switch and extend an HDMI or USB-C source signal to the far-end display device, and the transmission distance is up to 131ft/40m at 4K and 229ft/ 70m at 1080p video by using a single CATx cable. Moreover, bidirectional 24V PoC allows the switcher to be powered from the compatible HDBaseT receiver, or the receiver can be powered from the switcher.

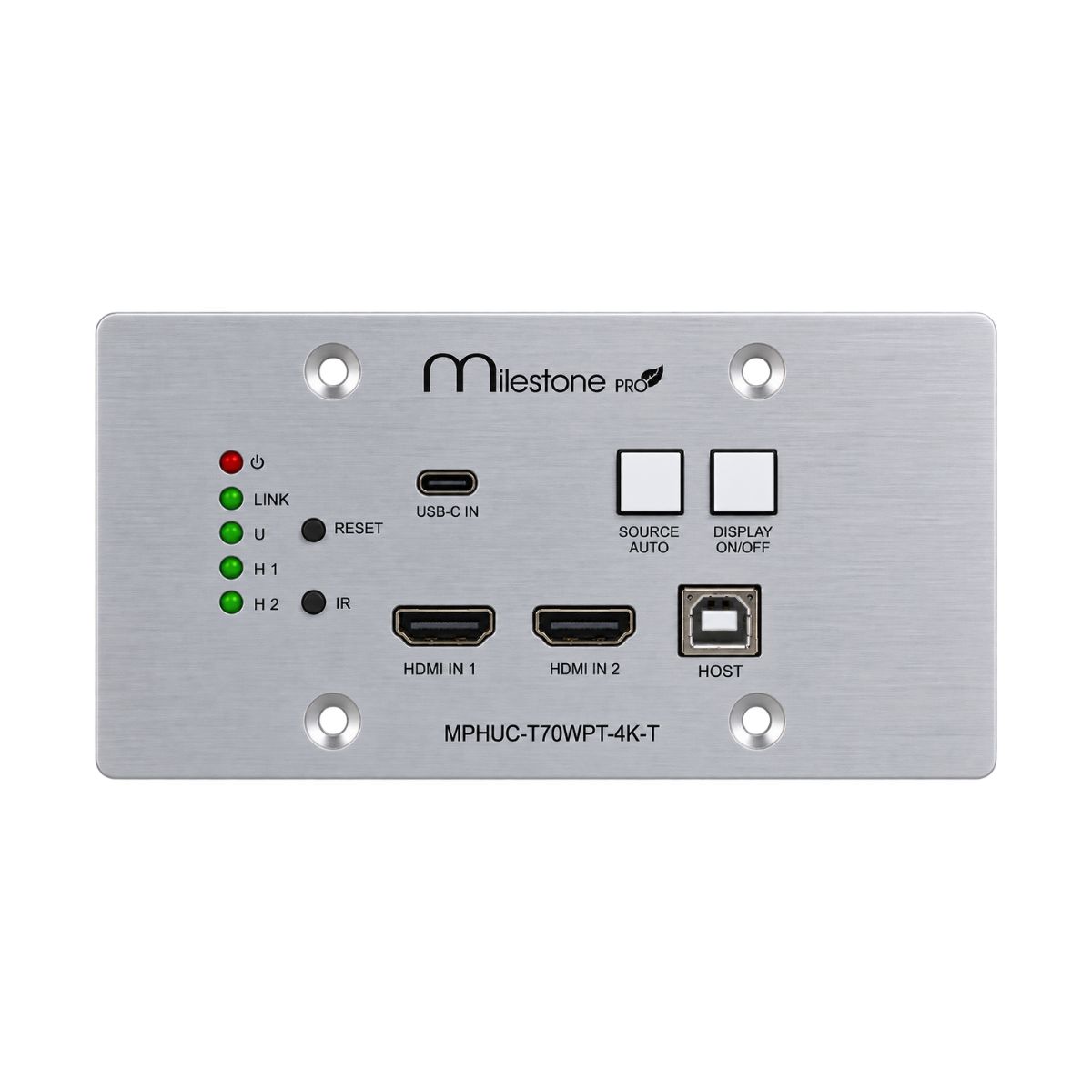

Input	(2) HDMI , (1) USB-C
Input Connector	(2 ) Female type A HDMI, (1) Type-C USB
HDMI Input Resolution	Up to 4K60Hz 4:4:4
USB-C Input Resolution	Up to 4K 30Hz 4:4:4
Output	(1) HDBT OUT
Output Connector	(1) RJ45
HDBT Output Resolution	Up to 4K60Hz 4:4:4
Control Ports	(1) IR, (1) (1) FIRMWARE, (1) RS232, (1) IR IN , (1) IR OUT
Control Connector	(1) Built in IR sensor, (1) Type B USB 2.0 (1) Micro USB, (2) 3 pin terminal block 1) 2 pin terminal block
