MP-SUH41-8K

Switches any one of four HDMI inputs to one HDMI output
Supports video resolution up to 8K60Hz 4:2:0, Dolby Vision, HDR.
40Gbps high bandwidth
Fully compliant with the HDMI 2.1 and HDCP2.3 specifications.
Supports enhanced audio return channel (eARC).
Advanced EDID management: multiple preset and user defined allowed
Controllable via RS232 and IR.
Supports CEC
Provides seven LEDs to indicate the current operating status andtoassist troubleshooting an installation
Firmware upgrade by Micro-USB port

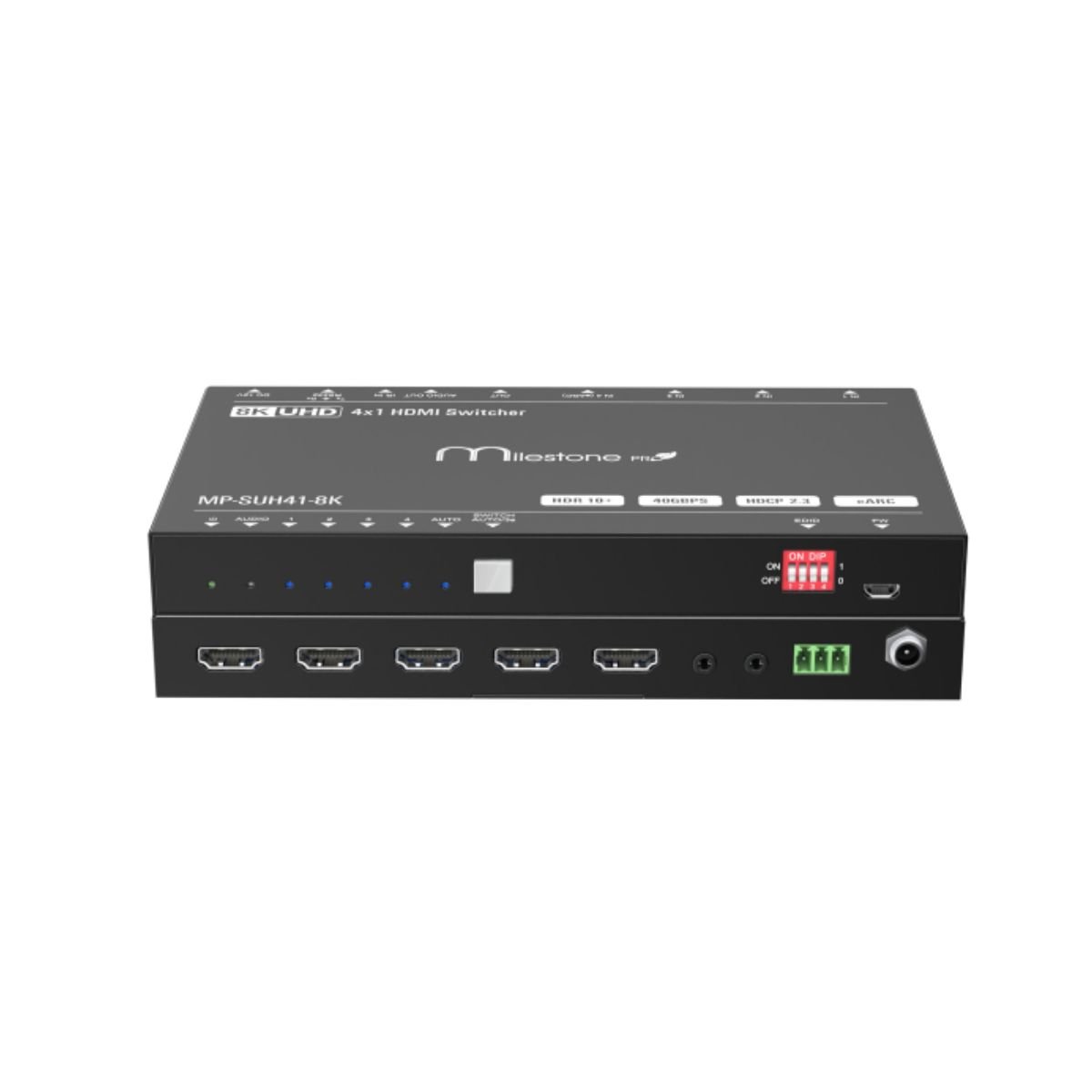

The MP-SUH41-8K is a 4×1 HDMI auto switcher featuring four HDMI inputs and one HDMI output. It supports video resolutions up to 8K60Hz 4:2:0 HDR+, high-definition audio, multiple built-in EDID settings, and analog stereo audio de-embedding. The switcher also supports eARC, allowing audio from a connected display to be transmitted back to an HDMI input port.

Input	(4) HDMI
Input Connector	(4) Female type-A HDMI
HDMI Input Resolution	Up to 8K60Hz 4:2:0, Dolby Vision, HDR+
HDMI Standard	2.1
HDCP Version	2.3
Output	(1) HDMI
Output Connector	(1) Female type-A HDMI
HDMI Output Resolution	Up to 8K60Hz 4:2:0, Dolby Vision, HDR+
HDMI Standard	2.1
HDCP Version	2.3
Output	(1) AUDIO
Output Connector	(1) 3.5mm mini stereo audio jack
Audio Format	PCM
Frequency Response	20Hz to 20kHz, ±3dB
Control	(1) IR IN; (1) RS232
Control Connector	(2) 3.5mm mini jack
Bandwidth	40Gbps
Operation Temperature	5 to +55℃ (+23° to +131°F)
Storage Temperature	-25 to +70℃ (-13° to +158°F)
