MPTP-T100SS

The highest resolution is 4Kx2k/60Hz
HDCP2.2 compliant.
Maximum transmission distance is up to 70m for 4Kx2K
Maximum transmission distance is up to 100m for 1080p
Maximum extension distance is up to 100m for Ethernet.
Support bi-directional PoH
High bandwidth：10.2Gbps
Support IR/RS232 passthrough.
Use HDBaseT technology.

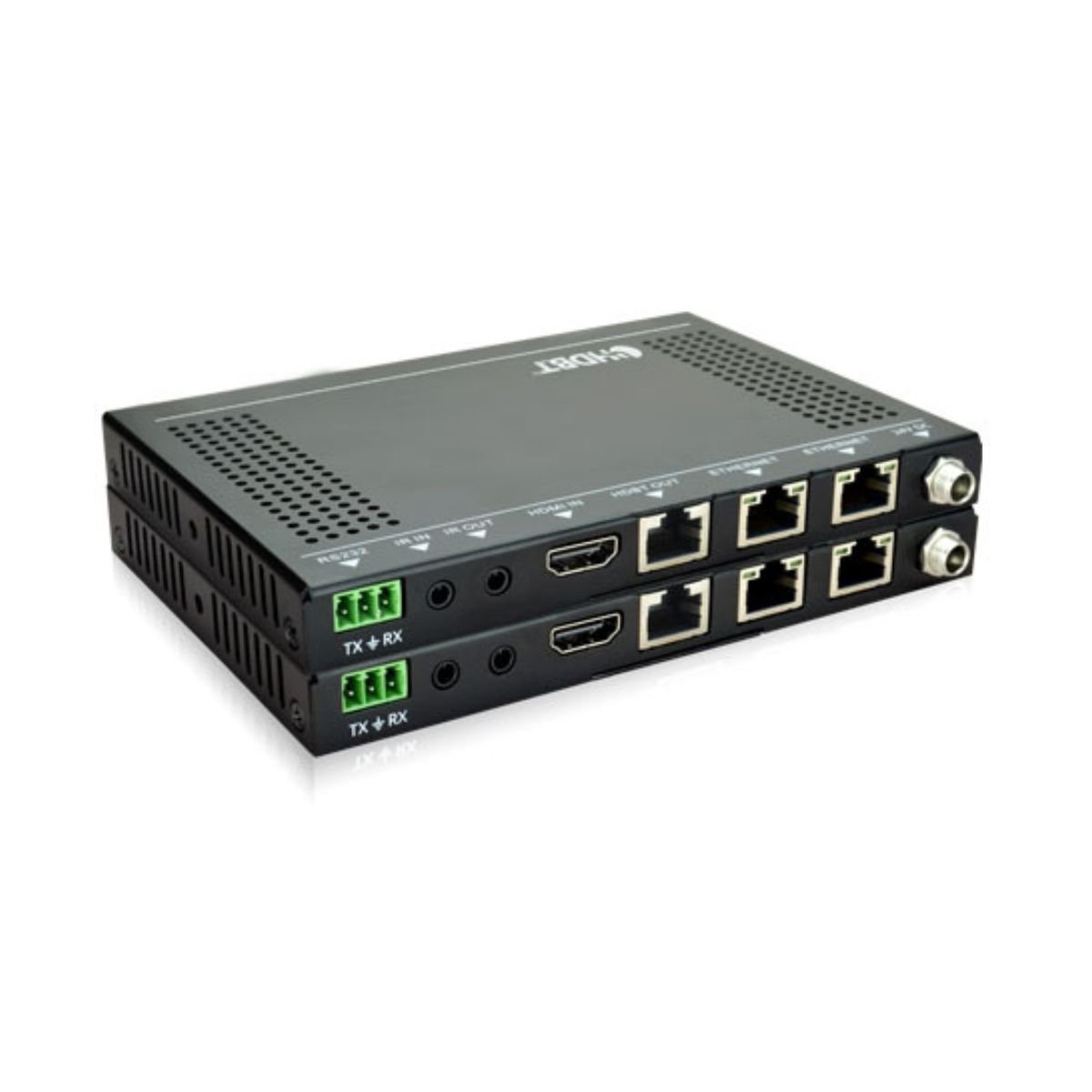

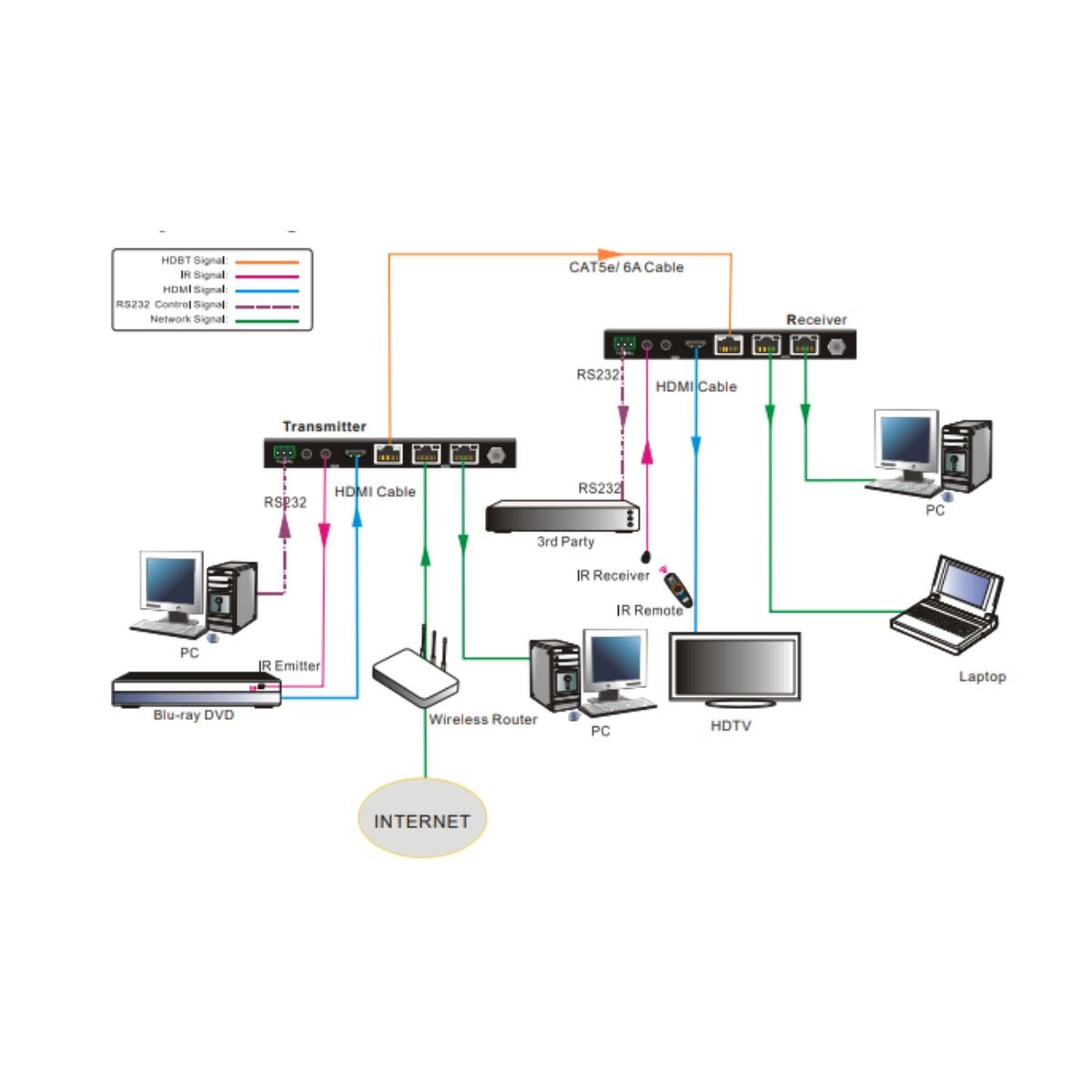

MPTP-T100SS is an ultra-thin HDBaseT Extender set consist of transmitter and receiver. It distributes HDMI signal via CAT5e/CAT6a cable at 100m/PoH, and enables IR and RS232 passthrough to control remote displays. It also supports 4 Ethernet interface for network. It provides a perfect long range transmission solution.

MPTP-T100SS

Input	1 x HDMI,1 x IR in, 1 x RS232	1 x IR in, 1 x HDBaseT, 1 x RS232
Input Connector	1 x HDMI female 1 x 3.5mm mini jack for IR in 1 x 3P captive connector	1 x 3.5mm mini jack for IR in 1 x RJ-45 1 x 3P captive connector
Video Signal	HDMI1.4	HDMI1.4
Audio	Digital audio, transmit through HDMI audio	Digital audio, transmit through HDMI audio
Output	1 x HDBaseT, 1 x IR out, 1 x RS232	1 x HDMI, 1 x IR out, 1 x RS232
Output Connector	1 x RJ-45 1 x 3.5mm mini jack for IR out 1 x 3P captive connector	1 x HDMI female 1 x 3.5mm mini jack for IR out 1 x 3P captive connector
Connector	2 x Black RJ45, with a dual color indicator (Green & Yellow)	2 x Black RJ45, with a dual color indicator (Green & Yellow)
Ethernet Transmission Speed	Adaptive 10M/100M (max), full duplex or half duplex.
Transmission Mode	HDBaseT
Resolution	800x60060Hz、1024x768Hz、1280x72060Hz、1280x102460Hz 、1366x76860Hz、1600x120060Hz, 1920x108060Hz、1920x120060Hz、3D、4K×2K
Transmission Distance	1080P ≤ 100m; 4K×2K ≤ 70m
Bandwidth	10.2Gbps
HDMI Standard	HDMI1.4 & HDCP2.2
Impedance	75
Temperature	0~ 50℃
Humidity	0% ~ 90%
Power Consumption	10W
Power Supply	Input: 100VAC~240VAC, 50/60Hz; Output: 24VDC 1.25A
Dimension (WHD)	152mmx16.2mmx104mm	152mmx16.2mmx104mm
