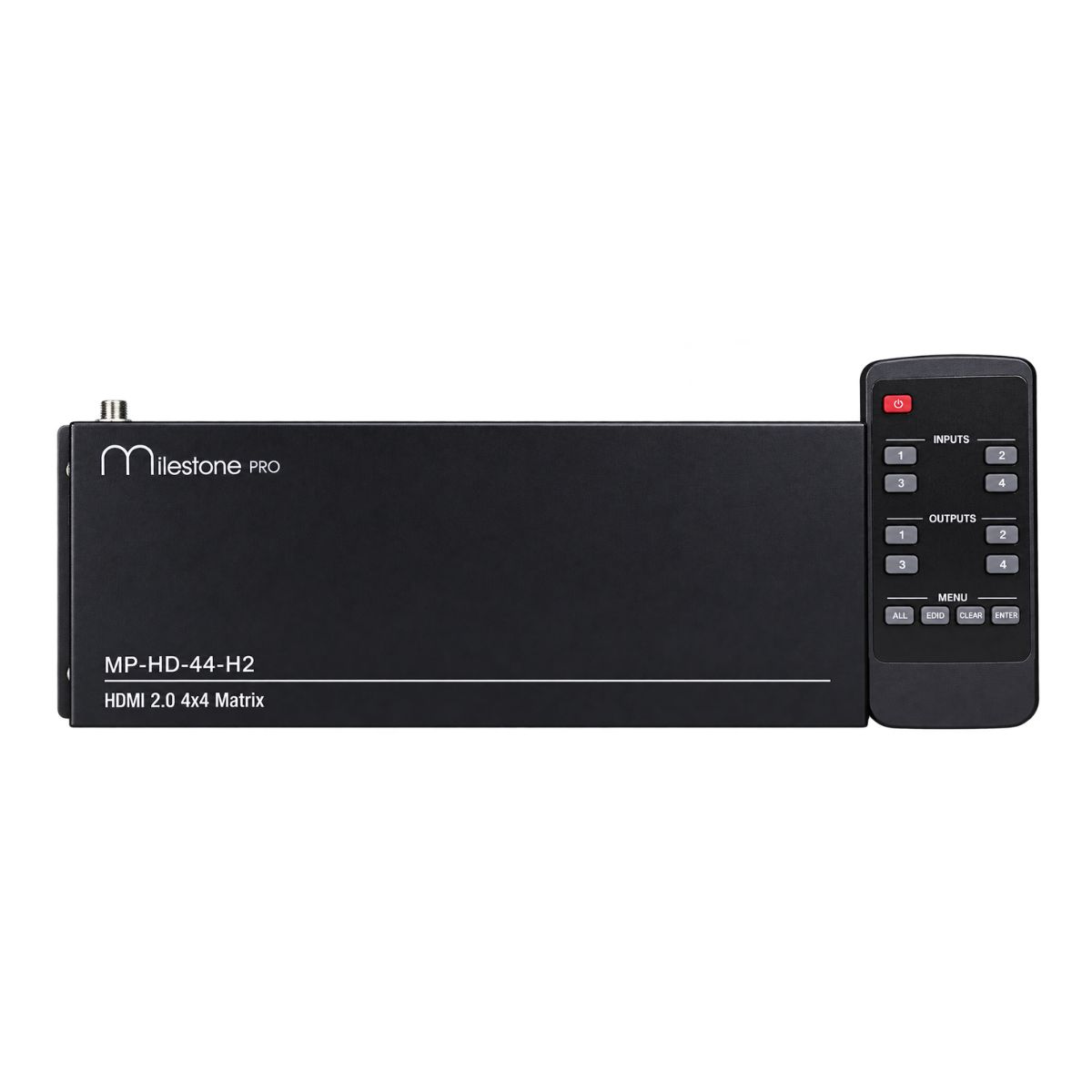

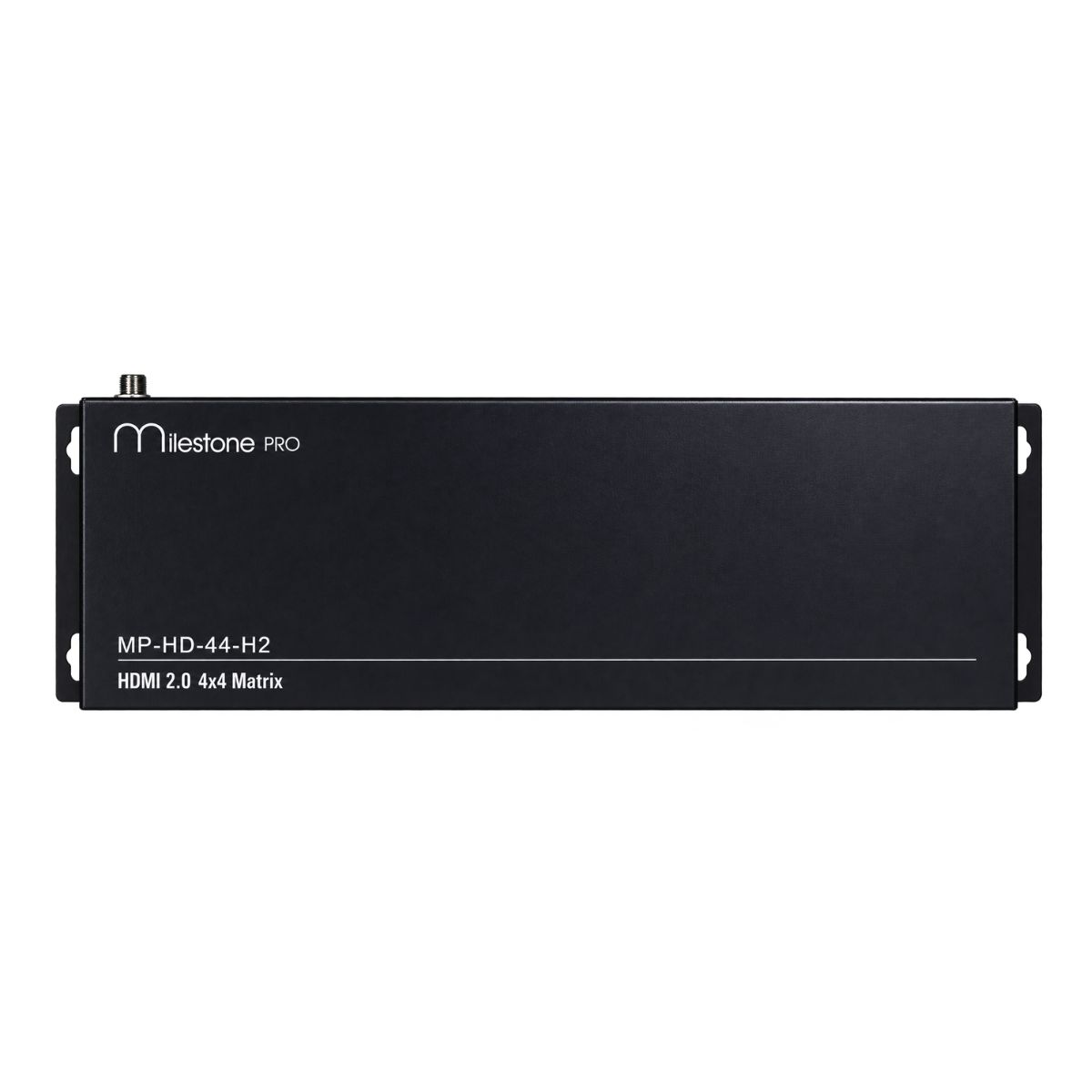

MP-HD-44-H2

Supports resolutions up to 4K60Hz 4:4:4, including 1080p 3D video.
Fully compliant with HDMI V2.0 and HDCP 2.2 specifications.
Supports 4K to1080p down-scaling for each independent output to compatibility with the legacy 1080p displays.
Smart EDID management.

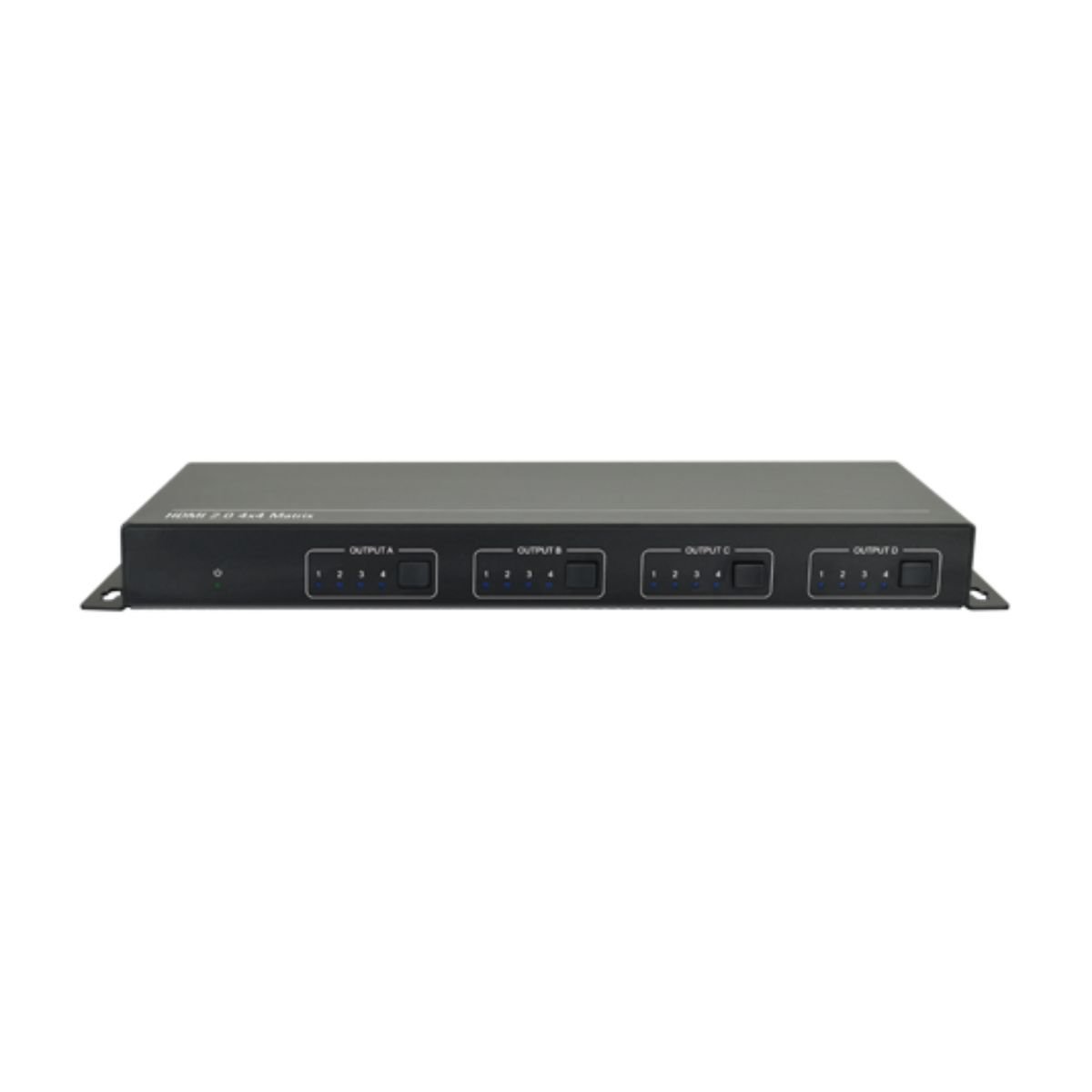

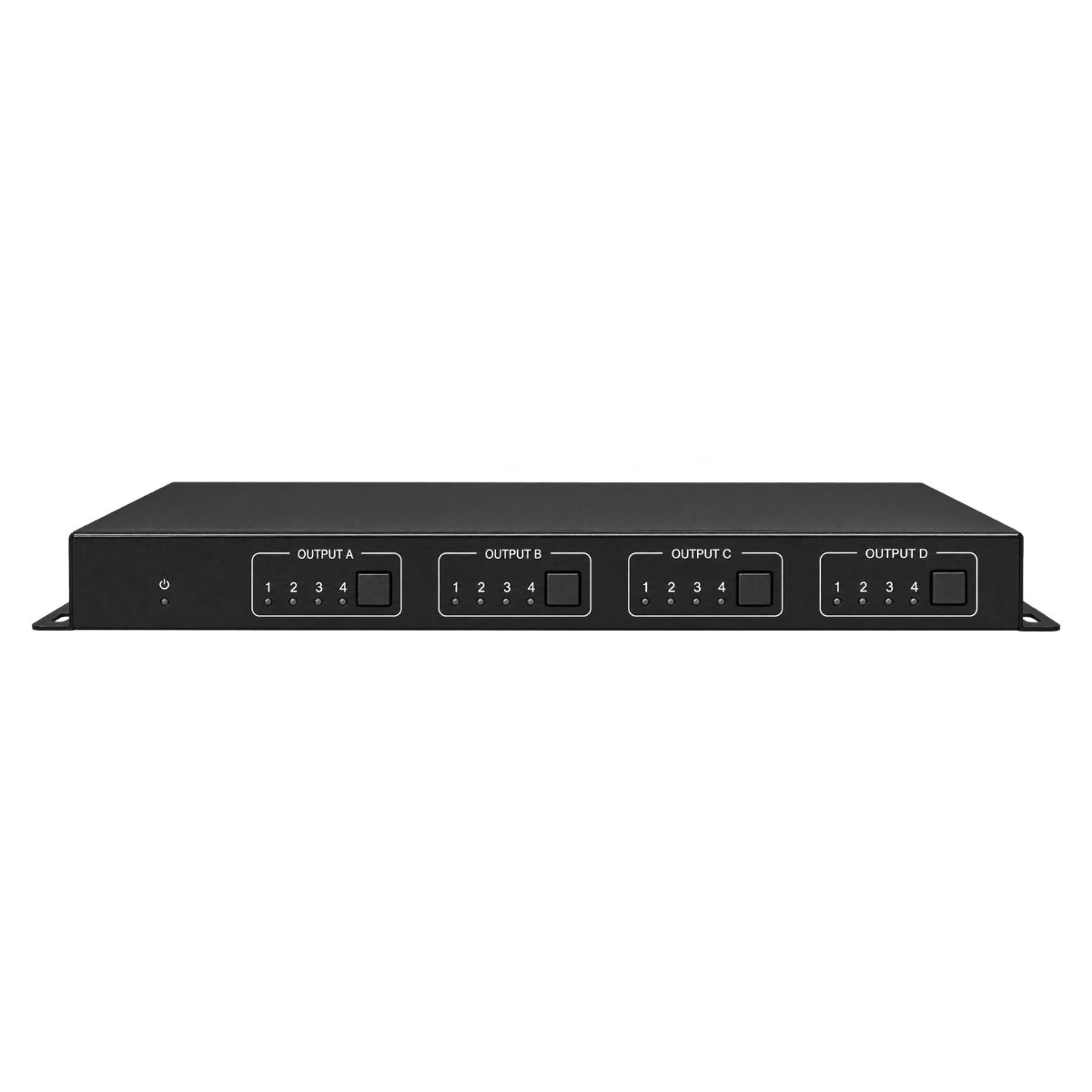

Supports front panel buttons, IR remote and RS232 control.

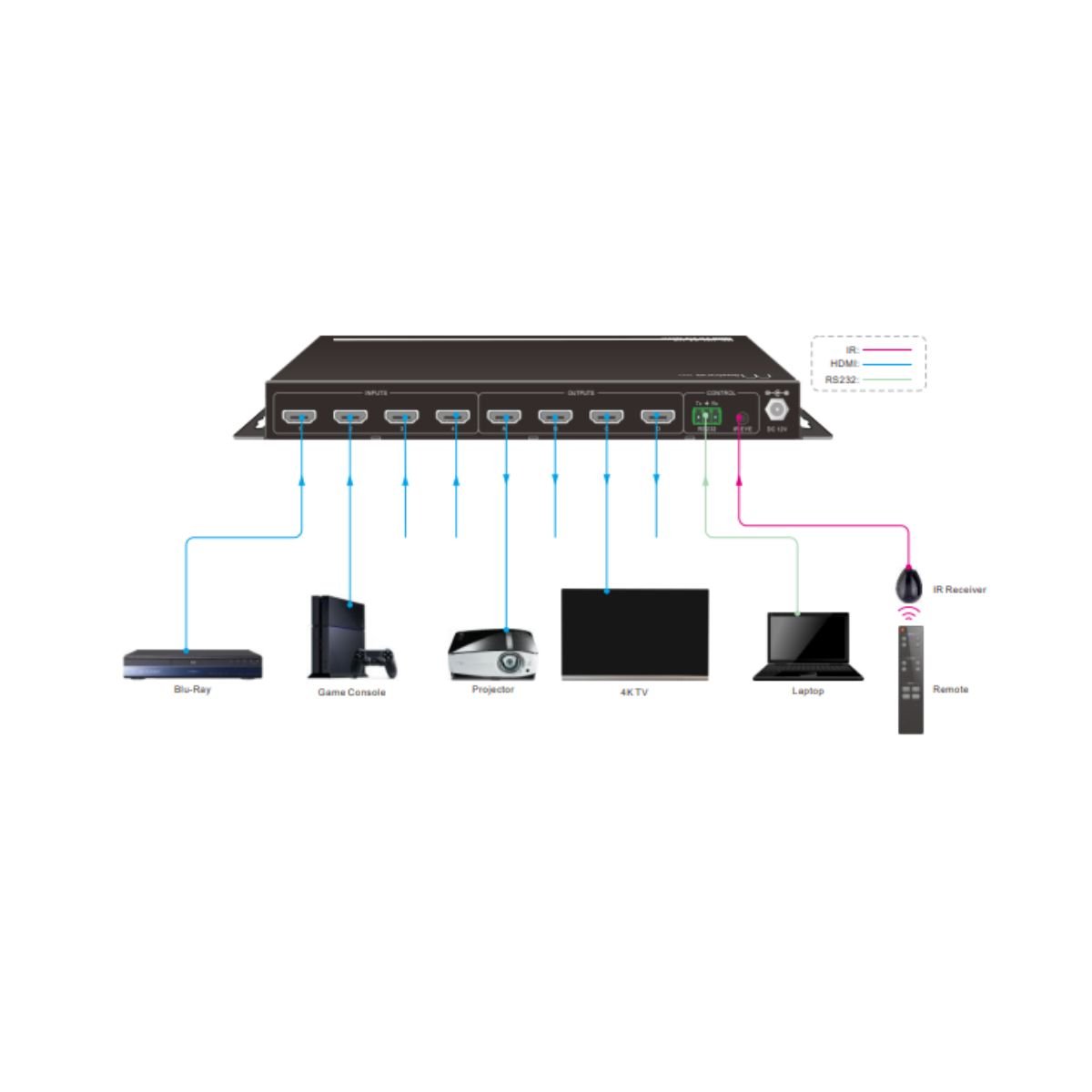

MP-HD-44-H2 is an HDMI V2.0 Matrix Switcher. It is a 4 HDMI inputs and 4 HDMI outputs matrix switcher; It supports resolution up to 4K60Hz 4:4:4 & HDCP2.2. It can be controlled via front panel buttons, IR remote, and RS232 commands.

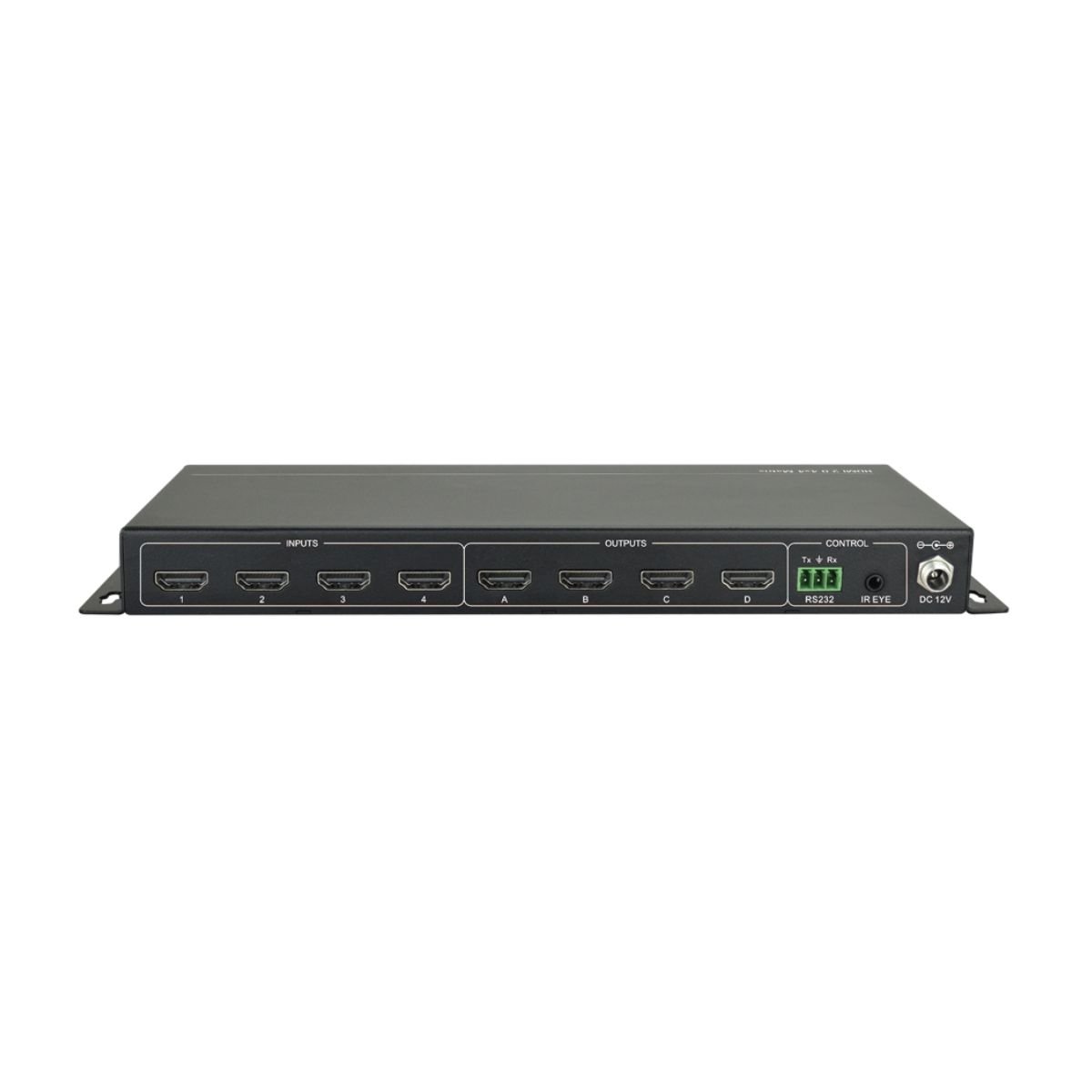

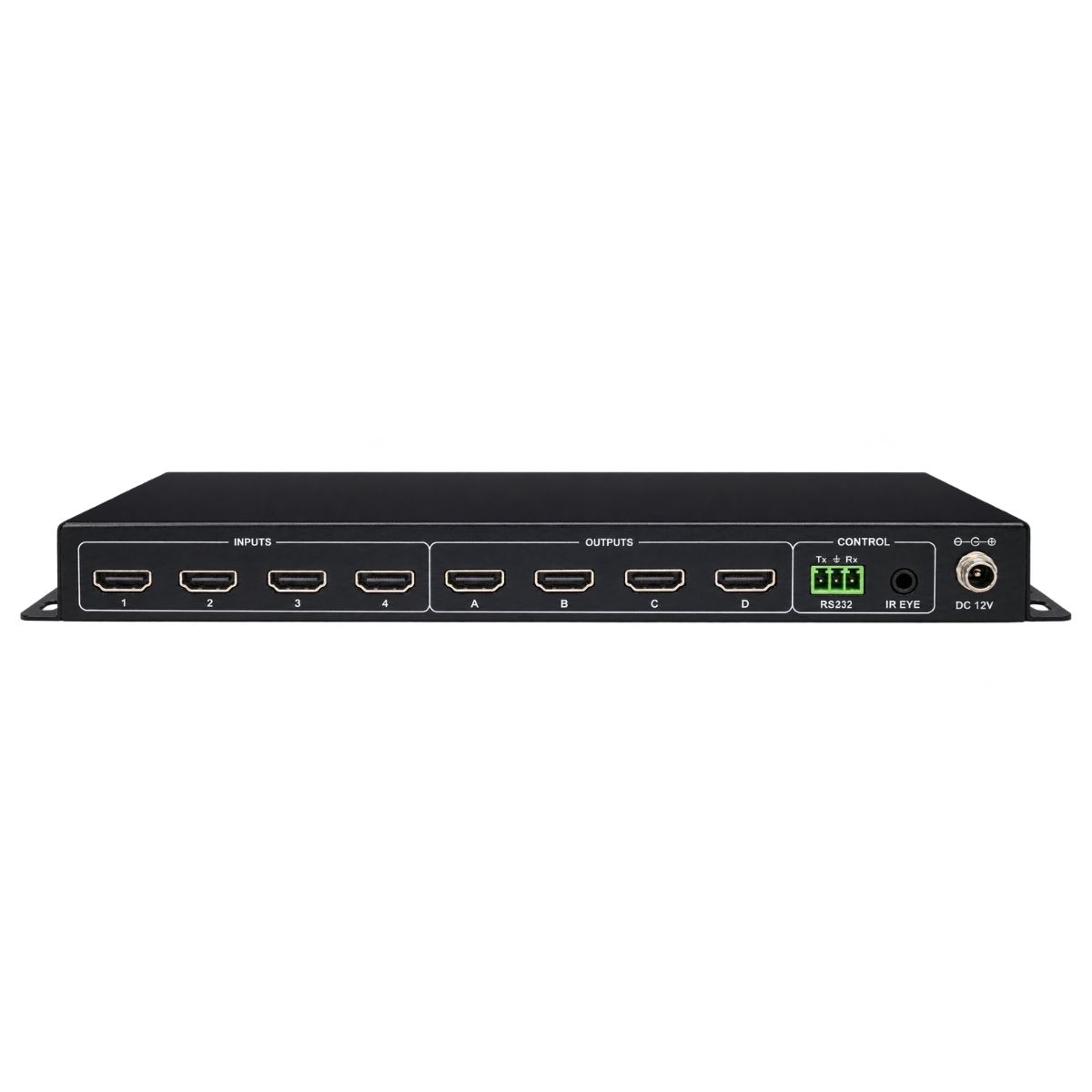

Input	(4) HDMI
Input Connector	(4) female type A HDMI
HDMI Version	2.0
HDCP Version	2.2
Output	(4) HDMI
Output Connector	(4) female type A HDMI
HDMI Version	2.0
HDCP Version	2.2
Control Port	(1) RS232, (1) IR EYE
Control Connector	(1) 3-pin terminal block, (1) 3.5mm jack
Maximum Video Resolution	4K60Hz 4:4:4
Maximum Bandwidth	18Gbps
HDMI Audio	Supports PCM, Dolby Digital and DTS.
Control Options	Front Panel, IR Remote, RS232
Input Power	12V DC 2A
AC Adapter Input Power	100 to 240 V AC, 50/60 Hz
Maximum Power Consumption	12 watts
Operation Temperature	-5 to +55°C (+23° to +131°F)
Storage Temperature	-25 to +70°C (-13° to +158°F)
Relative Humidity	10% to 90%, Non-condensing
