MPTP-T40S-8k

8K/40G HDMI extension at 40m
Supports eARC from HDMI or SPDIF
Supports HDMI loop out
Supports audio de-embedded
Supports EDID/HDCP manage
Supports two-way IR & PoC.

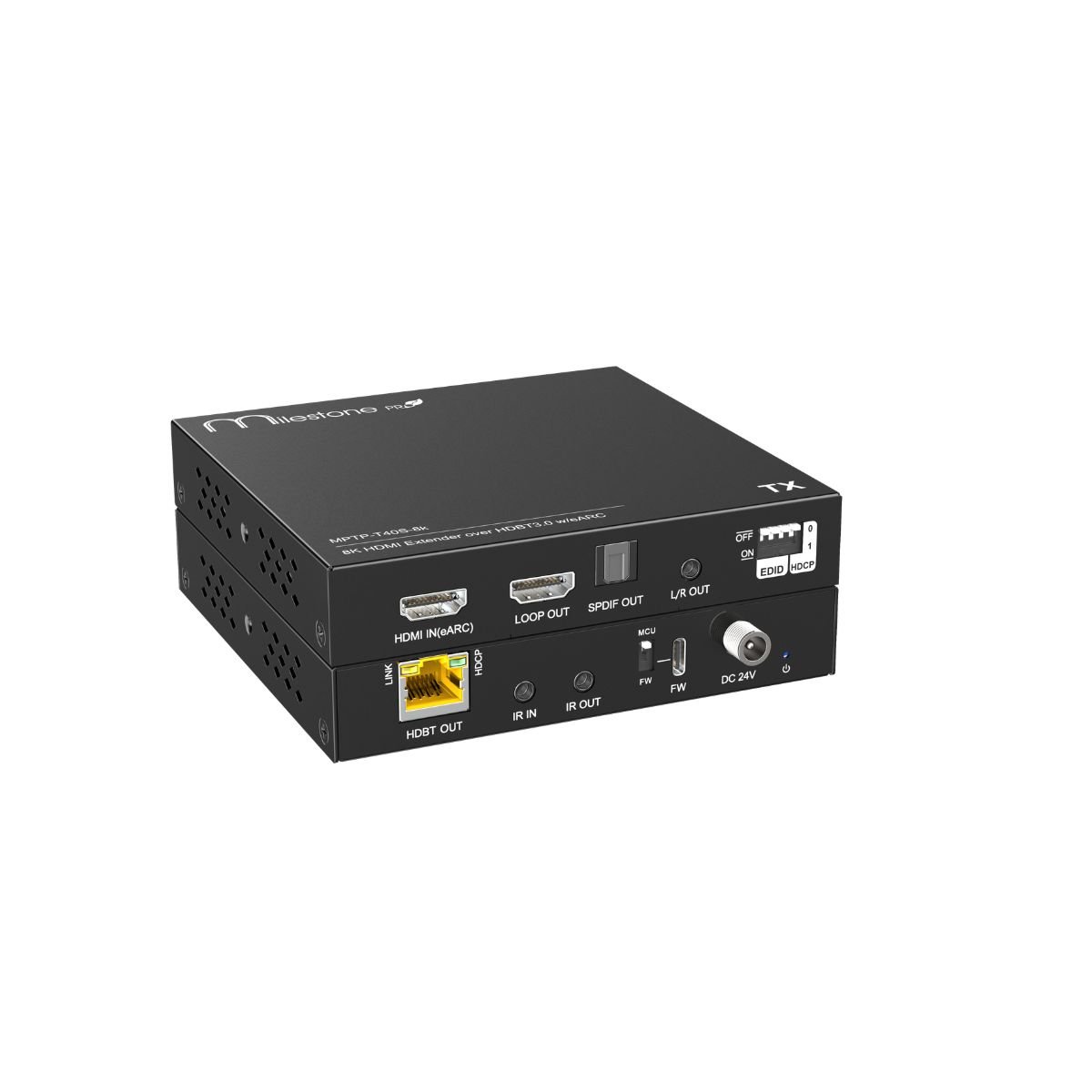

MPTP-T40S-8k is a 1 HDMI in and 1 HDMI out 40G 8K HDMI Extender. It contains a TX and an RX, and other needed accessories; the product supports the highest 8K 30Hz
4:4:4 10bit or 4K 120Hz 4:4:4 10bit video, which fits the requirements of most users.

Video	Transmitter	Receiver
Input	1 x HDMI IN	1 x HDBT IN
Input Connector	1 x HDMI connector	1 x RJ45
Input Resolution	Support up to 8K30Hz 4:4:4 10bit or 4K120Hz 4:4:4 10bit
Output	1 x HDBT OUT 1 x HDMI LOOP OUT	1 x HDMI OUT
Output Connector	1 x HDMI OUTPUT	1 x Type-A female HDMI
Output Resolution	Support up to 8K30Hz 4:4:4 10bit or 4K120Hz 4:4:4 10bit
Output	1 x Digital SPDIF OUTPUT 1 x L/R Analog OUTPUT 1 x HDMI digital OUTPUT	1 x Digital SPDIF OUTPUT 1 x L/R Analog OUTPUT 1 x HDMI digital OUTPUT
Output Connector	1 x Optical fiber connector 1 x 3.5mm jack female connector 1 x HDMI connector	1 x Optical fiber connector 1 x 3.5mm jack female connector 1 x HDMI connector
Digital SPDIF Audio Format	PCM 2.0, Dolby Digital, DTS, DTS-HD
Analog Stereo Audio Format	PCM 2.0
HDMI digital Audio Format	All HDMI supported Audio formats
