MP-DA28UHD

Supports HDMI 2.0 and video resolution up to 4K60Hz 4:4:4
HDMI inputs support HDCP 2.2 and the outputs support HDCP1.4
Supports video resolution down scaling, the 4K input can be automatically degraded to 108 0P output for compatibility with 108 0P display
18 Gbps high bandwidth
Features RCA (L/R) jack and Toslink connector for audio de embedded
Advanced EDID management: multiple preset and user defined allowed
Built in equalizer for signal enhancement to avoid signal attenuation in transmission
Supports CEC control to turn on/off displays and adjust their volume

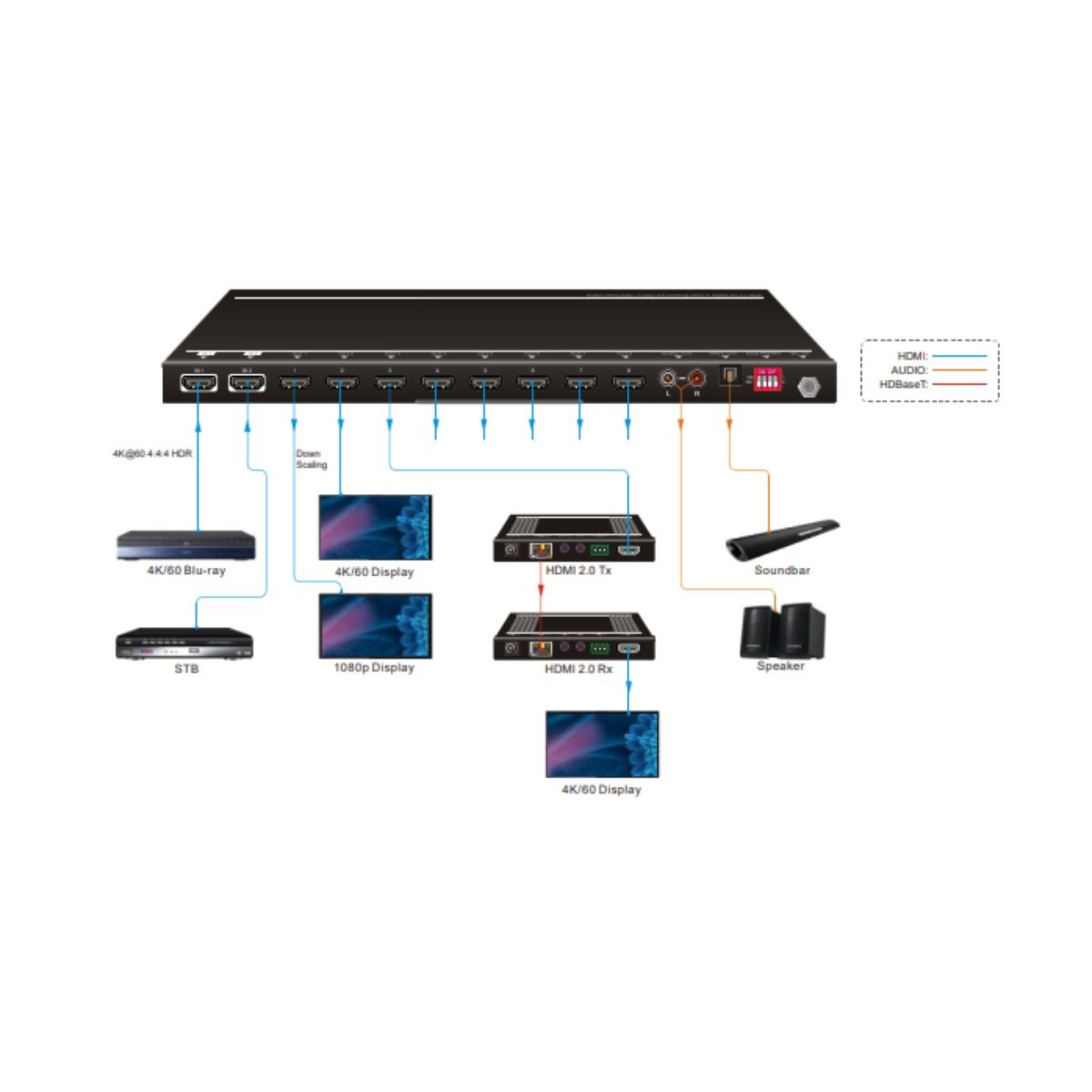

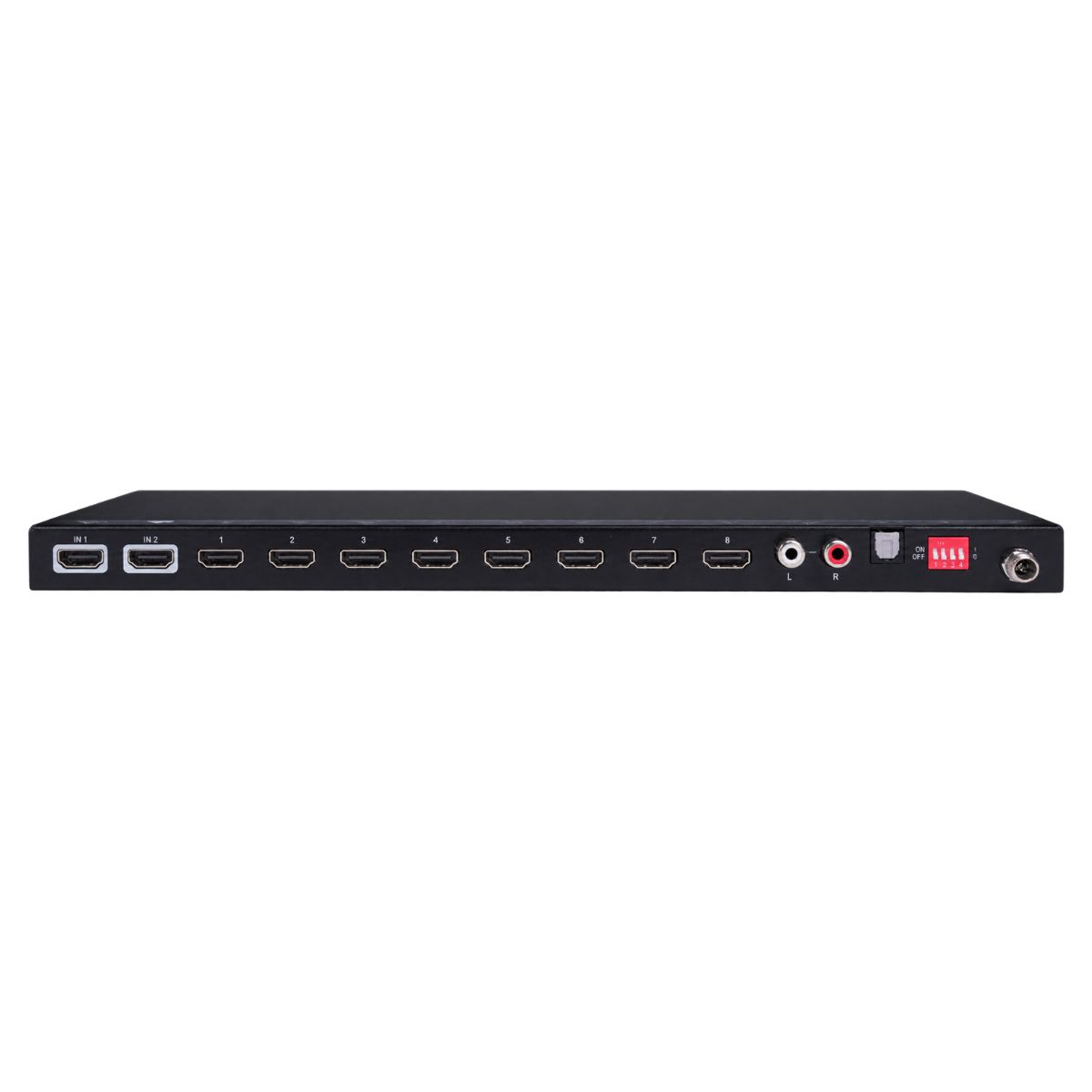

MP-DA28UHD is the HDMI 2.0 2×8 Splitter, which can distribute either one of two HDMI inputs to eight outputs. It supports HDMI video resolution up to 4K60Hz 4:4:4, 1080P 3D, and multichannel audio formats. Except for passing EDID information from the display, there are multiple built-in EDID settings that can be selected by the 4-pin DIP switch on the rear panel. The splitter can de embed HDMI digital audio to stereo analog L/R and Toslink SPDIF audio outputs to provide audio sources for an existing audio system.

Input	(2) HDMI
Input Connector	(2) Female type-A HDMI
HDMI Input Resolution	Up to 4Kx2K60Hz 4:4:4 8bit
HDMI Standard	2.0
HDCP Version	2.2
CEC	Supported
Output	(8) HDMI
Output Connector	(8) Female type-A HDMI
HDMI Output Resolution	Up to 4Kx2K60Hz 4:4:4 8bit
HDMI Standard	2.0
CEC	Supported
