MPTP-MB70R

SupportsHDMI1.4 and the HDMI video resolution upto 4Kx2k 30Hz4:2:0HDR
Extends 4K signals to distances up to 131 feet (40 meters) and 1080P signals to distances up to 230 feet (70 meters) over a single CATx cable
10.2Gbpshighbandwidth
Bidirectional IR, RS232 and 24V PoC
Provides LED indicator for status

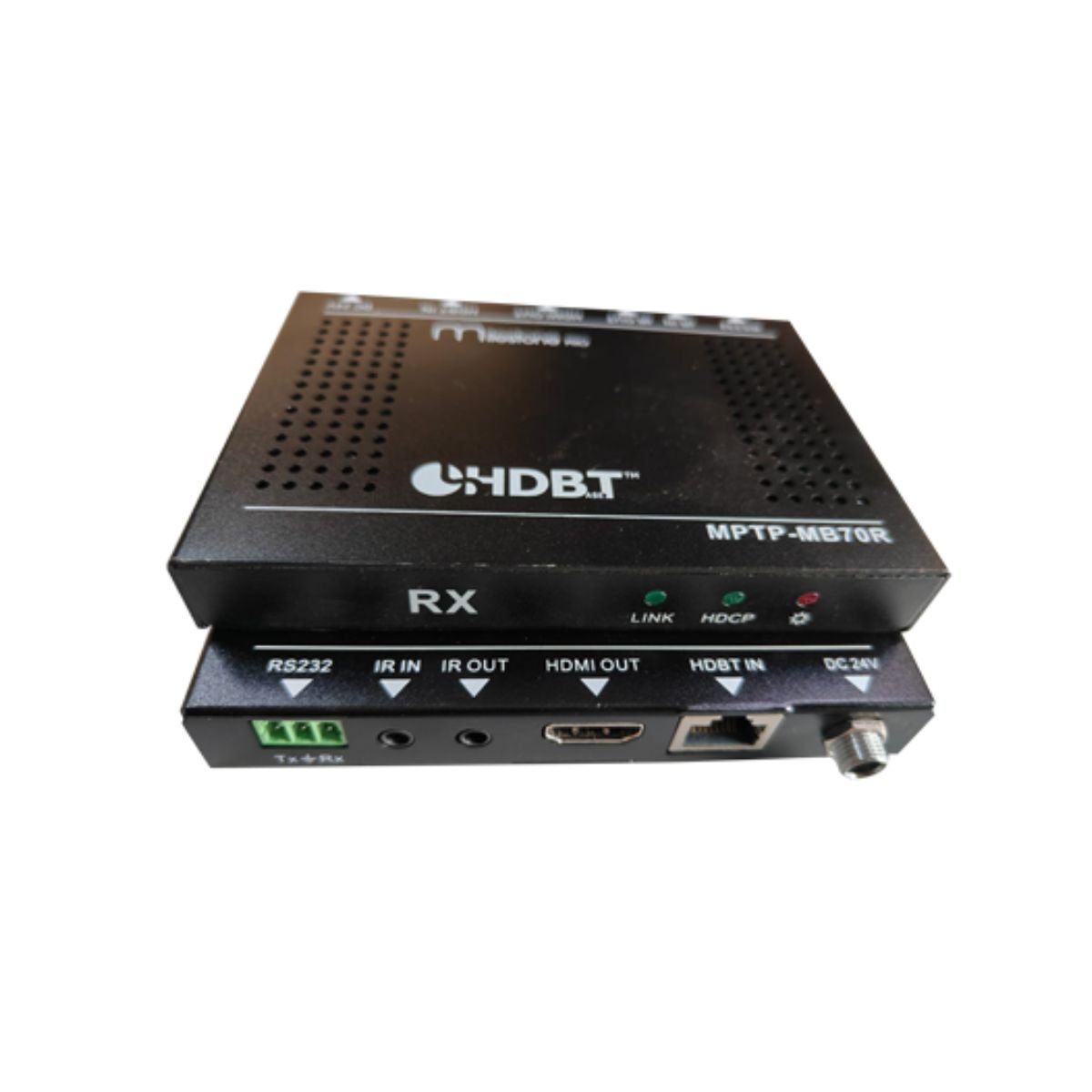

MPTP-MB70R is a low-cost 4Kx2K HDBT receiver with PoE. Extends 4K signals to distances up to 131 feet (40 meters) and 1080P signals to distances up to 230 feet (70 meters) over a single CATx cable.

Input Signal	(1) IR; (1) HDBaseT; (1) RS232
Input Connector	(1) 3.5mm mini jack; (1) RJ-45; (1) 3-Pin phoenix connector
Output Signal	(1) HDMI; (1) IR; (1) RS232
Output Connector	(1) Female HDMI; (1) 3.5mm mini jack; (1) 3-Pin phoenix connector
Resolution Range	Up to 4K×2K30Hz
Transmission Mode	HDBaseT
Transmission Distance	1080P ≤ 70m; 4K×2K ≤ 40m
Bandwidth	10.2Gbps
HDMI Standard	Support HDMI2.0 and HDCP2.2
Operation Temperature	-10 ~ +60℃
Storage Temperature	-15 ~ +70℃
Humidity	10% ~ 90%
Power Supply	Input: 100VAC~240VAC, 50/60Hz Output: DC 24V, 1.25A
Power Consumption	8W
Dimension (WHD)	115mm x 16mmm x 84mm
Net Weight	185g
