MP-DN-D5

Plug and Play
24-bit audio support
2X0 audio channels
Supports 802.3af PoE

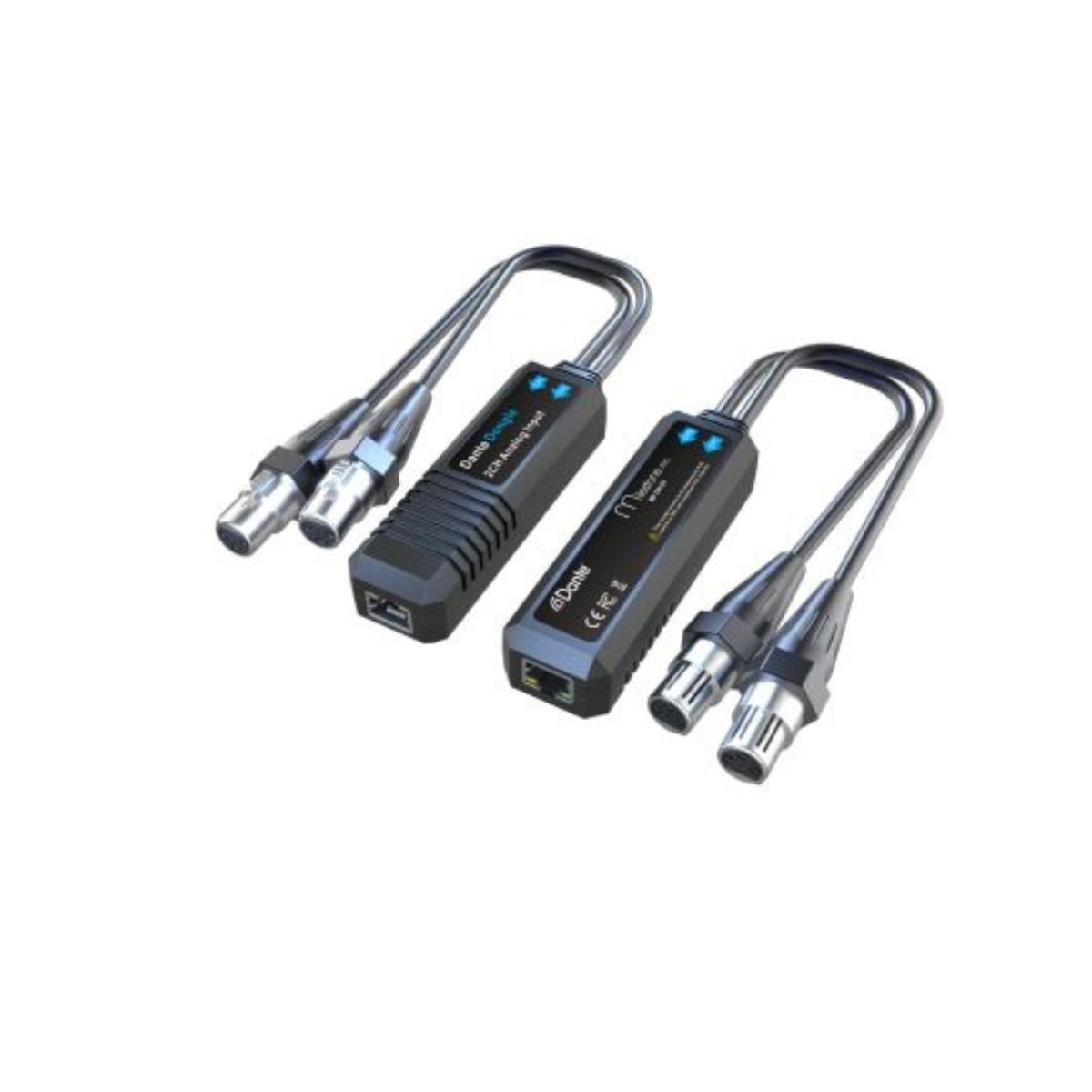

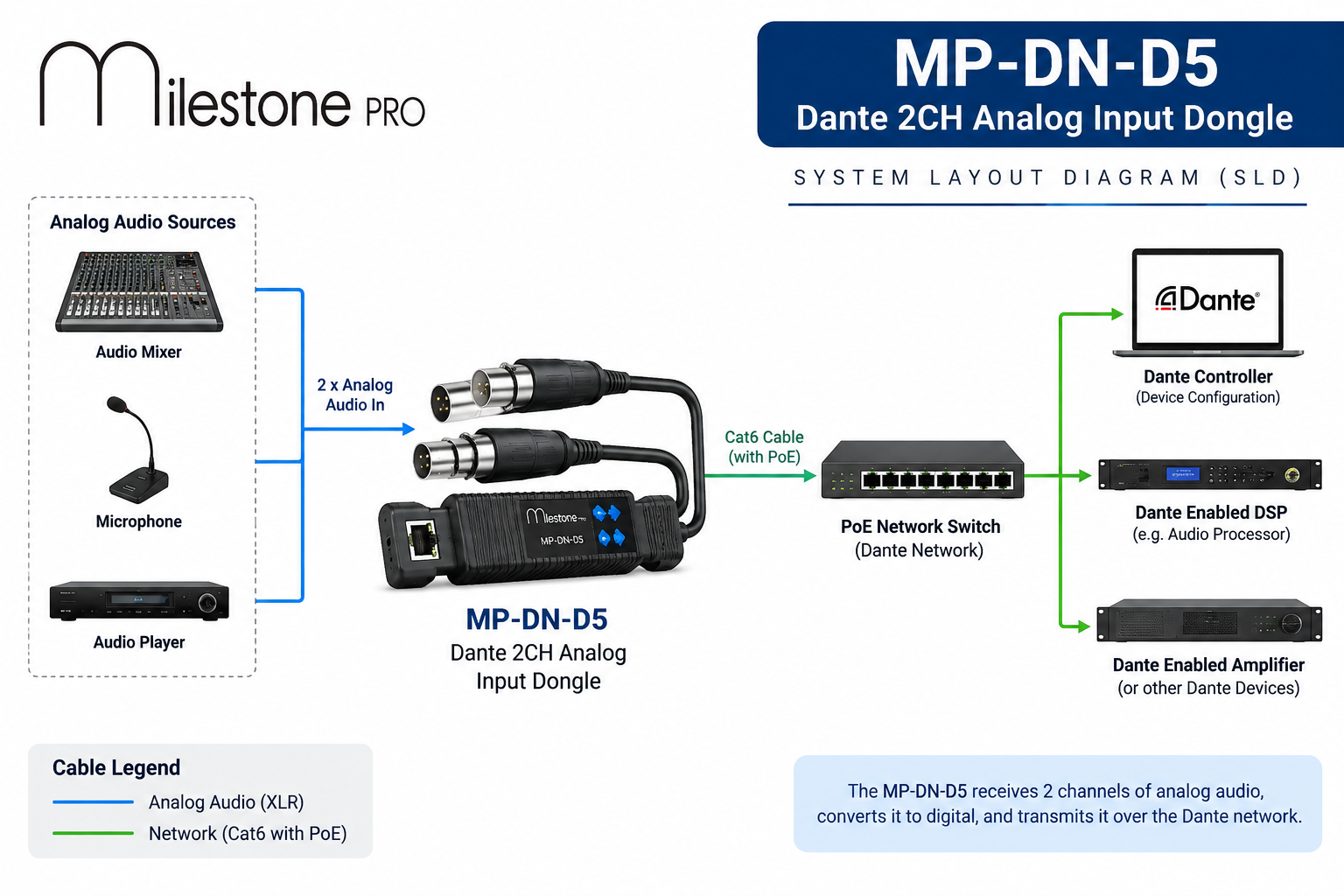

Thanks for choosing the MP-DN-D5. It connects to your Dante network and supports Analog 2X0 channels, allowing the reception of an analog audio signal, converting the analog signal into a digital signal, and transmitting it through the Dante network.

Max signal level	+24dBu
Frequency Response	20Hzto 20kHz(-/+0.5dB )
Impedance	20kOhm balanced 10kOhm unbalanced
Dynamic Range	>100dB
Signal to Noise Ratio	>100dB
THD	<0.01%+4 dBu
SampleRate	44.1kHz, 48kHz,96kHz
Bit Depth	24
Dante Device Latency	1,2or5ms (configurable usingDante
