MP-DA24UHD

Supports HDMI 2.0 and video resolution up to 4K60Hz 4:4:4
HDMI inputs support HDCP 2.2 and the outputs support HDCP1.4
Fully compliant with the HDMI 2.0 and HDCP 2.2 specifications
Supports video resolution down-scaling, the 4K input can be automatically degraded to 1080P output for compatibility with 1080P display
18Gbps high bandwidth
Features RCA (L/R) jack and Toslink connector for audio de-embedded
Advanced EDID management: multiple preset and user defined allowed
Built-in equalizer for signal enhancement to avoid signal attenuation in transmission
Supports CEC control to turn on/off displays and adjust their volume

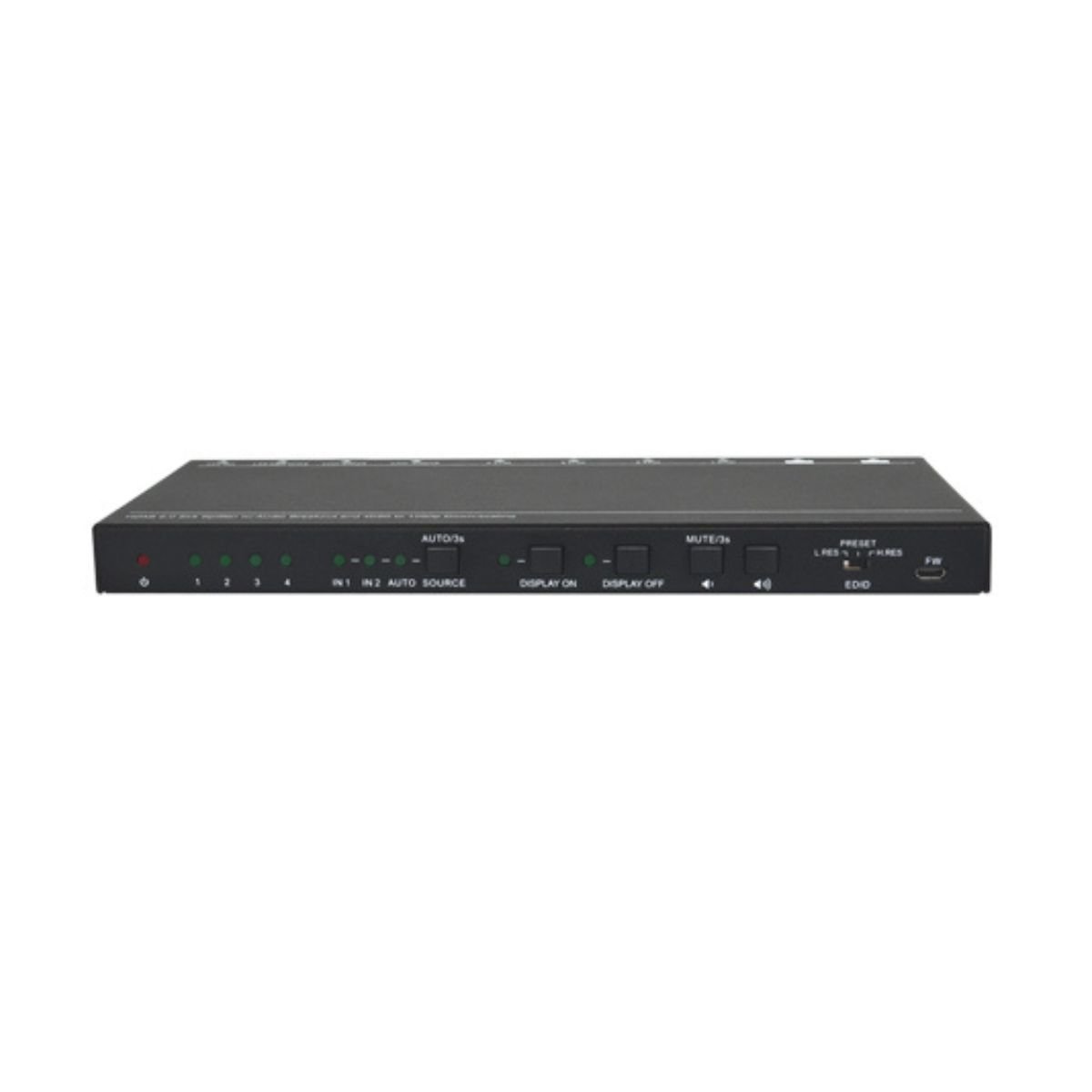

Provides LEDs to indicate the current operating status and to assist troubleshooting and installation
Firmware upgrade by Micro-USB port

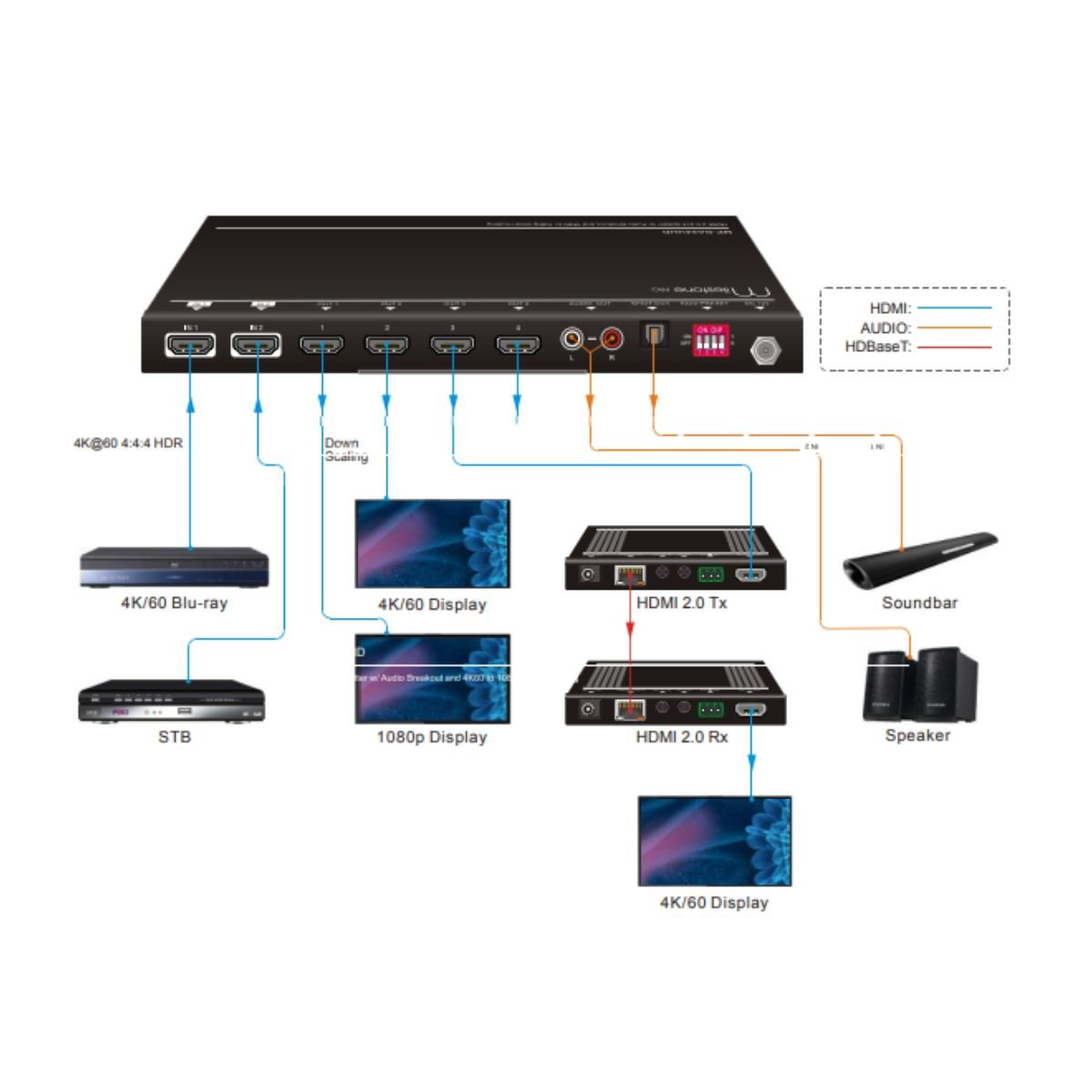

MP-DA24UHD is an HDMI 2.0 2×4 Splitter, which can distribute either one of two HDMI inputs to four outputs. It supports HDMI video resolution up to 4K60Hz 4:4:4, 1080P 3D, and multichannel audio formats. Besides passing EDID information from the display, there are multiple built-in EDID settings can be selected by the 4-pin DIP switch on the rear panel. It can de-embed HDMI digital audio to stereo analog L/R and Toslink SPDIF audio outputs to provide audio sources for an existing audio system.

Input	(2) HDMI
Input Connector	(2) Female type-A HDMI
HDMI Input Resolution	Up to 4Kx2K60Hz 4:4:4 8bit
HDMI Standard	2.0
HDCP Version	2.2
CEC	Supported
Output	(4) HDMI
Output Connector	(4) Female type-A HDMI
HDMI Output Resolution	Up to 4Kx2K60Hz 4:4:4 8bit
HDMI Standard	2.0
CEC	Supported
