MP-IP500

Streams 4K video with 1 frame latency
Supports HDMI video resolution up to 4K60Hz 4:4:4 8bit
Transports RS232 and IR signal to any units
Supports Video Wall mode up to 9x9 screens
Selectable output resolutions up to 4K scaling ability
Additional 3-pin terminal block for audio embedding

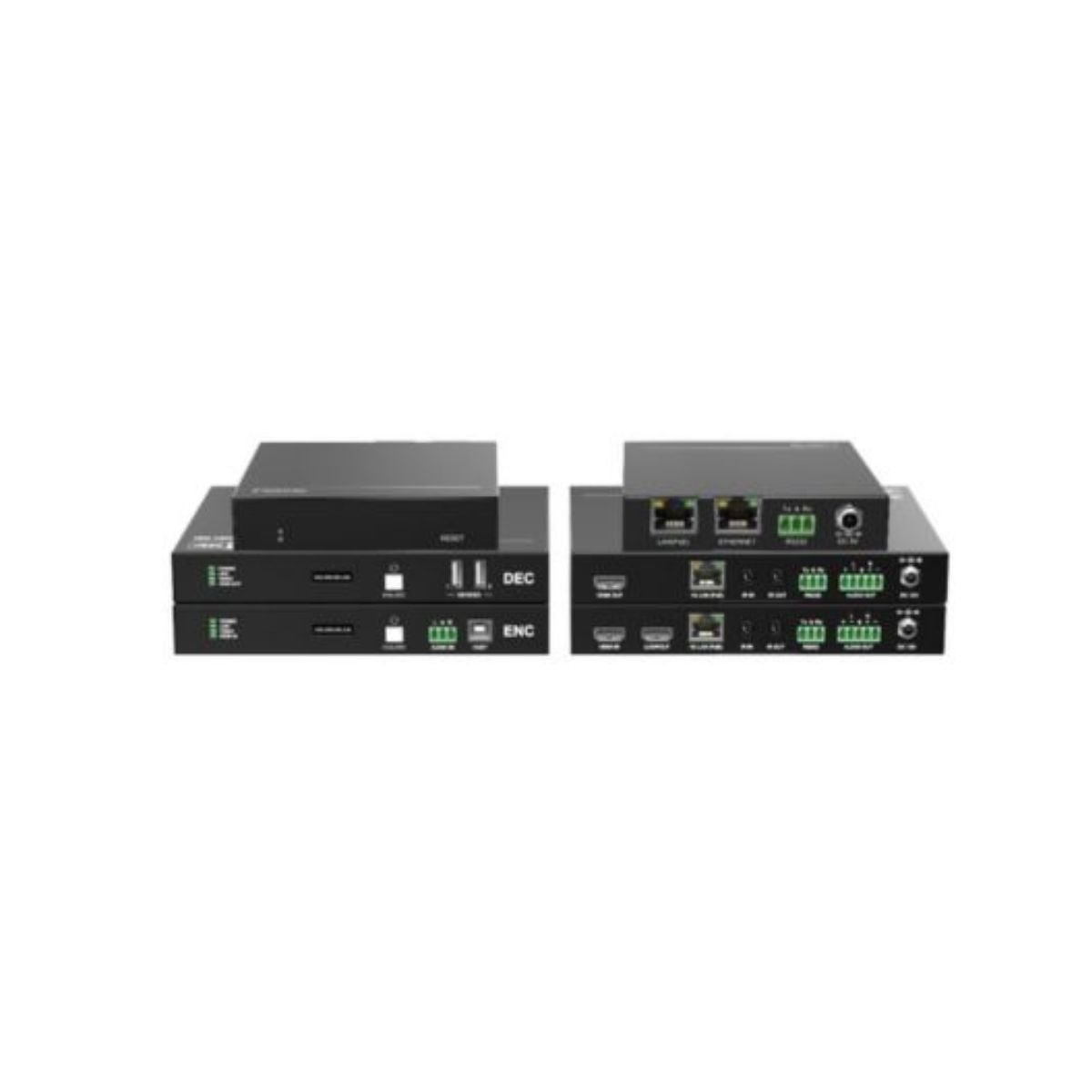

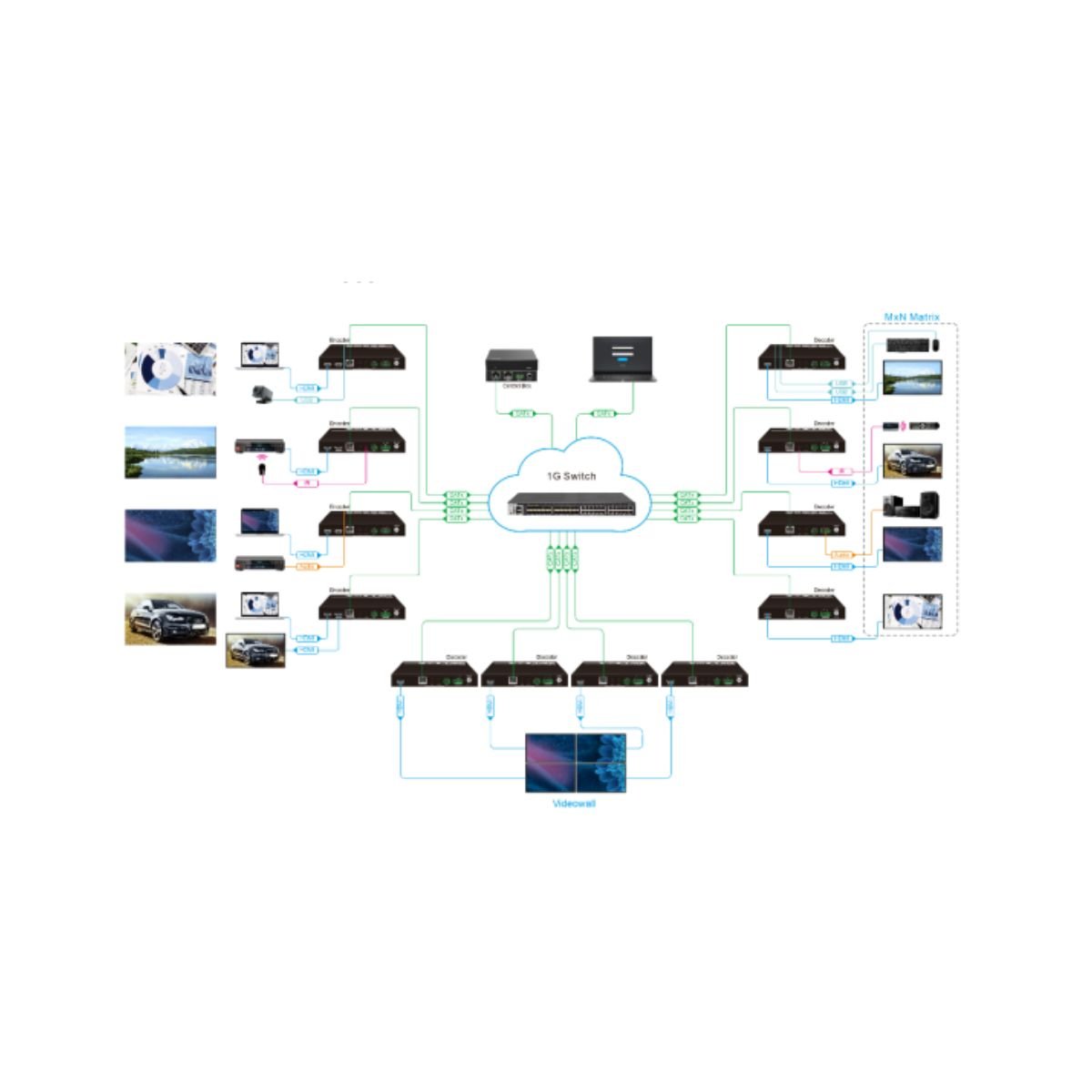

MP-IP500 is a network AV extender with HDMI encoder and decoder up to resolution 4K60Hz 4:4:4, HDR. It is designed for HDMI transmission over IP network with control signals at distance up to 100m over CATx cable. It works with one control PC (Wake on IP control box) and one 1GbE Switch to control a variety of functions. The MP-IP500 provides one of the most advanced IP Streaming solutions on the market utilizing Aspeed technology, which synergizes various IP/AV standards to work together as one.

MP-IP500

Video Input	(1) HDMI
Video Input Connector	(1) Type-A female HDMI
HDMI Input Resolution	Up to 4K60Hz 4:4:4 8bit
Audio Input	(1) Analog Audio In
Audio Input Connector	(1) 3-Pin terminal block
Video Output	(1) IP Stream (1) HDMI
Video Output Connector	(1) RJ45, (1) Type-A female HDMI
HDMI Output Resolution	Up to 4K60Hz 4:4:4 8bit
Audio Output	(1) IP Stream (1) De-embedding Output
Audio Output Connector	(1) RJ45, (1) 5-Pin terminal block
