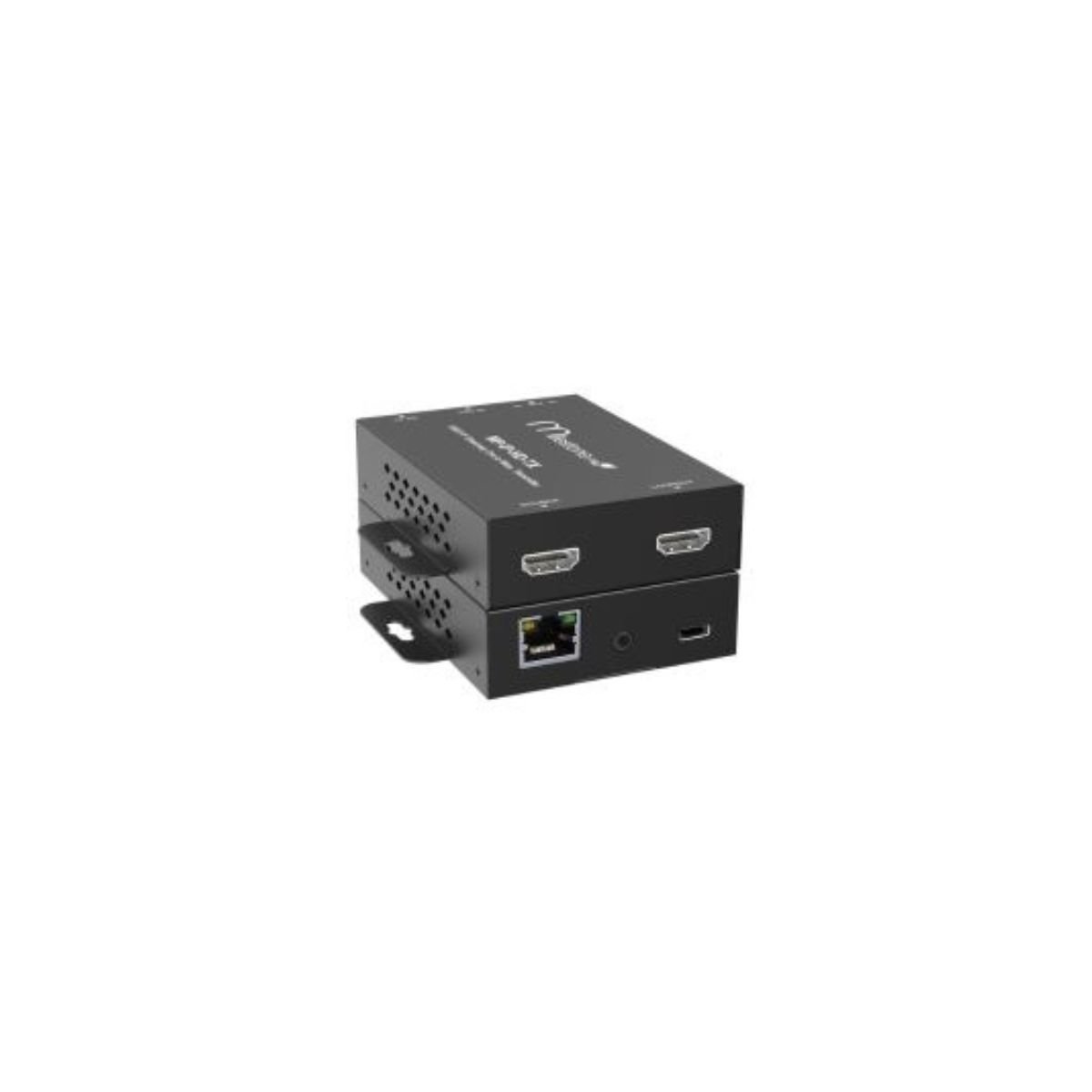

MP-IP-HD-TX

Two power supplies: PoE or DC 5V.
Max 150m transmission distance 1080P video
HDMI Loopout supported.
IR control

The MP-IP-HD-TX is a Transmitter, designed to match with MP-IP-HD-RX; the units are HDMI over IP powered by PoE. It supports receiving 1080P 60Hz video, HDCP 1.4 compliant. It supports power by PoE or DC5V power supply for field use; It provides HDMI transmission up to 150 meters for 1080p video over a single CAT6 cable.

Video Resolution	1080P 60Hz
HDMI Audio Format	LPCM 2C
Transmission Distance	150m 1080p
HDMI Version	HDMI 1.
HDCP Version	HDCP 1.4 Compliant
Delay	10-30ms (Depends on Display)
IR Pass	From Rx to Tx
Power Supply	DC 5V1A
Operation Temperature	-10~55℃
Storage Temperature	-25~70℃
