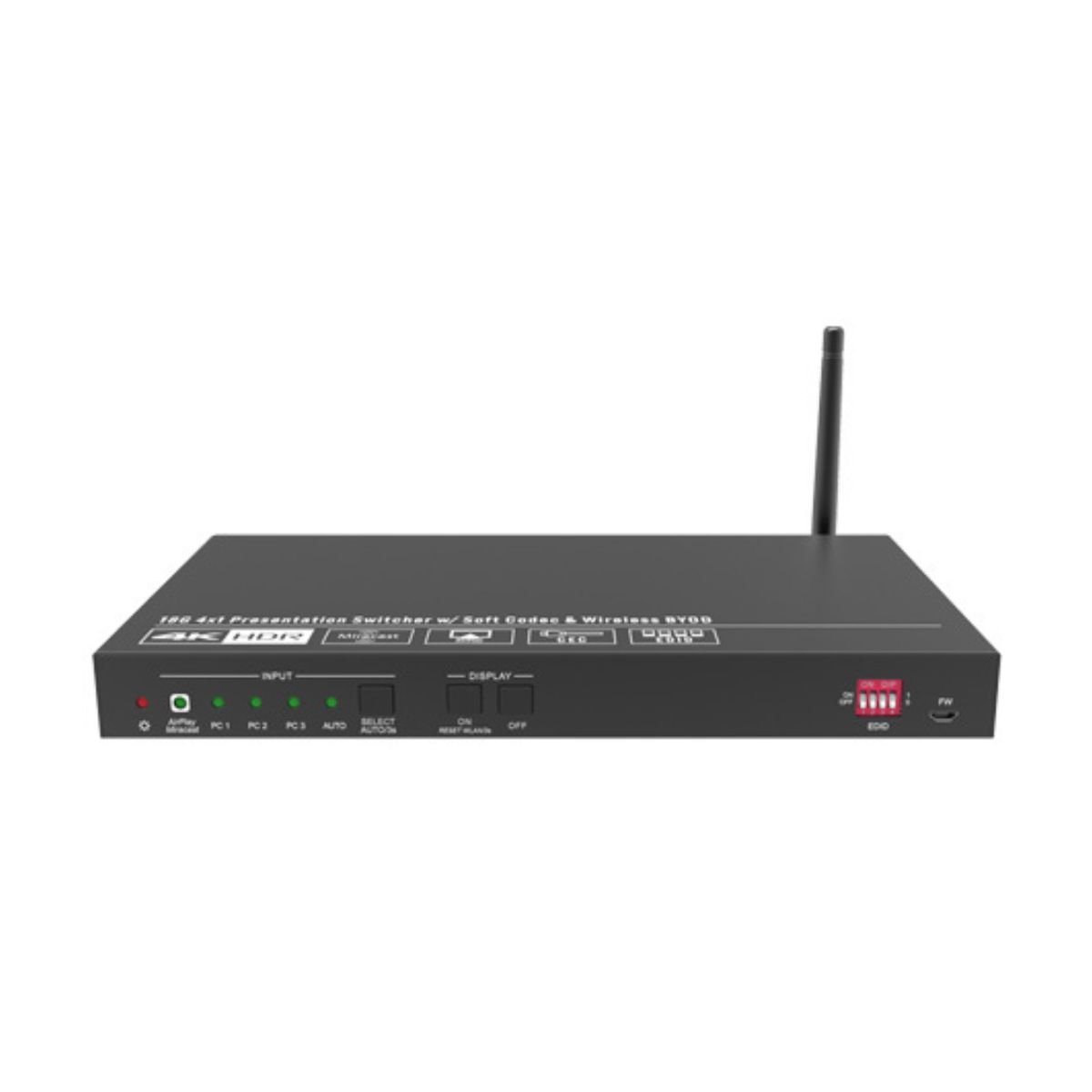

MP-SC-41BYOD

  • 18G 4x1 presentation switcher with soft codec & wireless BYOD.

  • Supports HDMI 2.0 b , 4Kx2K60Hz 4:4:4, HDR 10, Dolby Vision and HDCP 2.2

  • Wireless BYOD (Bring Your Own Device) capability via AirPlay and Miracast.

  • Provide up to 60w charging, USB data (USB 3. 0 /2.0) and 4K video transmission on USB-C port.

  • HDMI output audio can be de embedded out via balanced analog audio port.

  • Two type-B USB ports for host connection, and two type-A USB ports for USB devices like webcam, mic and keyboard.

  • Supports video source auto switching.

  • Smart EDID management.

  • Front panel buttons trigger both CEC and RS232 commands for display control.

Get a Quote

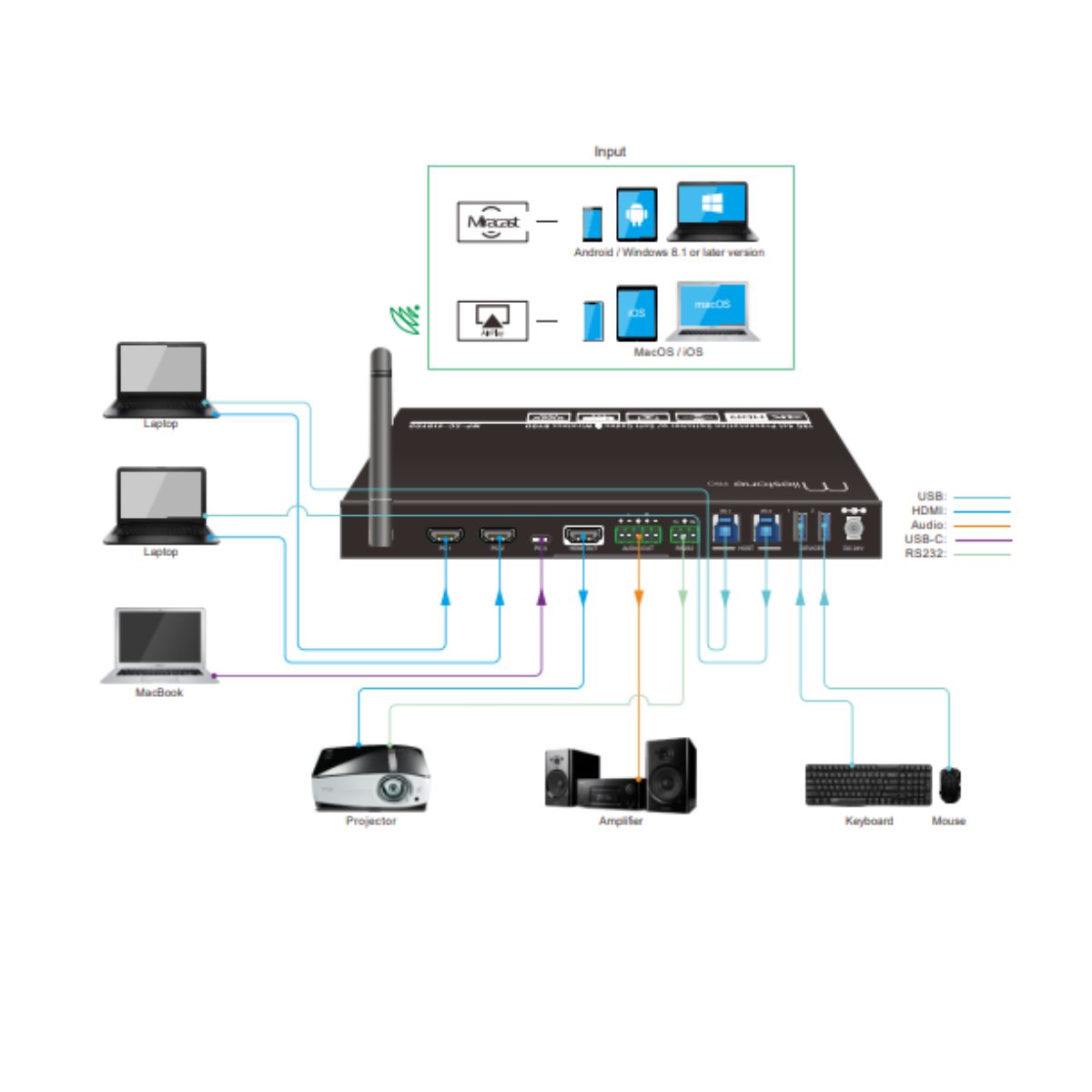

This switcher is designed with one wireless Miracast/AirPlay input, two HDMI inputs, one USB-C input, and one HDMI output. It supports HDMI 2.0b, 4K×2K60Hz with 4:4:4 chroma, HDR10, Dolby Vision, and HDCP 2.2, ensuring high-quality video transmission and compatibility with modern display devices.The switcher also features a smart built-in EDID management system, which can be conveniently selected using the 4-pin DIP switch located on the front panel.

SPEC SHEET
