MP-DA-2UHD-H2

Supports HDMI 2.0 and video resolution up to 4K60Hz 4:4:4
HDMI input supports HDCP 2.2, and the outputs support HDCP Active or HDCP Passive mode

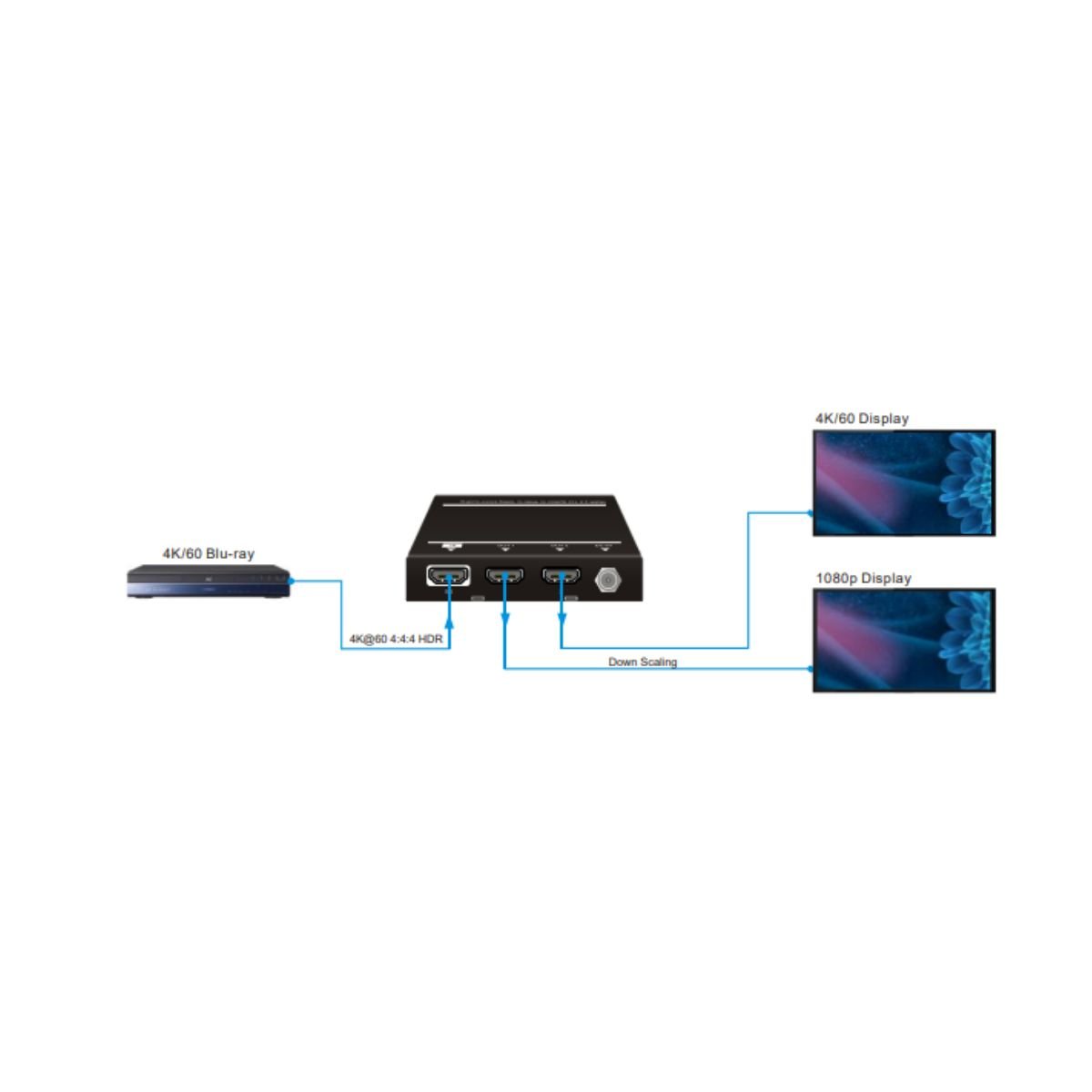

Supports video resolution down-scaling, the 4K input can be automatically degraded to 1080P output for compatibility with 1080P displays
18Gbps high bandwidth
Advanced EDID management: multiple built-in EDID settings can be selected
Built-in equalizer for signal enhancement to avoid signal attenuation in transmission
Supports CEC pass-through
Provides LEDs to indicate the current operating status
Firmware upgrade via Micro-USB port

Thanks for choosing the HDMI 2.0 1×2 Splitter, which can distribute one HDMI input to
two outputs. The splitter supports HDMI video resolution up to 4K60Hz 4:4:4, 1080P
3D, and multichannel audio formats. Besides passing EDID information from the

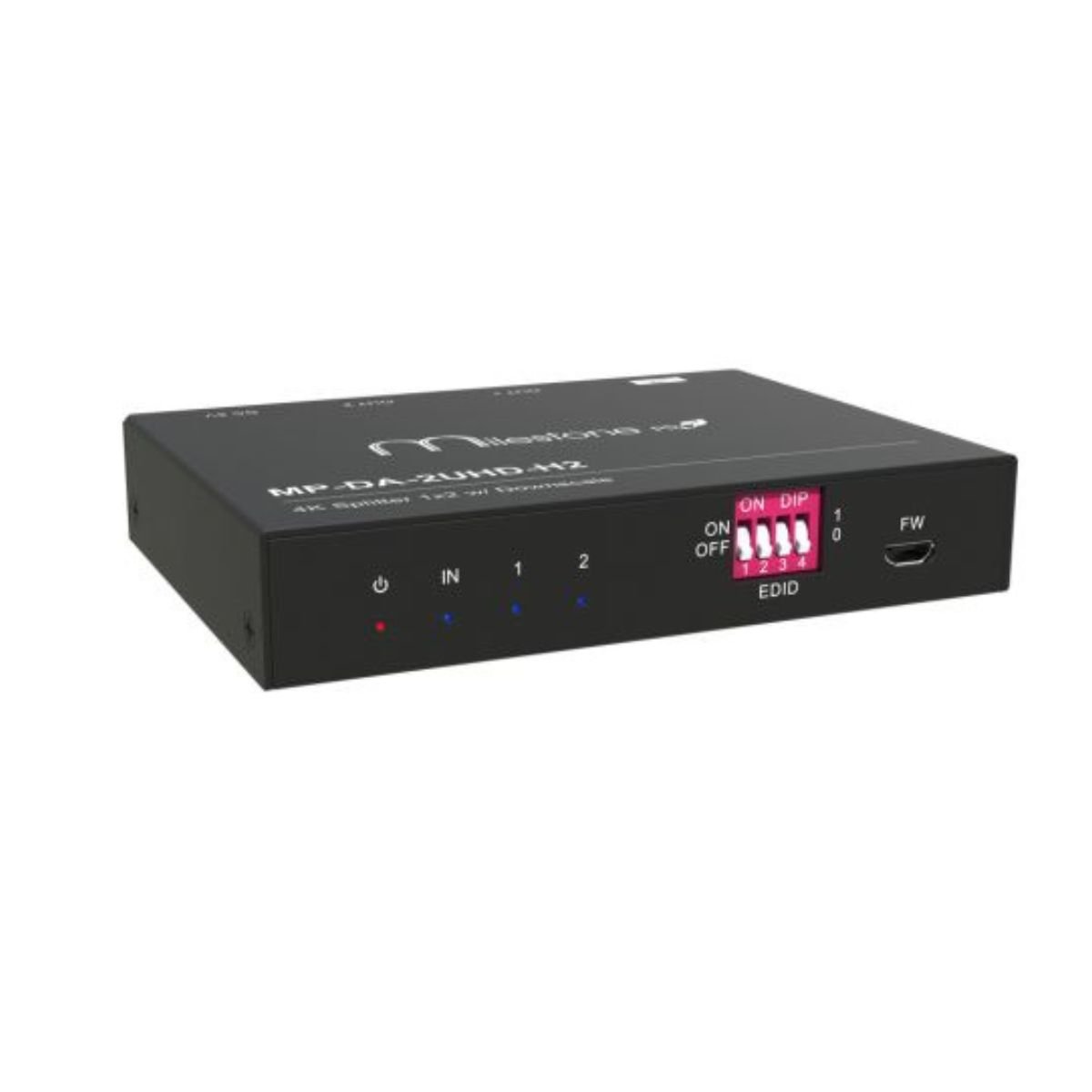

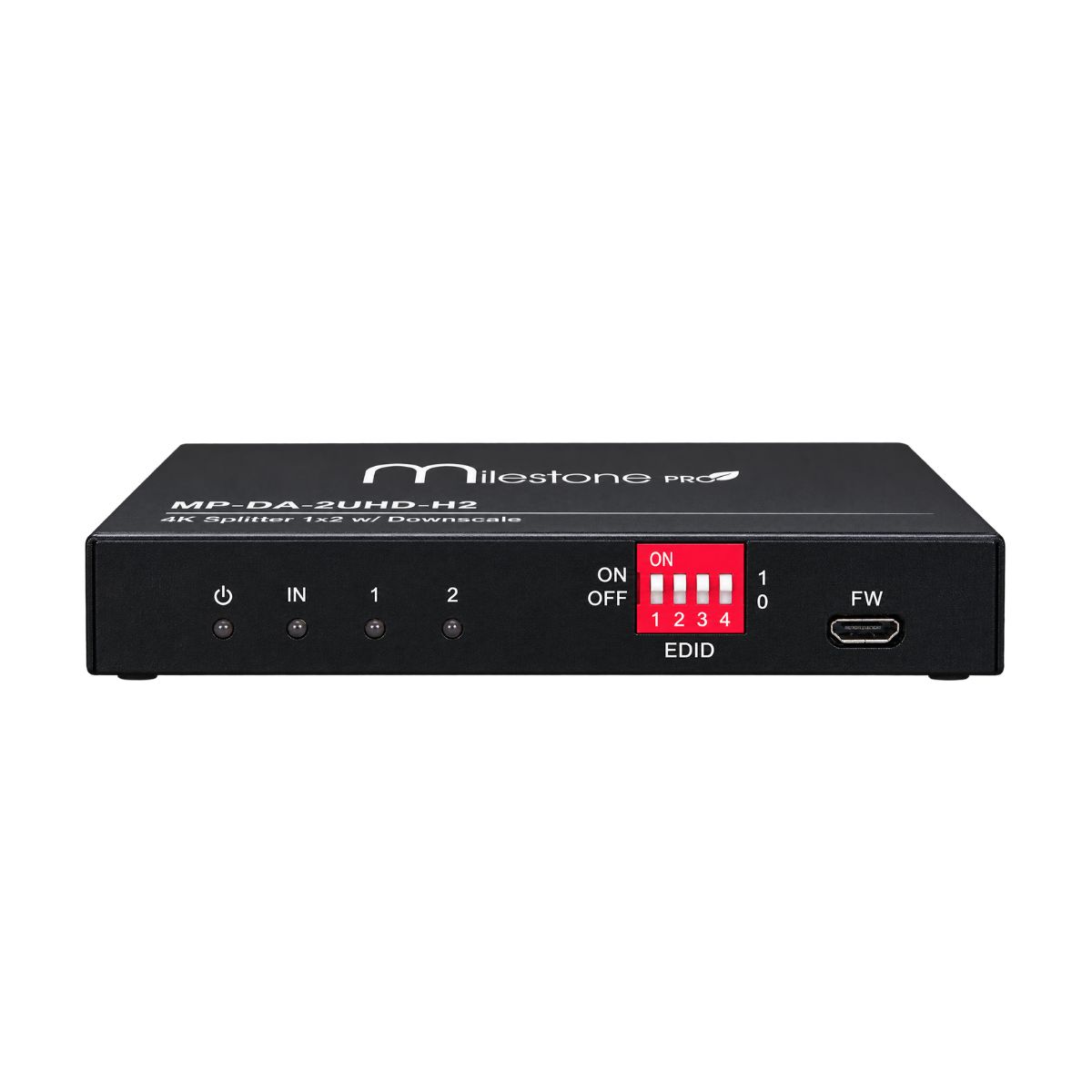

display, there are multiple built-in EDID settings can be selected by the 4-pin DIP switch
on the front panel. Moreover, the splitter supports convenient firmware upgrade through
Micro-USB port.

Input	(1) HDMI
Input Connector	(1) Type-A female HDMI
HDMI Input Resolution	Up to 4Kx2K60Hz 4:4:4 8bit
HDMI Standard	2.0
HDCP Version	2.2, 1.4 compliant
CEC	Supported
Output	(2) HDMI

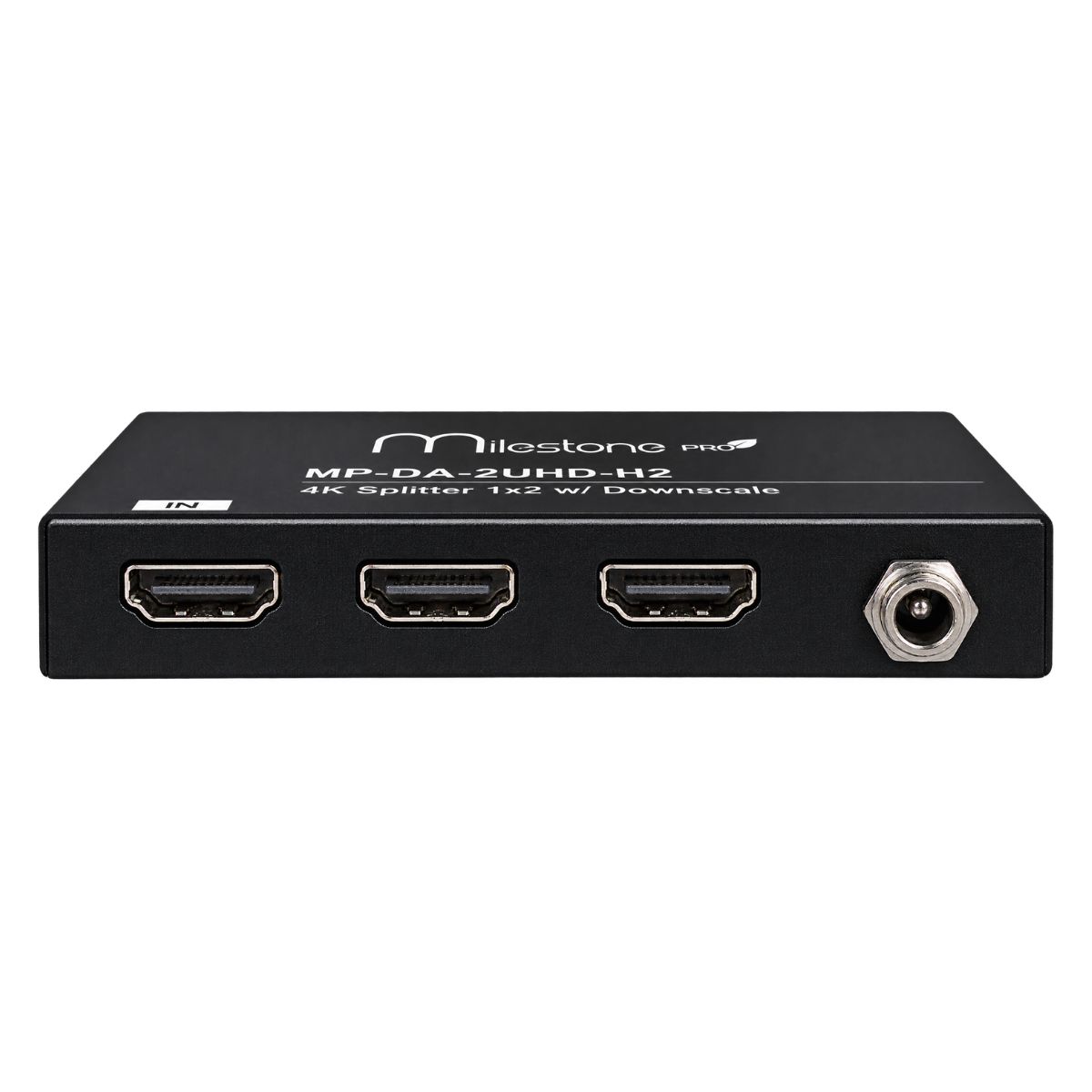

Output Connector	(2) Type-A female HDMI
HDMI Output Resolution	Up to 4Kx2K60Hz 4:4:4 8bit
HDMI Standard	2.0
HDCP Version	2.2, 1.4 compliant
CEC	Supported
Control Part	(1) EDID 4-pin DIP switch, (1) Micro-USB port
Bandwidth	18Gbps
HDMI 2.0 Cable Length	4K60Hz 4:4:4 ≤ 5m, 4K60Hz 4:2:0 ≤ 15m, 1080P ≤ 20m
Operation Temperature	-10℃ ~ +55℃
