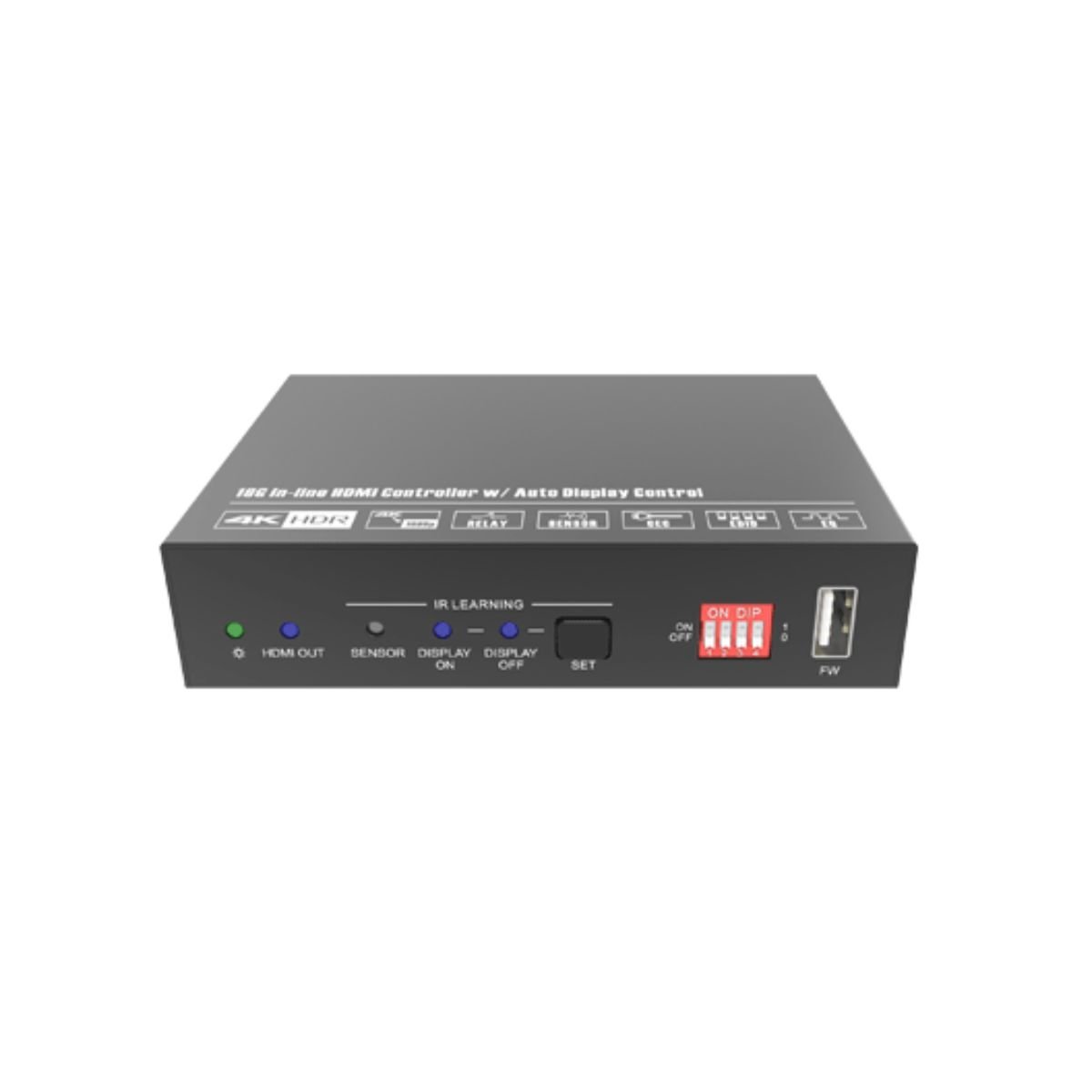

MP-SC-CONTROL

Supports up to 4Kx2K 60Hz 4:4:4 HDR10 and Dolby Vision, HDCP 2.2 compliant.
HDCP pass through or converted to HDCP 1.4 for better compatibility.
Supports 4K to108 0P down scaling.
Comprehensive EDID management with 8 EDID Options for various application.
Automation display control via CEC, RS 232 and IR.
Contact Closure input for connections with a variety of devices, such as sensor and switch.
Relay control for device like projection screen.
Built in signal equalizer, provides capability to use longer range HDMI cable.

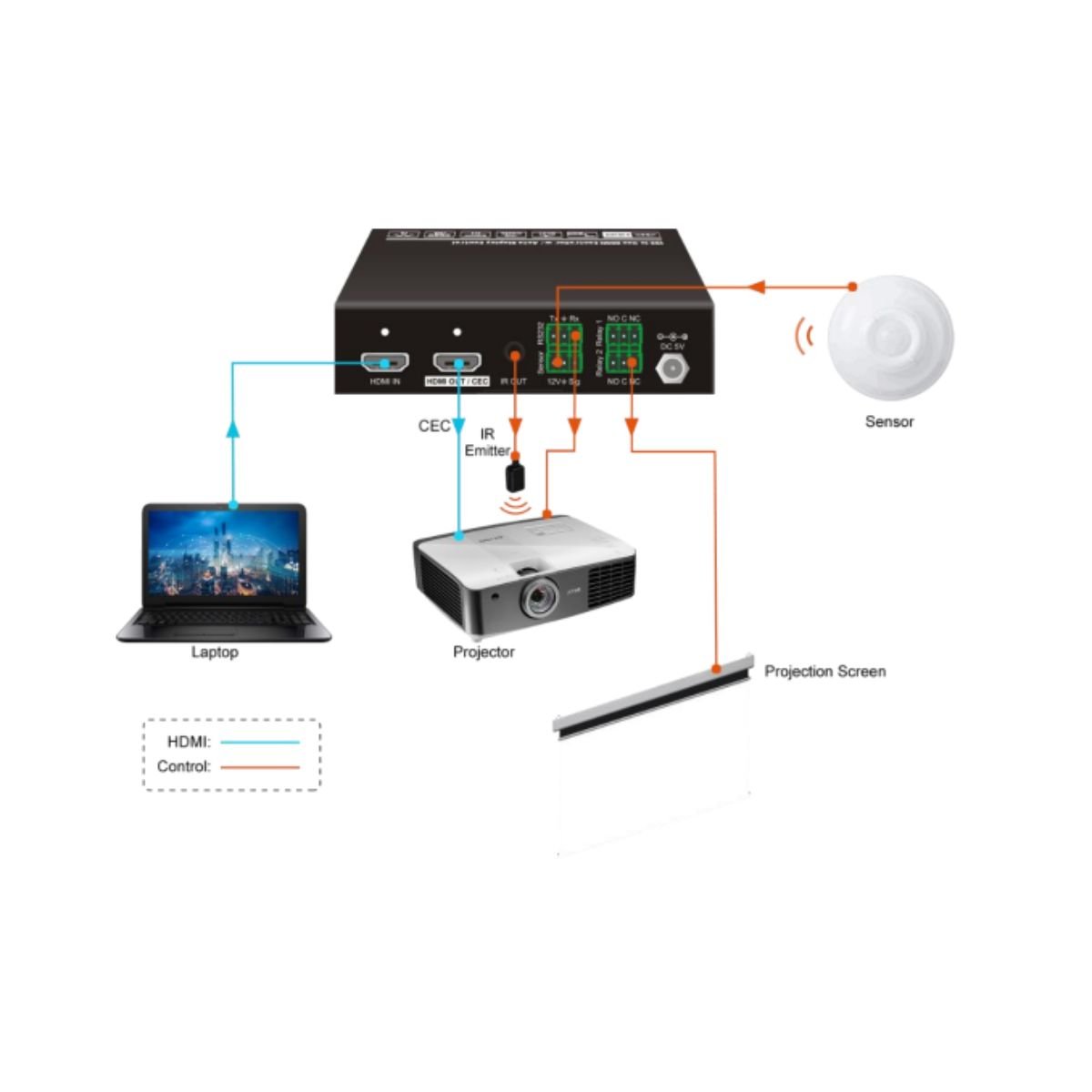

MP-SC-CONTROL 18G In line HDMI Controller, which is designed for automatic system control and HDMI signal extension in small meeting rooms and huddle spaces. It supports three system trigger methods , IR signal, video signal ( 5V or TMDS). It automatically triggers CEC commands, pre-loaded RS232 and IR commands to turn on or off display, and relay control to rise and fall the projection screen. It supports video resolution up to 4K60Hz 4:4:4 HDR10 and Dolby Vision, and features 4K to 1080P down scaling for compatibility with 1080P display.

No sidebar links found

Input	(1) HDMI IN
Input Connector	(1) Female type-A HDMI
Input Video Resolution	Up to 4Kx2K60Hz 4:4:4 8bit
Output	(1) HDMI OUT/CEC
Output Connector	(1) Female type-A HDMI
Output Video Resolution	Up to 4Kx2K60Hz 4:4:4 8bit

MP-SC-CONTROL
