MP-SC6T-MV

6x1 4K Presentation Switcher with HDBaseT output.
Supports seamless and auto switching.
HDMI 1.4 and HDCP 2.2 compliant.
Extends HDMI signals to distance up to 40 meters at 4K and 70 meters at 1080p.
Supports audio embedded, audio de-embedding and microphone audio mixing.
Supports multi-view and up to 16 modes can be selected.
Controllable via front panel buttons, GUI, IR remote, RS232 and CEC.

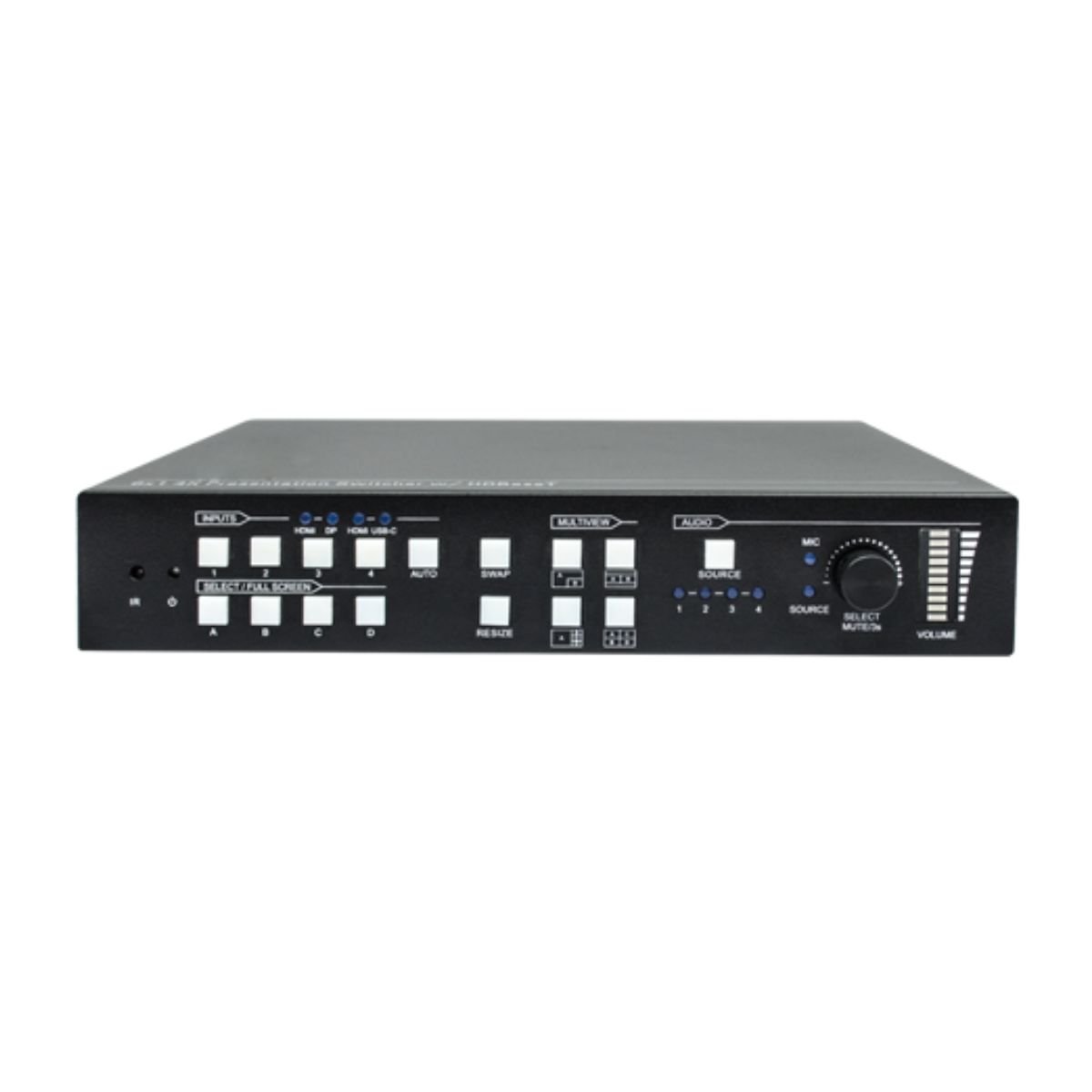

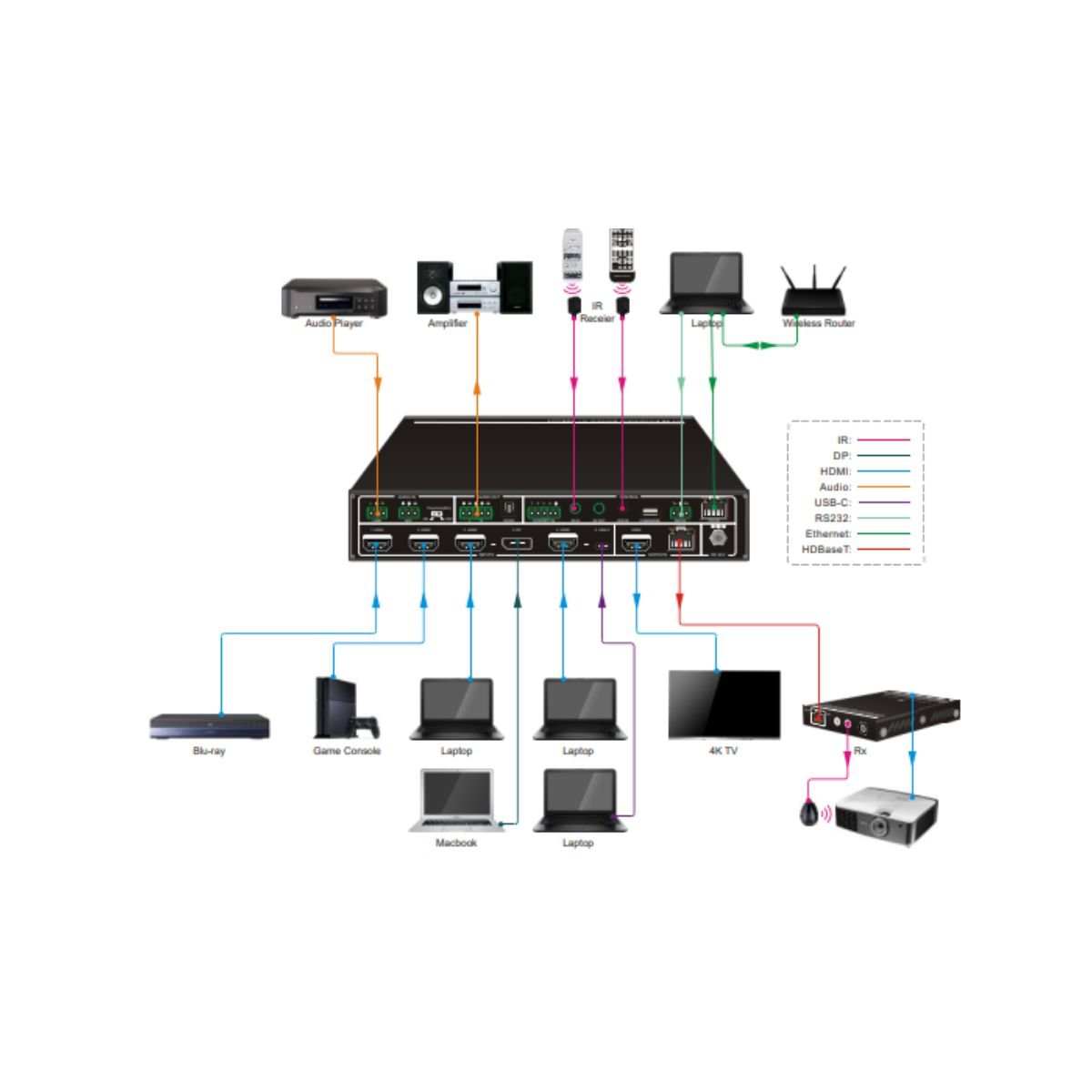

MP-SC6T-MV is the 6×1 4k presentation switcher. It offers four HDMI, one DisplayPort, and one USB-C inputs along with mirrored HDMI and HDBaseT outputs. The HDBaseT output supports PoC and can be paired with a compatible HDBaseT receiver to extend a 4k30Hz/1080P signal up to 40 meters (131ft) / 70 meters (230ft) all over a single CATx cable. It features an external line audio input that can be embedded into any HDMI input and provides a microphone input for audio mixing. It provides multi-view functionality and supports up to 16 multi-mode layouts. It features a wide range of control flexibility via front panel buttons, built-in web GUI, IR remote, RS232, and CEC.

Input	(4) HDMI IN (1~4), (1) DP, (1) USB-C
Video Input Connector	(4) Type-A female HDMI, (1) DisplayPort, (1) Type-C USB
Input Resolution	HDMI: Up to 4K30Hz 4:4:4 DP: Up to 4K30Hz 4:4:4 USB-C: Up to 4K30Hz 4:4:4
Output	(1) HDMI, (1) HDBaseT
Video Output Connector	(1) Type-A female HDMI, (1) RJ45
Output Resolution	HDMI: Up to 4K30Hz 4:4:4 HDBaseT: Up to 4K30Hz 4:4:4
HDMI Standard	Up to 1.4
HDCP Version	Up to 2.2
