MP-WP-DAN

Class 2, communication distance at least 10m.
Support one-touch pairing
Support PoE power supply from the Ethernet switch.
Controllable via Dante Controller.

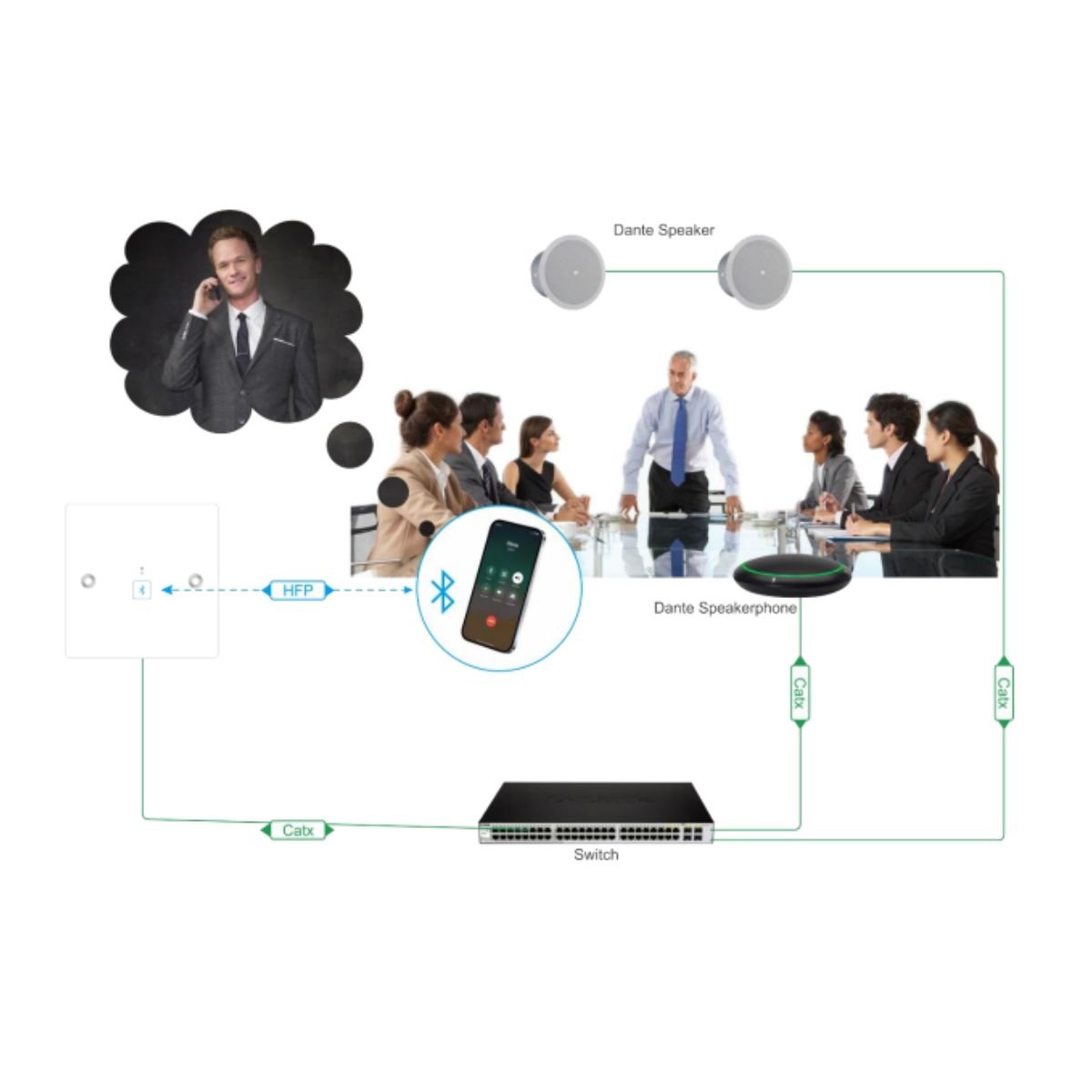

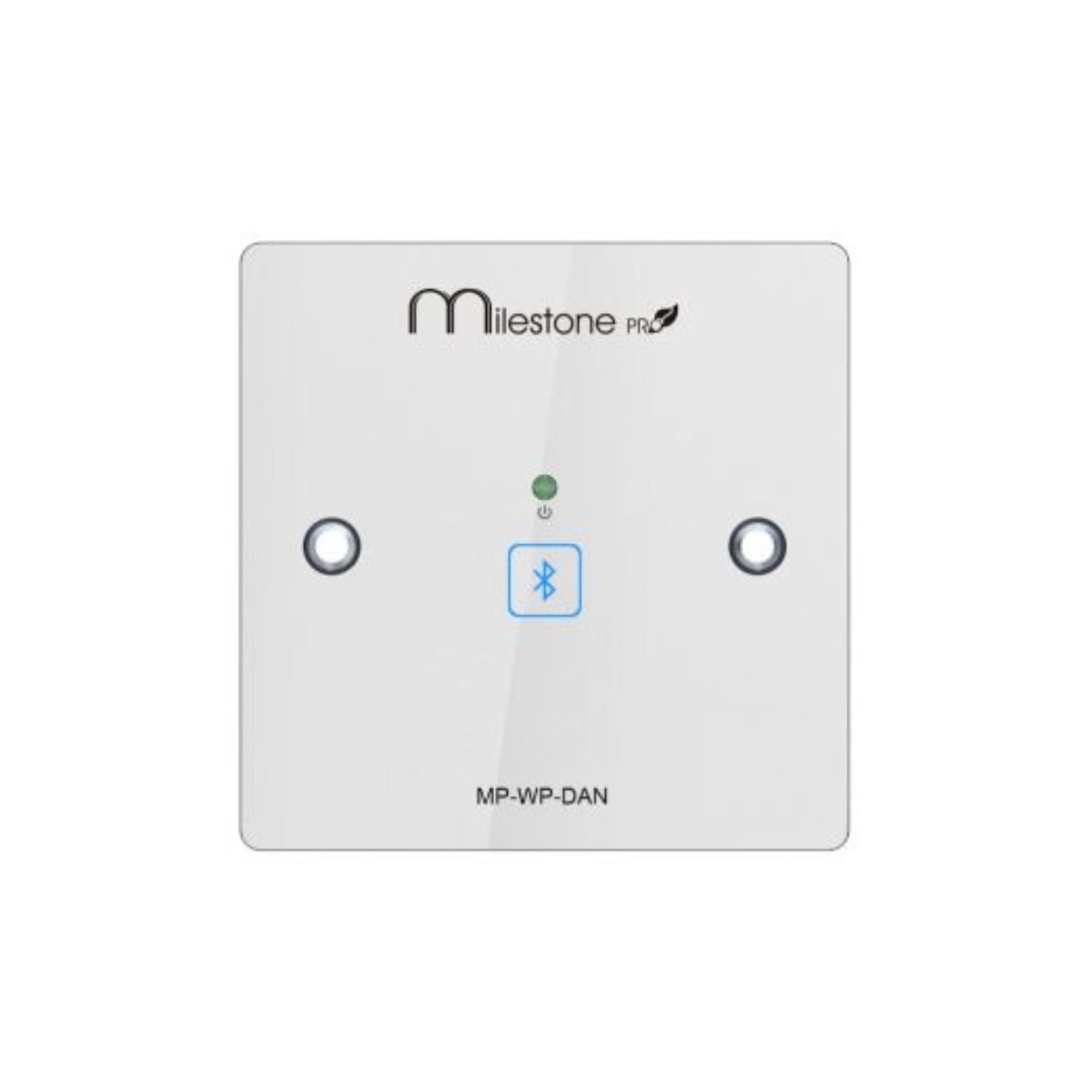

Thank you for choosing the MP-WP-DAN audio wall plate. It receives a signal from Bluetooth and converts it into Dante network data for output. One-touch pairing simplifies connection. The device is powered via PoE from the Ethernet switch. It also supports control via the Dante controller.

MP-WP-DAN

Input	Bluetooth
Output	Dante
Frequency Response	20Hz-20kHz ±3dB
THD+N	<0.05% 1kHz
SNR	>105dB
Sample Rate	44.1/48kHz
Bit Depth	24bit
Protoco	A2DP/HFP/AES67
Power Supply	PoE
Operation Temperature	5℃ ~ +55℃
