MP-DA2UHD-H2

Supports HDMI V2.0 and the video resolution up to 4K60Hz 4:4:4
HDMI input supports HDCP 2.3 and the outputs support HDCP Active or HDCP Passive mode
Compatible with HDMI AOC cable, provides up to 5V 200mA power on each output

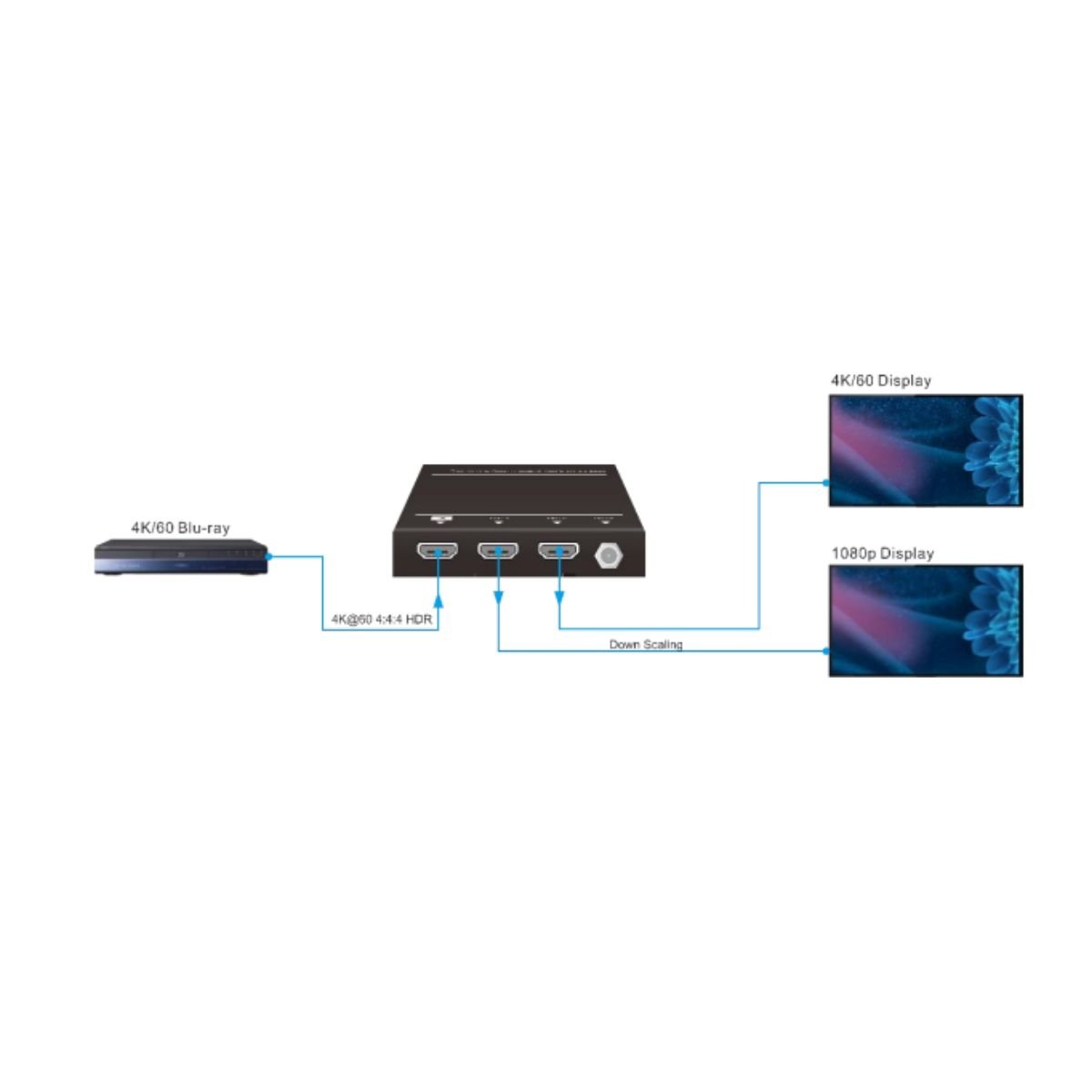

Supports video resolution down-scaling, the 4K input can be automatically degraded to 1080p output for compatibility with 1080p display
18Gbps high bandwidth
Advanced EDID management: multiple built-in EDID settings can be selected
Built-in equalizer for signal enhancement to avoid signal attenuation in transmission
Supports CEC pass-through

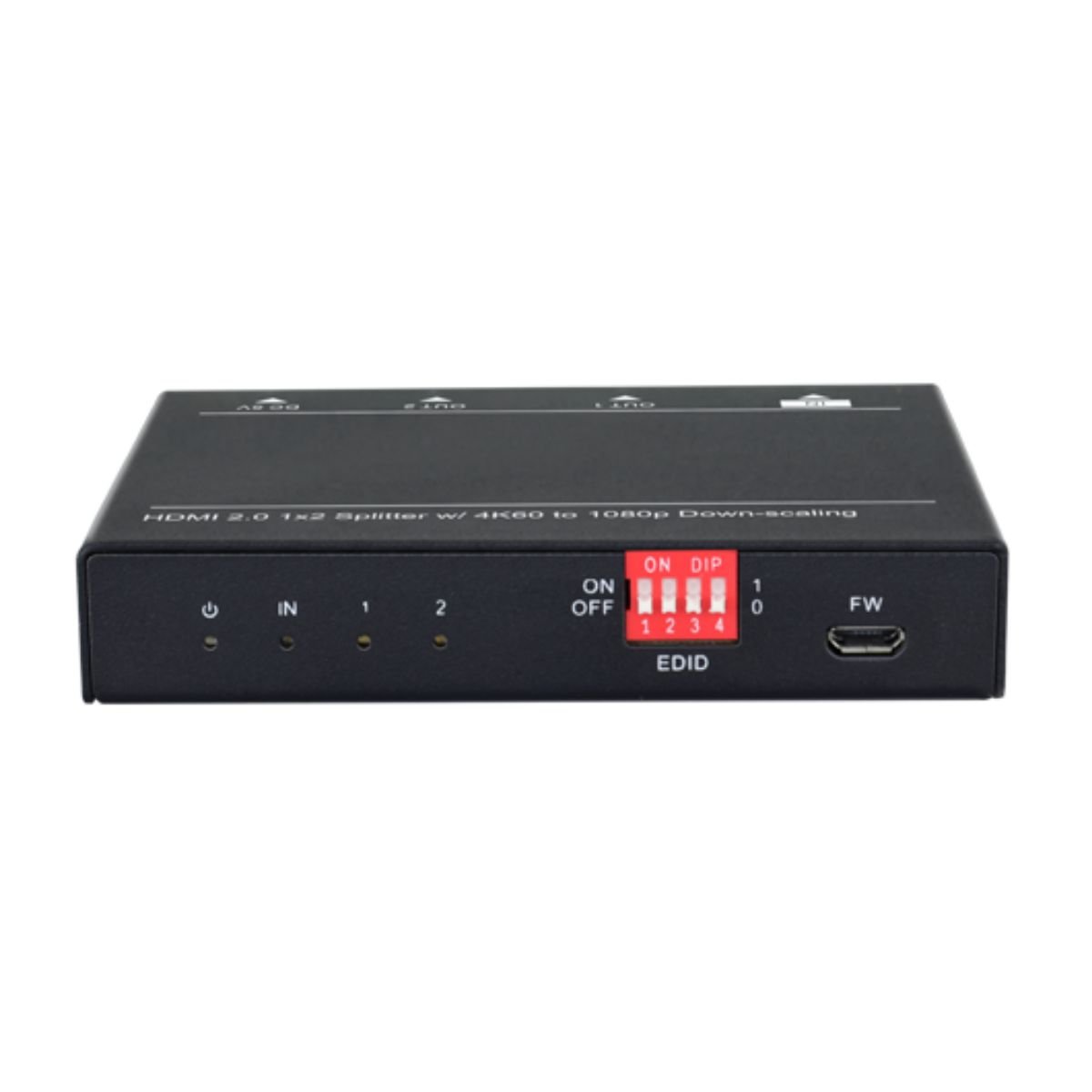

MP-DA2UHD-H2 is an HDMI V2.0 1×2 Splitter, which can distribute one HDMI input to two outputs. It supports HDMI video resolution up to 4K60Hz 4:4:4, 1080p 3D, and multichannel audio formats. Besides passing EDID information from the display, there are multiple built-in EDID settings that can be selected by the 4-pin DIP switch on the front panel. Moreover, it supports convenient firmware upgrade through the Micro-USB port.

Input	(1) HDMI
Input Connector	(1) Type-A female HDMI
HDMI Input Resolution	Up to 4K60Hz 4:4:4 8bit
HDMI Standard	2.0
HDCP Version	2.3, 1.4 compliant
CEC	Supported
Output	(2) HDMI
Output Connector	(2) Type-A female HDMI
HDMI Output Resolution	Up to 4K60Hz 4:4:4 8bit
HDMI Output	Supports up to 5V 200mA power for AOC cable.
HDMI Standard	2.0
HDCP Version	2.3, 1.4 compliant
CEC	Supported
