MP-HD-IP400E

Supports H.264 encoding and decoding
1080p video over an IP network

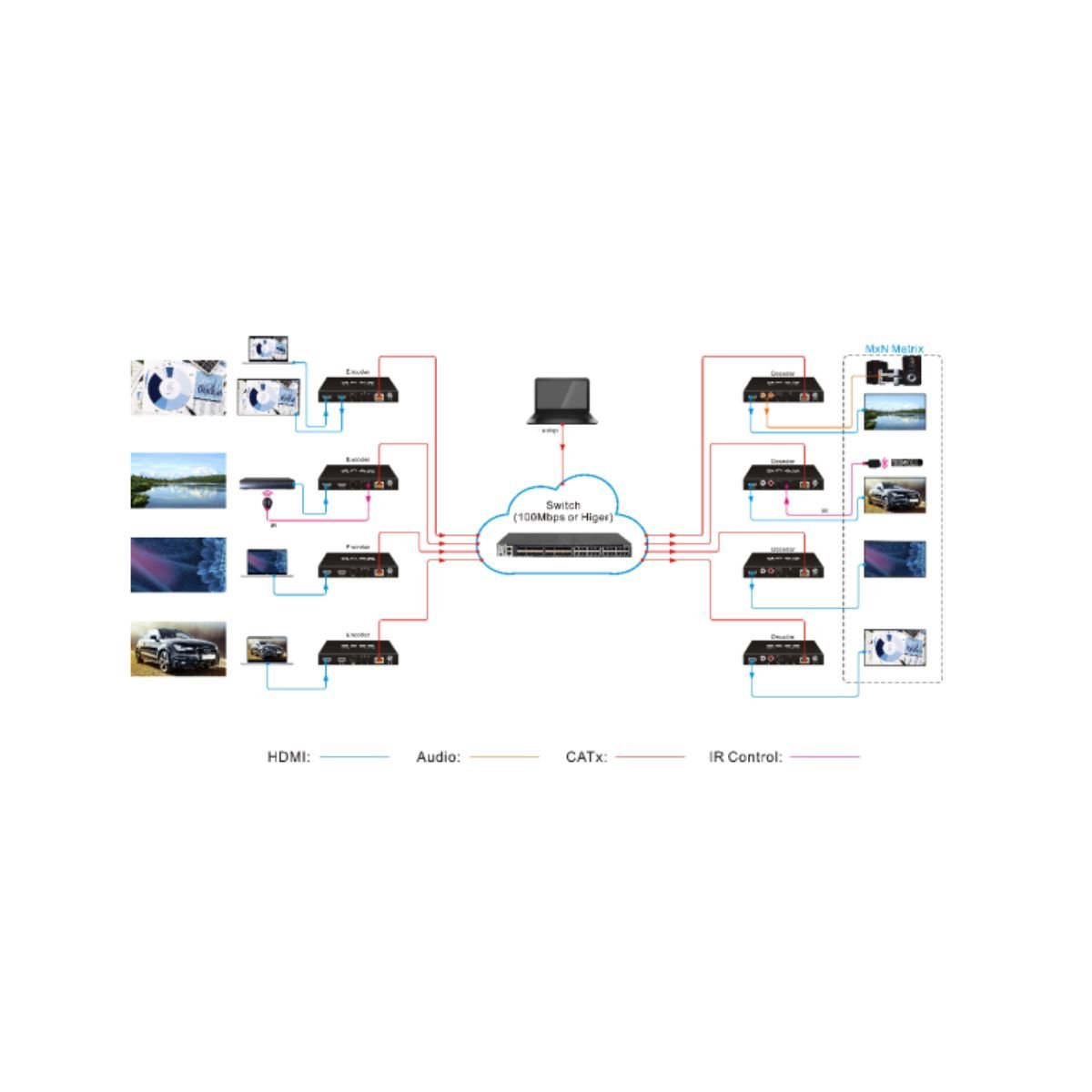

Support video extension, video distribution, and video matrix
Support output video scaling to 720p or 1080p
Supports PoE, Encoder/Decoder can be powered by Pa oE Switch
Support Video Live Preview on the GUI
Support Video Broadcasting over the network
Supports video recording
The encoder features an HDMI loop-out

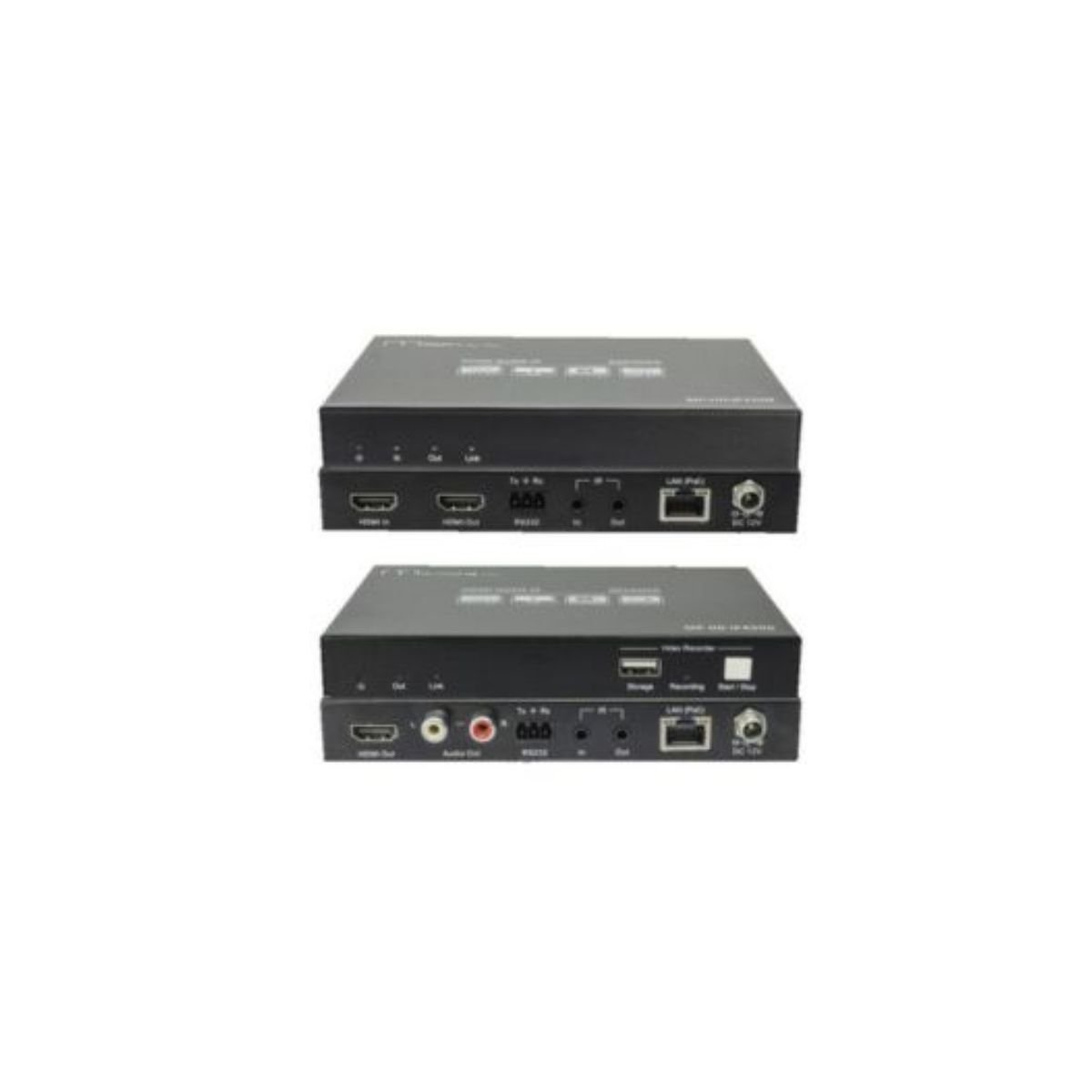

The MP-HD-IP400 is an IP Streaming Encoder/Decoder which uses the H.264 standard to extend HDMI video, IR, and RS232 control signals over an IP network. It works with one control PC (Wake on LAN) and one switch whose transmission rate is 100Mbps or higher to control a variety of functions. The MP-HD-IP400 features 1080p HDMI video switching, video matrix, audio deembedding, audio switching, IR&RS232 transmission, video recording, PoE, etc. The control software “IP Streaming Management” merges all functions for user control of the IP streaming system.

No sidebar links found

Video Input	(1) HDMI In
Video Input Connector	(1) Type-A female HDMI
HDMI Input Resolution	Up to 1080p60Hz 444 10/12bit
Video Output	(1) HDMI Out
Video Output Connector	(1) Type-A female HDMI
HDMI Output Resolution	HDMI Output Resolution
Video Output	(1) HDMI Out
Video Output Connector	(1) Type-A female HDMI

MP-HD-IP400E
