MPTP-TUH-100KVM

Compatible with HDMI 1.4 and is backwards compatible with all previous HDMI standards (e.g. HDMI d elivers high resolution AV signal 1080p 3D, 4K 60Hz
Support HDBT 2.0 , transmit 1080p 4K signal up to 100m over single CAT6 cable
EDID Pass Thru
HDCP 2.2 compliant
Front panel status LED s for power, HDBT link & HDCP
USB & RS232 control
Unidirectional PoC

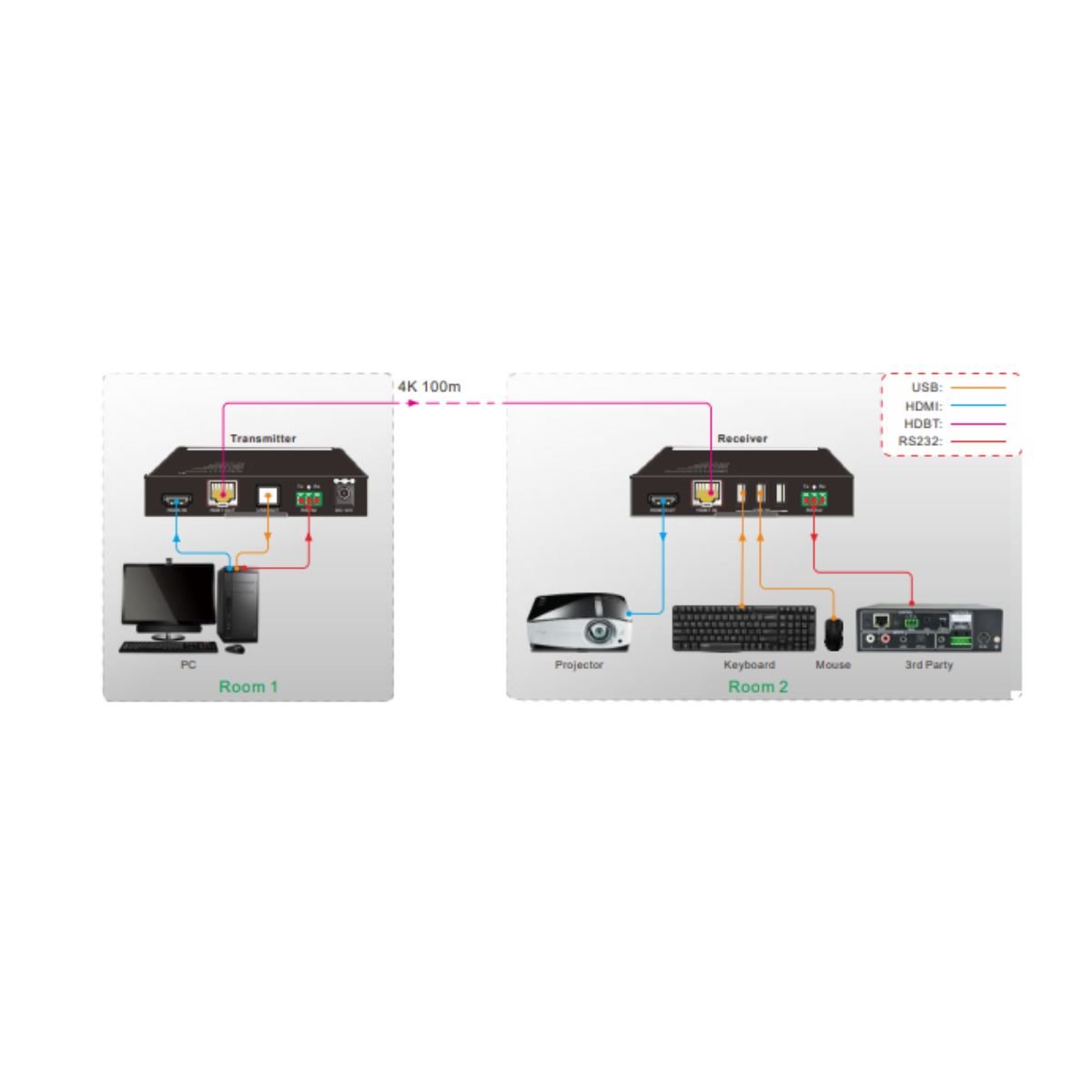

MPTP-TUH-100KVM is an HDBaseT 2.0 KVM Extender Set, a 4K HDMI Extender set developed with the latest HDBaseT™ 2.0 technology to extend uncompressed HDMI video, audio, USB 2.0, control signals, and PoC over a single CAT5e/6 cable. The unidirectional PoC compliant extender comes with only one power supply, which means that the Receiver can be powered via the transmitter to save installers time and added cost to installing a power outlet. Ideally designed for smart displays and KVM solutions, fitting digital signage markets.

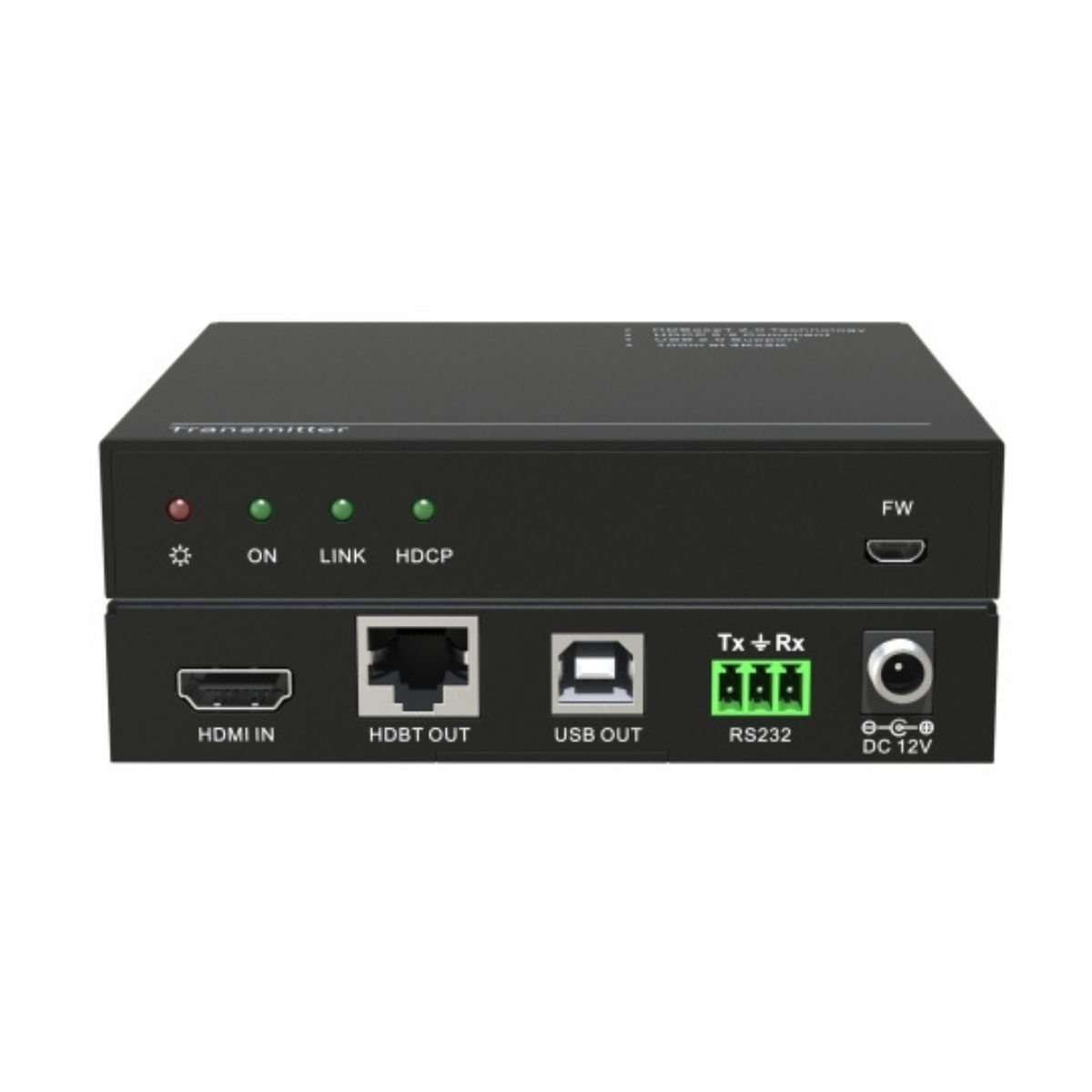

Input	1 x HDMI
Input Connector	1 x 19 pin type-A male HDMI
Output	1 x HDBT, 1 x USBOUT
Output Connector	1 x RJ45, 1 x Type-B USB
Control	1 x RS232
Control Connector	1 x 3-pin pluggable terminal block
Input	1 x HDBT, 1 x USB IN
Input Connector	1 x RJ45, 1 x Type-A USB
Output	1 x HDMI
Output Connector	1 x 19 pin Type-A male HDMI
Control	1 x RS232
Control Connector	1 x 3-pin pluggable terminal block
