MP-4PC

Switch control, voltage, current, and power consumption metering
2x TCP/IP network ports to provide continuous network services
Overload protection, wiring error protection, and remote login verification
Supports multiple network protocols and IoT protocols
Controllable via RS-232 and Web-GUI

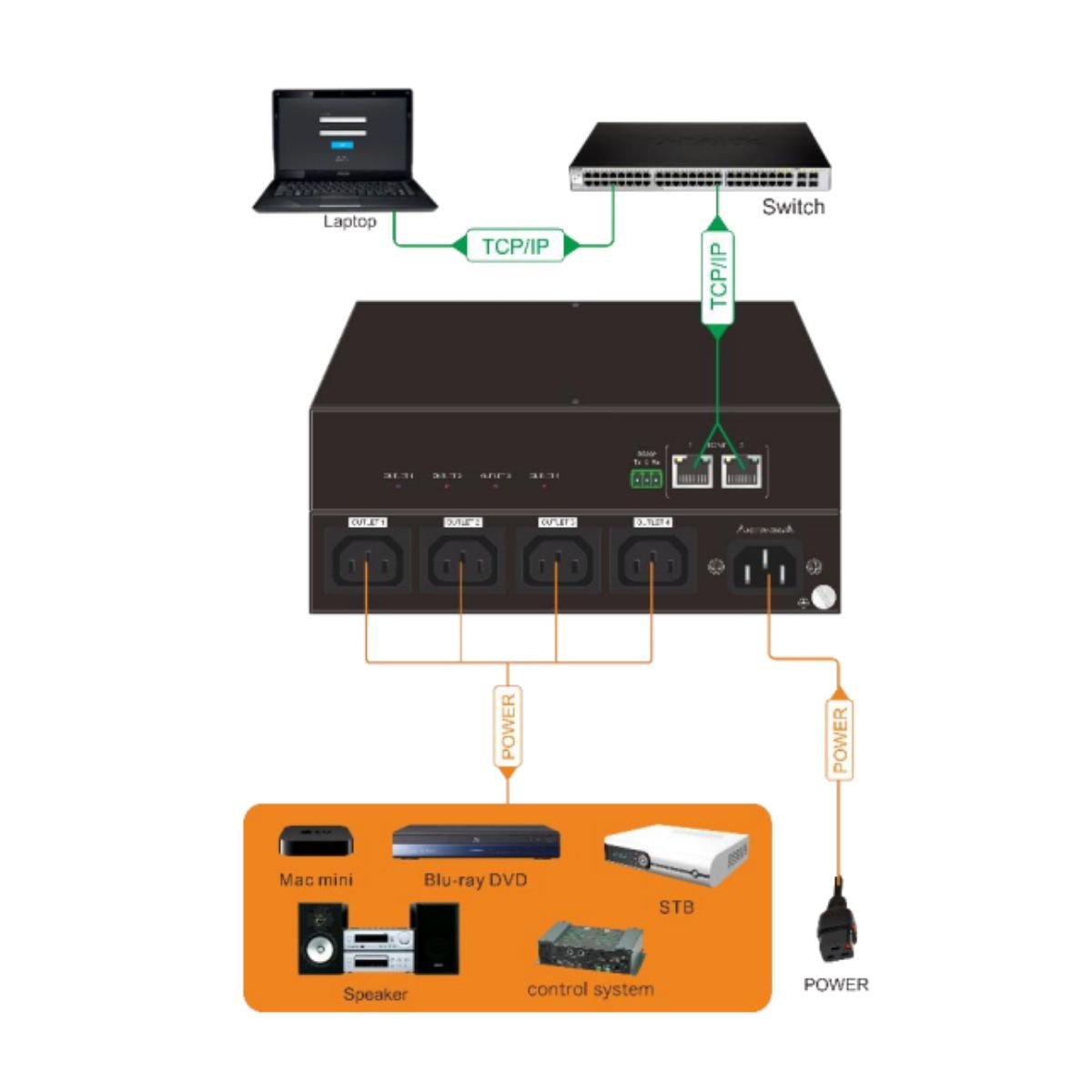

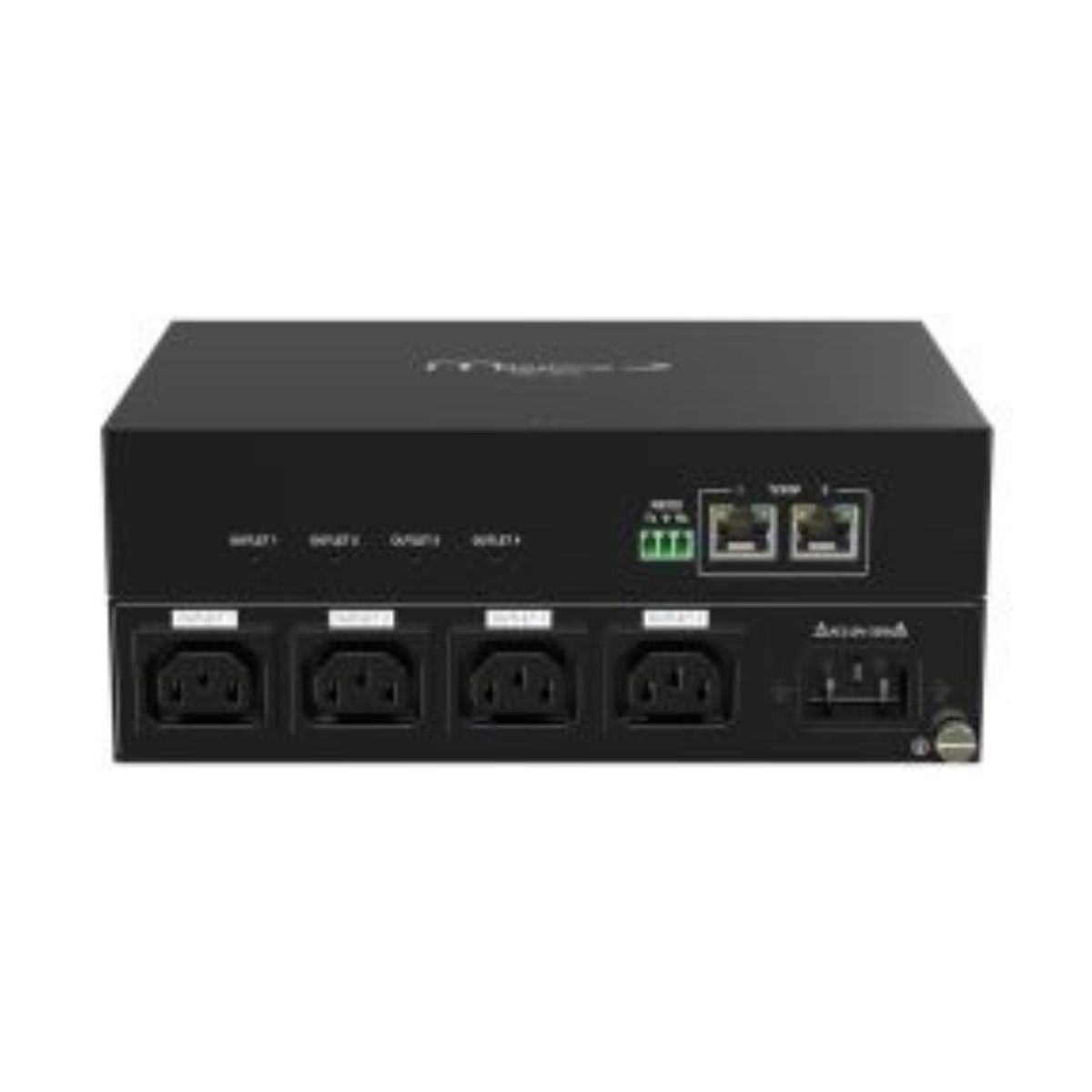

Thanks for choosing the 4 Ports Power Controller with redundant TCP/IP ports. The controller is designed for power control and metering. It supports up to AC110V~250V10A IEC C14 power input and four 10A IEC C13 outlets. The controller supports power control and metering via TCP/IP, which provides multiple network protocols and IoT protocols

Voltage	AC 110-250V
Frequency	50/60Hz
Current	Max. 10A
Connector	1x IEC C14
Voltage	AC 110-250V
Frequency	50/60Hz
Current	Max. 10A per port
Connector	4x IEC C13
Mode	TCP/IP, RS-232
Connector	2x RJ45, 1x 3-pin phoenix terminal
Voltage Range	110-250V
Current Range	0-10A
Frequency Range	45-65Hz
Power Factor	0-1
