MP-DA24UHD-4K

Supports HDMI 2.0 and video resolution up to 4K60Hz 4:4:4.
HDMI inputs support HDCP 2.2, and the outputs support HDCP1.4
Fully compliant with the HDMI 2.0 and HDCP 2.2 specifications.
Supports video resolution down-scaling, the 4K input can be automatically degraded to 1080P output for compatibility with 1080P displays.
18Gbps high bandwidth
Features RCA (L/R) jack and Toslink connector for audio de-embedded.
Advanced EDID management: multiple presets and user-defined allowed.
Built-in equalizer for signal enhancement to avoid signal attenuation in transmission.
Supports CEC control to turn on/off displays and adjust their volume.

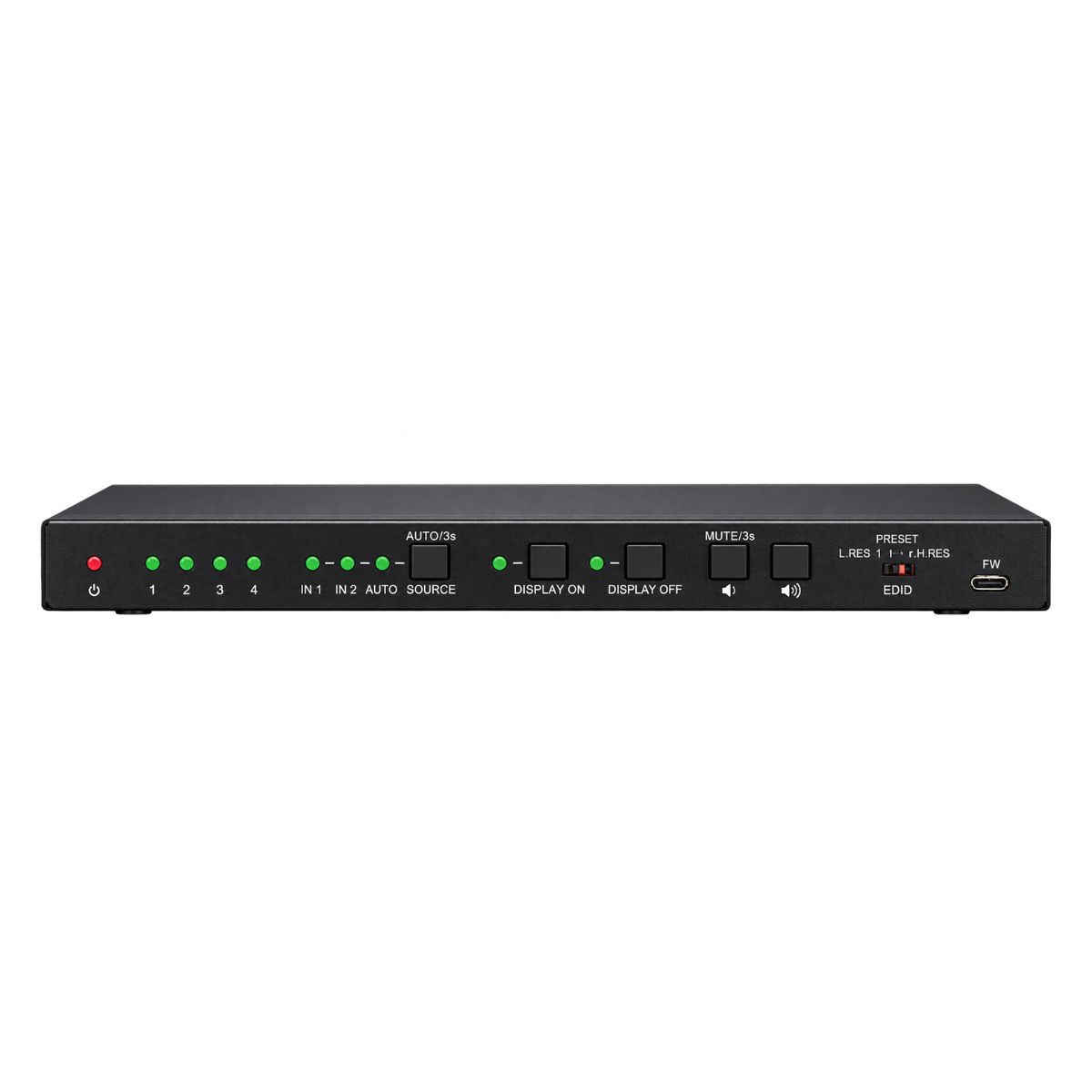

Provides LEDs to indicate the current operating status and to assist in troubleshooting and installation.

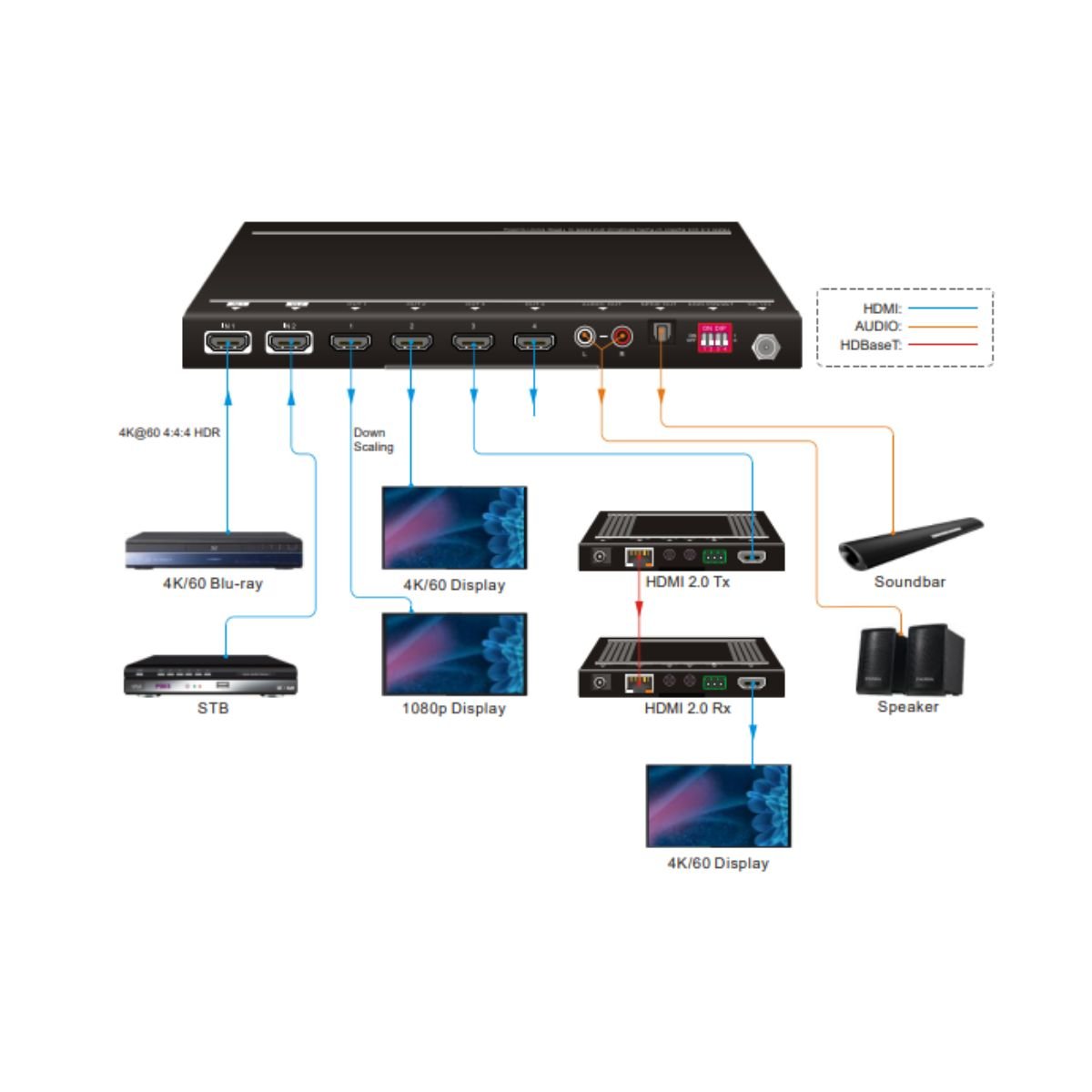

Thanks for choosing the HDMI 2.0 2×4 Splitter, which can distribute either one of two
HDMI inputs to four outputs. The splitter supports HDMI video resolution up to
4K60Hz 4:4:4, 1080P 3D, and multichannel audio formats. Besides passing EDID
information from the display, there are multiple built-in EDID settings that can be selected

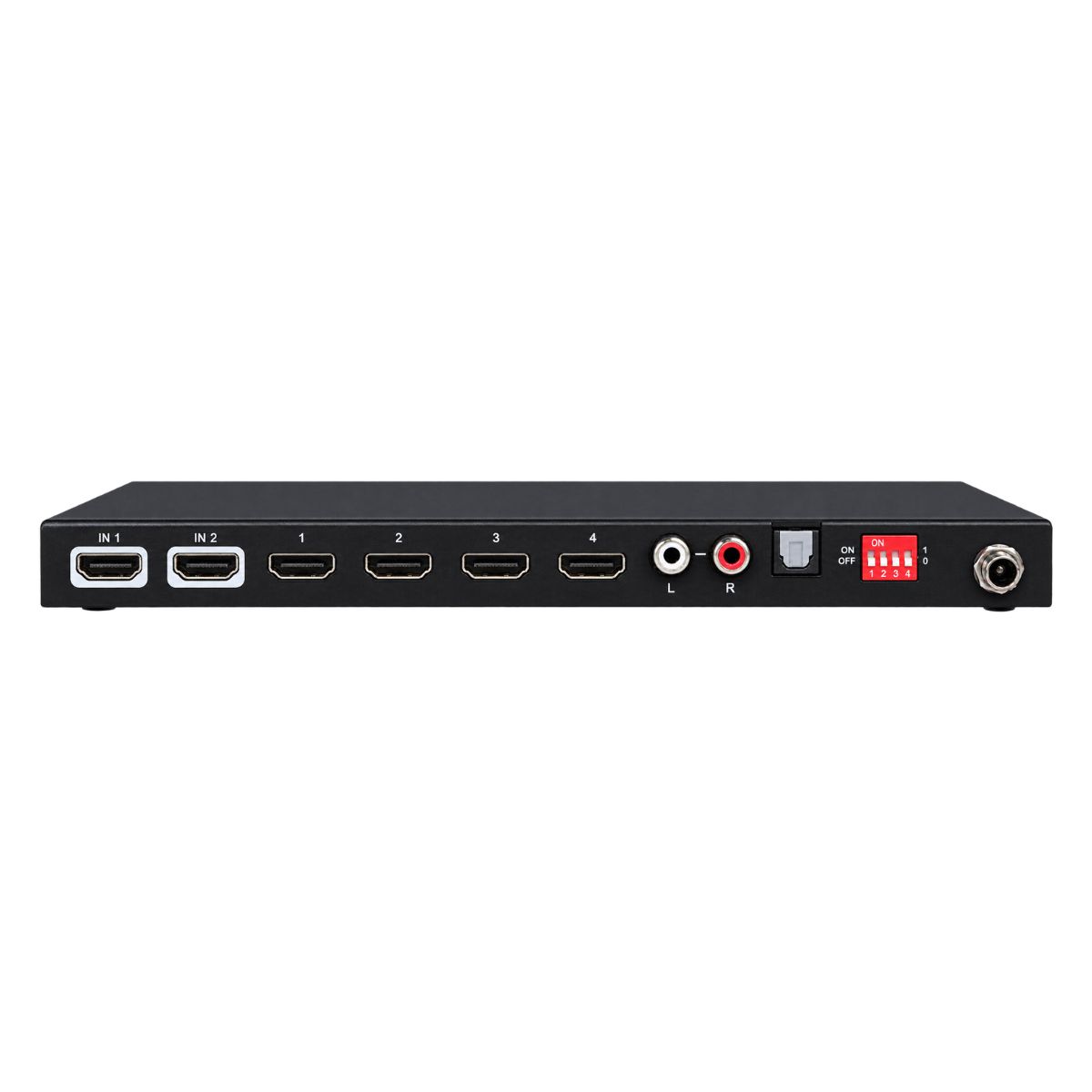

by the 4-pin DIP switch on the rear panel. The splitter can de-embed HDMI digital
audio to stereo analog L/R and Toslink SPDIF audio outputs to provide audio sources
for an existing audio system.

Input	(2) HDMI
Input Connector	(2) Female type-A HDMI
HDMI Input Resolution	Up to 4Kx2K60Hz 4:4:4 8bit
HDMI Standard	2.0
HDCP Version	2.2
CEC	Supported
Output	(4) HDMI
Output Connector	(4) Female type-A HDMI
HDMI Output Resolution	Up to 4Kx2K60Hz 4:4:4 8bit
HDMI Standard	2.0
CEC	Supported
