MP-PA-3V

Mono audio output at 40Watt.
Switchable between 70V and 100V.
Ducking function
16 ID codes for controlling between different amplifiers.
3-level MIC input, supports condenser microphone, dynamic microphoneandwireless microphone.
MIC port can support balance/unbalance signal, suppress the external noiseeffectively
Two stereo audio inputs and one digital audio input, switchable by button, IRremote& RS232.
Volume/Bass/Treble controllable by buttons, IR remote & RS232.

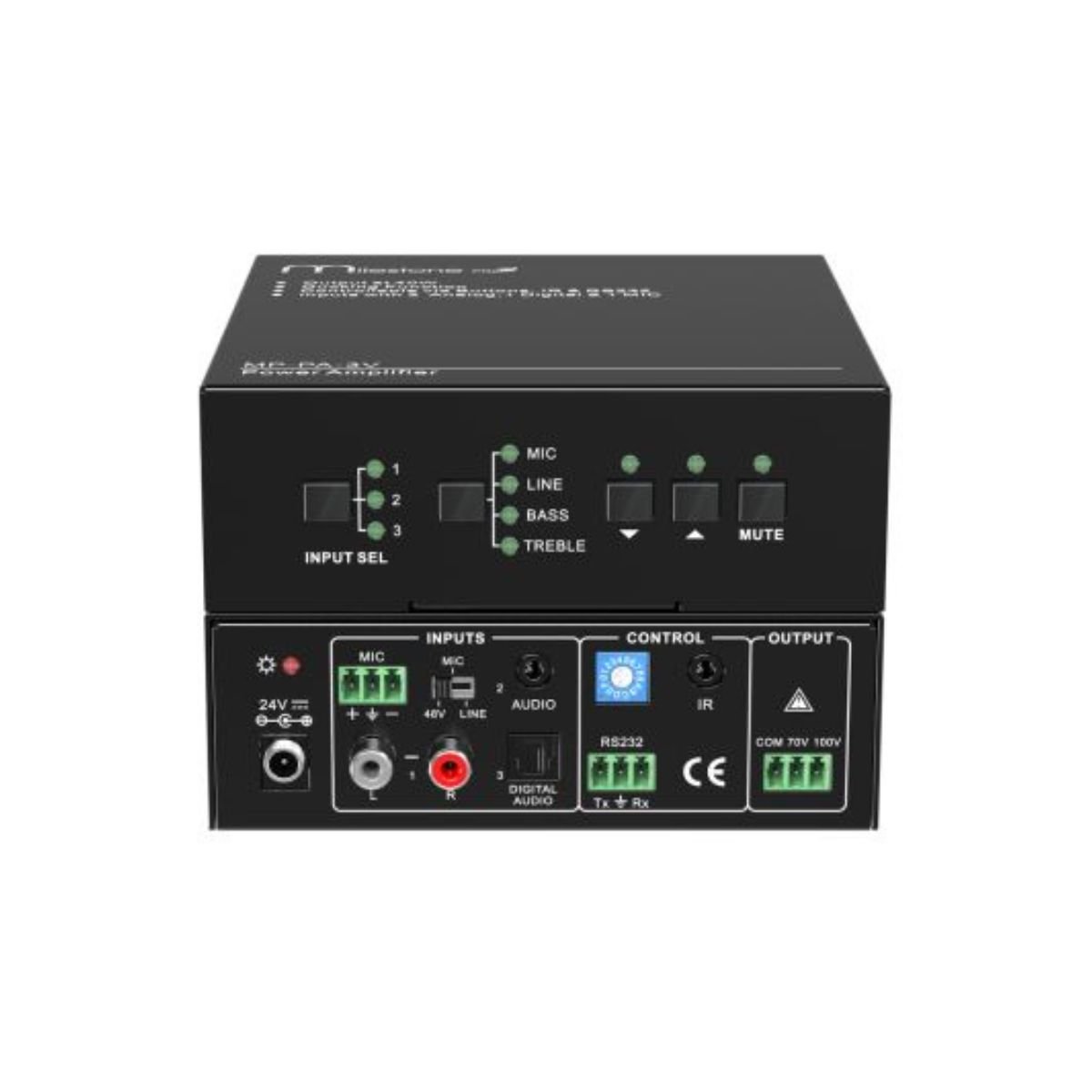

The product is a 40 Watt power amplifier (Class-D) with output alternatively at 70V or 100V. It has 2 stereo inputs (1×3.5mm jack for line in, 2xRCA for L&R), 1 digital input, and 1 balanced MIC. It is integrated with powerful functions, including ducking function, EQ control, MIC mixer, etc., and MIC input supports 3 levels with condenser MIC, dynamicMIC & line audio input

MP-PA-3V

Input	(2) Stereo Audio (1) MIC (1) Digital Fiber Audio
Input Connector	(2) RCA (1) 3.5mm Jack (1) 3-pole 3.81mm Captive Screw Connector (1) SPF Fiber Connector
Input Impedance	>10K
Output	(1) Mono Amplifier
Output Connector	(1) 3-pole 3.81mm Captive Screw Connector
Output Type	Constant voltage 70V or 100V
Frequency Response	20Hz ~ 20KHz
CMRR	>70dB20Hz~20KHz
SNR	80dB (Max)
Rated Power Output	40Watt
THD + Noise	1%1KHz, 0.3%20KHz at nominal level
Voltage Gain	26dB
RS232 Control	(1) 3-pole 3.81mm Captive Screw Connector
Front Panel Control	Buttons
ID Code Control	16 ID Codes for control.
Optional	IR Remote & TCP/IP controlled by programmable interface
