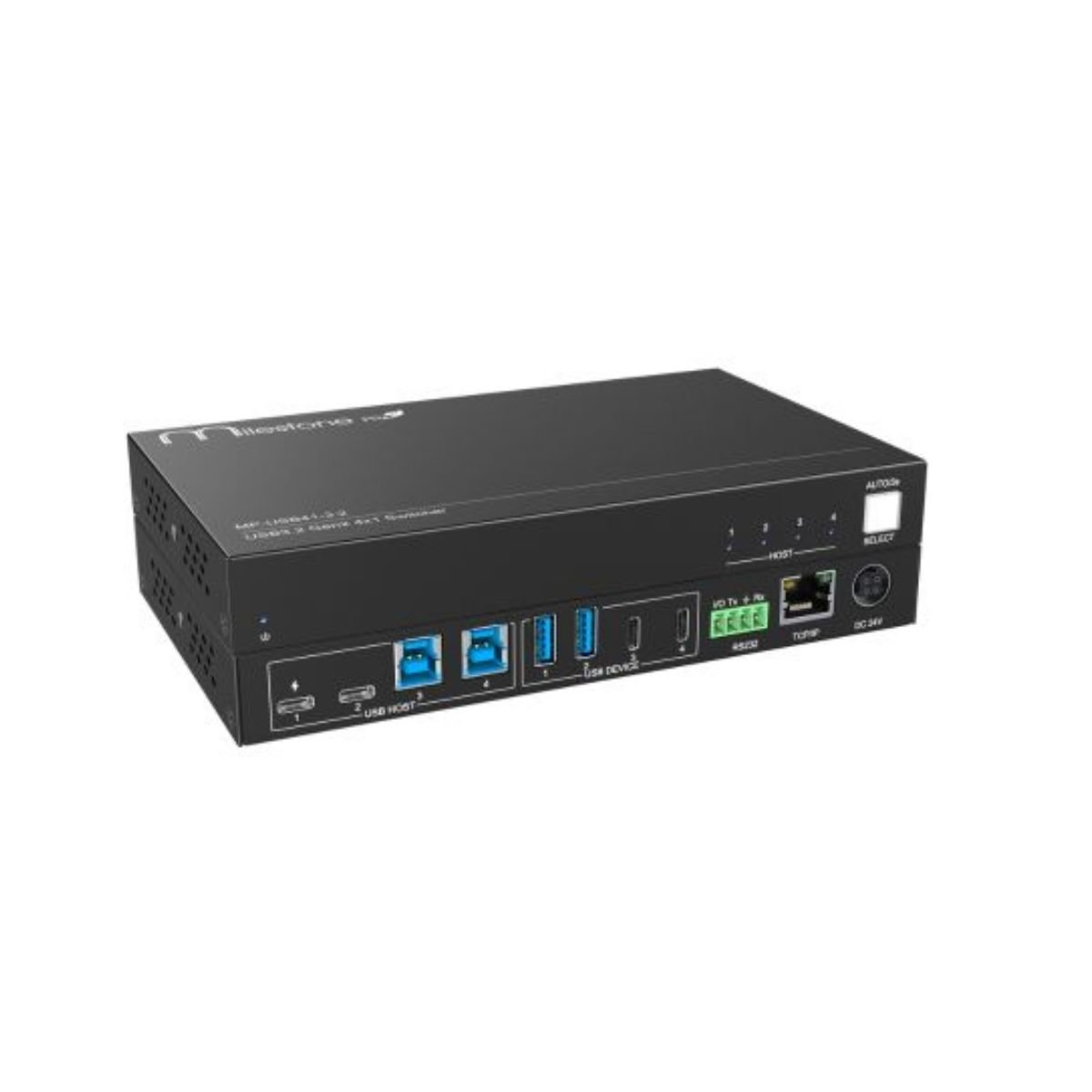

MP-USB41-3.2

Support USB 3.2 Gen2, 10Gbps, support switch to 5Gbps
Support front panel, GUI and RS232, TCP , GPIO control
USB devices shared 4.5A max current, compatible with most large-power camera
100W power support to charge connected host

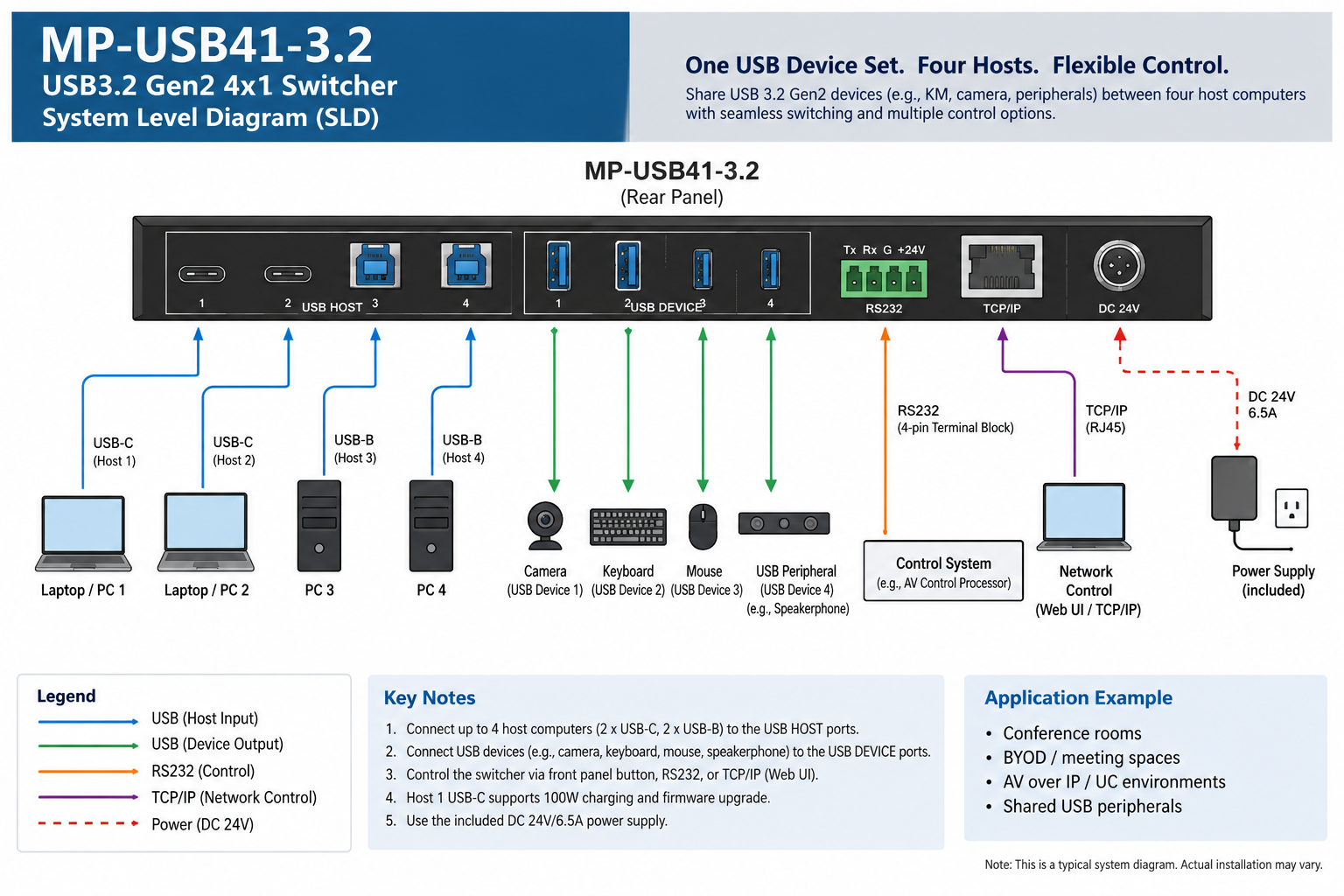

MP-USB41-3.2 supports Auto, manual, RS232 control, TCP control to switch the USB device to one USB host, and can check every USB device’s current state. It has two USB-C hosts and 2 USB-A hosts. One USB-C host can transport 100W max power to charge the connected host, and the other USB-C host supports upgrading to a USB HUB

Host Port	(2)USB-C，(2)USB-B
USB Standard	USB 3.2 Gen2
Device Port	(2)USB-A, (2)USB-C
USB Standard	USB3.2 Gen2
Control port	(1)RS232, (1)TCP/IP，(1)GPIO
Control Connector	(1)4-pin terminal block, (1)RJ45,(1) Buttons
Bandwidth	10 Gbps (support switch to 5Gbps)
Operation Temperature	-10 ~ +55℃
Storage Temperature	-25 ~ +70℃
Relative Humility	10% - 90%
